NOTE #1: Some of these vehicles use a Special Anti-theft key to remote start you will need a
Bypass module 791,(use this module IF you have a extra ignition key to place inside
the 791 to operate, if you do not have an extra key to use or wish not to have a key
placed inside this bypass module, we OFFER a KEYLESS INTERFACE BYPASS MODULE
that does not require a key to be placed inside the bypass modlue, this is Part #
PKALL or P KFM, either one will work, to order, go to the INTERFACE BYPASS MODULE
PAGE on this website.
NOTE #2: If vehicle is equipped with a FACTORY KEYLESS ENTRY System, then the vehicle has
a TYPE B Door Locking System, vehicles without FACTORY KEYLESS ENTRY, have a
TYPE C Door Locking System. Vehicles with the KEY PAD on the Door is considered to
have KEYLESS ENTRY.

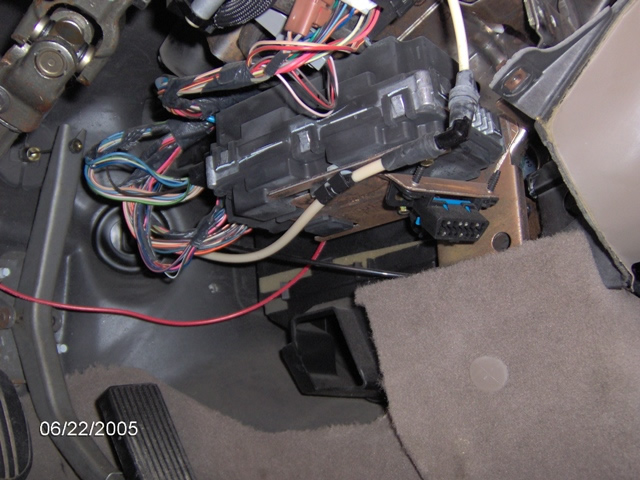

NOTE #3: The LCM (Lighting Control Module) is located to the RIGHT of the STEERING COLUMN,
with its harness accessable between the steering column and the LCM.
NOTE #4: This vehicle uses a 5-Wire Trunk Release system, and will require a extra relay
part #775, to connect, See DIAGRAM
NOTE #5: The PCM (Power Control Module) is located under the HOOD, on the drivers side
of the BRAKE MASTER CYLINDER.
NOTE #6: this vehicle has 2 DOOR TRIGGER wires, when connecting to an ALARM SYSTEM,
use both DOOR TRIGGER wires and DIODE ISOLATE, to connect, See DIAGRAM.
|
