PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED/BLACK (+)
|
BCM, RED 41-PIN PLUG, PIN D1, "X3"
|
|
|
STARTER
|
See NOTE #1
|
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
PINK (+)
|
IGNITION SWITCH, GREEN 6-PIN PLUG
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
BROWN (+)
|
IGNITION SWITCH, GREEN 6-PIN PLUG
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
BROWN/WHITE (-)
|
@ BCM ON THE FRONT PASSENGER SIDE OF CENTER CONSOLE
|
|
|
PARKING LIGHTS ( + )
|
BROWN (+)
|
@ BCM ON THE FRONT PASSENGER SIDE OF THE CENTER CONSOLE
|
|
|
POWER LOCK
|
WHITE (-) ONE WIRE SYSTEM, SEE NOTE #2
|
SEE DIAGRAM
|

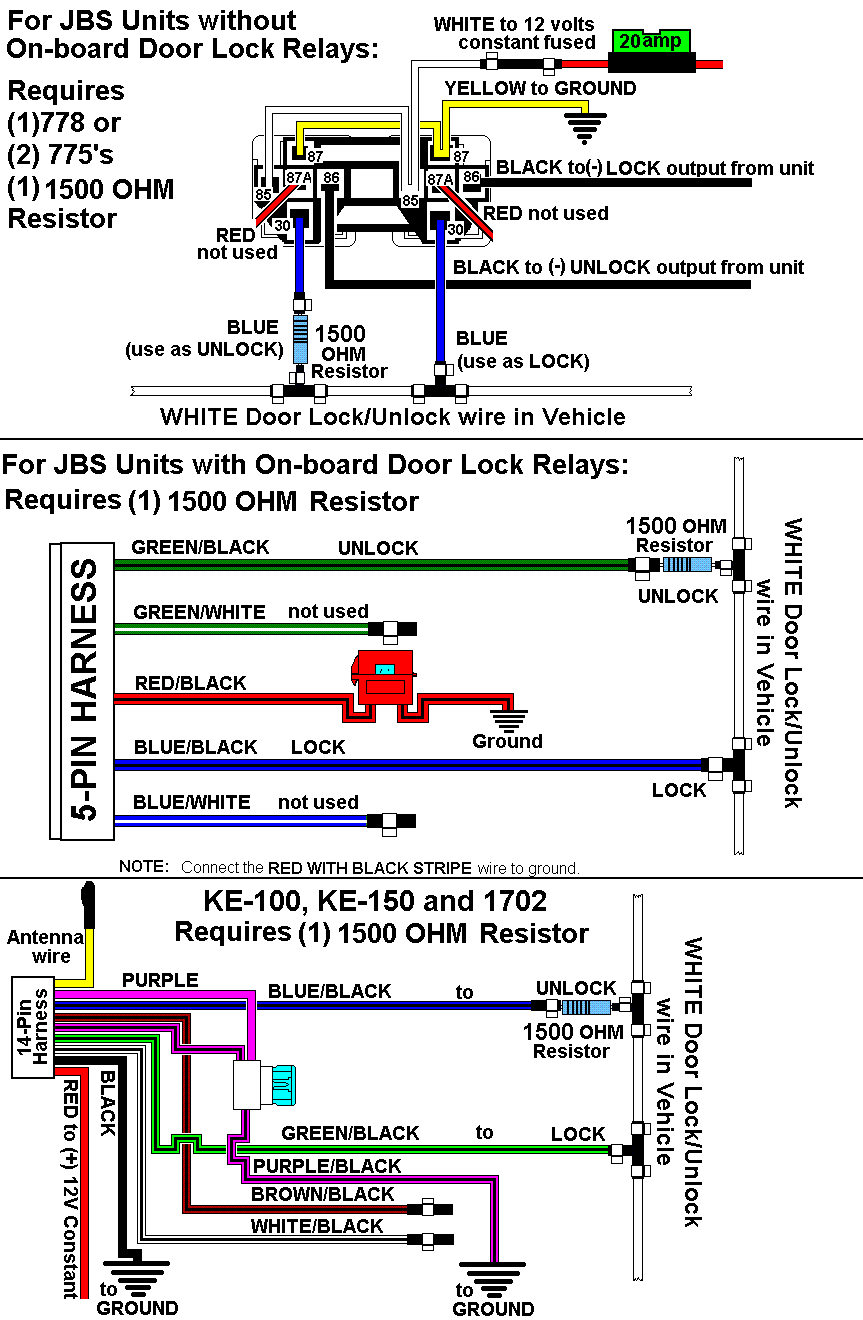

14301_G6_PONTIAC 1 WIRE JBS UNITS.GIF
|
|
POWER UNLOCK
|
SAME AS LOCK WIRE
|
SEE DIAGRAM
|

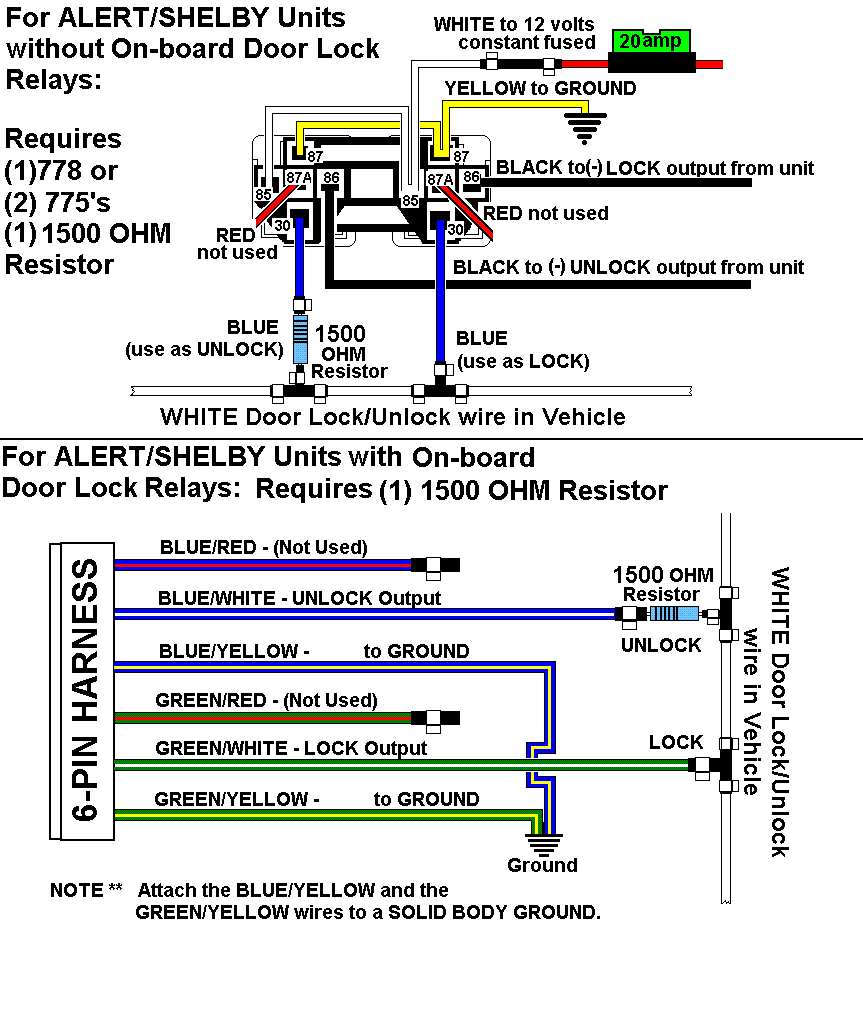

14301_G6_PONTIAC 1 WIRE ALERT UNITS.GIF
|
|
LOCK MOTOR WIRE
|
GRAY (+)
|
IN DRIVERS KICK PANEL
|
|
|
DOOR TRIGGER
|
GRAY/BLACK (-)
|
IN DRIVERS KICK PANEL
|
|
|
DOMELIGHT SUPERVISION
|
GRAY (-)
|
@ BCM ON THE FRONT PASSENGER SIDE OF THE CENTER CONSOLE
|
|
|
TRUNK RELEASE
|
BROWN/WHITE (-)
|
LOW IN DRIVERS KICK PANEL or BCM in GRAY 72-PIN PLUG, PIN 71
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
TAN (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
NOT PINK
|
@ FUEL INJECTOR
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
WHITE (+)
|
@ BCM ON THE FRONT PASSENGER SIDE OF THE CENTER CONSOLE
|
|
|
FACTORY ALARM DISARM
|
LT.GREEN ( - ) NEG . THRU 500OHMS (use a 470 + 33 ohm 1/2watt connected end to end)
|
DOOR HARNESS IN DRIVERS KICK OR @ BCM,C1, PIN 35
|
|
|
ANTI-THEFT
|
PONTIAC'S MULTIPLEX IGNITION/TRANSPONDER SYSTEM, See NOTE #1
|
|
|
