HONDA CRV
MODEL YEAR(S
CRV 2004-2006

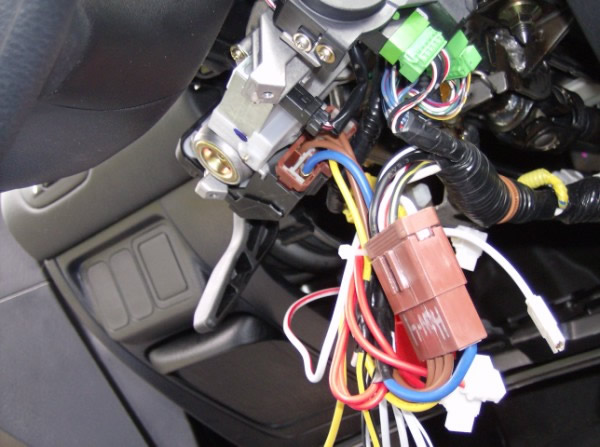

KEY T-HARNESS IMMOBILIZER
N/A HON-4 HONDA'S TRANSPONDER ANTI-THEFT SYSTEM, SEE NOTE #1
PART COLOR LOCATION DIAGRAM

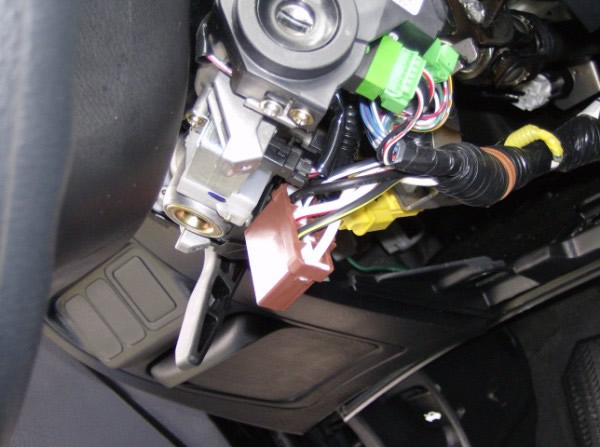

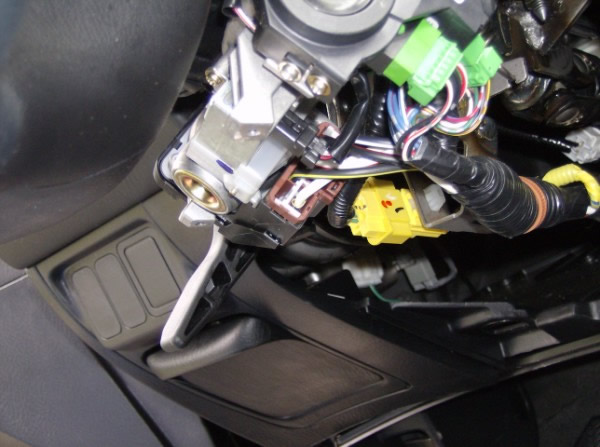

12 VOLT CONSTANT WHITE (+) @ IGNITION SWITCH HARNESS
STARTER BLACK/WHITE (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 BLACK/YELLOW (+) @ IGNITION SWITCH HARNESS
IGNITION 2 N/A
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 BLACK/RED (+) @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 WHITE/RED (+) @ IGNITION SWITCH HARNESS
KEYSENSE N/A
PARKING LIGHTS ( - ) BLUE (-) @ FACTORY ALARM Plug, See NOTE #3
PARKING LIGHTS ( + ) RED/BLACK (+) @ BACK OF FUSEBOX, TOP MIDDLE PLUG
POWER LOCK WHITE/BLUE (TYPE B) @ DRIVERS DOOR HARNESS
POWER UNLOCK WHITE/GREEN (TYPE B) @ DRIVERS DOOR HARNESS
LOCK MOTOR WIRE YELLOW/BLACK (5-WIRE TYPE) @ DRIVERS DOOR HARNESS
DOOR TRIGGER GREEN (-) and LIGHT GREEN/RED (-) Use both, See NOTE #2 @ FACTORY ALARM PLUG, See NOTE #3 26500_CRV_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION GREEN/RED (-), (Requires Part #775 Relay) BACK OF FUSEBOX
TRUNK RELEASE BLACK/YELLOW (-), (Requires Part #775 Relay) @ HATCH RELEASE SWITCH
SLIDING POWER DOOR N/A
HORN ORANGE (-) @ STEERING COLUMN HARNESS
TACH BLUE (AC) @ 2-PIN CONNECTOR, BEHIND BATTERY
WAIT TO START LIGHT N/A
BRAKE WHITE/BLACK (+) @ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM DISARMS with FACTORY REMOTE CONTROL ONLY!!
ANTI-THEFT HONDA'S TRANSPONDER ANTI-THEFT SYSTEM, SEE NOTE #1 @ IGNITION SWITCH TUMBLER
NOTES
NOTE #1: HONDA'S TRANSPONDER SYSTEM, Requires Bypass Module:

(For Remote Starting Only) Part #791 Bypass, (Requires Extra Key) for Operation.

(For Remote Starting Only) Part # DB-ALL (No Extra Key Required for Operation)

1-KEY Required for Programming.

To order please go to the SECURITY BYPASS MODULE Page or INTERFACE BYPASS

MODULE Page on this website.







NOTE #2; THE DRIVERS DOOR TRIGGER IS GREEN (-),AND LIGHT GREEN/RED CATCHES ALL

OTHER DOORS. WHEN CONNECTING TO AN ALARM SYSTEM, USE BOTH DOOR

TRIGGER WIRES AND DIODE ISOLATE, TO CONNECT, See DIAGRAM,





NOTE #3; THE FACTORY ALARM PLUG IS LOCATED TO THE LEFT OF THE STEERING COLUMN IN

A GREEN PLUG.
