DODGE NEON
MODEL YEAR(S
NEON 2004-2005
KEY T-HARNESS IMMOBILIZER
CHRKEY1 N/A CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1
PART COLOR LOCATION DIAGRAM

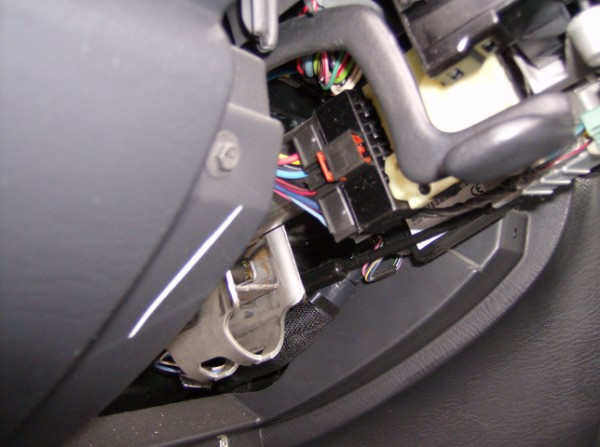

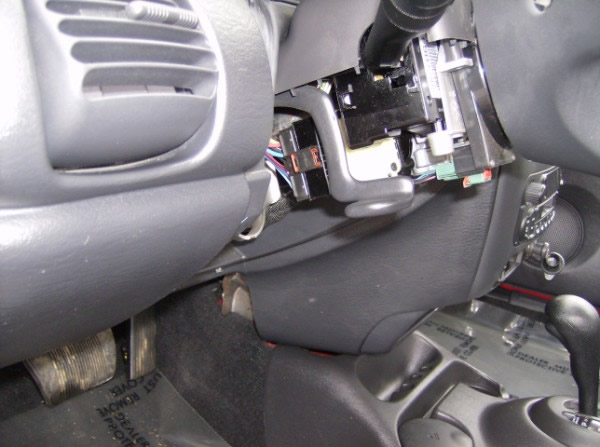

12 VOLT CONSTANT PINK/BLACK (+) and RED (+) @ IGNITION SWITCH HARNESS
STARTER YELLOW (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 BLUE (+) @ IGNITION SWITCH HARNESS
IGNITION 2 RED/WHITE (+) ( with Auto Stick only) @ IGNITION SWITCH HARNESS
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 BLACK/ORANGE (+) @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 BLACK/WHITE (+) @ IGNITION SWITCH HARNESS
KEYSENSE LT. BLUE (-) FROM IGNITION SWITCH
PARKING LIGHTS ( - ) N/A
PARKING LIGHTS ( + ) BLACK/YELLOW (+) @ HEADLIGHT SWITCH
POWER LOCK LIGHT GREEN (1-Wire Door Lock System), See NOTE #2 IN DRIVERS DOOR HARNESS, See DIAGRAM 26500_NEON_DODGE NEON 1 WIRE JBS UNITS.pdf
POWER UNLOCK Same wire, See DIAGRAM See DIAGRAMS 26500_NEON_DODGE NEON 1 WIRE ALERT SHELBY UNITS.pdf

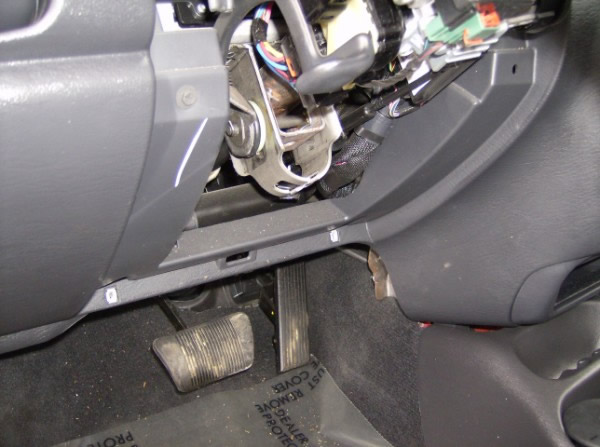

LOCK MOTOR WIRE ORANGE/BLACK (+) IN DRIVERS KICK PANEL, at DOOR HARNESS
DOOR TRIGGER TAN/BLACK (-) and LIGHT BLUE/ORANGE (-) Use both, See NOTE #3 IN DRIVERS KICK PANEL, HARNESS to REAR of vehicle or at KEYLESS ENTRY MODULE, See NOTE *3 24464_NEON_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION YELLOW (-), (Requires #775 Relay) IN DRIVERS KICK PANEL
TRUNK RELEASE BROWN/LIGHT BLUE (-) @ TRUNK RELEASE SWITCH
SLIDING POWER DOOR N/A
HORN BLACK/RED (-) @ HORN SWITCH or at KEYLESS MODULE, See NOTE #4
TACH ANY wire NOT DARK GREEN/ORANGE (AC) @ COIL PACK or FUEL INJECTOR
WAIT TO START LIGHT N/A

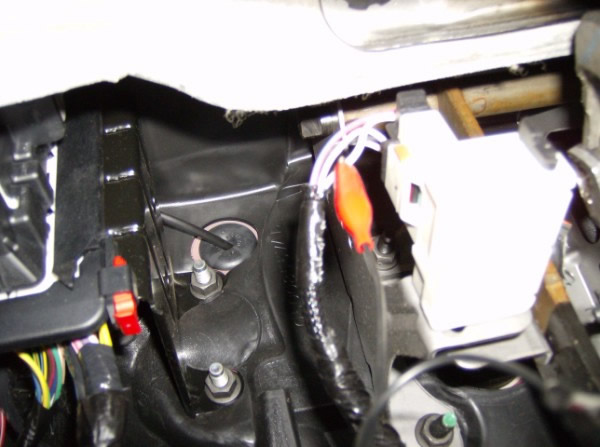

BRAKE WHITE/TAN (+) @ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM N/A
ANTI-THEFT CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1 @ IGNITION SWITCH TUMBLER
NOTES
NOTE #1: This vehicle may be equipped with CHRYSLER'S ANTI-THEFT TRANSPONDER System

(GRAY IGNITION KEY), if so to remote start will require the 791 BYPASS MODULE and

an extra Ignition key, to order go to the SECURITY BYPASS MODULE PAGE on this

website.





NOTE #2: this vehicle uses a 1-Wire Door Locking system, if vehicle is WITHOUT a FACTORY

ALARM SYSTEM, LOCK requires a (-)Negative thru a 1000 Ohm Resistor and UNLOCK

is a (-)Negative thru a 250 Ohm Resistor. If vehicle HAS a FACTORY ALARM SYSTEM,

ARM/LOCK is a (-)Negative thru a 2700 Ohm Resistor and DISARM/UNLOCK is a

(-)Negative thru a 7500 Ohm Resistor, some units will require 2 extra relays part

#775, to connect, See DIAGRAM.





NOTE #3: the DRIVERS DOOR is a TAN/BLACK (-) and the PASSENGER DOOR is a LIGHT

BLUE/ORANGE (-) when connecting to an ALARM SYSTEM, use both DOOR TRIGGER

wires and DIODE ISOLATE, to connect, See DIAGRAM





NOTE #4: the KEYLESS ENTRY MODULE is located in the Center of the Dash, remove top of

dash to access.
