FORD TAURUS
MODEL YEAR(S
TAURUS 2000-2003

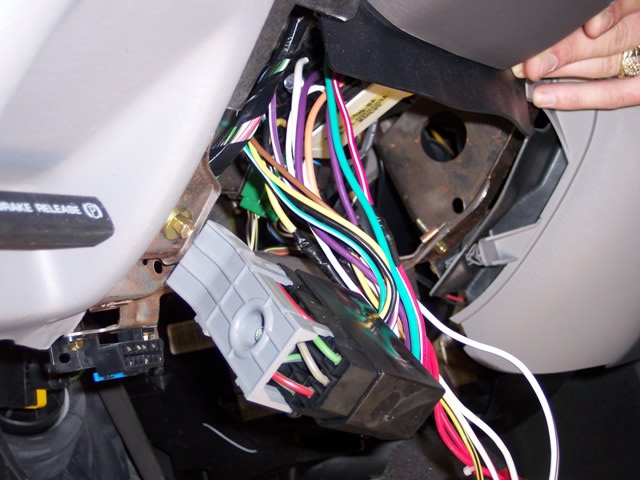

KEY T-HARNESS IMMOBILIZER
FDKEY-4 N/A FORD'S ANTI-THEFT TRANSPONDER SYSTEM, SEE NOTE #1
PART COLOR LOCATION DIAGRAM

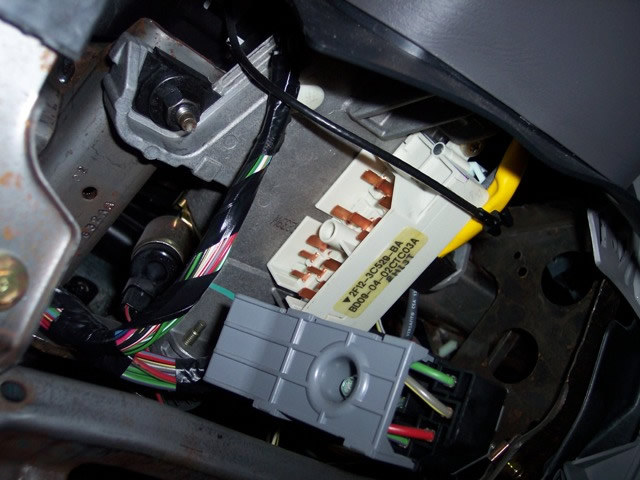

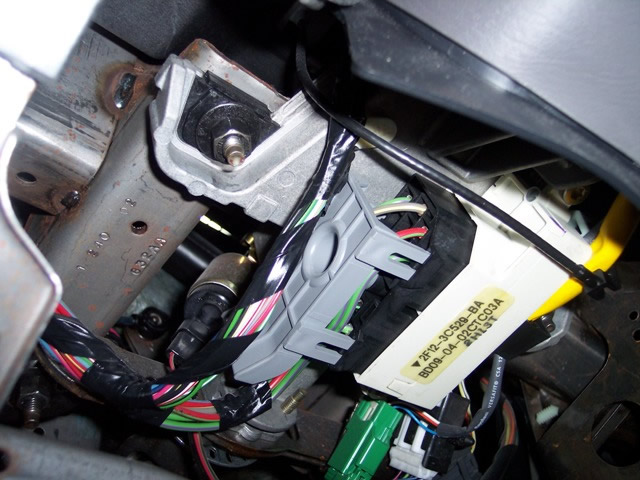

12 VOLT CONSTANT LIGHT GREEN/PURPLE (+) @ IGNITION SWITCH HARNESS
STARTER RED/LIGHT BLUE (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 RED/LIGHT GREEN (+) @ IGNITION SWITCH HARNESS
IGNITION 2 BLACK/LIGHT GREEN (+) @ IGNITION SWITCH HARNESS
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 GRAY/YELLOW (+) @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 N/A
KEYSENSE N/A
PARKING LIGHTS ( - ) N/A
PARKING LIGHTS ( + ) BROWN (+) @ HEADLIGHT SWITCH or at FUSEBOX
POWER LOCK PINK/YELLOW (TYPE B) @ GEM. 26-Pin Plug, See NOTE #2
POWER UNLOCK PINK/LIGHT GREEN (TYPE B) @ GEM, 26-Pin Plug, See NOTE #2
LOCK MOTOR WIRE PINK/BLACK (5-WIRE TYPE) @ TOP Plug of FUSEBOX
DOOR TRIGGER See NOTE #3 @ GEM, See NOTE #2 4754_TAURUS_FORD DOOR PIN ISOLATION.pdf
DOMELIGHT SUPERVISION BLACK/LIGHT BLUE (+) TOP Plug of FUSE BOX
TRUNK RELEASE See NOTE #4, (Requires Part #775 Relay)
SLIDING POWER DOOR N/A
HORN PURPLE (-) or BLUE (-) @ STEERING COLUMN HARNESS
TACH TAN/YELLOW (AC) @ PCM, See NOTE #5
WAIT TO START LIGHT N/A
BRAKE RED/LIGHT GREEN (+) @ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM PINK/WHITE (-) @ GEM, 26-Pin Plug, See NOTE #2

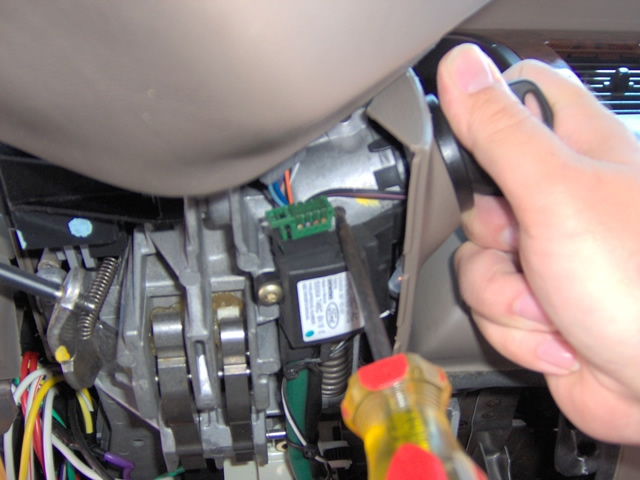

ANTI-THEFT FORD'S ANTI-THEFT TRANSPONDER SYSTEM, SEE NOTE #1 @ IGNITION SWITCH TUMBLER
NOTES
NOTE #1: This vehicle is equipped with a Special Anti-theft key, to remote start you will

need a Bypass module 791, use this module IF you have a extra ignition key to

place inside the 791 to remote start, if you do not have an extra key to use or wish

not to have a key placed inside this bypass module, we OFFER a KEYLESS INTERFACE

BYPASS MODULE that does not require a key to be placed inside the bypass module,

this is Part # PKALL or PKFM, either one will work, to order, go to the INTERFACE

BYPASS MODULE PAGE on this website.

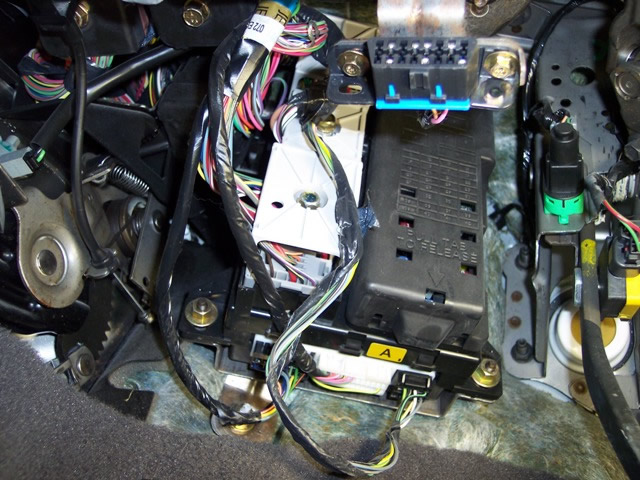

NOTE #2: the GEM (Generic Electronic Module) is located to the LEFT of the STEERING COLUMN.





NOTE #3: these wires are at the 26-Pin Plug at the GEM, this vehicle has 4 door pin triggers,

the DRIVERS DOOR is a YELLOW/BLACK (-) PASSENGER DOOR is a GREY/RED (-)

DRIVERS REAR DOOR is a LIGHT GREEN/YELLOW (-) and the PASSENGER REAR

DOOR is a PINK/LIGHT BLUE (-) When connecting to an ALARM SYSTEM, use all

4 DOOR TRIGGER wires and DIODE ISOLATE, to connect, See DIAGRAM.







NOTE #4: On vehicles WITH a FACTORY KEYLESS ENTRY, the TRUNK RELEASE wire is a

PURPLE/YELLOW (-) on vehicle WITHOUT a FACTORY KEYLESS ENTRY, it is a

GREY/RED (+) at the Trunk Release switch. On Station Wagons to release the

rear hatch, use the YELLOW/LIGHT GREEN (-) wire in the 26-Pin Plug of the GEM.





NOTE #5: the PCM (Power Control Module) is located on the PASSENGER SIDE FIREWALL

under the hood.
