FORD FREESTAR

MODEL	YEAR(S
FREESTAR	2004-2007

KEY	T-HARNESS	IMMOBILIZER
FDKEY-4	N/A	FORD'S ANTI-THEFT TRANSPONDER SYSTEM, SEE NOTE #1

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	RED (+) and LIGHT GREEN/PURPLE (+)	@ IGNITION SWITCH HARNESS
STARTER	DARK GREEN (+)	@ IGNITION SWITCH HARNESS
STARTER 2	N/A
IGNITION 1	WHITE/YELLOW (+)	@ IGNITION SWITCH HARNESS
IGNITION 2	BLACK/LIGHT GREEN (+)	@ IGNITION SWITCH HARNESS
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	PURPLE/ORANGE (+)	@ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2	N/A
KEYSENSE	N/A
PARKING LIGHTS ( - )	N/A
PARKING LIGHTS ( + )	See NOTE #2	See DIAGRAM	498_FREESTAR_FREESTAR WINDSTAR PARKING LIGHT DIAGRAM.pdf
POWER LOCK	WHITE/PURPLE (TYPE B)	@ SJB, BLACK 26 Pin Plug, Pin 3, See NOTE #3

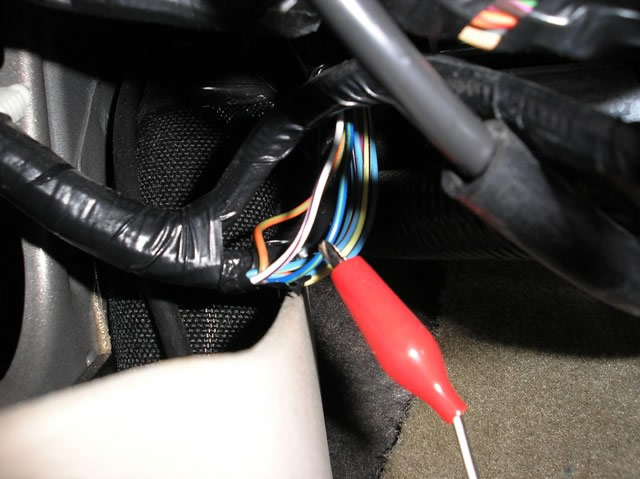

POWER UNLOCK	DARK BLUE/LIGHT GREEN (TYPE B)	@ SJB, BLACK 26 Pin Plug, Pin 1, See NOTE #3
LOCK MOTOR WIRE	RED/ORANGE (+)	@ SJB, BLACK 5-Pin Plug, Pin 3, See NOTE #3
DOOR TRIGGER	ORANGE/WHITE (-)	@ SJB, GREY 26 Pin Plug, Pin 21, See NOTE #3

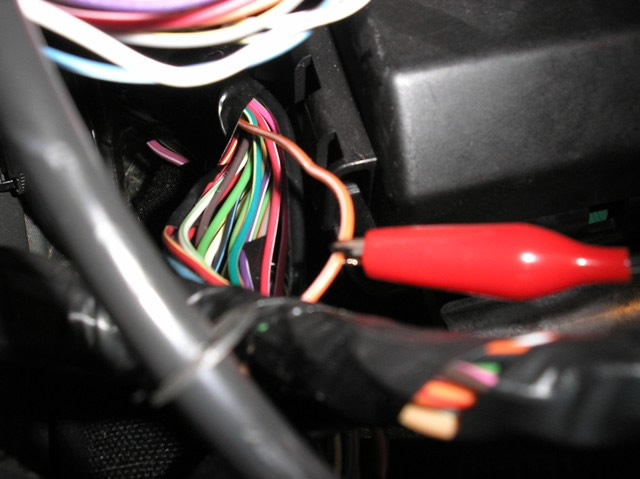

DOMELIGHT SUPERVISION	USE DOOR TRIGGER, (Requires Part #775 Relay)
TRUNK RELEASE	YELLOW (-)	@ SJB, GREY 26 Pin Plug, Pin 15, See NOTE #3
SLIDING POWER DOOR	N/A

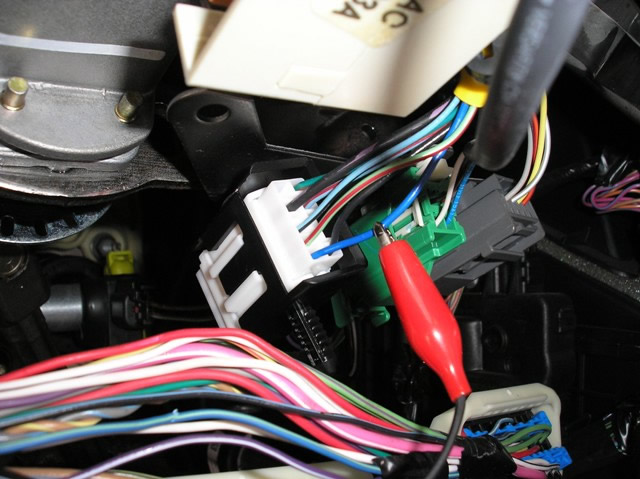

HORN	DARK BLUE (-)	@ SJB, BLUE 52 Pin Plug, Pin 39, See NOTE #3
TACH	Any wire that is NOT RED (AC)	@ any IGNITON COIL or FUEL INJECTORS
WAIT TO START LIGHT	N/A
BRAKE	RED/LIGHT GREEN (+)	@ SJB, BLACK 36 Pin Plug, Pin 5, See NOTE #3
FACTORY ALARM DISARM	LIGHT BLUE/BLACK (-)	@ SJB, BLACK 26 Pin Plug, Pin 9, See NOTE #3

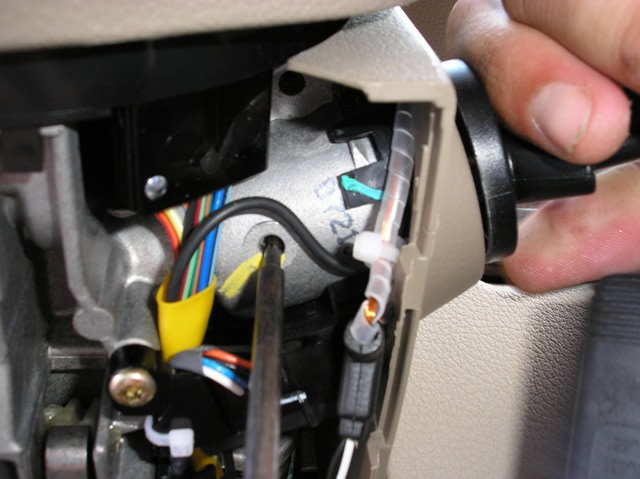

ANTI-THEFT	FORD'S ANTI-THEFT TRANSPONDER SYSTEM, SEE NOTE #1	@ IGNITION SWITCH TUMBLER

NOTES

NOTE #1: This vehicle MAY BE equipped with a Special Anti-theft key, to remote start you will need a Bypass module 791,(use this module IF you have a extra ignition key to place inside the 791 to remote start, if you do not have an extra key to use or wish not to have a key placed inside this bypass module, we OFFER a KEYLESS INTERFACE BYPASS MODULE that does not require a key to be placed inside the bypass module, this is Part # PKALL or PKFM, either one will work, to order, go to the INTERFACE BYPASS MODULE PAGE on this website. NOTE #2: This vehicle use a Special PARKING LIGHT DIAGRAM that requires 2 extra relays part #775, to connect, See DIAGRAM. NOTE #3: The SJB (Smart Junction Box) is part of the FUSE BOX under the drivers side of dash, the BLACK 36-Pin and the BLUE 52-Pin Plugs are on the front and all other plugs are on the back.

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

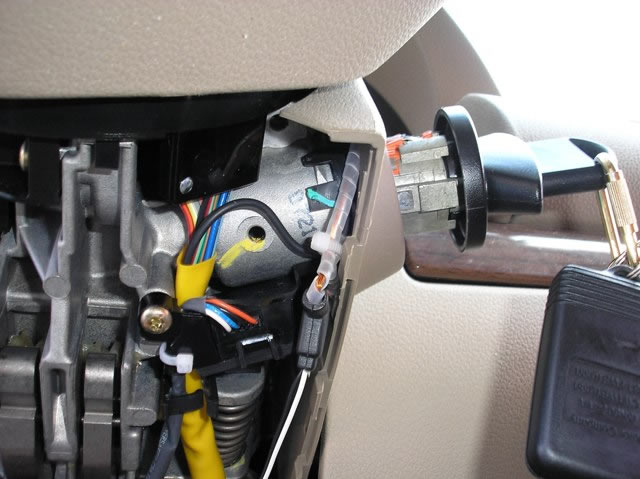

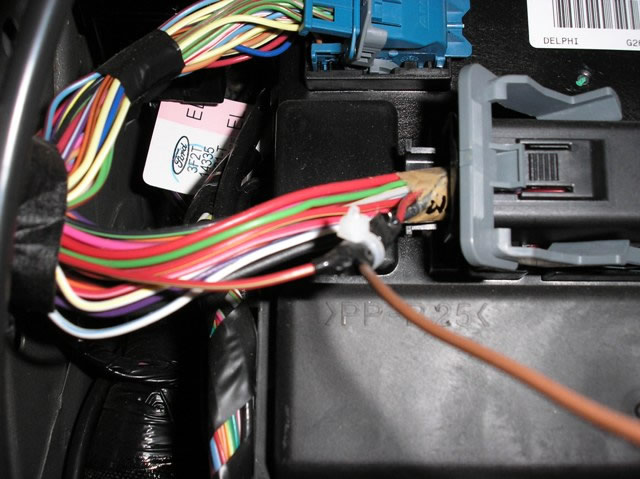

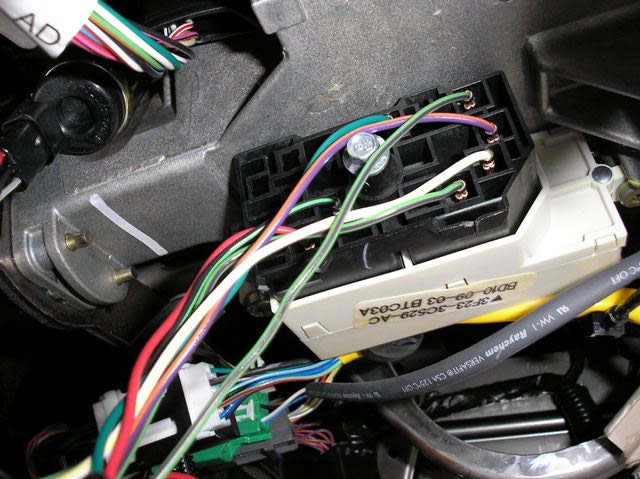

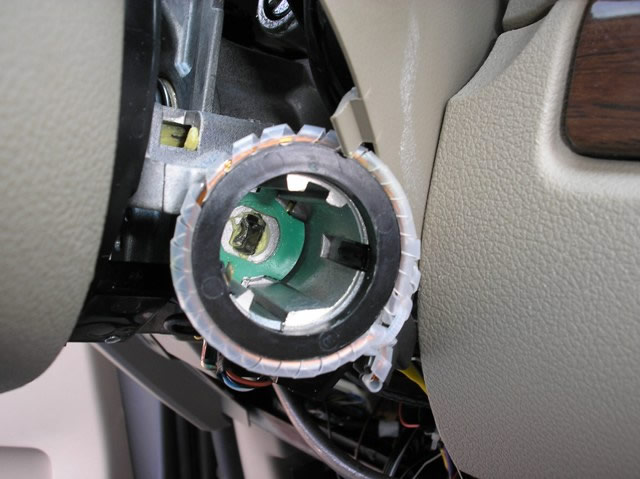

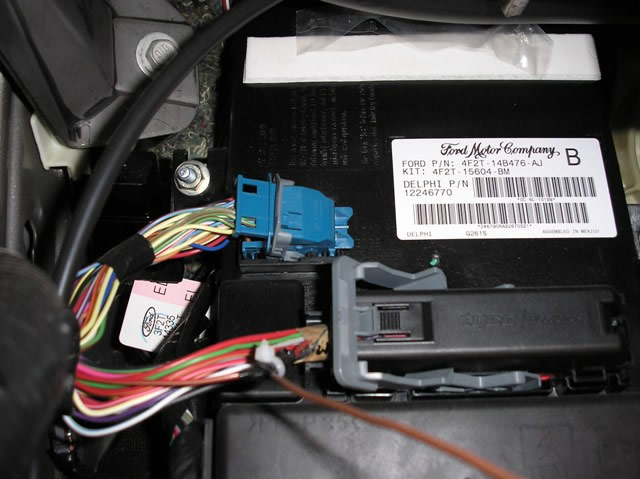

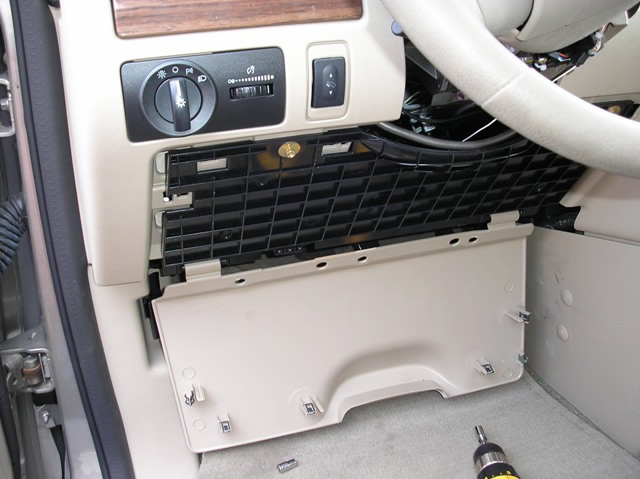

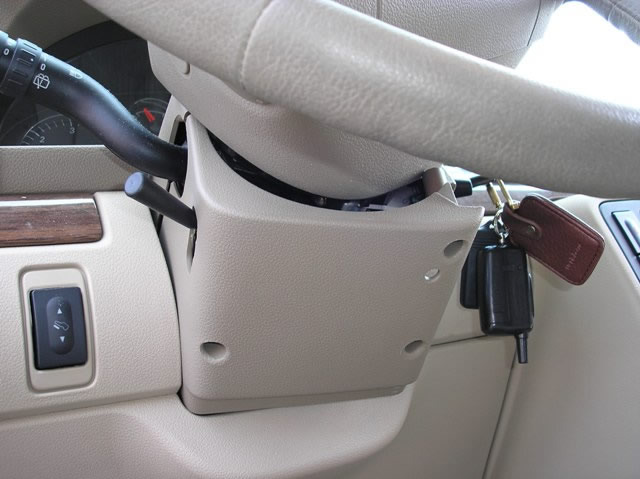

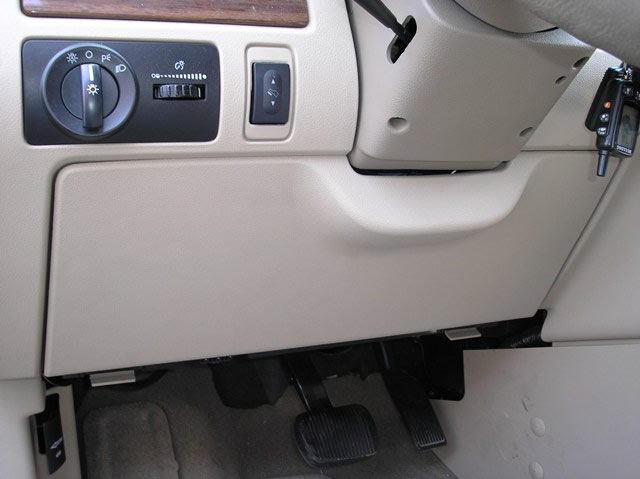

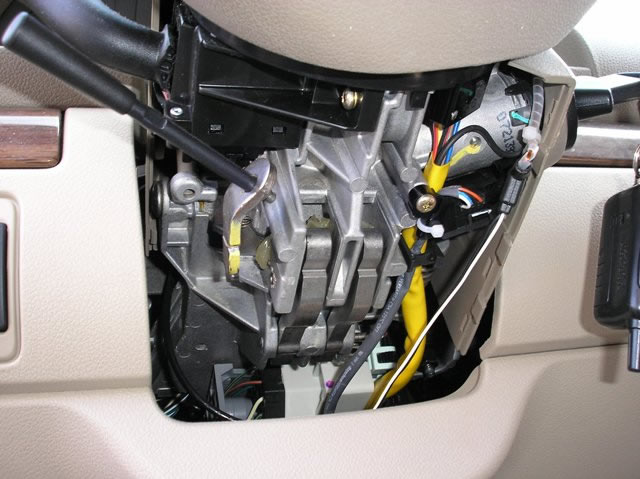

Show Large Image The (+) RED/LIGHT GREEN BRAKE wire is located in this BLACK Plug on the FRONT of the BCM/SJB in this vehicle. Show Large Image This PLASTIC UNDER DASH Panel must first be removed to gain access to the underdash wiring on this vehicle. Show Large Image This is the second under dash panel that will need removed, this BLACK PLASTIC KNEE BOLSTER is held in place by (4) 8mm bolts. Show Large Image The BCM or SMB is part of the FUSEBOX under the DRIVERS SIDE of the DASH. Show Large Image This shows the GRAY cover over top of the BLACK IGNITION SWITCH HARNESS Plug on this vheicle, the BLACK Plug can be removed form the IGNITION SWITCH Plug by removing the 8mm bolt that hold it into place in the middle of this plug. Show Large Image This shows the IGNITION SWITCH HARNESS Plug with the GRAY Cover removed, by doing this lets us see the wire colors on the IGNITION SWITCH Harness a little better. Show Large Image This shows the LOWER Steeing Column Cover that must be removed to gain access to the FACTORY TRANSPONDER System on this vehicle. You will need to remove the (3) Screws that hold this cover in place. Show Large Image This view shows the LOWER STEERING COLUMN COVER removed, by doing this we can now see the TRANSPONDER System around the IGNITION SWITCH TUMBLER on this vehicle. NOTE ** this vehicle has the 791's TRANSPONDER LOOP ANTENNA already installed in this picture. Show Large Image With the LOWER STEERING COLUMN COVER removed, you will next need to remove the IGNITION SWITCH TUMBLER by pressing in on the RELEASE PIN of the IGNITION SWITCH TUMBLER as shown in this picture. Show Large Image By pressing in and turning on the IGNITION KEY at the same time, you can PULL OUT the IGNITION SWITCH TUMBLER from the Switch on the vehicle, you will need to do this so that you can remove the UPPER STEERING COLUMN COVER. Show Large Image With the IGNITION SWITCH TUMBLER removed and the UPPER Steering Column Cover pull up and out of the way, you can now place the 791's TRANSPONDER LOOP ANTENNA around the FACTORY TRANSPONDER RECIEVER ANTENNA around the IGNITION SWITCH TUMBLER as seen in thi Show Large Image This picture shows the (3) PARKING LIGHT wires at the BACK of the HEAD LIGHT Switch marked with the RED Clip, this switch removes from the dash by prying it out to gain access to the wires. This PARKING LIGHT System will requires (1) or (2) extra Relays P Show Large Image The (-) DARK BLUE HORN wire can be found IN the AIRBAG HARNESS, under the DRIVERS DASH, when TESTING this wire, USE EXTREME CAUTION!!! it is the ONLY DARK BLUE wire in the AIR BAG HARNESS Plug. Show Large Image The (-) ORANGE/WHITE DOOR TRIGGER/DOMELIGHT Supervision wire in located in the harness on the LEFT side of the BCM/SJB Module, heading under the dash in this picture and is marked with the RED Clip. Show Large Image The (-) WHITE/PURPLE LOCK wire is marked with the RED Clip in this picture, the harness this wire is found in is the harness coming from the DRIVERS DOOR and heading towards the BCM/SJB Module. Show Large Image The (-) DARKBLUE/LIGHT GREEN UNLOCK wire is marked with the RED Clip in this picture, the harness this wire is found in is the harness coming from the DRIVERS DOOR and heading towards the BCM/SJB Module.
