PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
YELLOW (+) and LIGHT GREEN/PURPLE (+)
|

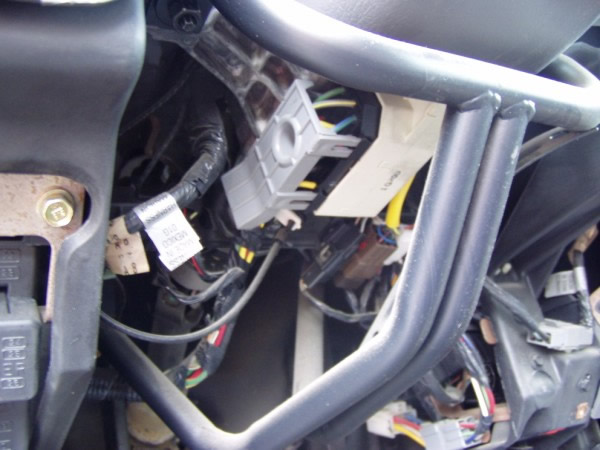

@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
RED/LIGHT BLUE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
DARK BLUE/LIGHT GREEN (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
RED/BLACK (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
GRAY/YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
BLACK/LIGHT GREEN (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
BROWN (+)
|

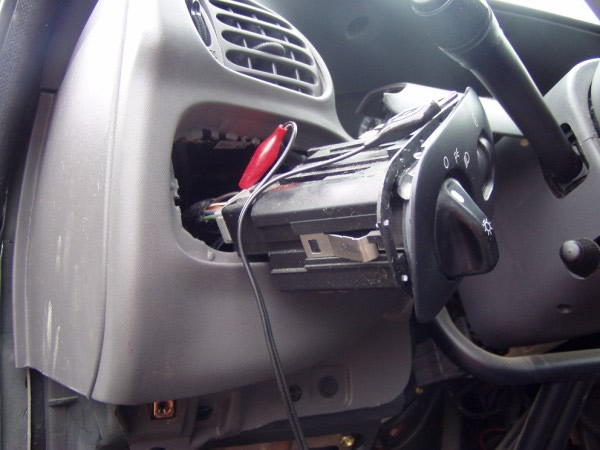

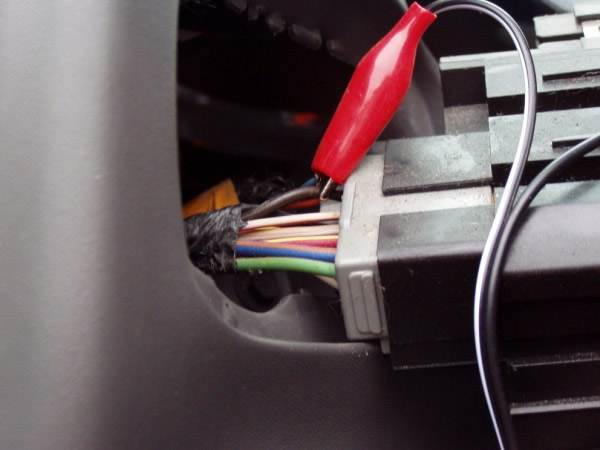

@ HEADLIGHT SWITCH, See NOTE *2
|
|
|
POWER LOCK
|
PINK/YELLOW (TYPE C), See NOTE #3
|
IN DRIVERS KICK PANEL, at DOOR HARNESS
|
|
|
POWER UNLOCK
|
PINK/LIGHT GREEN (TYPE C), See NOTE #3
|
IN DRIVERS KICK PANEL, at DOOR HARNESS
|
20671_F-SERIES-LIGHT-DUTY_FORD GEM WAKE UP DIAGRAM.pdf
|
|
LOCK MOTOR WIRE
|
PINK/BLACK (5-wire type)
|
IN DRIVERS KICK PANEL
|
|
|
DOOR TRIGGER
|
BLACK/YELLOW (-) and BLACK/PINK (-) Use both, See NOTE #4
|
IN EACH KICK PANEL at the DOOR HARNESS See DIAGRAM
|
14301_F-SERIES-LIGHT-DUTY_FORD DOOR PIN ISOLATION.pdf
|
|
DOMELIGHT SUPERVISION
|
BLACK/LIGHT BLUE (+)
|
IN PASSNEGER KICK PANEL
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DARK BLUE (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
See NOTE #5
|
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
LIGHT GREEN (+)
|

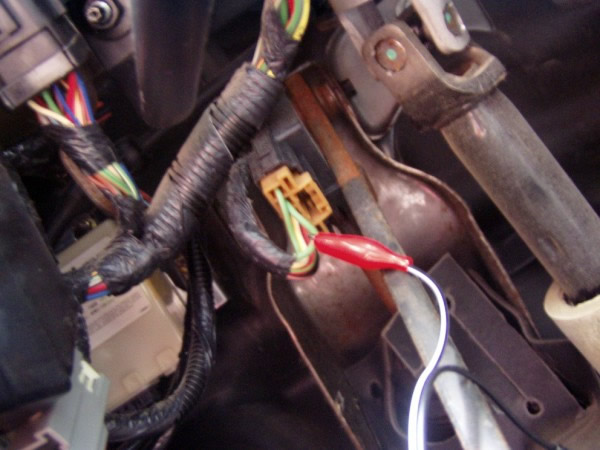

@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
DARK GREEN/PURPLE (-)
|
IN DRIVERS KICK PANEL
|
|
|
ANTI-THEFT
|
FORDS TRANSPONDER ANTI-THEFT SYSTEM, See NOTE #1
|
@ IGNITION SWITCH TUMBLER
|
|
|
NOTES
|
NOTE #1: This vehicle is equipped with a Special Anti-theft key, to remote start you will need a
Bypass module 791,(use this module IF you have a extra ignition key to place inside
the 791 to remote start, if you do not have an extra key to use or wish not to have a
key placed inside this bypass module, we OFFER a KEYLESS INTERFACE BYPASS
MODULE that does not require a key to be placed inside the bypass modlue, this is
Part # PKALL or PKFM, either one will work, to order, go to the INTERFACE BYPASS
MODULE PAGE on this website.
NOTE #2: the (+) PARKING LIGHT wire may also be found at the TRAILER CONNECTOR next
to the Diagnostic Connector under the dash.
NOTE #3: If vehicle is equipped with FACTORY KEYLESS ENTRY it is a TYPE "B" Door Locking
System, without FACTORY KEYLESS it is a TYPE "C". Use the DRIVERS SIDE Switch
as the Master Switch when testing. After hooking up the door locks if you notice
that they will not Unlock after the vehicle sets for a few minutes you will need to
WAKE UP the GEM, to connect, See DIAGRAM.
NOTE #4: This vehicle has 2 door triggers, when connecting to an ALARM SYSTEM, us both and
DIODE ISOLATE. On the SUPER CREW the REAR DOOR trigger is a BLACK/LIGHT BLUE
(-) low in the drivers kick panel, to connect, See DIAGRAM
NOTE #5: The TACH wire on the 4.2L engine is a DARK BLUE/LIGHT GREEN at the coil pack, on
the 4.6L it is a PINK/WHITE (AC)in a 3-Pin plug at the front of the engine below the air
intake by the fan. On the 5.4L it is a LIGHT GREEN/WHITE at the coil on the
passenger side of the engine.
|
