PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
PINK (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
WHITE (+), SEE NOTE #2
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
ORANGE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
BROWN (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
GRAY/BLACK (-)
|
@ BCM, BROWN PLUG, PIN B2, SEE NOTE #3
|
|
|

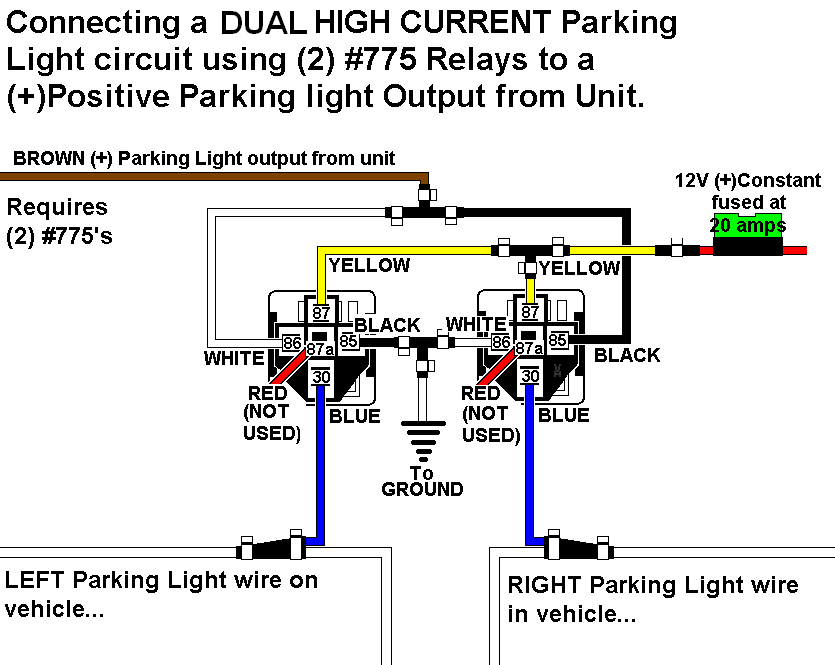

PARKING LIGHTS ( + )
|
BROWN (+) (Left) BROWN/WHITE (+) (Right)
|
ENGINE BAY FUSE BOX IN RED 32 PIN PLUG, PINS F6 & C6
|
|
|
POWER LOCK
|
SEE NOTE #1, (for BASE MODEL TRUCKS, SEE NOTE #4)
|
|
|
|
POWER UNLOCK
|
SEE NOTE #1, (for BASE MODEL TRUCKS SEE NOTE #4)
|
|
|
|
LOCK MOTOR WIRE
|
GRAY (5-WIRE TYPE)
|
@ DRIVERS DOOR MODULE IN DOOR
|
|
|
DOOR TRIGGER
|
GRAY/BLACK(-)(DRIVERS) and BLACK/WHITE(-)(PASSENGER),SEE NOTE#5
|
@ EACH DOOR MODULE, IN EACH DOOR
|
|
|
DOMELIGHT SUPERVISION
|
GRAY/BLACK (-)
|
@ BCM, BLACK PLUG, PIN E, SEE NOTE #3
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
BLACK/YELLOW to BLACK (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
Any wire NOT, PINK, BLACK or BROWN (AC)
|
@ IGNITION COILS or FUEL-INJECTORS
|
|
|
WAIT TO START LIGHT
|
DK. BLUE (-)
|
@ INSTRUMENT CLUSTER, PIN A2
|
|
|
BRAKE
|
WHITE (+)
|
@ BRAKE PEDAL SWITCH
|
|
|
FACTORY ALARM DISARM
|
LT. GREEN (-)
|
@ DRIVERS DOOR MODULE, IN DOOR, BLACK 26-PIN PLUG PIN 15
|
|
|
ANTI-THEFT
|
GM'S PASSLOCK 2 ANTI-THEFT SYSTEM, SEE NOTE #1
|
@ IGNITION SWITCH
|
|
|
NOTES
|
NOTE #1: This vehicle uses GM'S PASSLOCK 2 ANTI-THEFT SYSTEM that requires a 791 Bypass
Module to Remote Start, if you are using a REMOTE STARTER ONLY, use the 791, to
order go to the SECURITY BYPASS MODULES Page on this website. IF you are
installing a REMOTE STARTER with KEYLESS ENTRY you MUST USE the INTERFACE
BYPASS MODULE, Part # DB-ALL or XK09, EITHER Bypass will do the Anti-theft and
Keyless entry. If connecting a keyless entry only you can use the GMDL-BP
to order, CALL 800 561 1110 ex. 2146, 9AM to 5PM eastern time, M-F.
NOTE #2: The IGNITION #2 wire WHITE must be connected to prevent a CHECK ENGINE LIGHT
from turning on and to prevent DAMAGE to the TRANSMISSION on this Vehicle.
NOTE #3; The BCM is located under the Drivers Side of the dash, the BCM has 6 plugs on it,
with the PURPLE plug on the back.
NOTE #4: On BASE model truck the DOOR LOCK INTERFACE MODULE is not necessary, the LOCK
wire is a LT BLUE (TYPE B) @ the BCM, LT BLUE PLUG, PIN B5, and the UNLOCK wire is
a WHITE (TYPE B) @ the BCM, LT BLUE PLUG, PIN B10.
NOTE #5: On BASE Model trucks, the Door Trigger wires are @ the BCM, LT BLUE PLUG, PINS B4
and A5. On 4-Door Trucks the LEFT REAR Door is a LT BLUE/BLACK (-) PIN A3 and the
RIGHT REAR Door is a LT GREEN/BLACK (-) PIN A2, located in a PURPLE PLUG at the
BCM, use all 4 wires and diode isolate when installing an alarm system.
|
