CHRYSLER CONCORDE
MODEL YEAR(S
CONCORDE 1998-2003
KEY T-HARNESS IMMOBILIZER
CHRKEY-1 N/A CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1
PART COLOR LOCATION DIAGRAM

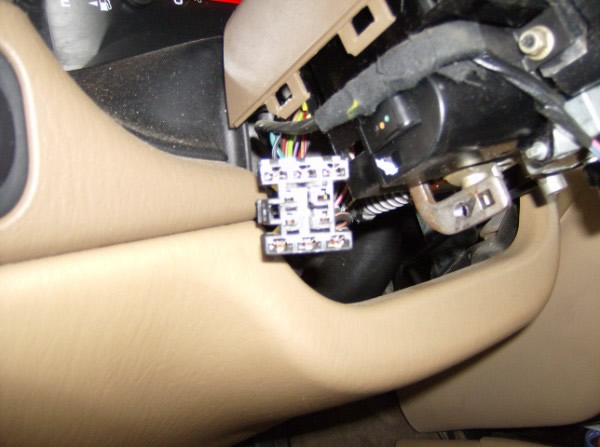

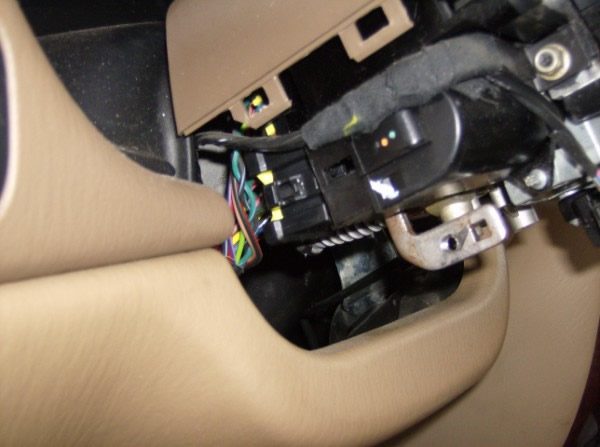

12 VOLT CONSTANT PINK/BLACK (+) @ IGNITION SWITCH HARNESS
STARTER YELLOW (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 DARK BLUE/WHITE (+) @ IGNITION SWITCH HARNESS
IGNITION 2 GREEN/RED (+) @ IGNITION SWITCH HARNESS
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 BLACK/ORANGE (+) @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 BLACK/WHITE (+) @ IGNITION SWITCH HARNESS
KEYSENSE N/A
PARKING LIGHTS ( - ) YELLOW (-) See NOTE #2 @ HEADLIGHT SWITCH, See DIAGRAM 4623_CONCORDE_CHRYSLER PARKING LIGHT DIAGRAM.pdf
PARKING LIGHTS ( + ) DO NOT USE!
POWER LOCK WHITE/GREEN (1-Wire Door Lock System) See NOTE *2 @ BACK of FUSEBOX, See DIAGRAM 23010_CONCORDE_CHRYSLER COUPE and SEDAN 1 WIRE JBS UNITS.pdf
POWER UNLOCK Same wire, See DIAGRAM See DIAGRAMS 1653_CONCORDE_CHRYSLER COUPE and SEDAN 1 WIRE ALERT SHELBY UNITS.pdf
LOCK MOTOR WIRE ORANGE (5-wire type) @ BCM, See NOTE #6
DOOR TRIGGER TAN (-) and TAN/RED (-) Use both, See NOTE #5 @ BCM, See NOTE #6 16282_CONCORDE_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION YELLOW (-), Requires #775 Relay @ REAR of FUSEBOX, BROWN Plug
TRUNK RELEASE BLACK/WHITE (+), Requires #775 Relay @ TRUNK RELEASE SWITCH
SLIDING POWER DOOR N/A
HORN BLACK/RED (-) @ STEERING COLUMN HARNESS
TACH See NOTE #4 @ IGNITION COIL PACK
WAIT TO START LIGHT N/A
BRAKE WHITE/TAN (+) @ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM LIGHT GREEN/ORANGE (+), See NOTE #7 IN DRIVERS KICK PANEL 1653_CONCORDE_CHRYSLER POSITIVE DISARM DIAGRAM.pdf
ANTI-THEFT CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1 @ IGNITION SWITCH TUMBLER
NOTES
NOTE #1: This vehicle may be equipped with CHRYSLER'S ANTI-THEFT TRANSPONDER System

(GRAY IGNITION KEY), if so to remote start will require the 791 BYPASS MODULE and

an extra Ignition key, to order go to the SECURITY BYPASS MODULE PAGE on this

website.







NOTE #2: the PARKING LIGHTS require an extra Relay part #775 and a (-)Negative thru a 110

Ohm Resistor, See DIAGRAM.







NOTE #3: the DOOR LOCKS on this vehicle require a (+)Positive thru a 2700 Ohm resistor to

LOCK and a (+)Positive thru a 620 Ohm resistor to UNLOCK, some units will also

require 2 extra relays Part #775 for the keyless entry feature to function, See

DIAGRAMS. You can also get a INTERFACE BYPASS MODULE the Part XK09 that will

do this for you without adding extra relays and resistors, these Modules will also do

dome light supervision and trunk pop with nothing needed, to order please go to

the INTERFACE BYPASS MODULE Page on this website









NOTE #4: This vehicle uses a Multi-Coil system, for TACH use any wire at the coil pack that has

a TAN STRIPE wire.







NOTE #5: you must use both the TAN(-) and the TAN/RED (-) wires when connecting to an

ALARM SYSTEM and DIODE ISOLATE, See DIAGRAM







NOTE #6: the BCM (Body Control Module) is located on the LEFT SIDE of the DASH attached to

the Junction block.







NOTE #7: the DISARM wire requires an extra relay part #775 and a (+)Positive thru a 680 Ohm

Resistor, to connect, See DIAGRAM
