PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
WHITE (+)
|

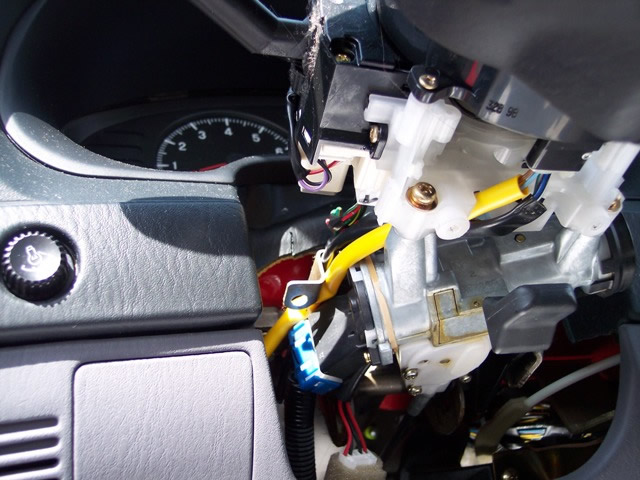

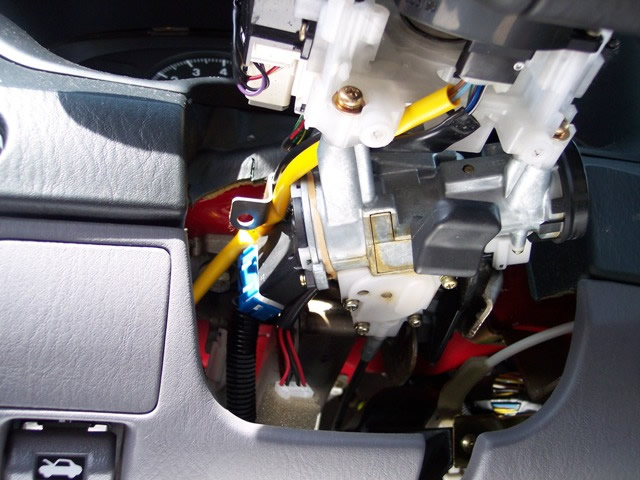

@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
BLACK/RED (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
BLACK/WHITE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
BLUE/BLACK (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
GREEN/WHITE (-) Small Gauge
|
@ STEERING COLUMN HARNESS
|
|
|
PARKING LIGHTS ( + )
|
GREEN/WHITE (+)
|
IN DRIVERS KICK PANEL
|
|
|
POWER LOCK
|
BROWN (TYPE B)
|
IN DRIVER KICK PANEL at DOOR HARNESS
|
|
|
POWER UNLOCK
|
BROWN/WHITE (TYPE B)
|
IN DRIVER KICK PANEL at DOOR HARNESS
|
|
|
LOCK MOTOR WIRE
|
BLUE/BLACK (5-WIRE TYPE)
|
IN DRIVERS KICK PANEL, at DOOR HARNESS
|
|
|
DOOR TRIGGER
|
RED/GREEN (-)
|
IN DRIVERS KICK PANEL
|
|
|
DOMELIGHT SUPERVISION
|
USE DOOR TRIGGER, (Requires #775 Relay)
|
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
GREEN/BLACK (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
WHITE (AC)
|

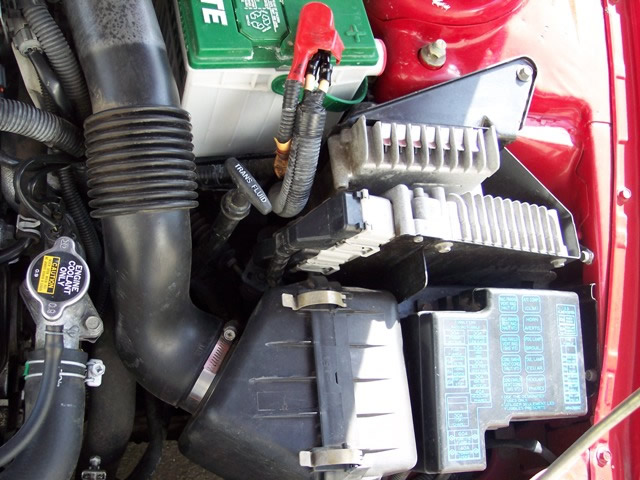

@ PCM, See NOTE #1
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
GREEN/WHITE (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
GREEN/WHITE (-)
|
IN DRIVERS DOOR HARNESS
|
|
|
ANTI-THEFT
|
N/A
|
|
|
