PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+)
|
IGNITION SWITCH HARNESS
|
|
|
STARTER
|
RED (+)
|
IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
N/A
|
|
|
IGNITION 1
|
YELLOW (+)
|
IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
N/A
|
|
|
IGNITION 3
|
N/A
|
N/A
|
|
|
ACCESSORY/HEATER BLOWER 1
|
GREEN (+)
|
IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
N/A
|
|
|
KEYSENSE
|
N/A
|
N/A
|
|
|
PARKING LIGHTS ( - )
|
NO INFORMATION AT THIS TIME!!
|
|
|
|
PARKING LIGHTS ( + )
|
NO INFORMATION AT THIS TIME!!
|
|
|
|
POWER LOCK
|
BROWN/GREEN (-)
|
SEE DIAGRAM
|

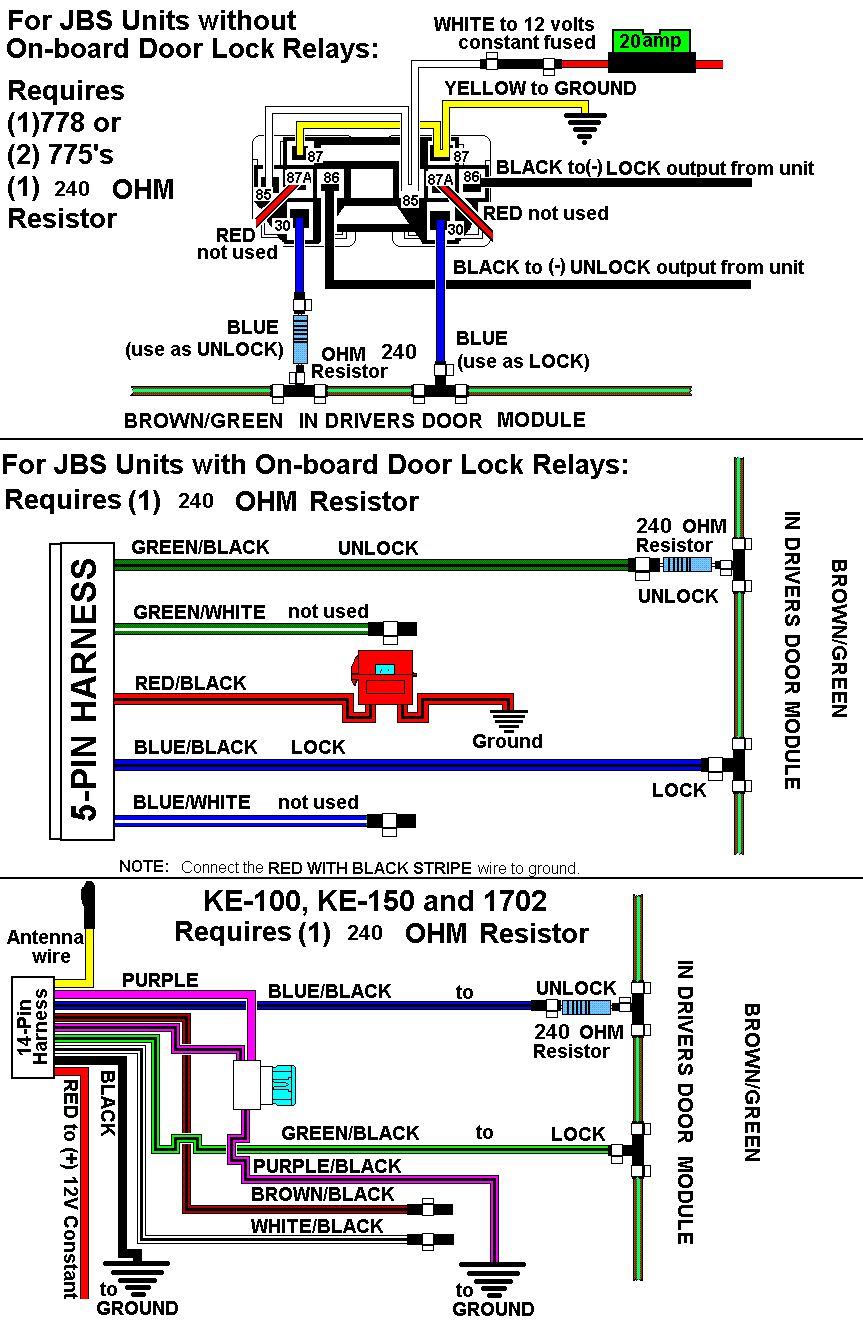

657_RABBIT_VOLKSWAGEN JBS 1 WIRE DOORLOCK.GIF
|
|
POWER UNLOCK
|
SAME AS LOCK WIRE (REQUIRES DOUBLE PULSE UNLOCK)
|
REQUIRES 240 OHM RESISTOR FOR UNLOCK SEE DIAGRAM
|

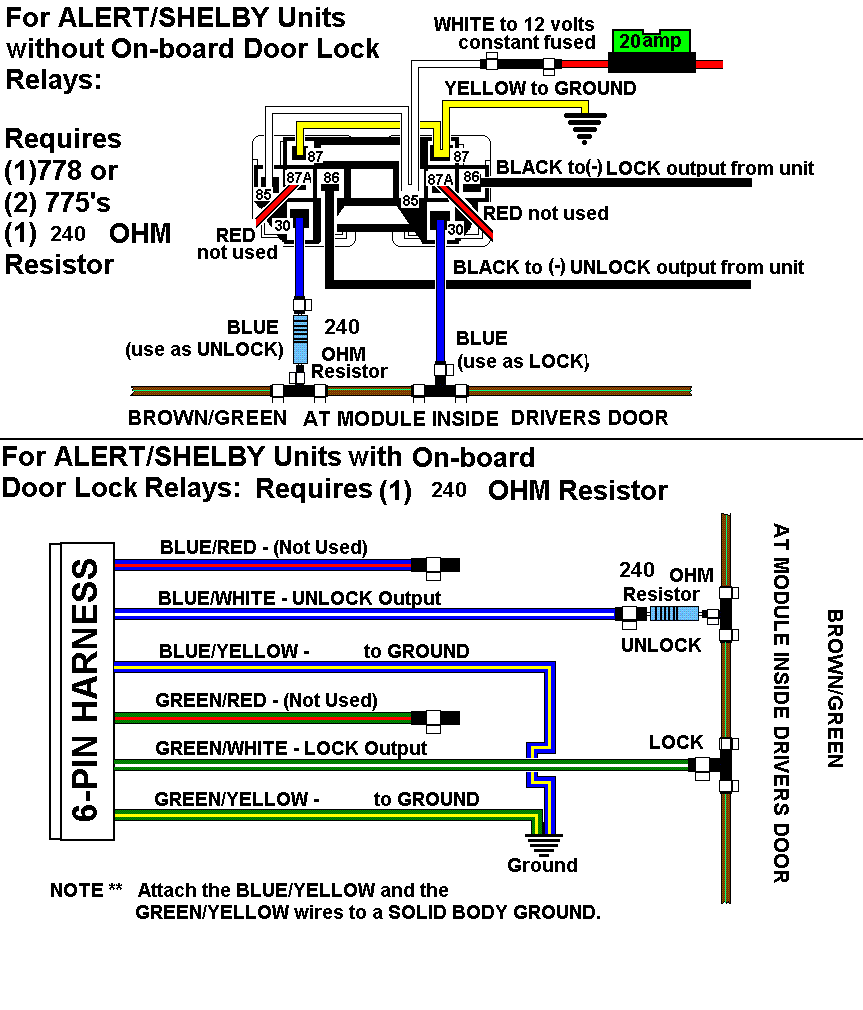

29358_RABBIT_VOLKSWAGEN ALERT 1 WIRE DOORLOCKS.GIF
|
|
LOCK MOTOR WIRE
|
N/A
|
N/A
|
|
|
DOOR TRIGGER
|
RED/YELLOW (-)
|
AT COURTESY LIGHT UNDER DASH
|
|
|
DOMELIGHT SUPERVISION
|
USE DOOR TRIGGER
|
|
|
|
TRUNK RELEASE
|
BLUE (-) (REQUIRES #775 RELAY)
|
BEHIND TRUNK RELEASE SWITCH
|
|
|
SLIDING POWER DOOR
|
N/A
|
N/A
|
|
|
HORN
|
BLACK/WHITE (+) (REQUIRES #775 RELAY)
|
AT EITHER HORN UNDER HOOD
|
|
|
TACH
|
N/A
|
N/A
|
|
|
WAIT TO START LIGHT
|
N/A
|
N/A
|
|
|
BRAKE
|
BLACK/RED (+)
|
AT SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
N/A
|
N/A
|
|
|
ANTI-THEFT
|
TRANSPONDER ANTI-THEFT
|
TRANSPONDER @ IGNITION SWITCH TUMBLER
|
|
