PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+) AND BLACK/RED(+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
GRAY/BLACK (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
GREEN/YELLOW (+)
|
IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
PINK/YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
RED/BLACK (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
BLACK/WHITE (+)
|
BEHIND LIGHT SWITCH
|
|
|
POWER LOCK
|
GREEN/RED (-) SEE NOTE #2
|
IN DRIVERS KICK PANEL, see diagram
|

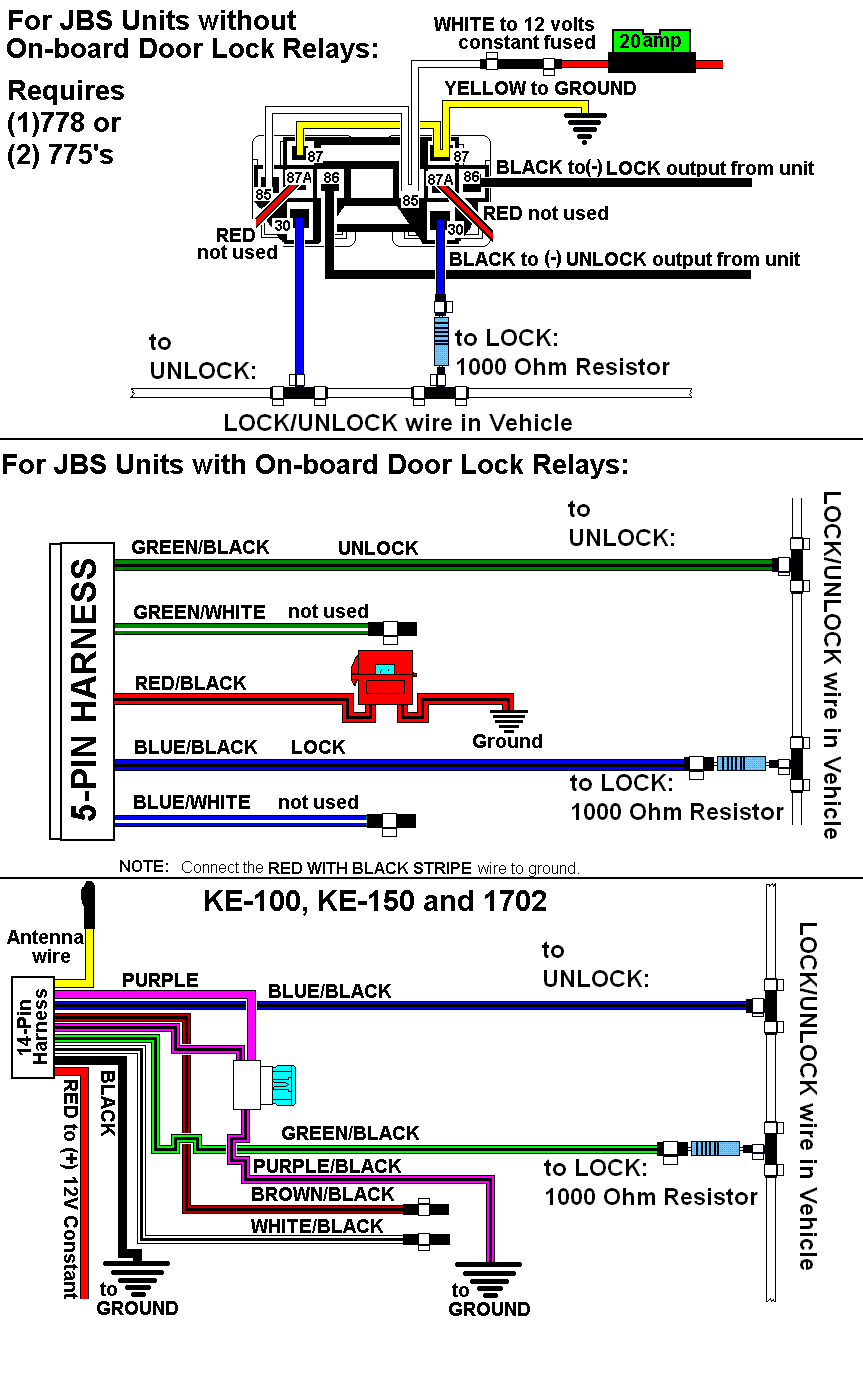

14301_MAZDA-3_MAZDA 1 WIRE JBS UNITS.GIF
|
|
POWER UNLOCK
|
SAME AS LOCK WIRE (-) SEE NOTE #2
|
IN DRIVERS KICK PANEL see diagram
|

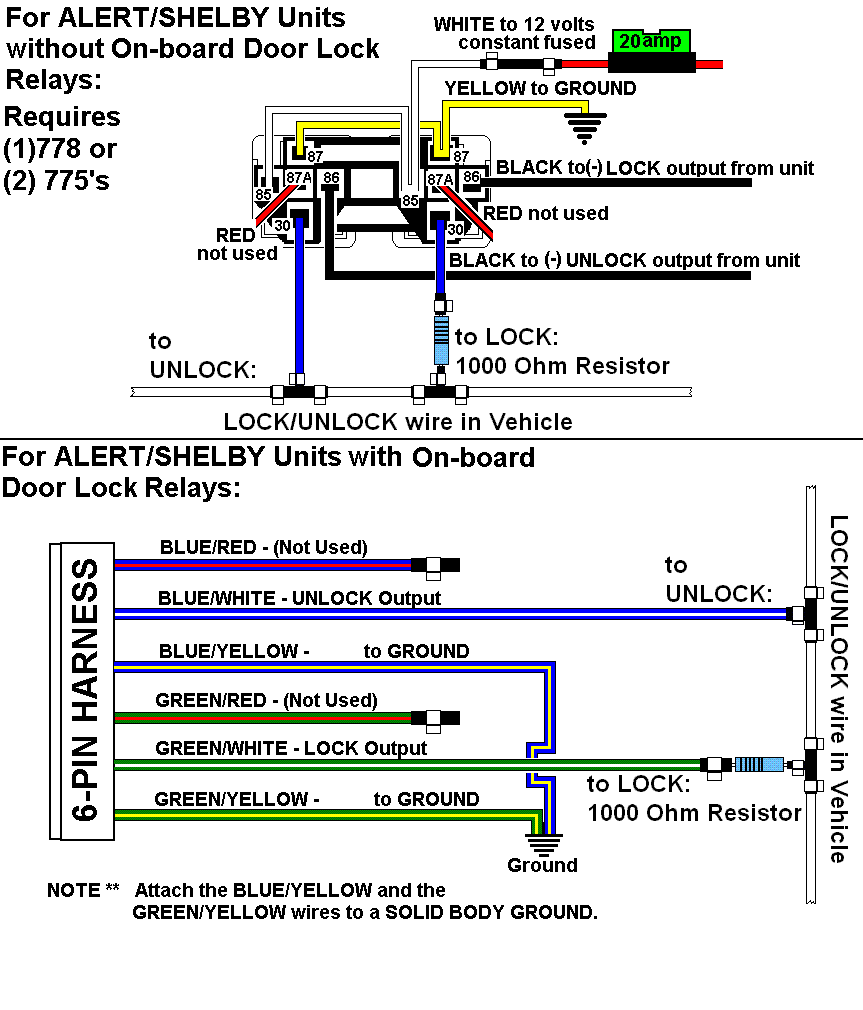

14301_MAZDA-3_MAZDA 1 WIRE ALERT UNITS.GIF
|
|
LOCK MOTOR WIRE
|
N/A
|
|
|
|
DOOR TRIGGER
|
SEE NOTE #3
|
@ BROWN PLUG ON JUNCTION BLOCK BELOW GLOVEBOX
|
|
|
DOMELIGHT SUPERVISION
|
BLACK/BLUE (-)
|
@ MODULE NEAR GLOVEBOX
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
BLACK (-)
|
@ IGNITION HARNESS
|
|
|
TACH
|
N/A
|
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
RED/WHITE (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
BLACK/WHITE (-)
|
IGNITION SWITCH HARNESS
|
|
|
ANTI-THEFT
|
MAZDA'S TRANSPONDER ANTI-THEFT, See NOTE #1
|
TRANSPONDER @ IGNITION SWITCH TUMBLER
|
|
