PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
CONNECT TO BATTERY
|
@ BATTERY UNDER HOOD
|
|
|
STARTER
|
See NOTE #1
|
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
PINK/WHITE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
See NOTE #1
|
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
WHITE/ORANGE AND WHITE/VIOLET (+)
|
IN PASSENGER KICK PANEL
|
|
|
POWER LOCK
|
PURPLE/LT.GREEN (-) SEE NOTE #2
|
IN DRIVERS KICK PANEL
|

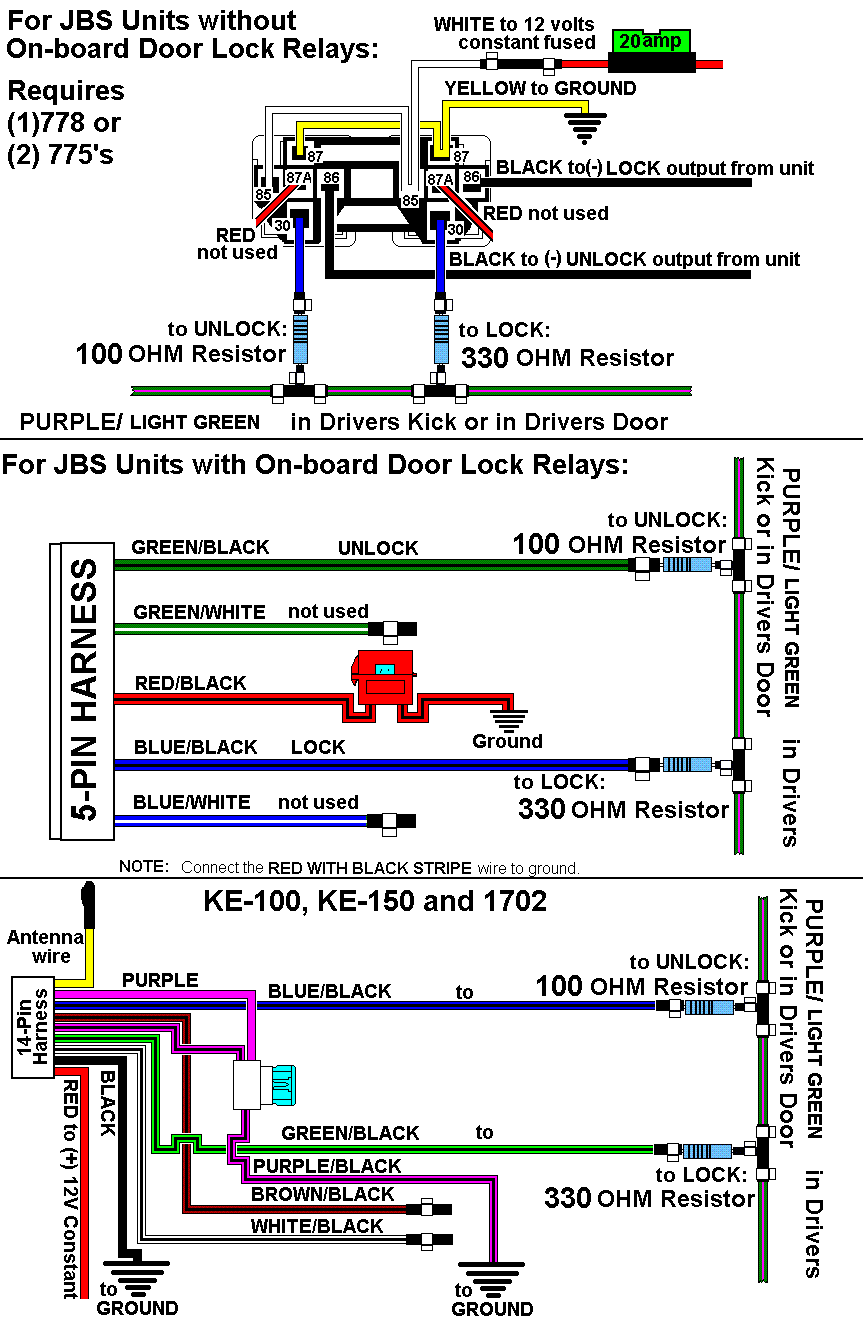

14301_WRANGLER-UNLIMITED_Jeep 1 wire jbs units.GIF
|
|
POWER UNLOCK
|
SAME AS LOCK WIRE SEE NOTE #2
|
IN DRIVERS KICK PANEL
|

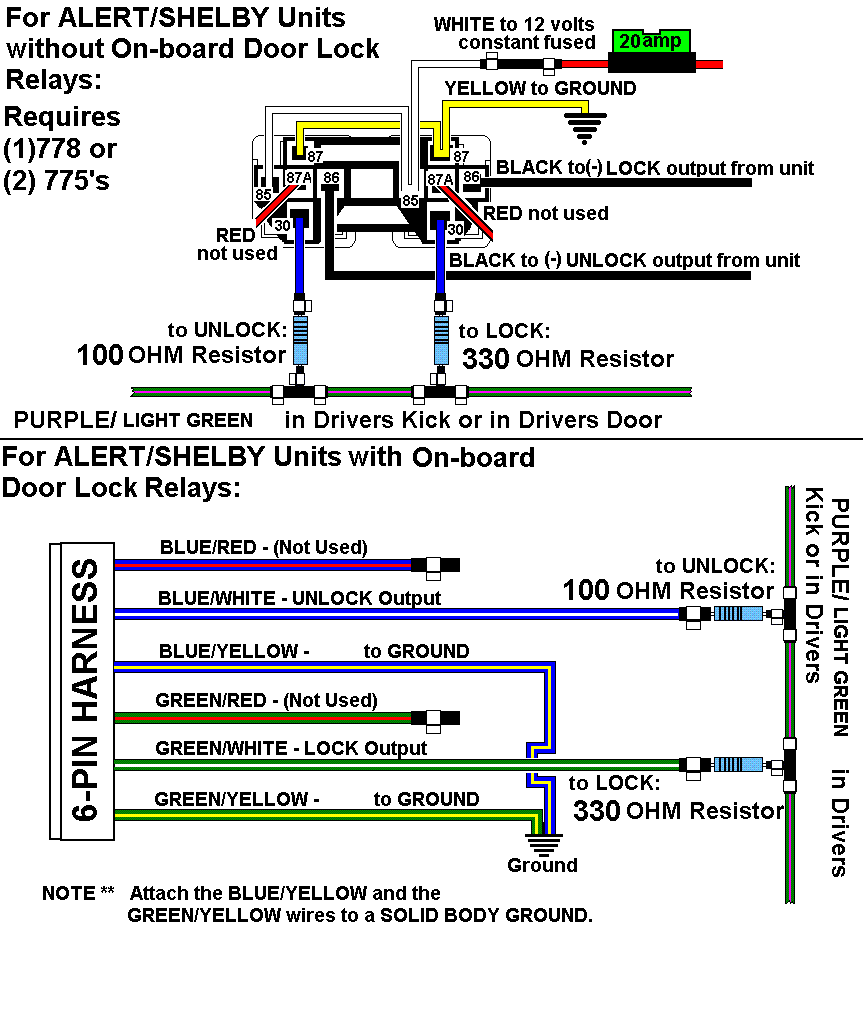

14301_WRANGLER-UNLIMITED_Jeep 1 wire alert units.GIF
|
|
LOCK MOTOR WIRE
|
N/A
|
|
|
|
DOOR TRIGGER
|
YELLOW/WHITE (+)
|
@ COURTESY LIGHT UNDER DASH
|
|
|
DOMELIGHT SUPERVISION
|
USE DOOR TRIGGER
|
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DARK GREEN/PURPLE (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
DARK BLUE/LIGHT GREEN (AC)
|
@ IGNITION COIL
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
WHITE/TAN (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
N/A
|
|
|
|
ANTI-THEFT
|
CHRYSLER'S MULTIPLEX IGNITION/TRANSPONDER SYSTEM, See NOTE#1
|
|
|
