PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
LIGHT BLUE/RED (+)
|
IGNITION SWITCH HARNESS
|
|
|
STARTER
|
N/A SEE NOTE *
|
N/A
|
|
|
STARTER 2
|
N/A SEE NOTE *
|
N/A
|
|
|
IGNITION 1
|
PINK/GRAY (+)
|
IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
N/A
|
|
|
IGNITION 3
|
N/A
|
N/A
|
|
|
ACCESSORY/HEATER BLOWER 1
|
N/A SEE NOTE *
|
N/A
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
N/A
|
|
|
KEYSENSE
|
N/A
|
N/A
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
N/A
|
|
|
PARKING LIGHTS ( + )
|
PINK/RED (+) AND WHITE/ORANGE (+)
|
IN 20 PIN PLUG AT FUSE/RELAY BOX ON THE DRIVERS SIDE FENDER
|
|
|
POWER LOCK
|
PURPLE/DARK GREEN (-)(1 WIRE DOORLOCKS )
|
IN DRIVERS KICK PANEL
|

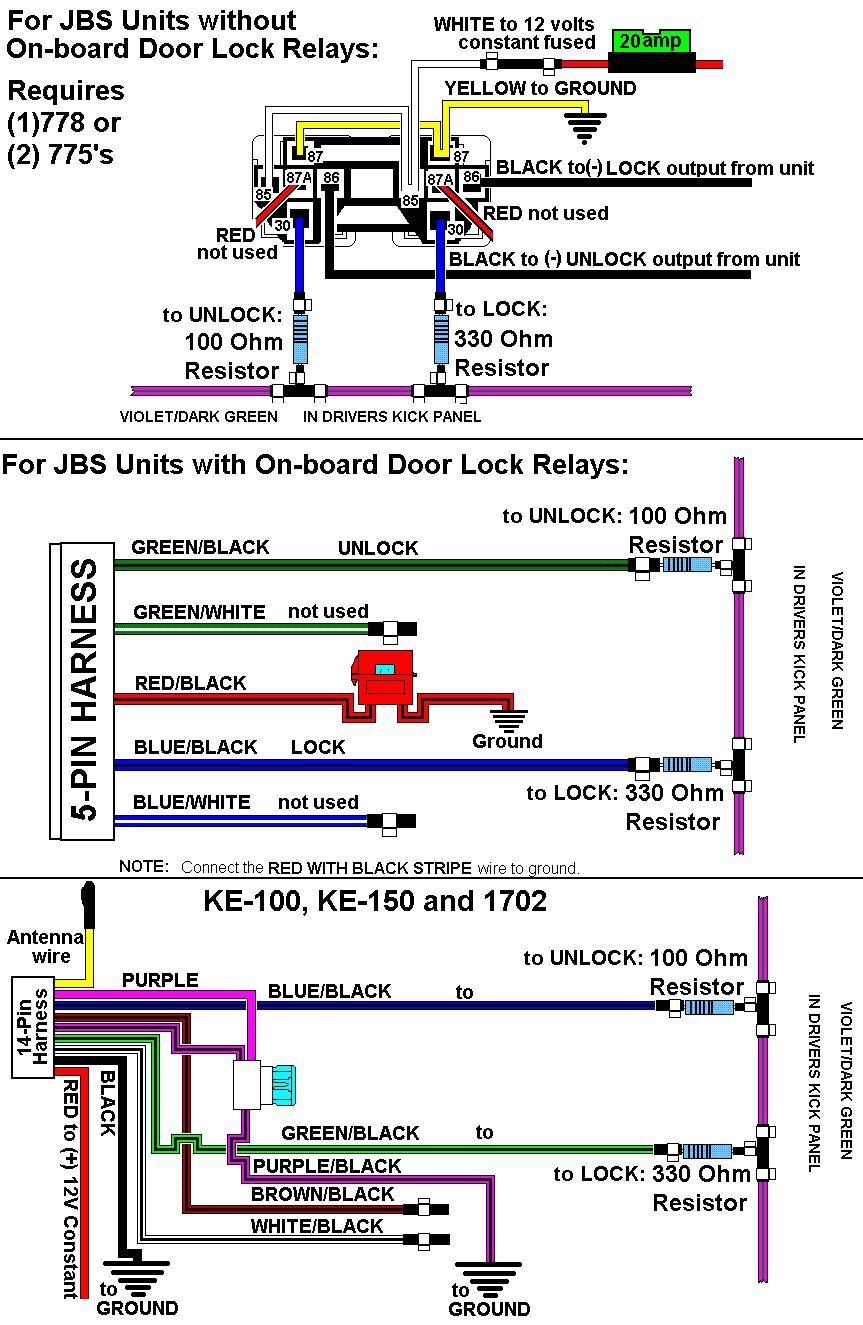

26500_RAIDER_Raider 1 wire jbs units.GIF
|
|
POWER UNLOCK
|
SAME AS LOCK WIRE (-) SEE NOTE **
|
IN DRIVERS KICK PANEL
|

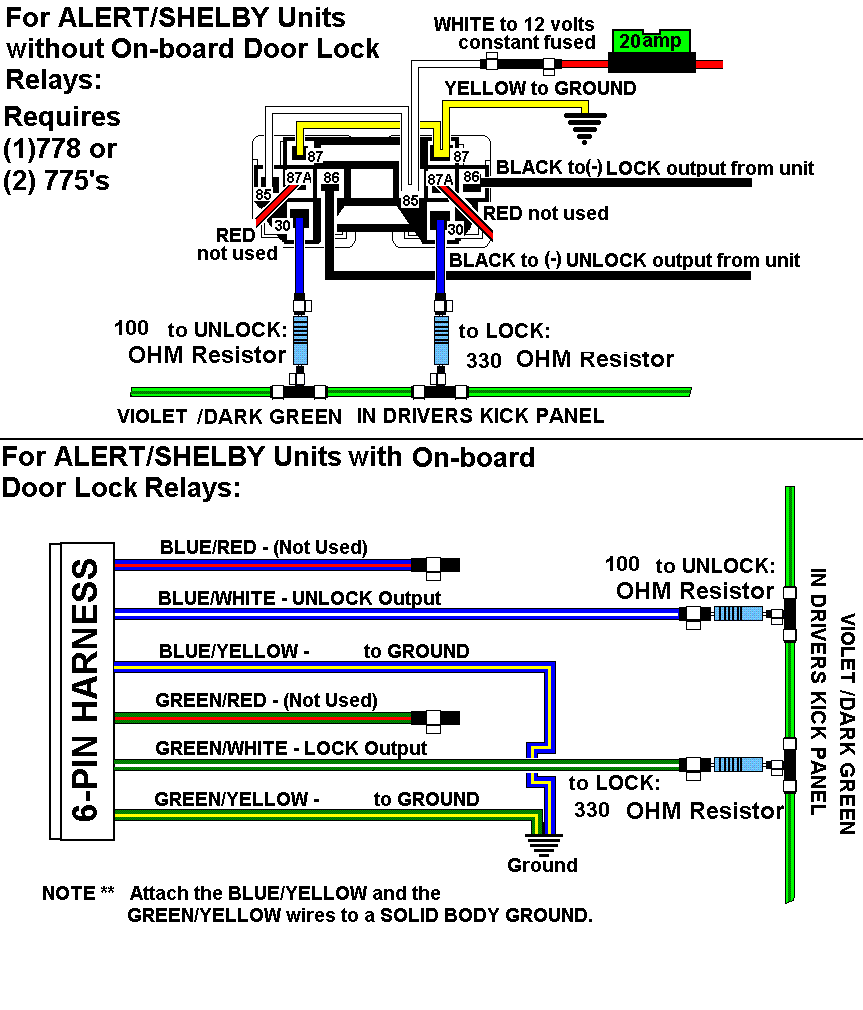

14301_RAIDER_Raider 1 wire alert units.GIF
|
|
LOCK MOTOR WIRE
|
LIGHT GREEN (+)
|
IN DRIVERS KICK PANEL
|
|
|
DOOR TRIGGER
|
PURPLE (-)
|
IN DRIVERS KICK PANEL
|
|
|
DOMELIGHT SUPERVISION
|
YELLOW/ORANGE (+)
|
IN PASSENGER SIDE DOOR PILLAR
|
|
|
TRUNK RELEASE
|
N/A
|
N/A
|
|
|
SLIDING POWER DOOR
|
N/A
|
N/A
|
|
|
HORN
|
DARK GREEN/PURPLE (-)
|
AT IGNITION HARNESS
|
|
|
TACH
|
NOT RED
|
AT ANY FUEL INJECTOR
|
|
|
WAIT TO START LIGHT
|
N/A
|
N/A
|
|
|
BRAKE
|
WHITE/LIGHT BLUE (+)
|
AT SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
DISARMS WITH FACTORY REMOTE ONLY!!
|
|
|
|
ANTI-THEFT
|
PASSKEY III PLUS
|
BACK OF IGNITION SWITCH
|
|
