PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+)
|
@ BATTERY or TIPM, NOTE #3
|
|
|
STARTER
|
SEE NOTE #1
|
|
|
|
STARTER 2
|
PURPLE/BROWN (-)
|
@ IGNITION SWITCH, BLACK 5-PIN PLUG, PIN 2
|
|
|
IGNITION 1
|
PINK (+)
|
@ IGNITION SWITCH (BLACK, 5-PIN PLUG) PIN 3
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
See NOTE #1
|
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
WHITE/PURPLE (+)
|
ABOVE Drivers Kick, GREEN 43-PIN PLUG, PIN 42
|
|
|
POWER LOCK
|
LIGHT GREEN/PURPLE (-) thru a 330 Ohm Resistor, SEE NOTE #2
|
@ UNDER DRIVERS DASH, LIGHT GRAY 43-PIN PLUG, PIN 28
|

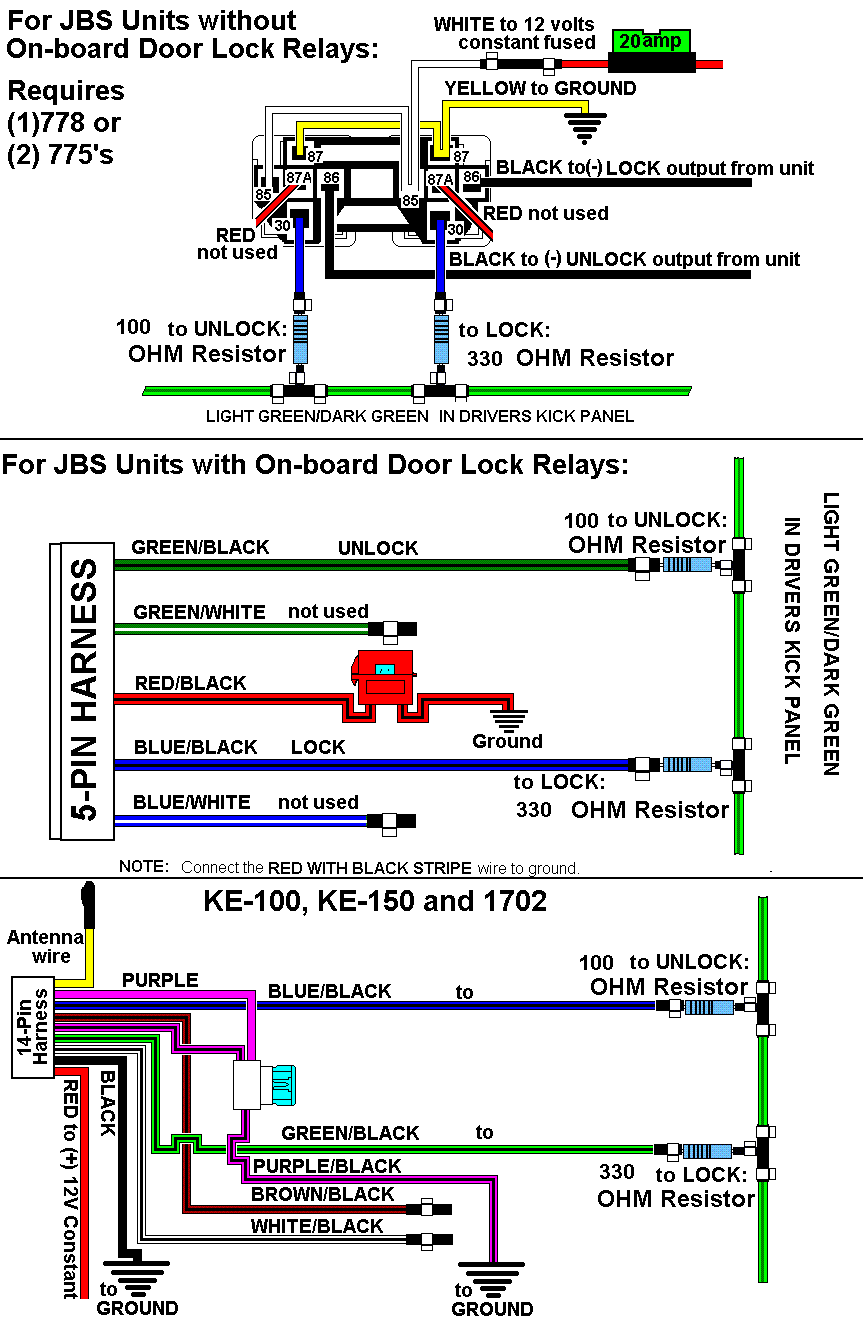

12356_AVENGER_AVENGER 1 WIRE JBS UNITS.GIF
|
|
POWER UNLOCK
|
USE POWER LOCK WIRE (-) thru a 100 Ohm Resistor
|
|

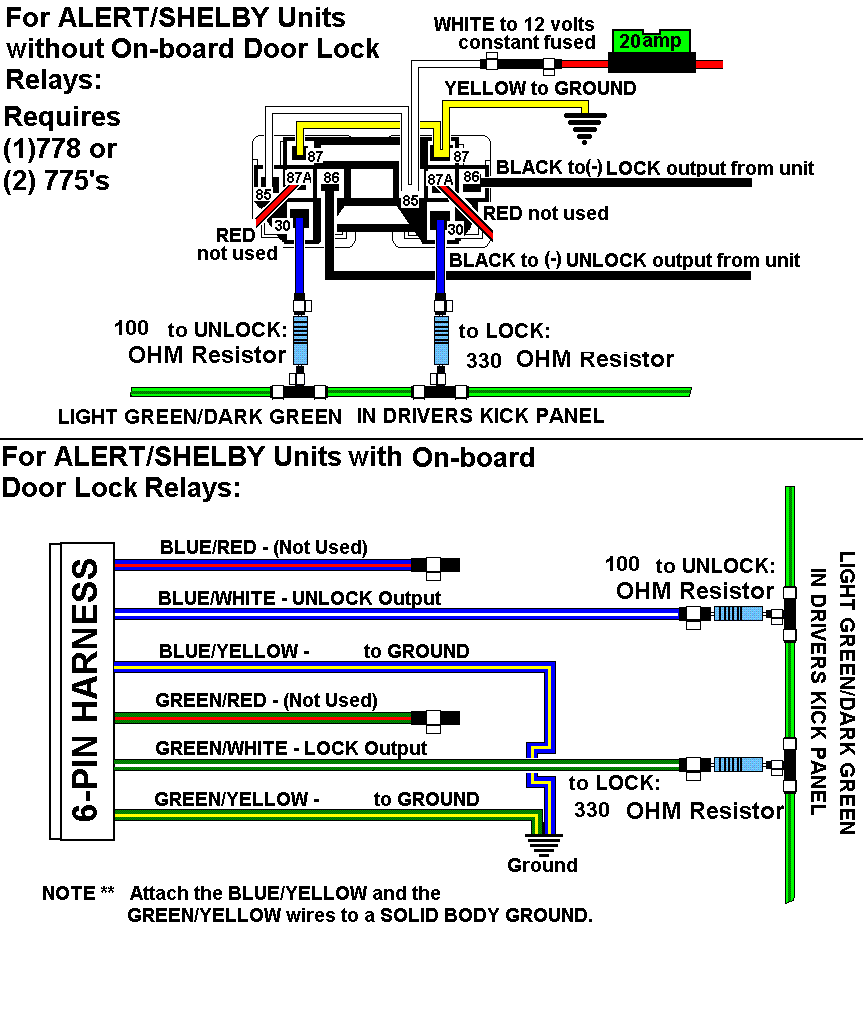

12356_AVENGER_AVENGER 1 WIRE ALERT UNITS.GIF
|
|
LOCK MOTOR WIRE
|
TAN/DARK BLUE (5-wire type)
|
IN DRIVERS KICK PANEL or INSTRUMENT CLUSTER, (BLACK, 10-PIN PLUG) PIN 9
|
|
|
DOOR TRIGGER
|
PURPLE (-)
|
IN DRIVERS KICK PANEL or INSTRUMENT CLUSTER, (BROWN, 20-PIN PLUG) PIN 3
|
|
|
DOMELIGHT SUPERVISION
|
YELLOW/WHITE (+)
|
IN DRIVERS KICK PANEL or INSTRUMENT CLUSTER, (BROWN, 20-PIN PLUG) PIN 4
|
|
|
TRUNK RELEASE
|
LIGHT GREEN/WHITE (-)
|
@ RELEASE SWITCH or INSTRUMENT CLUSTER, (BLACK, 20-PIN PLUG) PIN 13
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DARK GREEN/PURPLE (-)
|
@ HORN SWITCH or INSTRUMENT CLUSTER, (BLACK, 20-PIN PLUG) PIN 10
|
|
|
TACH
|
Any wire NOT BROWN/YELLOW (AC)
|
@ Any FUEL INJECTOR
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
DARK GREEN/WHITE (+)
|
@ BRAKE SWITCH or ABOVE DRIVERS KICK , GREEN 43 PIN PLUG ,PIN 31
|
|
|
FACTORY ALARM DISARM
|
DISARMS WITH FACTORY REMOTE ONLY!!
|
|
|
|
ANTI-THEFT
|
CHRYSLER'S MULTIPLEX IGNITION/ANTI-THEFT SYSTEM, SEE NOTE #1
|
TRANSPONDER @ IGNITION SWITCH TUMBLER
|
|
