PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
Connect to BATTERY ONLY
|
|
|
|
STARTER
|
YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
PURPLE/BROWN (-), See NOTE #2
|
@ IGNITION SWITCH HARNESS, See DIAGRAM
|
|
|
IGNITION 1
|
PINK/WHITE (+)
|
@IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
WHITE/BROWN (-), See NOTE #3
|
@ HEADLIGHT SWITCH, See DIAGRAM
|
|
|
PARKING LIGHTS ( + )
|
N/A
|
|
|
|
POWER LOCK
|
PURPLE/GREEN (1-Wire Door Lock System), See NOTE #4
|
@ BCM, Connector 3, Pin 21, See NOTE #6 and See DIAGRAM
|
|
|
POWER UNLOCK
|
Same wire, See DIAGRAM
|
See DIAGRAMS
|
|
|
LOCK MOTOR WIRE
|
TAN/WHITE (5-WIRE TYPE)
|
@ BCM, C2, Pin 10, See NOTE #6
|
|
|
DOOR TRIGGER
|
See NOTE #5
|
@ BCM, Connector 3, See NOTE #6
|
|
|
DOMELIGHT SUPERVISION
|
PURPLE (-)
|
@ BCM, Connector 3, Pin 6, See NOTE #6
|
|
|
TRUNK RELEASE
|
PURPLE/TAN (-), See NOTE #7
|
@ BCM, Connector 2, Pin 6, See NOTE #6
|
|
|
SLIDING POWER DOOR
|
PURPLE/BLUE (-), See NOTE #8
|
@ BCM, Connector 3, Pin 1, See NOTE #6
|
|
|
HORN
|
BLACK/RED (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
See NOTE #9
|
@ IGNITION COIL PACK
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
WHITE/TAN (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
PURPLE/LIGHT BLUE (-), See NOTE #10
|
@ BCM, Connector 3 Pin 14, See NOTE #6
|
|
|
ANTI-THEFT
|
CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1
|
@ IGNITION SWITCH TUMBLER
|
|
|
NOTES
|
NOTE #1: This vehicle may be equipped with CHRYSLER'S ANTI-THEFT TRANSPONDER System
(GRAY IGNITION KEY), if so to remote start will require the 791 BYPASS MODULE and
an extra Ignition key, to order go to the SECURITY BYPASS MODULE PAGE on this
website.

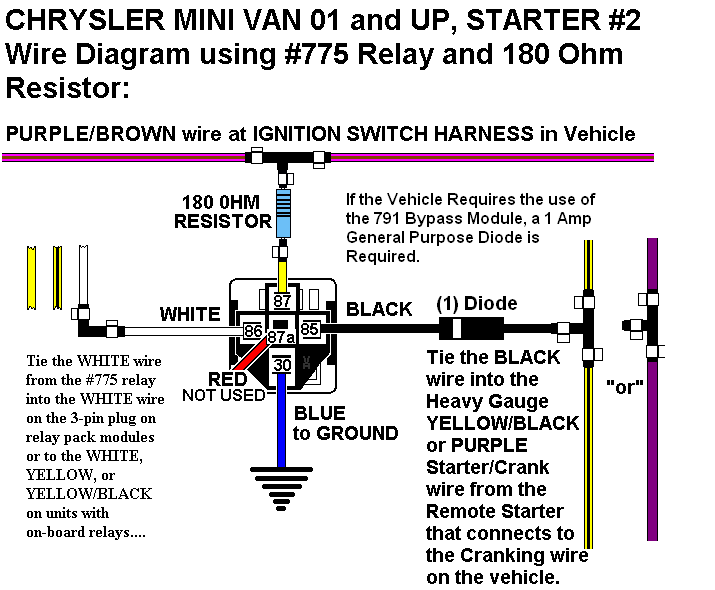

NOTE #2: To Remote Start this vehicle and turn on the AC/Heater, will require an extra relay part
#775 and a (-)Negative thru a 180 Ohm Resistor, ( USE A 1/2 WATT 150 OHM AND A
33 OHM IN SERIES). THIS MUST BE INSTALLED to operate in Remote Start mode, to
connect, See DIAGRAM.
NOTE #3: To turn on the PARKING LIGHTS requires a 2000 Ohm resistor and an extra
relay,See DIAGRAM

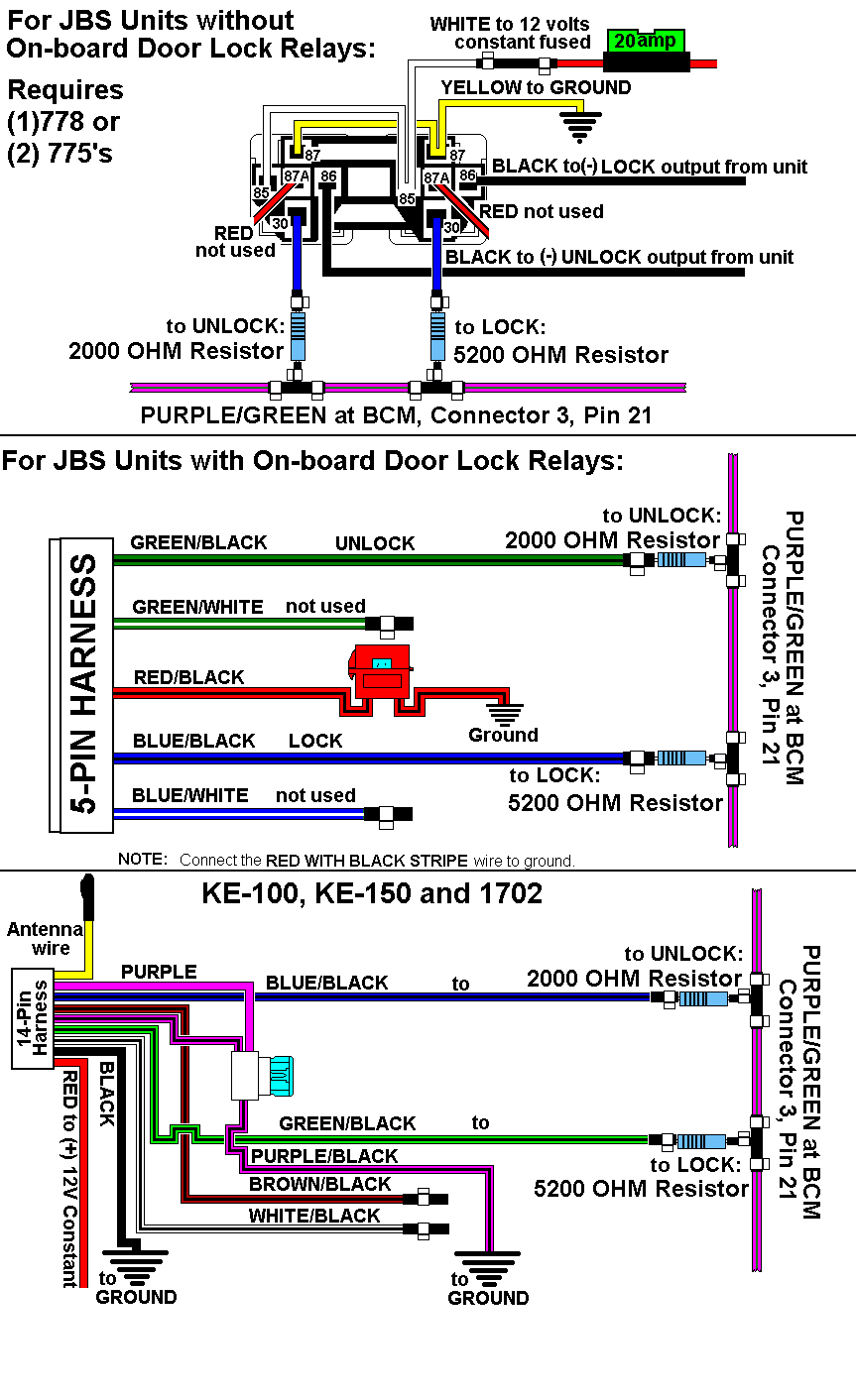

NOTE #4: This vehicle uses a 1-Wire Door Locking System requiring a (-)Negative thru a 5200
Ohm (4700 ohm + 470 ohm in series)Resistor for LOCK, and a (-)Negative thru a
2000 Ohm(1000 + 1000 in series) Resistor for UNLOCK and will require extra relays
for some units, See DIAGRAM
NOTE #5: This vehicle uses 4 door pin trigger wires, the DRIVERS DOOR is a PURPLE (-) at PIN
6, the PASSENGERS DOOR is a PURPLE/WHITE (-) PIN 7, the DRIVERS SIDE SLIDING
DOOR is a PURPLE/GREY, PIN 8 and the PASSENGER SIDE SLIDING DOOR is a
PURPLE/YELLOW, PIN 5. When connecting to an ALARM SYSTEM use all 4 wires and
DIODE ISOLATE. See DIAGRAM
NOTE #6: The BCM (Body Control Module is located in the DRIVERS KICK PANEL, near the
PARKING BRAKE. The BCM has 5 Plugs, (1) 6-Pin Plug, and (4) 34-Pin PLugs.
NOTE #7: The Rear Hatch Pop is a (-)Negative thru a 1500 Ohm Resistor and will require an
extra Relay See DIAGRAM
NOTE #8: The SLIDING DOORS can be operated thru a 1500 Ohm Resistor for the DRIVERS
SIDE and a 2700 Ohm Resistor for the PASSANGER SIDE, this requires a (-)Negative
and extra relays, See DIAGRAM.
NOTE #9: The TACH wire on the 2.4L is BLUE/GREEN or BLUE/TAN. On the 3.3L and 3.8L use
the BLUE/GREEN, BLUE/TAN or BLUE/ORANGE. (AC)
NOTE #10: This vehicle will DISARM with a (-)Negative thru a 9000 Ohm resistor, MUST use
SINGLE pulse to DISARM and a DOUBLE pluse on this wire will also UNLOCK.
SPECIAL NOTE: To See DIAGRAMS, go to 2001 DODGE CARAVAN
|
