PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+)
|
IN WHITE 2-PIN PLUG, IN REAR FUSEBOX, ON LEFT SIDE OF CARGO AREA
|
|
|
STARTER
|
BLACK/RED (+)
|
IN 47-PIN PLUG, @ UNDERHOOD FUSEBOX
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
BLACK (+)
|
IN 25 PIN PLUG @ THE STEERING COLUMN CONTROL MODULE IN THE STEERING COLUMN
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
BROWN/GREEN (+)
|
IN 25 PIN PLUG @ THE STEERING COLUMN MODULE IN THE STEERING COLUMN
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
GRAY/GREEN (-) (REQUIRES #775 RELAY)
|
@ HEADLIGHT SWITCH
|
|
|
PARKING LIGHTS ( + )
|
N/A
|
|
|
|
POWER LOCK
|
BROWN/WHITE(-) SEE NOTE #2
|
@ HARNESS, HIGH IN DRIVERS KICK PANEL
|

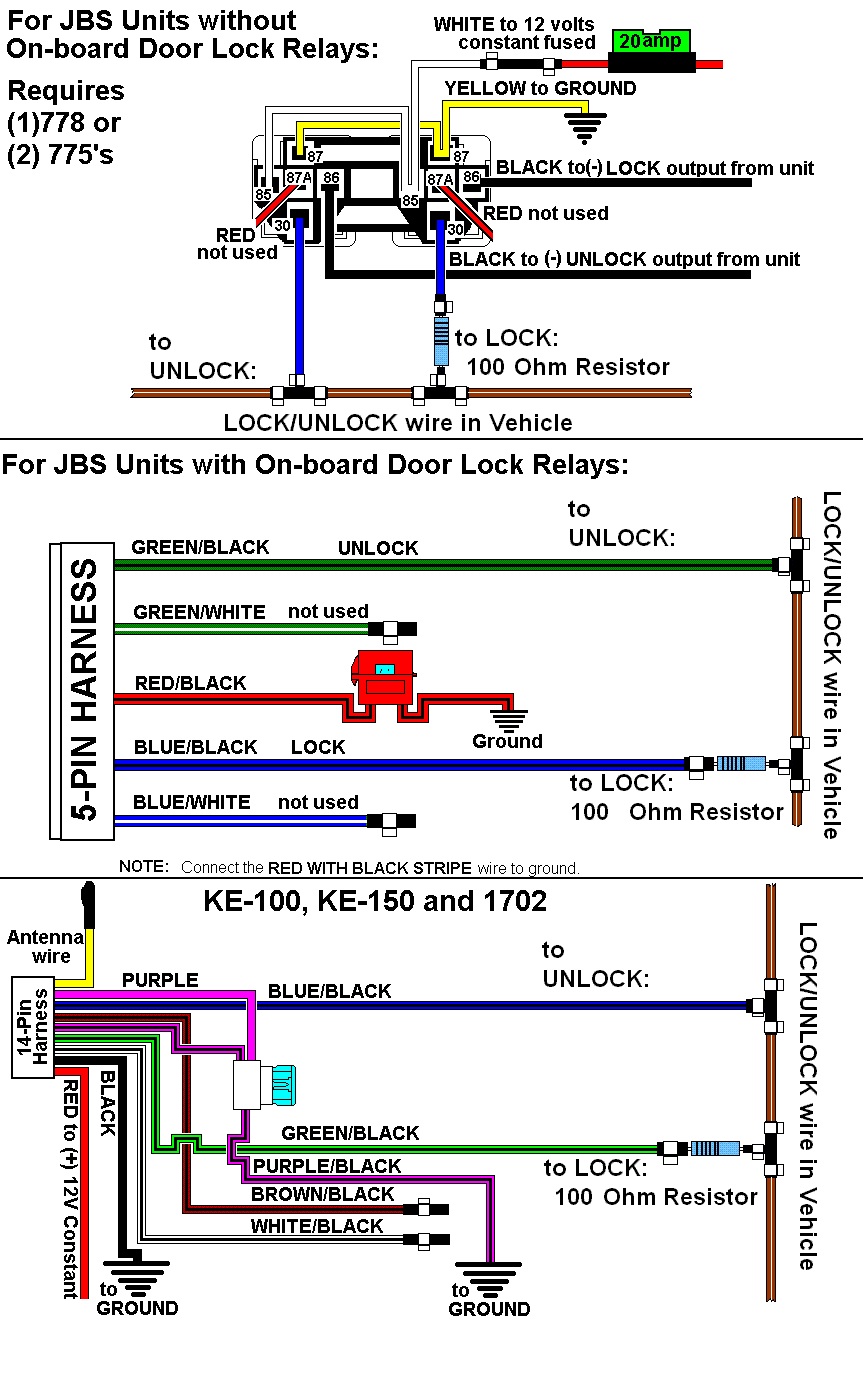

31738_ASTRA_SATURN 1 WIRE JBS UNITS.GIF
|
|
POWER UNLOCK
|
SAME AS LOCK WIRE
|
@ HARNESS, HIGH IN DRIVERS KICK PANEL
|

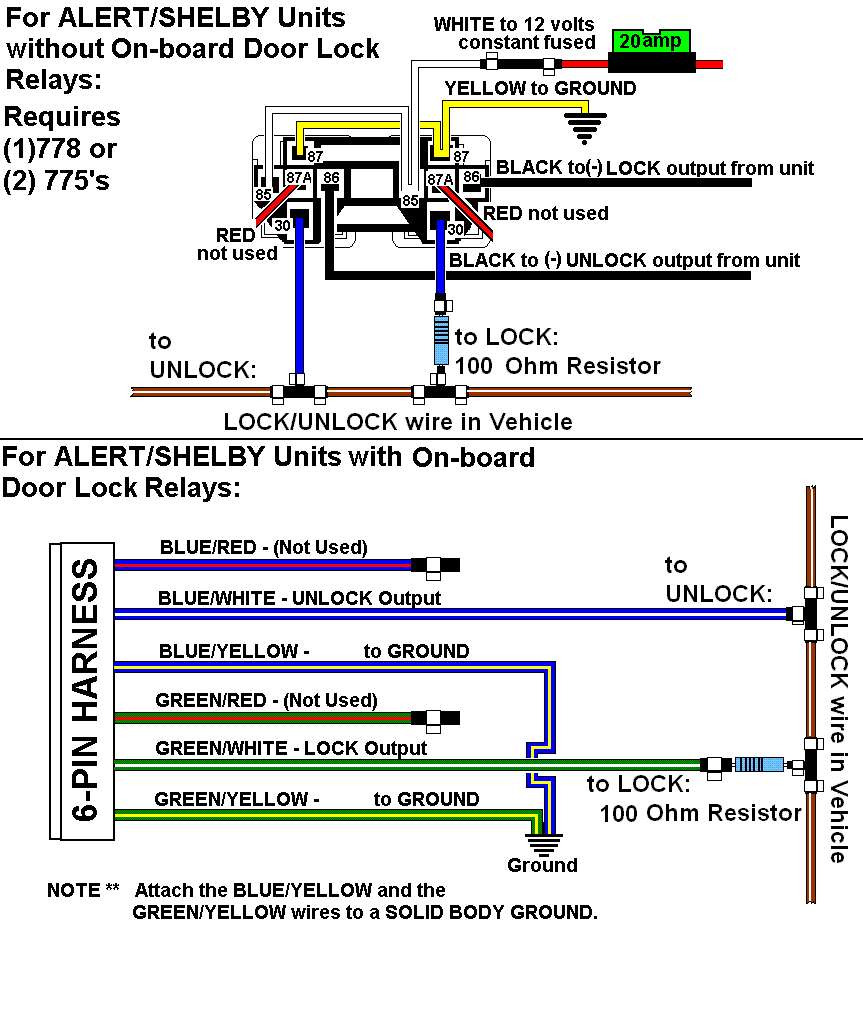

31738_ASTRA_SATURN 1 WIRE ALERT UNITS.GIF
|
|
LOCK MOTOR WIRE
|
GRAY/WHITE OR RED (5-WIRE TYPE)
|
IN DRIVERS KICK PANEL
|
|
|
DOOR TRIGGER
|
WHITE/GRAY (-)
|
@ BLUE PLUG IN REAR FUSEBOX
|
|
|
DOMELIGHT SUPERVISION
|
GRAY (-) (REQUIRES #775 RELAY)
|
@ BLUE PLUG IN REAR FUSEBOX
|
|
|
TRUNK RELEASE
|
BLUE/YELLOW (-) (REQUIRES #775 RELAY)
|
@ GREEN PLUG IN REAR FUSEBOX
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
BROWN/WHITE (+)
|
IN 62-PIN PLUG @ UNDERHOOD FUSE BOX
|
|
|
TACH
|
Any wire NOT RED/BLUE (AC)
|
@ FUEL INJECTOR
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
BROWN/GRAY (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
DISARMS WITH FACTORY REMOTE ONLY!!
|
|
|
|
ANTI-THEFT
|
SATURN'S TRANSPONDER ANTI-THEFT SYSTEM, See NOTE #1
|
TRANSPONDER @ IGNITION SWITCH TUMBLER
|
|
