PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
WHITE/RED (+)
|

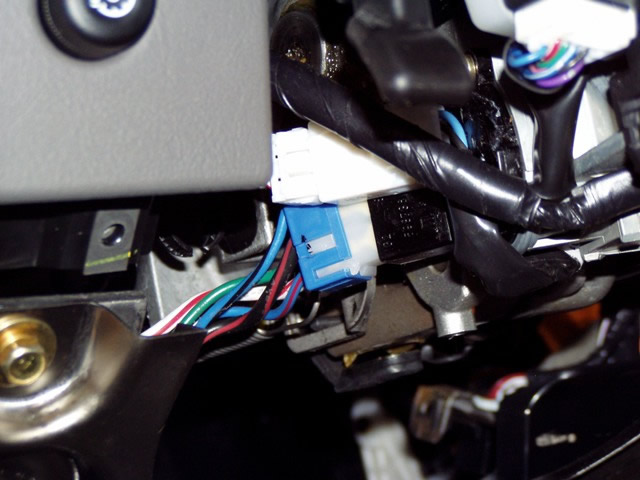

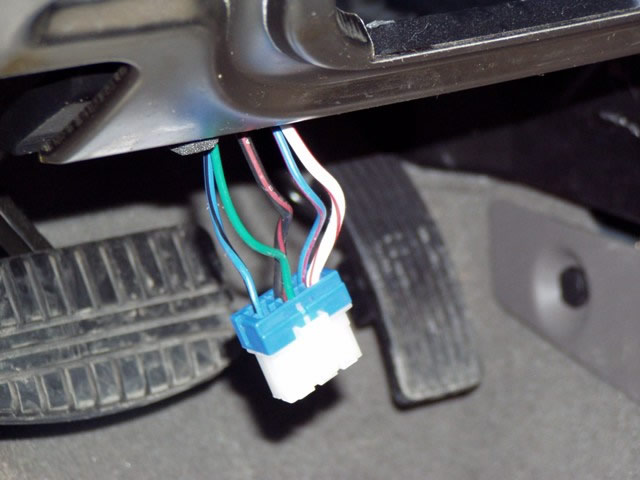

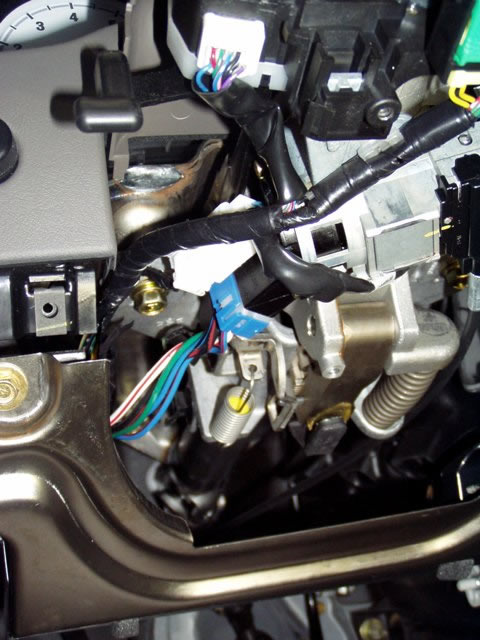

@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
BLACK/RED (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
DARK GREEN (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
BLUE/RED (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
PINK/BLACK (+) and GREEN/WHITE (+) Use both, See NOTE #3
|
IN DRIVERS KICK PANEL, 38-PIN PLUG, PINS 27 and 26
|
14301_SEBRING-COUPE_DUAL PARKING LIGHT DIAGRAM.pdf
|
|
POWER LOCK
|
PURPLE (TYPE B)
|
IN DRIVERS KICK PANEL, BLACK 32-Pin Plug
|
|
|
POWER UNLOCK
|
LIGHT GREEN/RED (TYPE B)
|
IN DRIVERS KICK PANEL, BLACK 32-Pin Plug
|
|
|
LOCK MOTOR WIRE
|
LIGHT GREEN (5-WIRE TYPE)
|
IN DRIVERS KICK PANEL, 32-Pin BLACK Plug
|
|
|
DOOR TRIGGER
|
GREEN/YELLOW (-)
|
@ FUSEBOX, BLACK 19-Pin Plug
|
|
|
DOMELIGHT SUPERVISION
|
GREEN/ORANGE (-), Requires #775 Relay
|
@ TOP of FUSEBOX, 3-PIN PLUG
|
|
|
TRUNK RELEASE
|
GREEN/WHITE (5-Wire), See NOTE #4
|
IN DRIVERS KICK PANEL, WHITE 43-Pin Plug
|
23859_SEBRING-COUPE_CHRYSLER SEBRING COUPE TRUNK POP DIAGRAM.pdf
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
LIGHT GREEN/BLACK (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
WHITE or WHITE/RED (AC)
|
@ TEST CONNECTOR, See NOTE #2
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
GREEN/ORANGE (+)
|
@ STEERING COLUMN HARNESS
|
|
|
FACTORY ALARM DISARM
|
ORANGE (-)
|
IN DRIVERS KICK PANEL, BLACK 32-Pin Plug
|
|
|

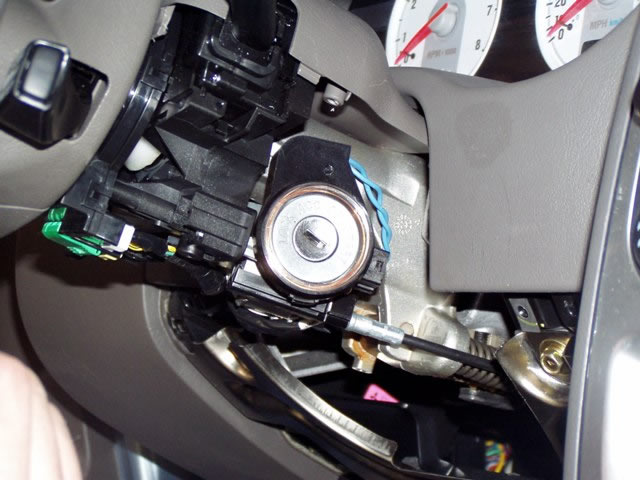

ANTI-THEFT
|
CHRYSLER'S TRANSPONDER ANTI-THEFT SYSTEM, See NOTE #1
|
@ IGNITION SWITCH TUMBLER
|
|
