VOLKSWAGEN PASSAT

MODEL	YEAR(S
PASSAT	2001-2004

KEY	T-HARNESS	IMMOBILIZER
N/A	N/A	VOLKSWAGEN'S TRANSPONDER ANTI-THEFT System, Requires 791 Module and Extra Ignition Key

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	RED (+)	IGNTION SWITCH HARNESS
STARTER	RED/BLACK (+)	IGNITION SWITCH HARNESS
STARTER 2	N/A
IGNITION 1	BLACK (+)	IGNITION SWITCH HARNESS
IGNITION 2	N/A
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	YELLOW/BLACK (+)	IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2	N/A
KEYSENSE	N/A
PARKING LIGHTS ( - )	N/A
PARKING LIGHTS ( + )	GREEN/RED (+)	@ HEADLIGHT SWITCH
POWER LOCK	RED/GREEN (TYPE B)	@ DRIVERS DOOR MODULE, See NOTE *1
POWER UNLOCK	RED/BLUE (TYPE B) (Requires Double Pulse)	@ DRIVERS DOOR MODULE, See NOTE *1
LOCK MOTOR WIRE	BLACK/BLUE (+)	@ DRIVERS DOOR MODULE, See NOTE *1
DOOR TRIGGER	BROWN/YELLOW (-)	@ COMFORT Module, 23-Pin Plug, Pin 1, See NOTE *2
DOMELIGHT SUPERVISION	BLUE/GRAY (-)	@ COMFORT Module, 23-Pin Plug, Pin 21, See NOTE *2
TRUNK RELEASE	BROWN/GREY to BROWN/GREEN	@ COMFORT Module, 23-Pin Plug, Pin 2, See NOTE *2
SLIDING POWER DOOR	N/A
HORN	BLACK/YELLOW (+) (Alarm Horn)	@ COMFORT Module, 15-Pin Plug, Pin 11, See NOTE *2
TACH	Any wire NOT BLACK/BLUE or GREEN/RED	@ ANY FUEL-INJECTOR
WAIT TO START LIGHT	N/A
BRAKE	RED/BLACK (+)	@ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM	DISARMS WITH UNLOCK, Single Pulse Disarms
ANTI-THEFT	TRANSPONDER ANTI-THEFT SYSTEM, REQUIRES 791 BYPASS MODULE AND EXTRA IGNITION KEY	TRANSPONDER @ IGNITION SWITCH TUMBLER

NOTES

NOTE *1 the DRIVERS DOOR MODULE is located INSIDE the DRIVERS DOOR. NOTE *2 the COMFORT MODULE is UNDER the CARPET in FRONT of the DRIVERS SEAT in a PROTECTIVE BOX.

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

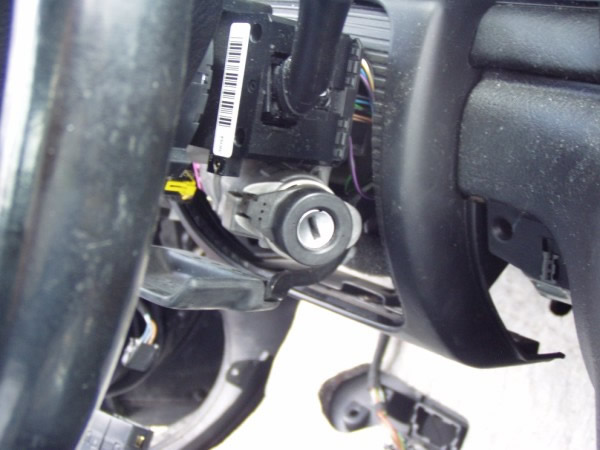

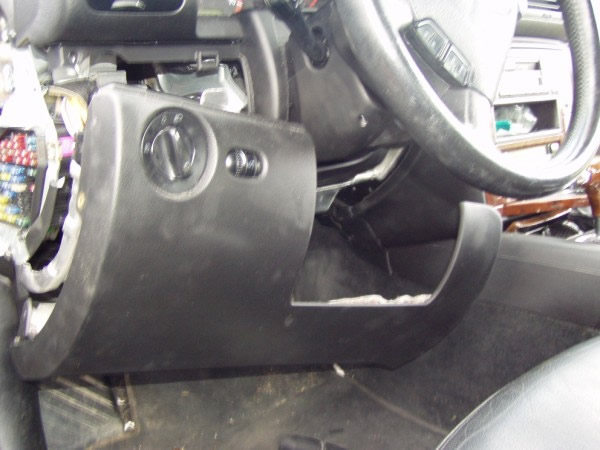

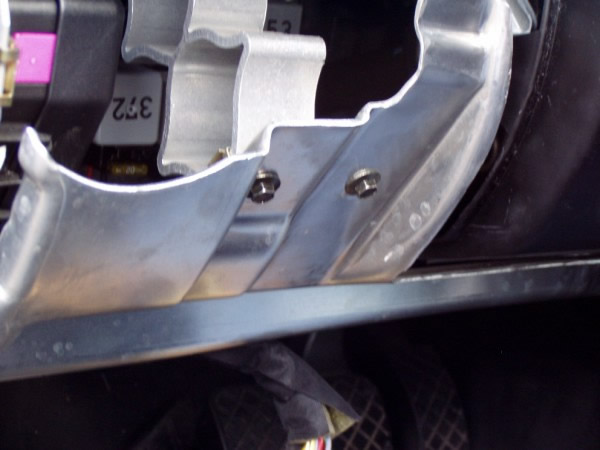

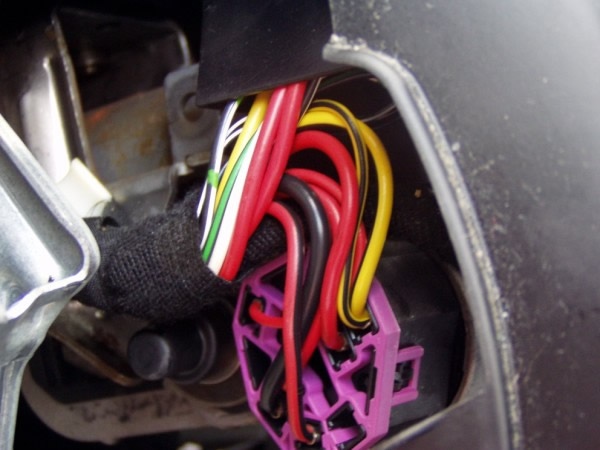

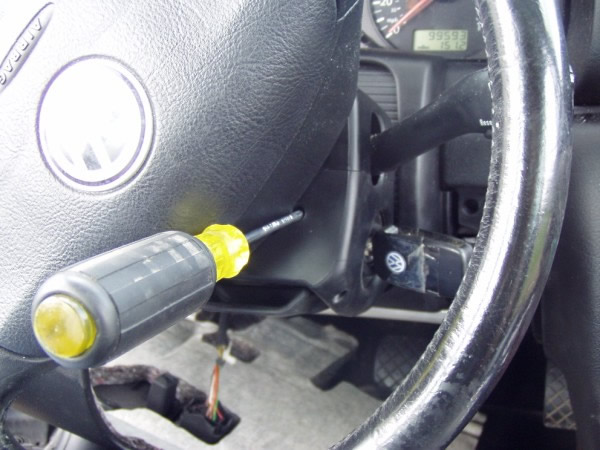

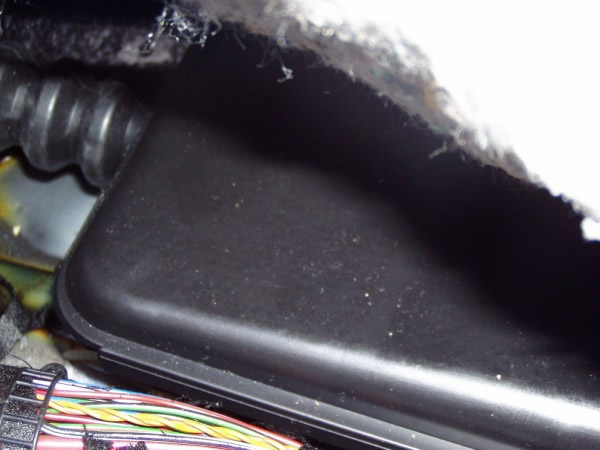

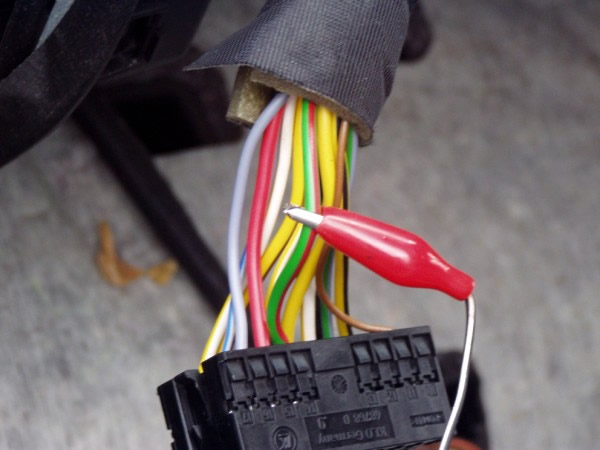

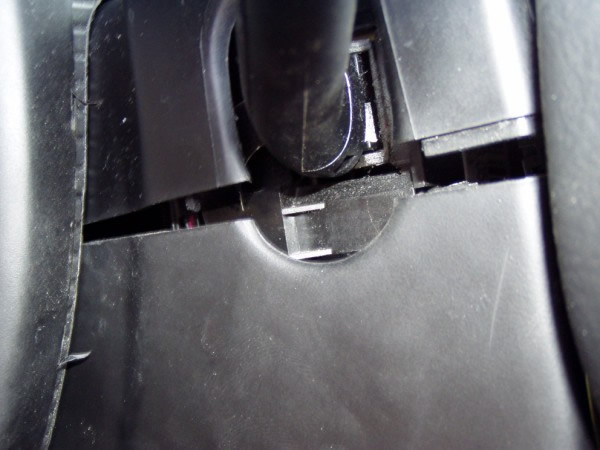

Show Large Image This is a picture of the Ignition Switch Harness Plug on the Back of the Ignition Switch in the Steering Column. Show Large Image this is a picture of the Comfort Module uder the carpet just below the Drivers Seat. Show Large Image This is a picture of the BRAKE Switch above the Brake Pedal on this vehicle. Show Large Image This picture shows the Parking Light Switch Assembly on the Lower Dash Panel on this vehicle. Show Large Image The lower dash panel on this vehicle will need to be removed to gain access to the under dash wiring and the Parking Light assembly. Show Large Image The Metal Knee Bolster bolts (10mm) will need to be removed so that this Knee Bolster can be set aside to get to the under dash wiring. Show Large Image To gain access to the Ignition Switch Harness you will need to remove the screws that hold the Steering Covers in place. Show Large Image With the Steering Column Cover Screws removed, you will then need to seperate the halves of the covers to expose the Ignition Harness. Show Large Image This shows the Ignition Switch and the Transponder Ring around the Ignition Switch on this vehicle after the Steering column covers have been removed. Show Large Image This picture shows the location of the (+) GREEN/RED Parking Light wire in the Head Light Switch Harness, this wire is marked with the RED Clip in this picture.
