PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
LIGHT GREEN/PURPLE (+)
|

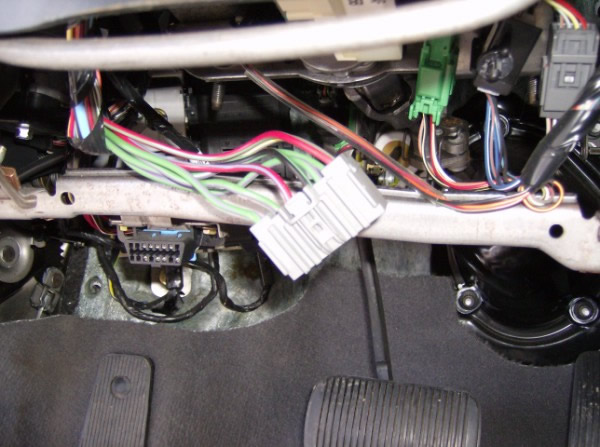

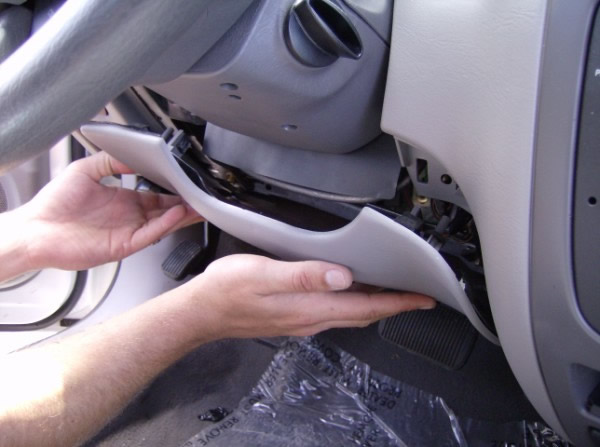

@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
RED/LIGHT BLUE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
RED/LIGHT GREEN (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
BLACK/LIGHT GREEN (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
GRAY/YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
BROWN (+)
|
@ SJB, BOTTOM Plug, Pin 31, See NOTE #2
|
|
|
POWER LOCK
|
PINK/YELLOW (TYPE B)
|
@ GEM. 26-Pin Plug, Pin 18, See NOTE #2
|
|
|
POWER UNLOCK
|
PINK/LIGHT GREEN (TYPE B)
|
@ GEM, 26-Pin Plug, Pin 6, See NOTE *#2
|
|
|
LOCK MOTOR WIRE
|
PINK/BLACK (5-WIRE TYPE)
|
@ SJB, TOP Plug, Pin 3, See NOTE #2
|
|
|
DOOR TRIGGER
|
See NOTE #3
|
@ GEM, See NOTE #2
|
14301_Taurus_FORD DOOR PIN ISOLATION.pdf
|
|
DOMELIGHT SUPERVISION
|
BLACK/LIGHT BLUE (+)
|
@ SJB, TOP Plug, Pin 22, See NOTE #2
|
|
|
TRUNK RELEASE
|
PURPLE/YELLOW (-)
|
@ GEM, 26 Pin Plug, Pin 3, See NOTE #4
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DARK BLUE (-)
|
@ SJB, BOTTOM Plug, Pin 1, See NOTE #2
|
|
|
TACH
|
Any wire that is NOT RED (AC)
|
@ any IGNITON COIL or FUEL INJECTORS
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
RED/LIGHT GREEN (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
PINK/WHITE (-)
|
@ GEM, 26-Pin Plug, Pin 4, See NOTE #2
|
|
|
ANTI-THEFT
|
FORD'S ANTI-THEFT TRANSPONDER SYSTEM, SEE NOTE #1
|
TRANSPONDER @ IGNITION SWITCH TUMBLER
|
|
|
NOTES
|
NOTE #1: This vehicle is equipped with a Special Anti-theft key, to remote start you will
need a Bypass module 791, use this module IF you have a extra ignition key to
place inside the 791 to remote start, if you do not have an extra key to use or wish
not to have a key placed inside this bypass module, we OFFER a KEYLESS INTERFACE
BYPASS MODULE that does not require a key to be placed inside the bypass module,
this is Part # PKALL or PKFM, either one will work, to order, go to the INTERFACE
BYPASS MODULE PAGE on this website.
NOTE #2: The GEM (Generic Electronic Module) is part of the SJB (Smart Junction Box) located
to the LEFT of the STEERING COLUMN. the SJB HAS (3) Plugs all are on the BOTTOM.
NOTE #3: these wires are at the 26-Pin Plug at the GEM, this vehicle has 4 door pin triggers,
the DRIVERS DOOR is a YELLOW/BLACK (-) Pin 5, PASSENGER DOOR is a GRAY/RED
(-) Pin 19 DRIVERS REAR DOOR is a LIGHT GREEN/YELLOW (-) Pin 20 and the
PASSENGER REAR DOOR is a PINK/LIGHT BLUE (-) Pin 7. When connecting to an
ALARM SYSTEM, use all 4 DOOR TRIGGER wires and DIODE ISOLATE, to connect,
See DIAGRAM.
NOTE #4: On vehicles WITH a FACTORY KEYLESS ENTRY the TRUNK RELEASE wire is a
PURPLE/YELLOW (-) on vehicle WITHOUT a FACTORY KEYLESS ENTRY, it is a
GRAY/RED (+) at the Trunk Release switch. On Station Wagons to release the
rear hatch, use the YELLOW/LIGHT GREEN (-) wire in the 26-Pin Plug of the GEM.
|
