PONTIAC VIBE
MODEL YEAR(S
VIBE 2003-2007
KEY T-HARNESS IMMOBILIZER
N/A N/A N/A
PART COLOR LOCATION DIAGRAM
12 VOLT CONSTANT Connect to BATTERY ONLY

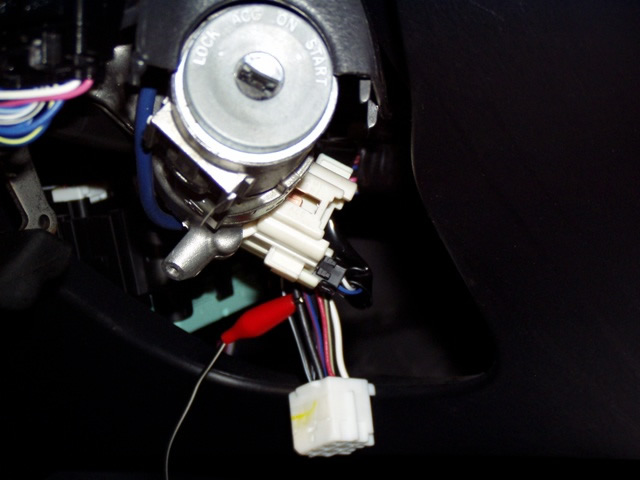

STARTER RED (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A

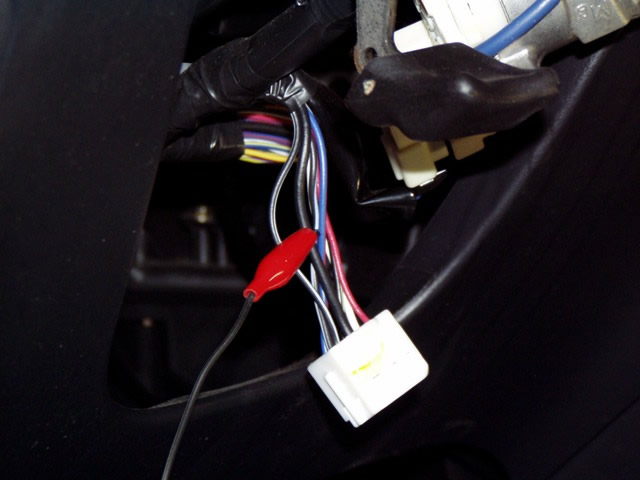

IGNITION 1 BLACK/WHITE (+) @ IGNITION SWITCH HARNESS
IGNITION 2 BLACK/YELLOW (+) @ IGNITION SWITCH HARNESS
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 BLUE/RED (+) @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 N/A
KEYSENSE N/A
PARKING LIGHTS ( - ) GREEN/WHITE (-) @ HEADLIGHT SWITCH
PARKING LIGHTS ( + ) GREEN (+) IN DRIVERS KICK PANEL

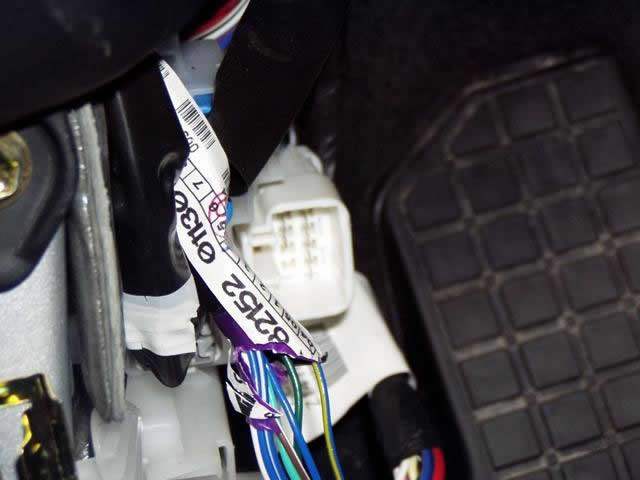

POWER LOCK GREEN (TYPE B) See NOTE #1 IN DRIVERS KICK PANEL, 10-Pin Plug

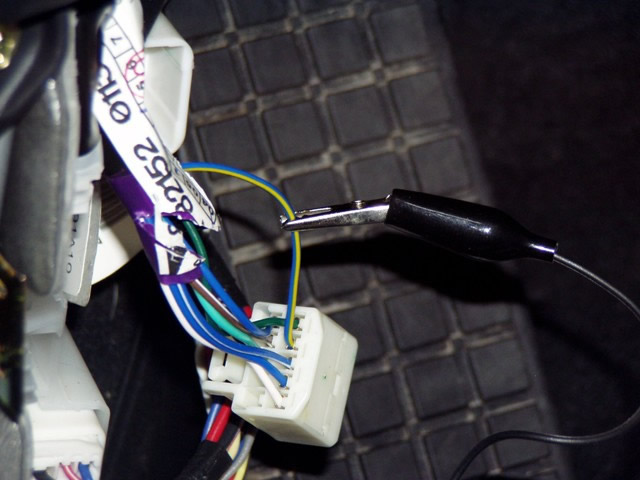

POWER UNLOCK BLUE/YELLOW (TYPE B) See NOTE #1 IN DRIVERS KICK PANEL, 10-Pin Plug
LOCK MOTOR WIRE BLUE (+) IN DRIVERS KICK PANEL, BLUE 12-PIN Plug
DOOR TRIGGER RED/WHITE (-) @ INTERIOR LIGHT SWITCH
DOMELIGHT SUPERVISION RED/BLACK (-) or RED/YELLOW (-), Requires Part # 775 Relay @ INTERIOR LIGHT SWITCH
TRUNK RELEASE BLUE/WHITE (-), (Requires Part # 775 Relay) @ HATCH RELEASE SWITCH
SLIDING POWER DOOR N/A
HORN GREEN/YELLOW (-) @ HORN SWITCH in COLUMN
TACH BLACK (AC) @ ECM, far RIGHT Plug, See NOTE #2
WAIT TO START LIGHT N/A
BRAKE GREEN/WHITE (+) @ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM DISARMS WITH UNLOCK
ANTI-THEFT N/A
NOTES
NOTE #1: these wires will only test when turning the key in the Drivers Door Key Cylinder. The BLUE/YELLOW (-) Unlock wire will require a Double Pulse to Unlock. If your unit does not have a Double Pulse unlock output, use the BLUE/BLACK (-) Unlock wire, in a BLUE 12-Pin Plug in the Passengers kick panel. This wire will only test with the key in the Passengers Key cylinder on the door.







NOTE #2: the ECM (Electronic Control Module) is located BEHIND the GLOVEBOX
