FORD RANGER

MODEL	YEAR(S
RANGER	1998-2000

KEY	T-HARNESS	IMMOBILIZER
FDKEY-1	N/A	FORD'S ANTI-THEFT SYSTEM, TRANSPONDER, SEE NOTE #1

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	YELLOW (+)	@ IGNITION SWITCH HARNESS
STARTER	RED/LIGHT BLUE (+)	@ IGNITION SWITCH HARNESS
STARTER 2	N/A
IGNITION 1	LIGHT GREEN/PURPLE (+)	@ IGNITION SWITCH HARNESS
IGNITION 2	BLACK/LIGHT GREEN (+)	@ IGNITION SWITCH HARNESS
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	GRAY/YELLOW (+)	@ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2	N/A
KEYSENSE	N/A
PARKING LIGHTS ( - )	WHITE/PURPLE (-)	IN DRIVERS KICK PANEL
PARKING LIGHTS ( + )	BROWN (+)	IN DRIVERS KICK PANEL
POWER LOCK	PINK/YELLOW (TYPE B)	IN EITHER KICK PANEL
POWER UNLOCK	PINK/LIGHT GREEN (TYPE B)	IN EITHER KICK PANEL
LOCK MOTOR WIRE	PINK/BLACK (5-WIRE TYPE)	IN DRIVERS KICK PANEL
DOOR TRIGGER	See NOTE #2		25824_RANGER_FORD DOOR PIN ISOLATION.pdf
DOMELIGHT SUPERVISION	YELLOW/BLACK (-), (Requires Part #775 Relay)	IN DRIVERS DOOR HARNESS
TRUNK RELEASE	N/A
SLIDING POWER DOOR	N/A
HORN	YELLOW/LIGHT GREEN (-)	@ STEERING COLUMN HARNESS
TACH	TAN/WHITE (AC)	@ IGNITON COIL
WAIT TO START LIGHT	N/A
BRAKE	LIGHT GREEN (+)	@ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM	DARK GREEN/PURPLE (-)	IN DRIVERS KICK PANEL
ANTI-THEFT	FORD'S ANTI-THEFT, TRANSPONDER SYSTEM,SEE NOTE #1	@ IGNITION SWITCH TUMBLER

NOTES

NOTE #1: This vehicle is equipped with a Special Anti-theft key, to remote start you will

need a Bypass module 791, use this module IF you have a extra ignition key to

place inside the 791 to remote start, if you do not have an extra key to use or wish

not to have a key placed inside this bypass module, we OFFER a KEYLESS INTERFACE

BYPASS MODULE that does not require a key to be placed inside the bypass module,

this is Part # PKALL or PKFM, either one will work, to order, go to the INTERFACE

BYPASS MODULE PAGE on this website.

NOTE #2: This vehicle has 2 door trigger wires, a YELLOW/BLACK (-) for the DRIVERS DOOR in

the DRIVERS DOOR HARNESS, the PASSENGER DOOR is a GREY/RED (-) located in

the PASSENGER DOOR HARNESS. When connecting to an ALARM SYSTEM, use both

DOOR TRIGGER wires and DIODE ISOLATE, to connect, See DIAGRAM.

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

Show Large Image

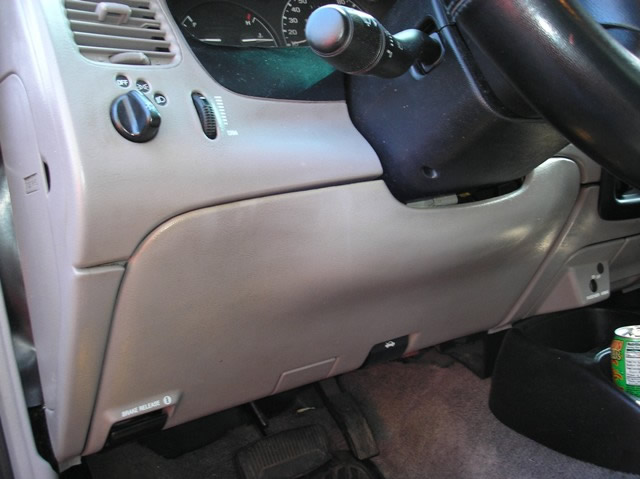

This is the first panel that must be removed to gain access to the under dash wiring on this vehicle.

Show Large Image

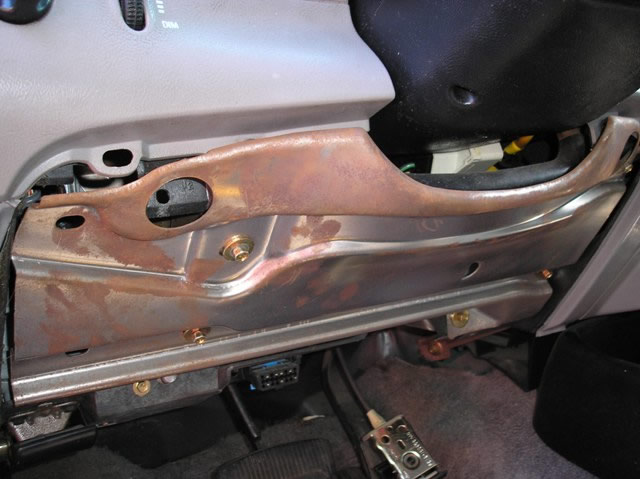

After removing the under dash panel , this METAL KNEE BOLSTER must be removed, is held in place by (5) 8mm Bolts, removing these bolts will let this Metal Panel drop down and out of place.

Show Large Image

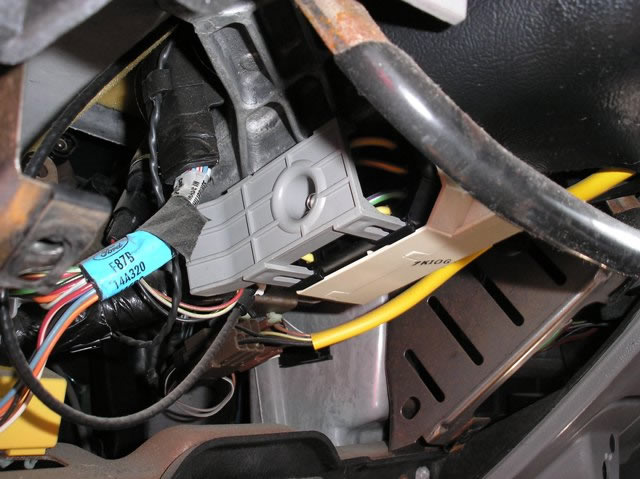

With the Metal Knee Bolster removed, look up on the LEFT side of the Steering Column and you will see this GRAY Plastic cover over top of the IGNITION SWITCH HARNESS Plug. To gan access to theses wires remove this cover or catch the wires behind this cove

Show Large Image

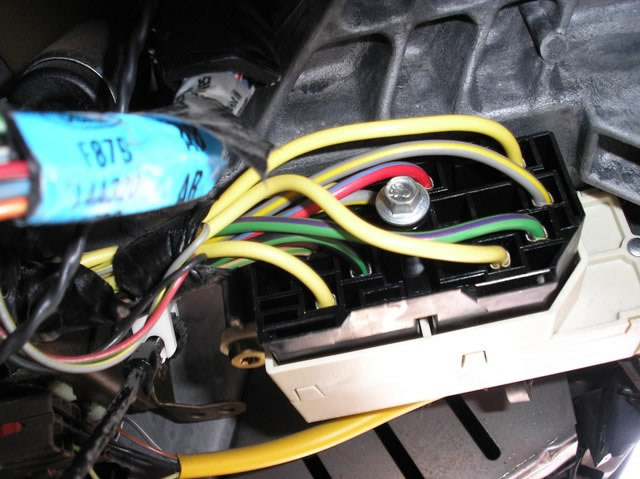

This picture shows the IGNITION SWITCH HARNESS Plug with the GRAY cover removed for the IDENTIFICATION of the Ignition wires in this BLACK plug.

Show Large Image

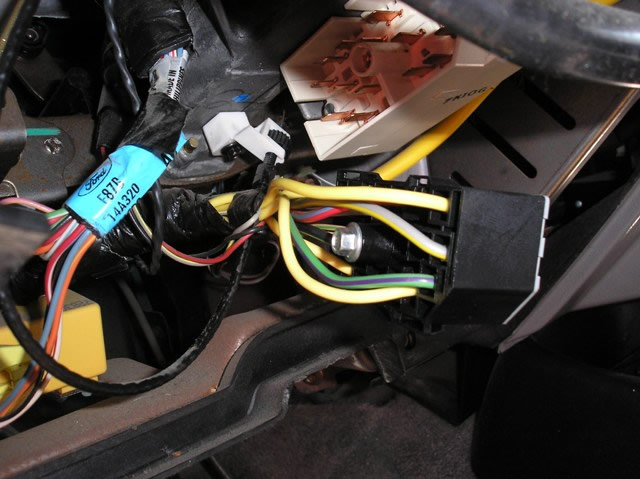

This shows the BLACK IGNITION SWITCH HARNESS Plug disconnected for the IGNITION SWITCH connector on the side of the Steering Column, this is only done when installing a T-HARNESS Part #FD-1 on this vehicle.

Show Large Image

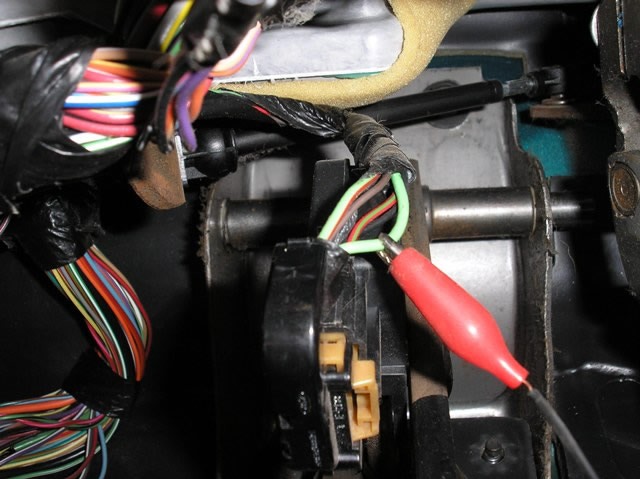

This shows the (+) LIGHT GREEN BRAKE wire, marked with the RED Clip, in its harness at the Brake Switch, located on the Brake Pedal Bracket on this vehicle.

Show Large Image

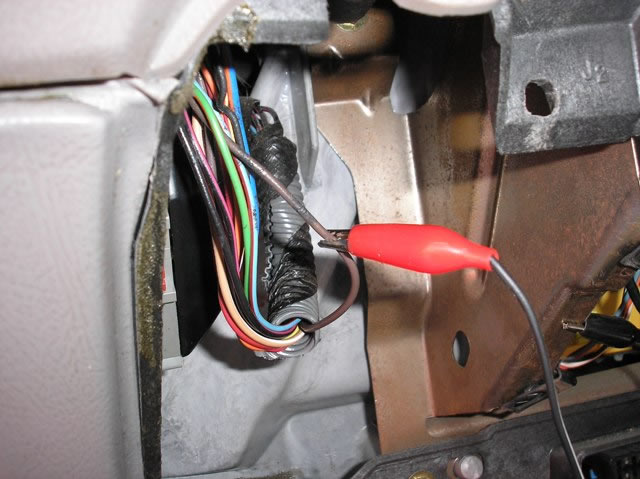

This picture shows the (+) BROWN PARKING LIGHT wire marked with the RED Clip, this harness comes off of the back of the HEADLIGHT Switch and heads under the drivers dash.

Show Large Image

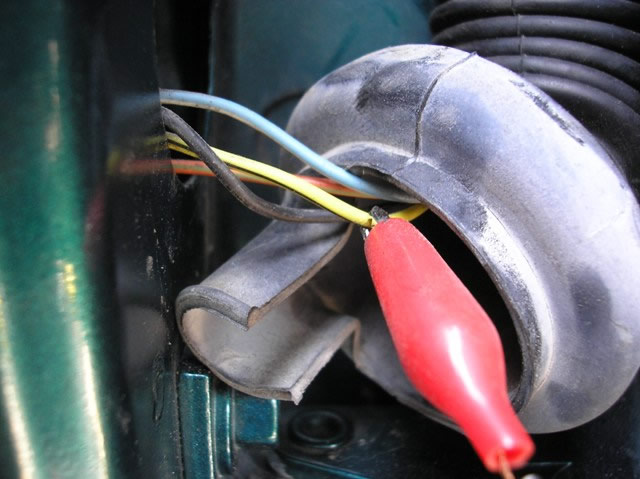

The (-) YELLOW/BLACK DOME LIGHT SUPERVISION wire, marked here with the RED Clip is located in the Drivers Door Jam Boot, this is the easiest place to locate and connect to this wire.

Show Large Image

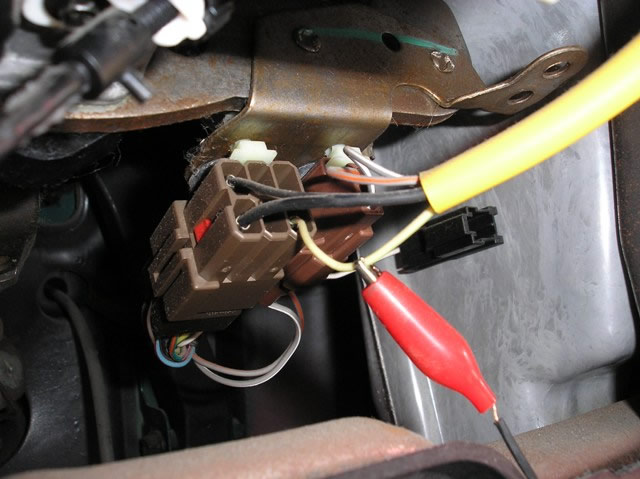

When LOCATING and CONNECTING to the (-) YELLOW/LIGHT GREEN HORN wire, marked with a RED Clip in this picture, USE EXTREME CAUTION!!! this wire is located in the AIR BAG Harness and Plug under the drivers dash on this vehicle.
