CHRYSLER 300M

MODEL	YEAR(S
300M	2004-2006

KEY	T-HARNESS	IMMOBILIZER
CHRKEY-1(2004), CHRKEY-4(2005-2006)	N/A	CHRYSLER'S ANTI-THEFT TRANSPONDER System, See NOTE #1

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	PINK/BLACK (+) or RED (+)	@ IGNITION SWITCH HARNESS
STARTER	YELLOW (+)	@ IGNITION SWITCH HARNESS
STARTER 2	N/A
IGNITION 1	DARK BLUE/WHITE (+)	@ IGNITION SWITCH HARNESS
IGNITION 2	DARK GREEN/RED (+)	@ IGNITION SWITCH HARNESS
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	BLACK/ORANGE (+)	@ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2	N/A
KEYSENSE	LIGHT BLUE (-)	@ IGNITION SWITCH HARNESS
PARKING LIGHTS ( - )	YELLOW (-) See NOTE #2	@ HEADLIGHT SWITCH, See DIAGRAM	14301_300M_CHRYSLER PARKING LIGHT DIAGRAM.pdf
PARKING LIGHTS ( + )	BLACK/YELLOW (+)	@ BACK of JUNCTION BLOCK under dash
POWER LOCK	WHITE/GREEN (1-Wire Door Lock System) See NOTE *2	@ BCM, BLUE Plug, Pin 5, See NOTE #4	26500_300M_CHRYSLER COUPE and SEDAN 1 WIRE JBS UNITS.pdf
POWER UNLOCK	Same wire, See DIAGRAM	See DIAGRAMS	26500_300M_CHRYSLER COUPE and SEDAN 1 WIRE ALERT SHELBY UNITS.pdf
LOCK MOTOR WIRE	ORANGE (5-wire type)	@ BACK of JUNCTION BLOCK, BROWN Plug, Pin 3
DOOR TRIGGER	See NOTE #5	@ BCM BLUE Plug, See NOTE #4	30844_300M_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION	YELLOW (-)	@ BCM, TAN Plug, Pin 4, See NOTE #4

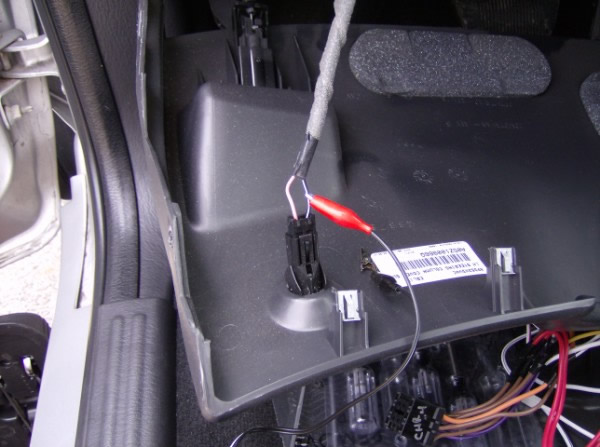

TRUNK RELEASE	BLACK/WHITE (+)	@ BCM, GREY Plug, Pin 1, See NOTE #4
SLIDING POWER DOOR	N/A
HORN	BLACK/RED (-)	@ BCM, GREY Plug, Pin 6, See NOTE #4
TACH	ANY wire that is NOT DARK GREEN/LIGHT GREEN (AC)	@ ANY IGNITION COIL or FUEL INJECTOR
WAIT TO START LIGHT	N/A
BRAKE	WHITE/TAN (+)	@ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM	LIGHT GREEN/ORANGE (+) See NOTE #6	@ BCM. BLUE Plug, Pin 13, See NOTE #4	10329_300M_CHRYSLER POSITIVE DISARM DIAGRAM.pdf
ANTI-THEFT	CHRYSLER'S ANTI-THEFT TRANSPONDER System, See NOTE #1	@ IGNITION SWITCH TUMBLER

NOTES

NOTE #1: this vehicle is equipped with CHRYSLER'S ANTI-THEFT TRANSPONDER System, that will require a 791 bypass module and an extra key for operation or the XK09 Bypass Module that does not require a key for operation to order go to the INTERFACE BYPASS MODULE PAGE on this website. NOTE #2: the PARKING LIGHTS on this vehicleRequire an extra relay part #775 and a (-) Negative thru a 47 Ohm Resistor, See DIAGRAM NOTE #3: the DOOR LOCKS on this vehicle require a (+)Positive thru a 2700 Ohm resistor to Lock and a (+)Positive thru a 620 Ohm resistor to Unlock, some units will also require 2 extra relays part #775 for the keyless entry feature to work, See DIAGRAMS. You can also get a INTERFACE BYPASS MODULE the Part # XK09 that will do this for you without adding extra relays and resistors, these Modules will also do dome light supervision and trunk pop with nothing needed, to order please go to the INTERFACE BYPASS MODULE Page on this website NOTE #4: The BCM (Body Control Module) is located under the left side of the dash, attached to the JUNCTION BLOCK, the plugs on the BCM face the firewall. NOTE #5: This vehicle has 4 door trigger wires, the DRIVERS DOOR is a TAN (-) Pin 4, the PASSENGER DOOR is a TAN/RED, Pin 2, the DRIVERS REAR DOOR is a TAN/RED Pin 1 and the PASSENGERS REAR DOOR is a Pin 10. When connecting to an ALARM SYSTEM use all 4 wires and DIODE ISOLATE. See DIAGRAM NOTE #6: the DISARM wire on this vehicle requires a (+)Positive thru a 680 Ohm resistor and an extra Relay Part #775, to connect, See DIAGRAM

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

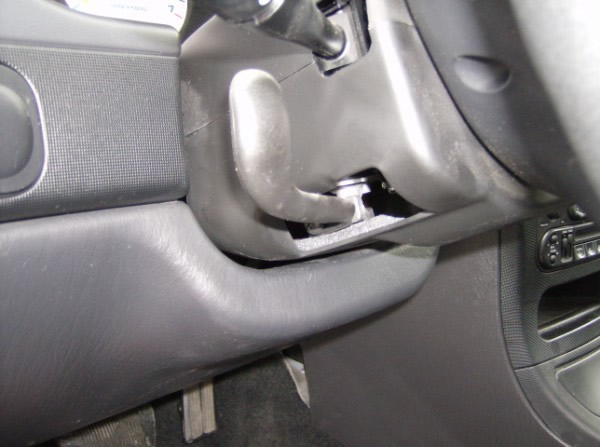

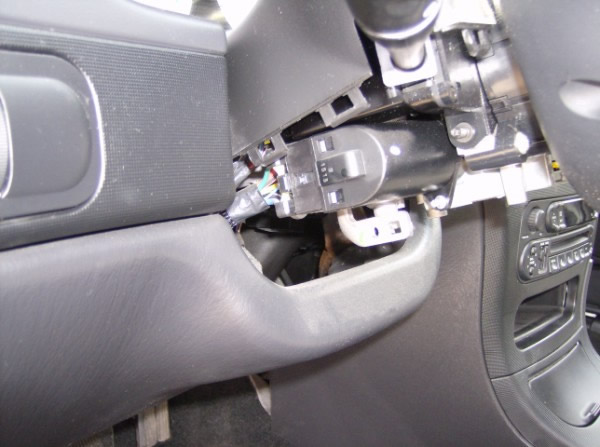

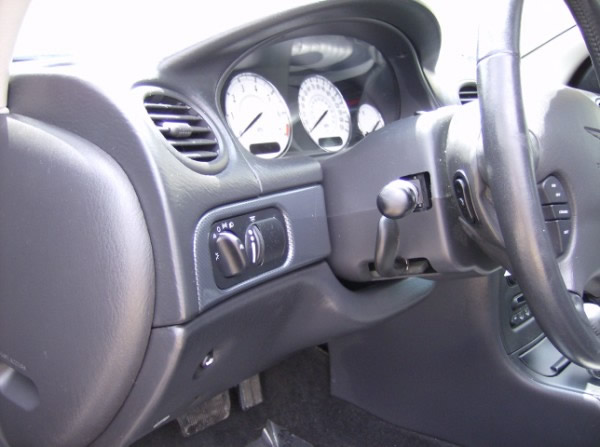

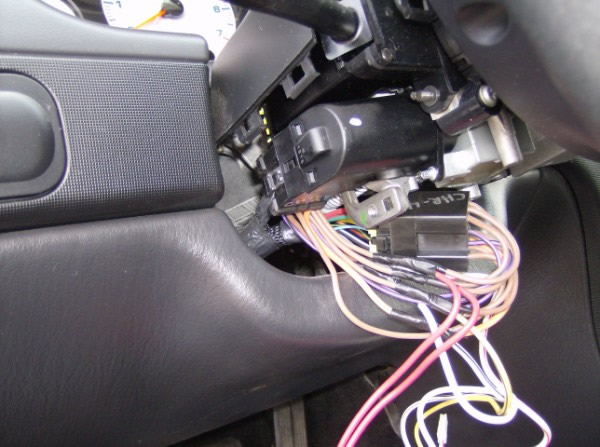

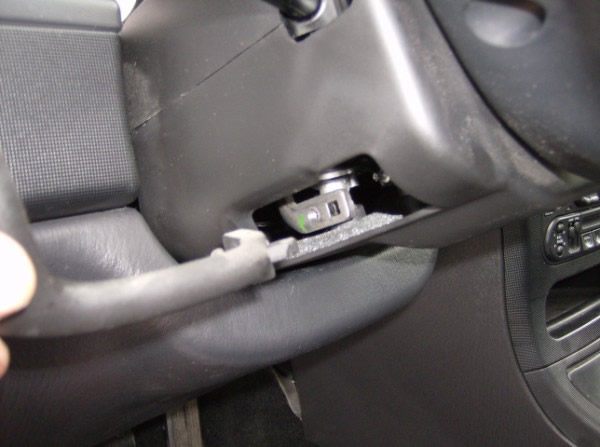

Show Large Image This picture show the Side Dash Panel and Lower Dash panel that must be removed to gain access to the under dash wiring on this vehicle. Show Large Image This picture shows the CHR-4 T-HARNESS Plugged into the Under Dash Side of the FACTORY IGNITION SWITCH Harness from the vehicle. Show Large Image to gain access to the IGNITION SWITCH HARNESS Plug you will need to remove the Tilt Wheel Lever and the Lower Steering Column Cover. Show Large Image The Tilt Wheel Lever is held in place by a screw that can be removed from the back of this lever. Show Large Image To remove the Under Dash Panel you will first need to remove this side panel and then remove the (2) screws that hold the edge of the under dash panel in place. Show Large Image The IGNITION SWITCH HARNESS is seen in this picture plugged into the Ignition Switch Harness Plug on the LOWER LEFTHAND SIDE of the Steering Column. The Steering Columns Lower cover must be removed to gain access to the Ignition Switch Harness and Plug. Show Large Image In this picture the FACTORY IGNITION SWITCH HARNESS is UNPLUGGED from the Ignition Switch on the Steering Column. This Harness needs only to be Unplugged if you are Installing a CHR-4 T-HARNESS when installing a Remote Starter. Show Large Image This picture shows the CHR-4 T-HARNESS installed between the Factory Ignition Switch Harness and the Ignition Switch of this vehicle. Show Large Image The BLACK/WHITE (+) TRUNK RELEASE wire is located at the Truck Release Switch on the back of the Under Dash Panel and is marked with a RED Clip in this picture.
