MAZDA CX-7
MODEL YEAR(S
CX-7 2007
KEY T-HARNESS IMMOBILIZER
N/A N/A MAZDA'S MAZDA'S Transponder Anti-theft, See NOTE #1
PART COLOR LOCATION DIAGRAM
12 VOLT CONSTANT RED (+) @ IGNITION SWITCH HARNESS
STARTER GRAY/RED (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 GREEN/YELLOW (+) @ IGNITION SWITCH HARNESS
IGNITION 2 BLACK/RED (+) @ IGNITION SWITCH HARNESS
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 PINK/YELLOW (+) @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 YELLOW (+) @ IGNITION SWITCH HARNESS
KEYSENSE RED/BLACK (+) OR BROWN/GREEN (+) @ IGNITION SWITCH HARNESS
PARKING LIGHTS ( - ) N/A
PARKING LIGHTS ( + ) RED/BLUE (+) LOW IN DRIVERS KICK PANEL

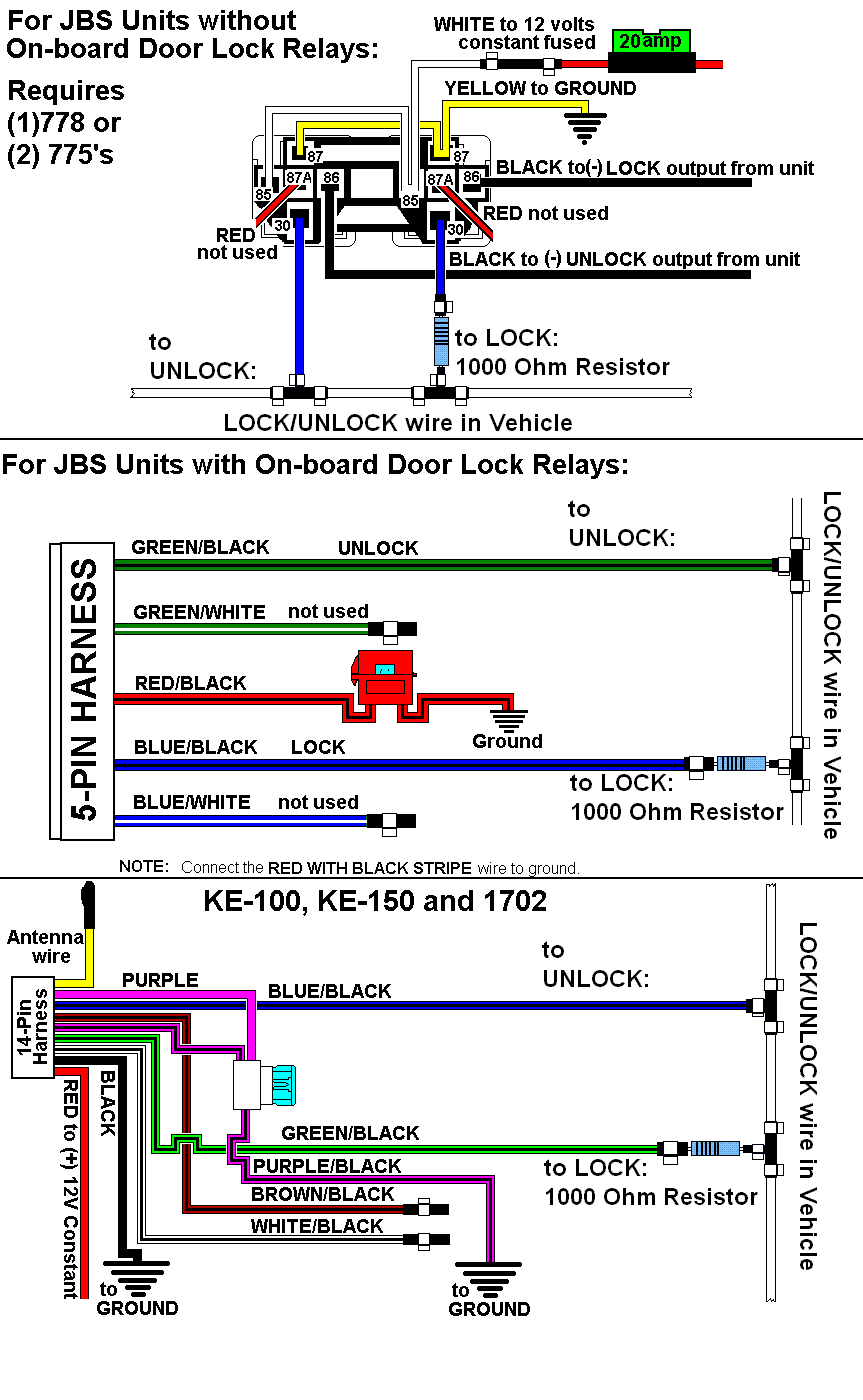

POWER LOCK GREEN/RED TO BLACK/BLUE (TYPE B) SEE NOTE #2 SEE DIAGRAM 17044_CX-7_MAZDA 1 WIRE JBS UNITS.GIF

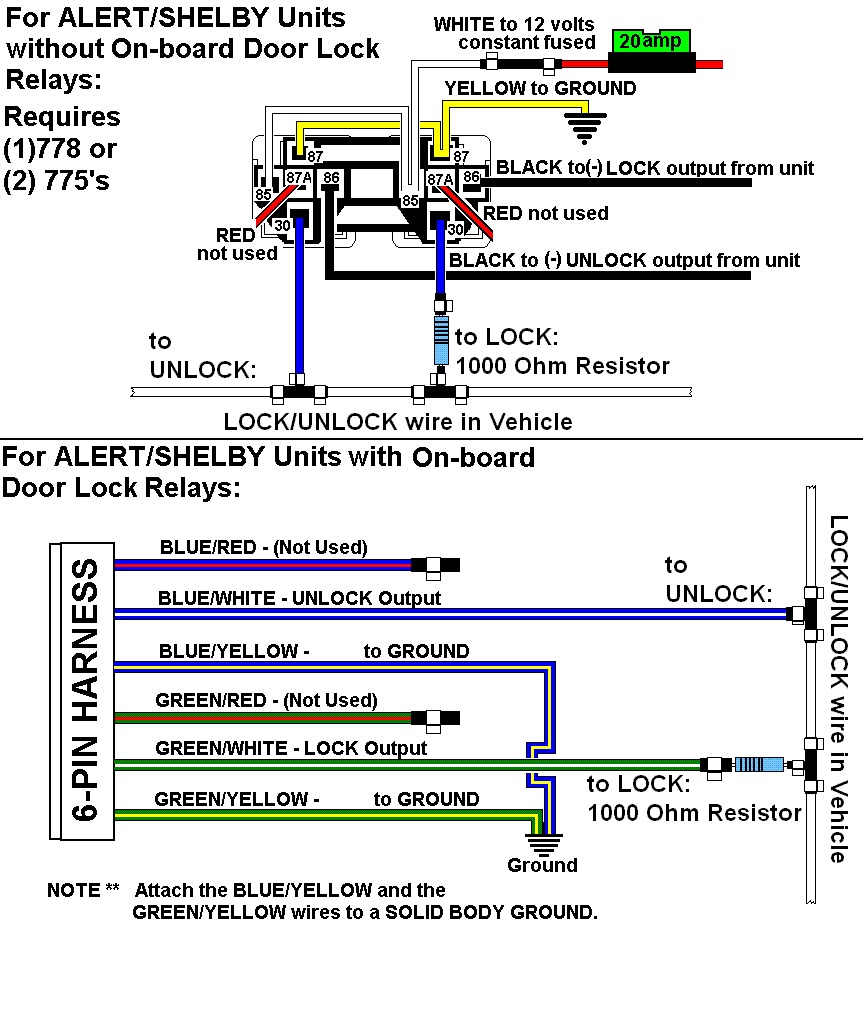

POWER UNLOCK SAME AS LOCK WIRE (TYPE B) SEE NOTE #2 SEE DIAGRAM 17044_CX-7_MAZDA 1 WIRE ALERT UNITS.GIF
LOCK MOTOR WIRE N/A
DOOR TRIGGER SEE NOTE #3 @ BCM, HIGH IN DRIVERS KICK PANEL
DOMELIGHT SUPERVISION BLACK/BLUE (-) @ BCM, HIGH IN DRIVERS KICK PANEL
TRUNK RELEASE N/A
SLIDING POWER DOOR N/A
HORN BLACK (-) @ STEERING COLUMN HARNESS
TACH N/A
WAIT TO START LIGHT N/A
BRAKE RED/WHITE (+) @ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM BLACK/WHITE (-) IN DRIVERS KICK PANEL
ANTI-THEFT TRANSPONDER ANTI-THEFT, See NOTE #1 TRANSPONDER @ IGNITION SWITCH TUMBLER
NOTES
NOTE #1: This vehicle is with MAZDA'S TRANSPONDER ANTI-THEFT SYSTEM,

for REMOTE STARTING ONLY you will need the Part #791 BYPASS Module and an

Extra Ignition key. (Requires extra key for Operation)



Part # PK-ALL or PKFM for REMOTE STARTING ONLY, requires 2 keys for

programming, NO key required for Operation.



Part # DB-ALL for Remote Starting and Keyless Entry operation (no resistors

required), 2 keys required for programming, no key required for Operation.





To Order the go to the SECURITY BYPASS MODULE Page or INTERFACE BYPASS

MODULE Page on this website.







NOTE #2: THIS VEHICLE HAS A SINGLE WIRE DOOR LOCKING SYSTEM AND WILL REQUIRE EXTRA PARTS, SEE DIAGRAM.







NOTE #3: THE LEFT FRONT DOOR IS BLACK/YELLOW (-). THE RIGHT FRONT DOOR IS BLACK/BLUE (-). THE LEFT REAR DOOR IS BLACK/ORANGE (-). THE RIGHT REAR DOOR IS BLACK/GREEN (-). USE ALL 4 WIRES AND DIODE ISOLATE EACH.
LINK 1 LINK TEXT 1 LINK 2 LINK TEXT 2
