PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
BLACK/BLUE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
BLUE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
BLACK/RED (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
BLACK/WHITE (+)
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
BROWN (-) (REQUIRES #775 RELAY)
|
@ HEADLIGHT SWITCH
|
|
|
PARKING LIGHTS ( + )
|
LIGHT BROWN/WHITE (+)
|
LOW IN DRIVERS KICK PANEL
|
|
|

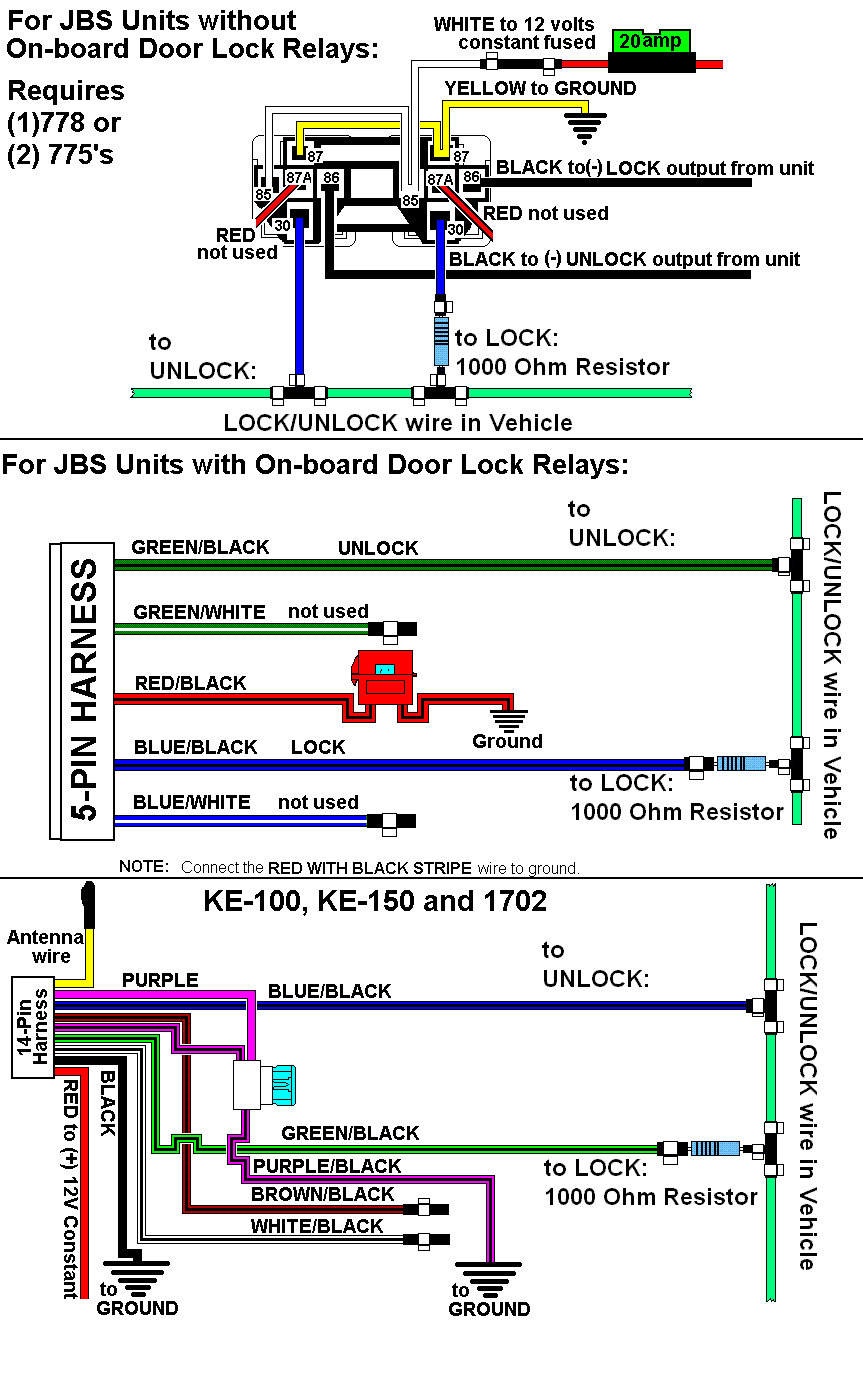

POWER LOCK
|
LIGHT GREEN (-) SEE NOTE #2
|
SEE DIAGRAM
|
14301_CX-9_CX-9 1 WIRE JBS UNITS.GIF
|
|

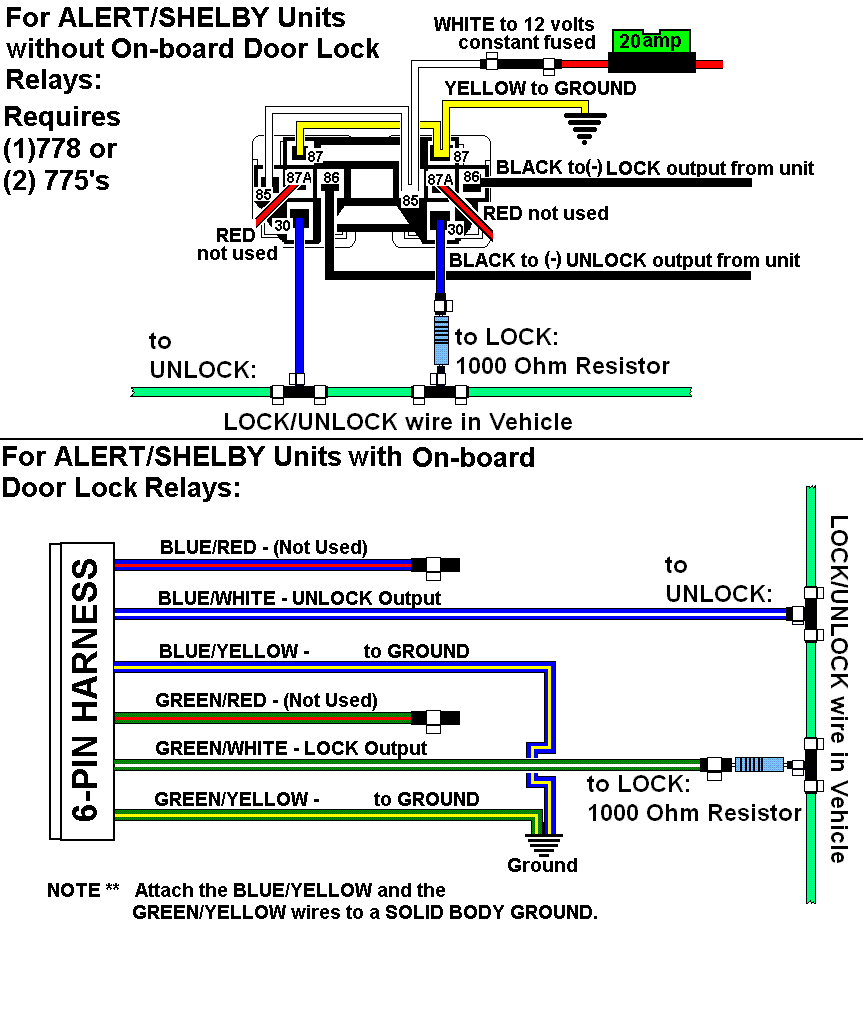

POWER UNLOCK
|
SAME AS LOCK WIRE
|
SEE DIAGRAM
|
14301_CX-9_CX-9 I WIRE ALERT UNITS.GIF
|
|
LOCK MOTOR WIRE
|
N/A
|
|
|
|
DOOR TRIGGER
|
GREEN/BLACK (-)
|
@ KEY CYLINDER LIGHT
|
|
|
DOMELIGHT SUPERVISION
|
USE DOOR TRIGGER
|
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
GREEN/RED (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
Any wire NOT PURPLE/BLACK (AC0
|
@ ANY FUEL-INJECTOR
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
GREEN/YELLOW (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
N/A
|
|
|
|
ANTI-THEFT
|
TRANSPONDER ANTI-THEFT, See NOTE #1
|
TRANSPONDER @ IGNITION SWITCH TUMBLER
|
|
