PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
YELLOW (+) & RED (+)
|
@ BCM, GREEN 2-PIN PLUG, PINS 1 & 2, SEE NOTE #2
|
|
|
STARTER
|
BLUE/WHITE (+)
|
@ IGNITION HARNESS, BLACK 7-PIN PLUG, PIN 7
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
BROWN/YELLOW (+)
|
@ IGNITION HARNESS, BLACK 7-PIN PLUG, PIN 1
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
PURPLE/GREEN (+)
|
@ IGNITION HARNESS, BLACK 7-PIN PLUG, PIN 6
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
BLUE/GRAY (+)
|
@ IGNITION HARNESS, BLACK 7-PIN PLUG, PIN 5
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
YELLOW/BLUE (+) (Left) & BROWN/YELLOW (+) (Right) (Isolate using two relays or two 6 amp diodes)
|
|
|
|
POWER LOCK
|

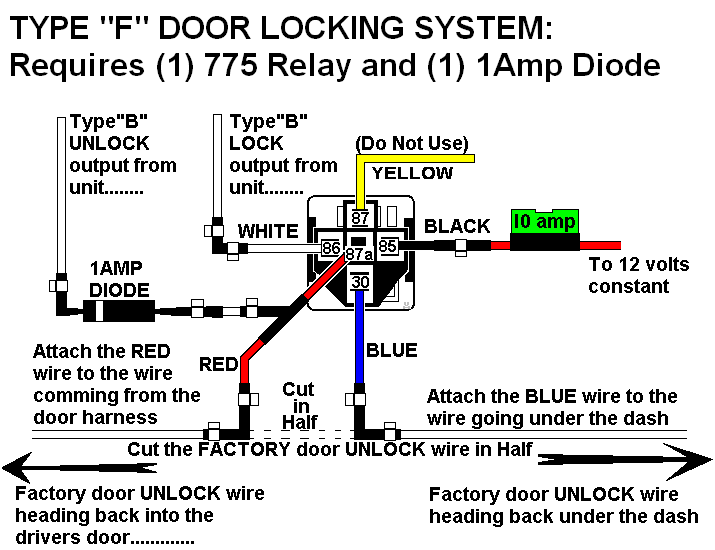

GREEN/PURPLE (TYPE F) (Open Locks)
|
@ BCM, BROWN 60-PIN PLUG, PIN 55
|
|
|
POWER UNLOCK
|
SAME AS POWER LOCK, (TYPE F) (Ground Unlocks)
|
|
|
|
LOCK MOTOR WIRE
|
GRAY/BROWN (5-WIRE)
|
@ BCM, BROWN 20-PIN PLUG, PIN 1
|
|
|
DOOR TRIGGER
|
GREEN/PURPLE (-)
|
@ BCM, BROWN 60-PIN PLUG, PIN 45
|
|
|
DOMELIGHT SUPERVISION
|
WHITE/BROWN (-)
|
@ BCM, GRAY 20-PIN PLUG, PIN 11
|
|
|
TRUNK RELEASE
|
BROWN (-)
|
@ BCM, BROWN 60-PIN PLUG, PIN 49
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
PURPLE/GREEN (-)
|
@ BCM, GREEN 42-PIN PLUG, PIN 31
|
|
|
TACH
|
NOT REQUIRED FOR REMOTE STARTING
|
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
GREEN/RED (+)
|
@ BRAKE SWITCH or BCM, GREEN 42-PIN PLUG, PIN 16
|
|
|
FACTORY ALARM DISARM
|
IGNITION + TRANSPONDER ACTIVATION
|
|
|
|
ANTI-THEFT
|
FORDS "SECURILOCK" TRANSPONDER ANTI-THEFT SYSTEM, SEE NOTE #1
|
|
|
