PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
WHITE (+)
|

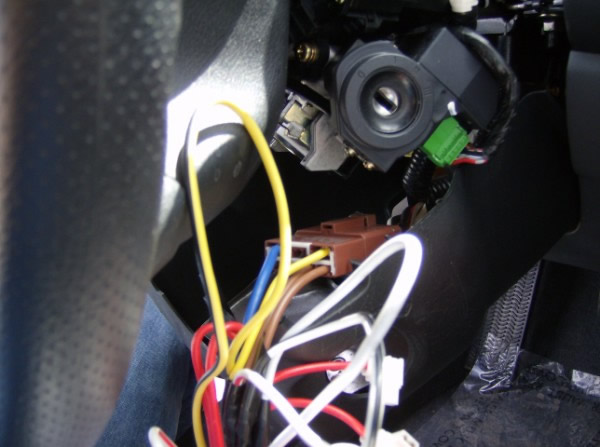

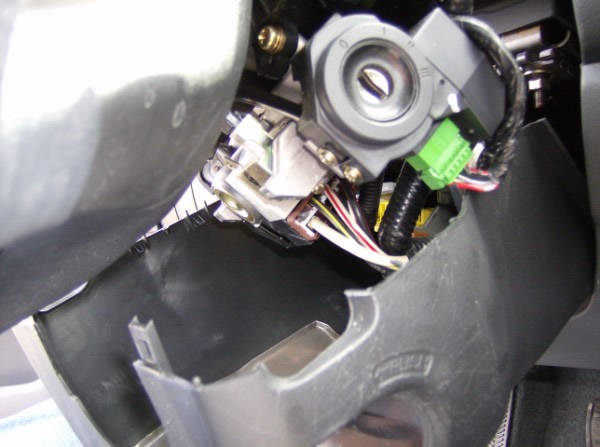

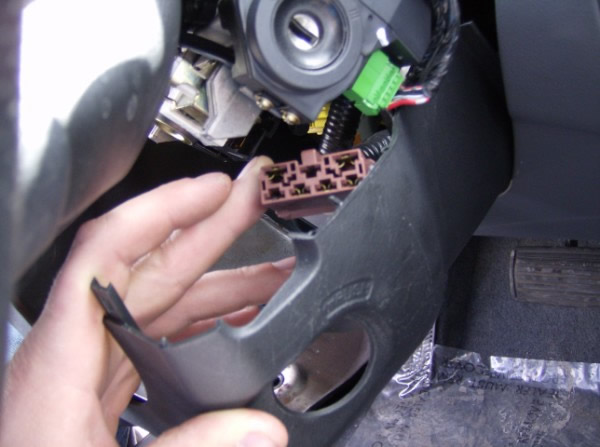

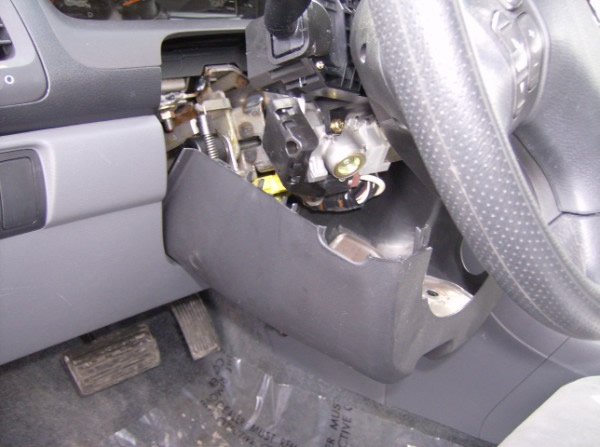

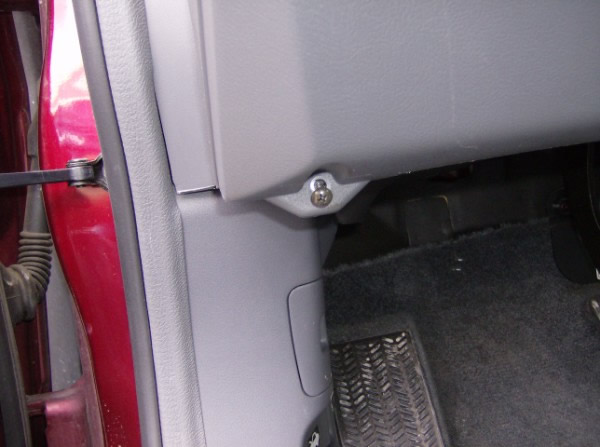

@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
BLACK/WHITE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
BLACK/YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
BLACK/RED (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
WHITE/RED (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
RED/BLACK (-)
|
@ HEADLIGHT SWITCH
|
|
|
PARKING LIGHTS ( + )
|
RED/BLACK (+)
|
@ LARGE WHITE PLUG ABOVE FUSEBOX
|
|
|
POWER LOCK
|
PINK/BLACK (TYPE B)
|
@ GREEN PLUG LEFT SIDE OF FUSEBOX
|
|
|
POWER UNLOCK
|
PINK/BLUE (TYPE B)
|
@ GREEN PLUG LEFT SIDE OF FUSEBOX
|
|
|
LOCK MOTOR WIRE
|
N/A
|
|
|
|
DOOR TRIGGER
|
GREEN/RED (-)
|
IN GREEN 5 PIN PLUG BEHIND FUSEBOX
|
|
|
DOMELIGHT SUPERVISION
|
USE DOOR TRIGGER, (Requires Part #775 Relay)
|
|
|
|
TRUNK RELEASE
|
YELLOW/GREEN (+)
|
IN DRIVERS KICK PANEL
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
GREEN/YELLOW (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
BLUE/RED or BLUE (AC)
|
@ ECM/PCM, See NOTE #2
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
WHITE/BLACK ( + )
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
WHITE (-)
|
@ MODULE INSIDE DRIVERS DOOR
|
|
|
ANTI-THEFT
|
HONDA'S TRANSPONDER ANTI-THEFT SYSTEM, See NOTE #1
|
@ IGNITION SWITCH TUMBLER
|
|
