PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
LIGHT BLUE/RED (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
SEE NOTE #1
|
|
|
|
STARTER 2
|
PURPLE/BROWN (-) MUX
|
@ IGNITION SWITCH, BLACK 5-PIN PLUG, PIN 2
|
|
|
IGNITION 1
|
PINK/WHITE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
SEE NOTE #1
|
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
WHITE/LIGHT GREEN (L) WHITE/PURPLE (R)
|
LOW IN DRIVERS KICK PANEL
|
|
|
POWER LOCK
|
PURPLE/DARK GREEN (1 WIRE DOORLOCKS )
|
IN DRIVERS KICK PANEL, see diagram
|
26500_NITRO_14301_DODGE NITRO 1 Wire Doorlocks.pdf
|
|
POWER UNLOCK
|
SAME AS LOCK WIRE
|
SEE DIAGRAM
|
5395_NITRO_6617_DODGE NITRO 1WIRE ALERT SHELBY UNITS.pdf
|
|
LOCK MOTOR WIRE
|
N/A
|
|
|
|
DOOR TRIGGER
|
SEE NOTE #2
|
IN KICK PANEL
|
|
|
DOMELIGHT SUPERVISION
|
YELLOW/WHITE (+)
|
IN DRIVERS KICK PANEL
|
|
|

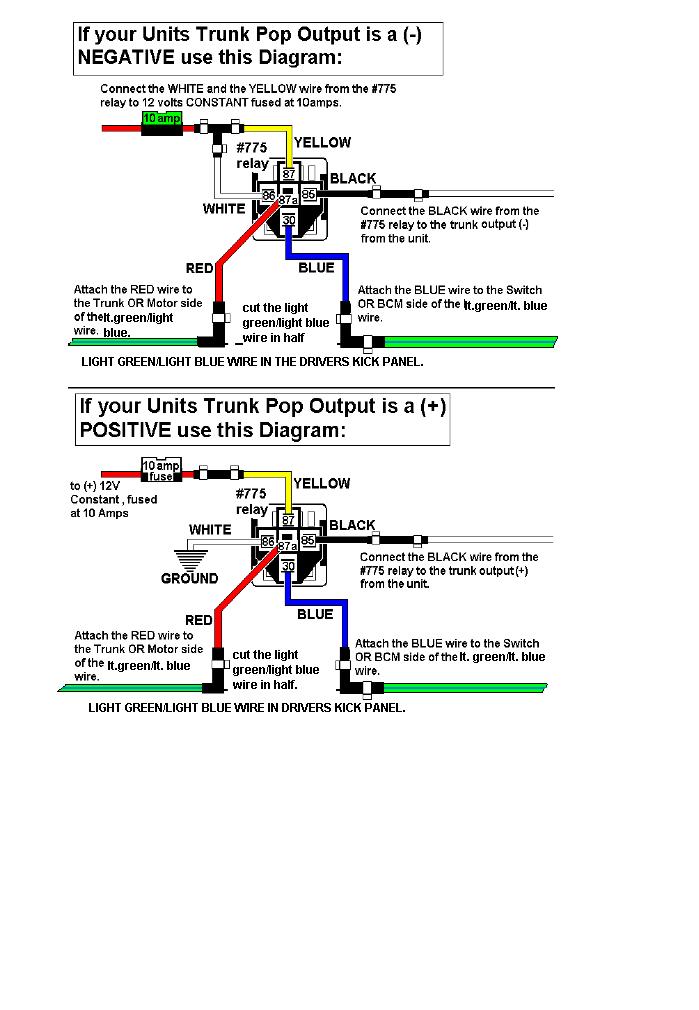

TRUNK RELEASE
|
LIGHT GREEN/LIGHT BLUE (5 WIRE), SEE DIAGRAM
|
LOW IN DRIVERS KICK PANEL
|
14301_NITRO_dodge nitro 5 wire trunk release.JPG
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DARK GREEN/PURPLE (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
ANY wire NOT BROWN/GRAY or BROWN/WHITE (AC)
|
@ IGNITION COIL
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
WHITE/TAN or WHITE/DARK GREEN (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
DISARMS WITH FACTORY REMOTE ONLY!!
|
|
|
|
ANTI-THEFT
|
CHRYSLERS MULITPLEX IGNITION/ANTI-THEFT SYSTEM, SEE NOTE #1
|
|
|
