PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+)
|

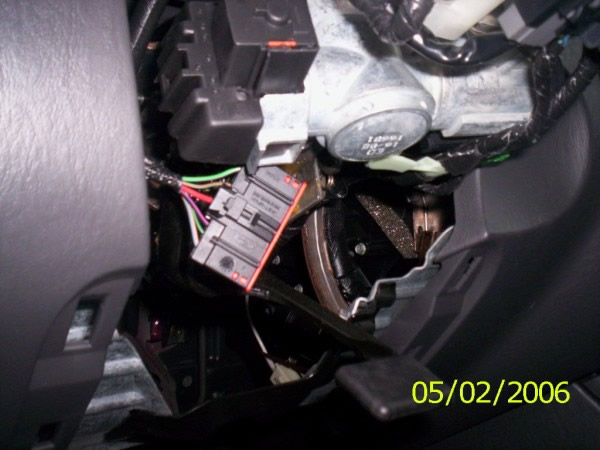

@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
GRAY/BLACK (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
GREEN/YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
RED/BLACK (-)
|
@ IGNITION SWITCH HARNESS
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
ORANGE/YELLOW (+)
|
@ HEADLIGHT SWITCH or GEM, TAN Plug, Pin 14, See NOTE #5
|
|
|
POWER LOCK
|
BLACK/RED (TYPE B)
|
IN DRIVERS KICK PANEL or GEM, GRAY Plug, Pin 15, See NOTE #5
|
|
|
POWER UNLOCK
|
BLACK/YELLOW (TYPE B)
|
IN DRIVERS KICK PANEL or GRAY Plug, Pin 21, See NOTE #5
|
|
|
LOCK MOTOR WIRE
|
YELLOW/BLACK (5-WIRE TYPE)
|
IN DRIVERS KICK PANEL
|
|
|
DOOR TRIGGER
|
See NOTE #2
|
@ GEM, See NOTE #5
|
29358_FOCUS_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
|
|
DOMELIGHT SUPERVISION
|
BLACK/BLUE (-), (Requires Part #775 Relay)
|
@ GEM, GREY Plug, Pin 3, See NOTE #5
|
|
|
TRUNK RELEASE
|
BLACK/YELLOW (-), (Requires Part #775 Relay)
|
@ TRUNK RELEASE SWITCH
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
BLACK/BLUE (-) or BLACK/GREEN (-)
|
@ STEERING COLUMN HARNESS or GEM, BROWN Plug, Pin 14, See NOTE #5
|
|
|
TACH
|
BLACK/GREEN or BLACK/ORANGE (AC)
|
@ IGNITON COIL
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
GREEN/RED (+)
|
@ GEM, TAN Plug, Pin 9, See NOTE #5
|
|
|
FACTORY ALARM DISARM
|
BLACK/WHITE (-)
|
@ GEM, GRAY Plug, Pin 14, See NOTE #5
|
|
|
ANTI-THEFT
|
FORD'S ANTI-THEFT TRANSPONDER SYSTEM, SEE NOTE #1
|
@ IGNITION SWITCH TUMBLER
|
|
|
NOTES
|
NOTE #1: This vehicle MAY BE equipped with a Special Anti-theft key, to remote start you will
need a Bypass module 791,(use this module IF you have a extra ignition key to
place inside the 791 to remote start, if you do not have an extra key to use or wish
not to have a key placed inside this bypass module, we OFFER a KEYLESS INTERFACE
BYPASS MODULE that does not require a key to be placed inside the bypass module,
this is Part # PKALL or PKFM, either one will work, to order, go to the INTERFACE
BYPASS MODULE PAGE on this website.
NOTE #2: This vehicle has (4) door trigger wires, the DRIVERS DOOR is a YELLOW/BLACK (-)
in a TAN Plug, Pin 22, the PASSENGER DOOR is a BLACK/BLUE (-) TAN Plug, Pin 21,
the DRIVERS REAR DOOR is a BLACK/ORANGE (-) in a WHITE Plug, Pin 15 and the
PASSENGER REAR DOOR is a BLACK/GREEN (-) in a GRAY Plug, Pin 15. When
connecting to an ALARM SYSTEM use all 4 DOOR TRIGGER wires and DIODE ISOLATE,
to connect, See DIAGRAM
NOTE #3: The IGNITION SWITCH MUST be turned on before the Brake wire will test properly.
NOTE #4: The FACTORY KEYLESS ENTRY Module (if so equipped) is located behind and to
the right of the GLOVE BOX.
NOTE #5: The GEM (Generic Electronic Module) is located above the PASSENGER KICK PANEL.
|
