PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED(+)
|
@ BATTERY or TIPM, NOTE #3
|
|
|
STARTER
|
NOT USED FOR REMOTE STARTING!
|
|
|
|
STARTER 2
|
PURPLE/BROWN (-) MUX
|
|
|
|
IGNITION 1
|
PINK/WHITE (+)
|
@ IGNITION SWITCH, (BLACK, 5-PIN PLUG) PIN 3
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
SAME WIRE AS STARTER #2
|
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
WHITE/ORANGE(+) (Left) and WHITE/PURPLE(+) (Right)
|
in PASSENGER KICK PANEL or TIPM (BROWN PLUG) PINS 8 and 36, NOTE #3
|
|
|
POWER LOCK
|
PURPLE/LT. GREEN (-) thru a 1000 Ohm Resistor, SEE NOTE #2
|
in DRIVERS KICK PANEL or TIPM (WHITE PLUG) PIN 2 NOTE #3, see diagram
|

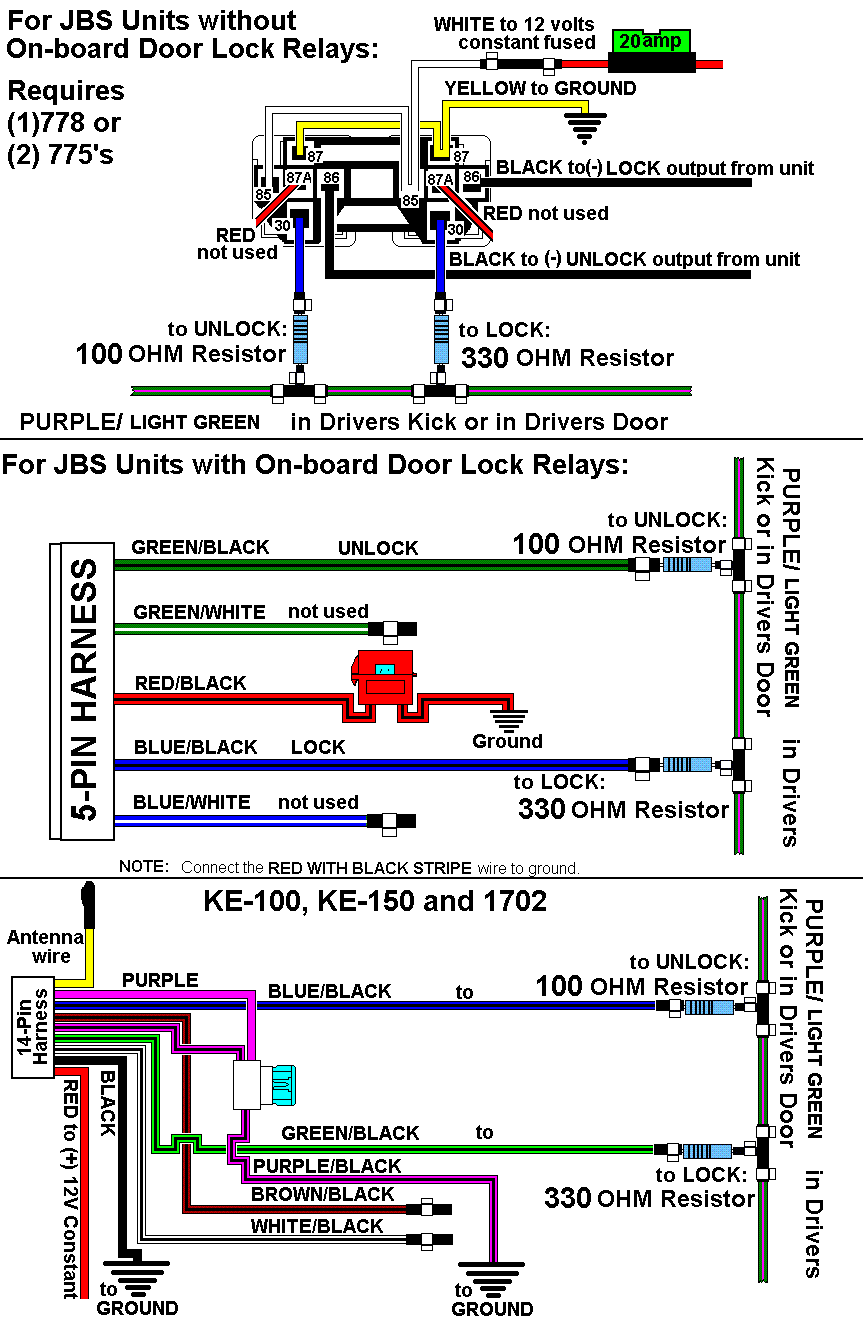

30009_WRANGLER_Jeep 1 wire jbs units.GIF
|
|
POWER UNLOCK
|
USE LOCK WIRE, (-) thru a 249 Ohm Resistor, SEE NOTE #2
|
see diagram
|

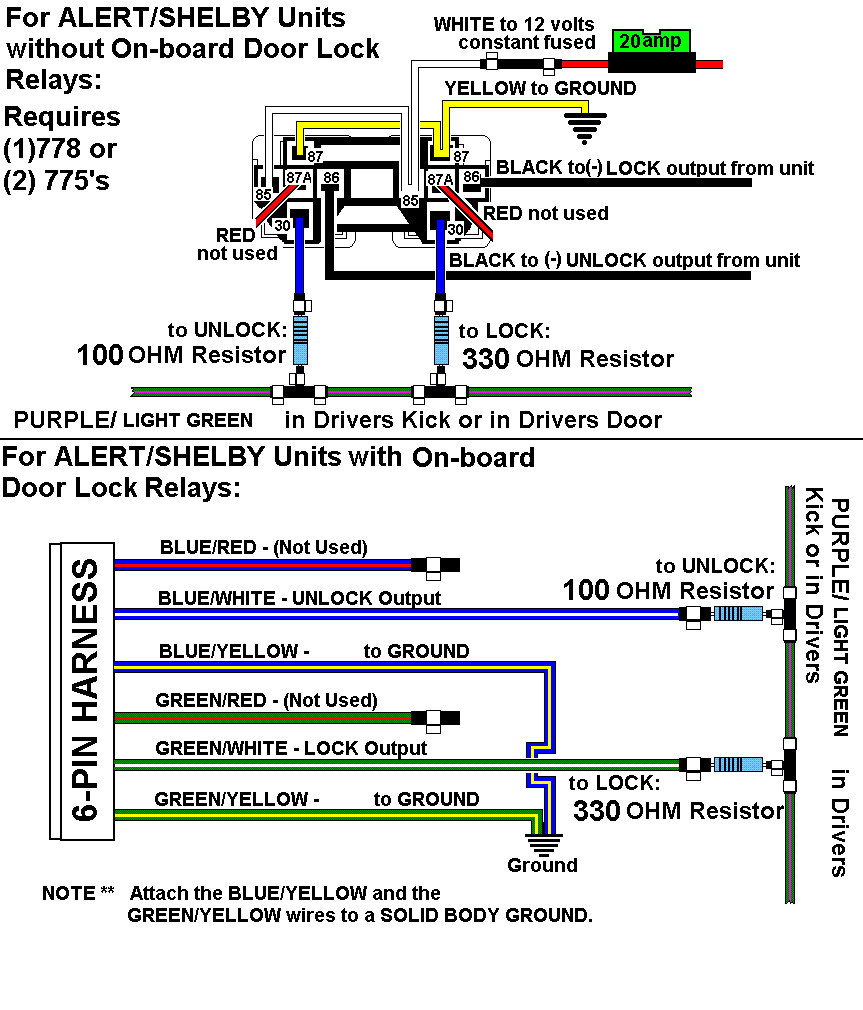

30009_WRANGLER_Jeep 1 wire alert units.GIF
|
|
LOCK MOTOR WIRE
|
TAN/LT. GREEN to TAN/WHITE (5-wire type)
|
in DRIVERS KICK PANEL or TIPM (GRAY PLUG) PIN 8, NOTE #3
|
|
|
DOOR TRIGGER
|
PURPLE (-)
|
in DRIVERS KICK PANEL or TIPM (WHITE PLUG) PIN 11, NOTE #3
|
|
|
DOMELIGHT SUPERVISION
|
YELLOW/WHITE (+)
|
in PASSENGER KICK PANEL or INSTRUMENT CLUSTER, (BROWN, 20-PIN PLUG) PIN 4
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DARK GREEN/PURPLE (-)
|
@ HORN SWITCH or or INSTRUMENT CLUSTER, (BLACK, 20-PIN PLUG) PIN 10
|
|
|
TACH
|
Any wire NOT BROWN/WHITE (AC)
|
@ Any FUEL-INJECTOR
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
WHITE/TAN (+)
|
@ BRAKE SWITCH or TIPM (WHITE PLUG) PIN 10, NOTE #3
|
|
|
FACTORY ALARM DISARM
|
N/A
|
|
|
|
ANTI-THEFT
|
CHRYSLER'S MULTIPLEX IGNITION/TRANSPONDER SYSTEM, See NOTE#1
|
TRANSPONDER @ IGNITION SWITCH TUMBLER
|
|
