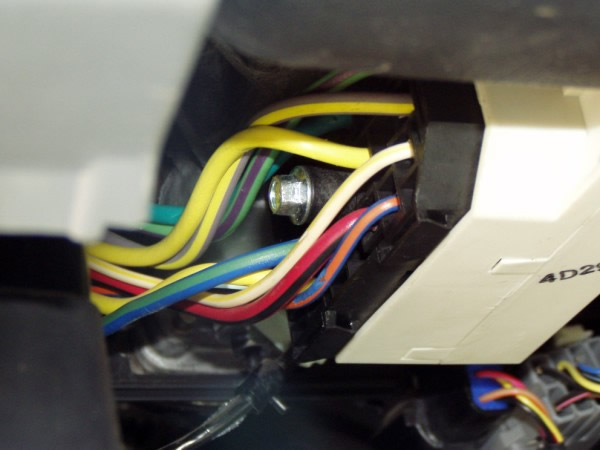

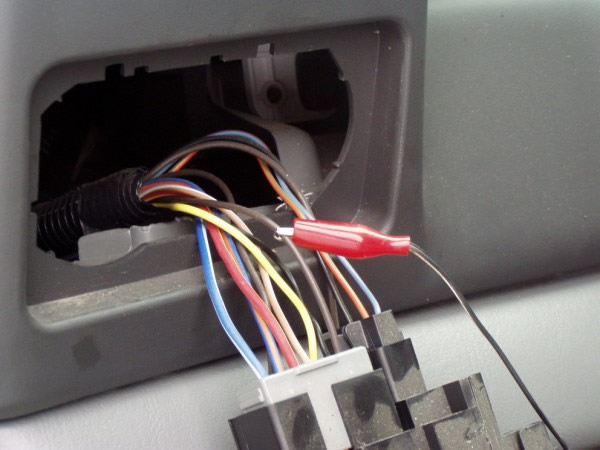

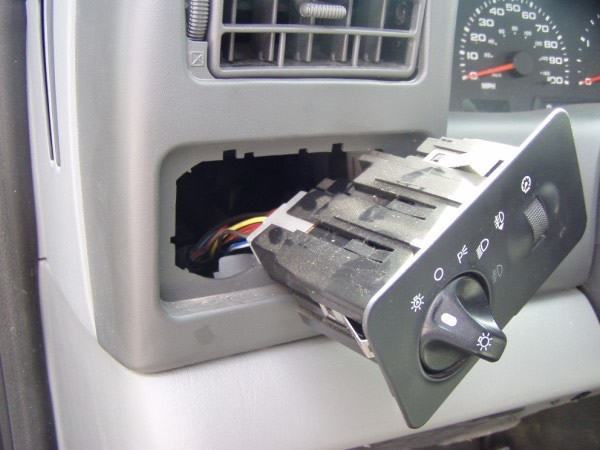

NOTE #1: This vehicle MAY BE equipped with a Special Anti-theft key, to remote start you will
need a Bypass module 791,(use this module IF you have a extra ignition key to
place inside the 791 to remote start, if you do not have an extra key to use or wish
not to have a key placed inside this bypass module, we OFFER a KEYLESS INTERFACE
BYPASS MODULE that does not require a key to be placed inside the bypass module,
this is Part # PKALL or PKFM, either one will work, to order, go to the INTERFACE
BYPASS MODULE PAGE on this website.
NOTE #2: Vehicles without FACTORY KEYLESS ENTRY are a TYPE "C" Door Locking system, the
PINK/YELLOW is for LOCK and the PINK/LIGHT GREEN is for UNLOCK both wires are
found in EITHER KICK PANEL, you MUST use the DRIVERS DOOR SWITCH for TESTING.

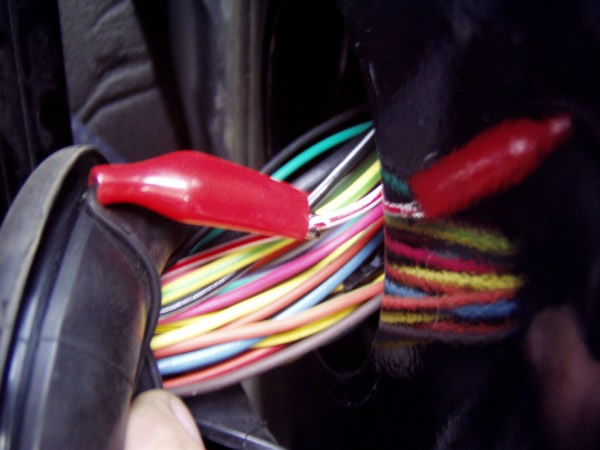

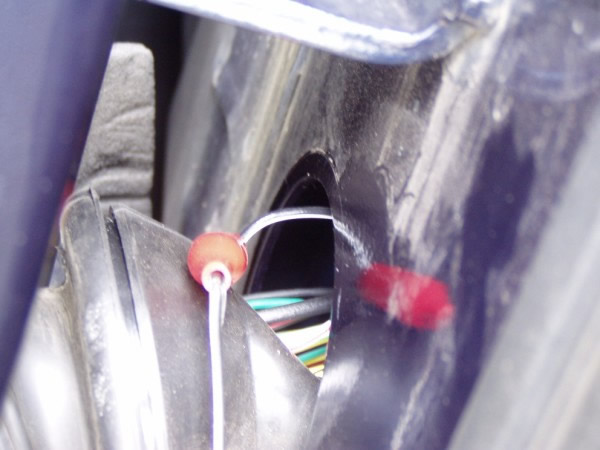

if vehicle is equipped with FACTORY KEYLESS ENTRY the Door Locks are a TYPE "B"
System, the LOCK is a WHITE/RED (-) and the UNLOCK is a BLACK/WHITE (-) both
wires are found at the VSM or in the DRIVERS DOOR HARNESS between the door and
the door jam. You MAY also need to connect up the GEM WAKE UP DIAGRAM if when
you use the REMOTE KEYLESS ENTRY and the door locks stop working after a 5 minute
wait.
NOTE #3: The VSM (Vehicle Security Module) is located to the RIGHT of the GAS PEDAL,
just above the transmission hump and below the RADIO, it is NOT ACCESSIBLE
from the radio opening.

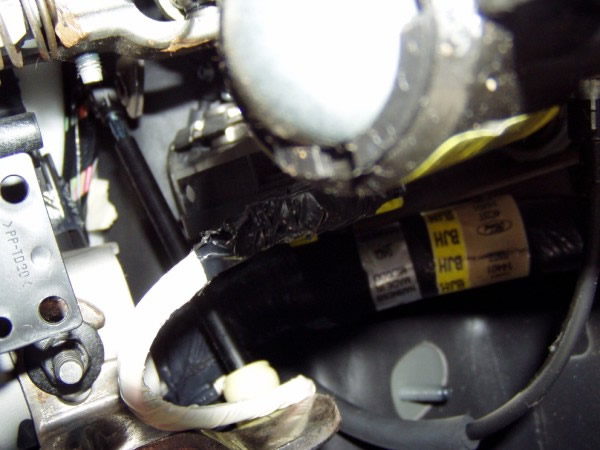

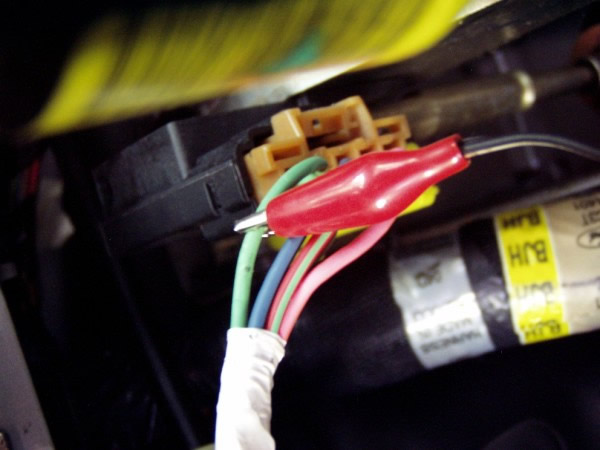

NOTE #4: The DIESEL TACH wire is a GREEN/WHITE wire, located in a 5-pin harness held up
with tape behind the parking brake release.
NOTE #5: For WAIT TO START LIGHT, do not use the wire in the vehicle, use the 5,10,15 or 20
Second PROGRAMMABLE Wait To Start Timer on the Remote Starter
|
