PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+)
|

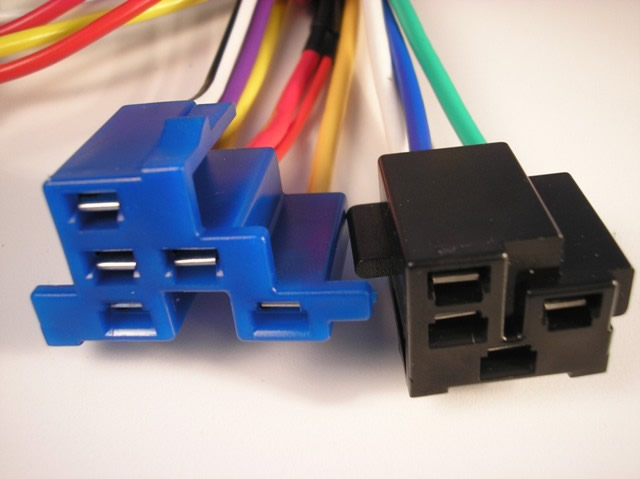

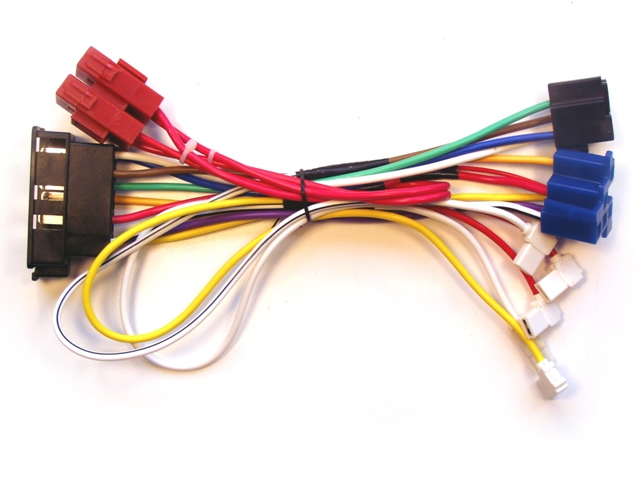

@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
YELLOW (+) or PURPLE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
PINK (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
ORANGE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
BROWN (+)
|
@ HEADLIGHT SWITCH or FUSEBOX
|
|
|
POWER LOCK
|
LIGHT BLUE (TYPE C)
|
IN DRIVERS DOOR HARNESS
|
|
|
POWER UNLOCK
|
BLACK/WHITE or BLACK/RED (TYPE C)
|
IN DRIVERS DOOR HARNESS
|
|
|
LOCK MOTOR WIRE
|
GRAY (5-WIRE TYPE)
|
IN DRIVERS DOOR HARNESS
|
|
|
DOOR TRIGGER
|
WHITE (-)
|
@ UNDERDASH LIGHT
|
|
|
DOMELIGHT SUPERVISION
|
USE DOOR TRIGGER, (Requires Part #775 Relay)
|
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
BLACK (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
PURPLE/WHITE (AC)
|
@ IGNITION COIL or DISTRIBUTOR
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
WHITE (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
N/A
|
|
|
|
ANTI-THEFT
|
N/A
|
|
|
