PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+) and LIGHT GREEN/PURPLE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
DARK GREEN (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
PURPLE/ORANGE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
GRAY/YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
WHITE/LIGHT BLUE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
WHITE/PURPLE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
WHITE/BLACK (-)
|
@ LCM, GRAY 16-Pin Plug, Pin 13, See NOTE #2
|
|
|
PARKING LIGHTS ( + )
|
BROWN (+)
|
@ LCM, BLACK 16-Pin plug, pin 4, See NOTE #2
|
|
|
POWER LOCK
|
PINK/YELLOW (+) TYPE A
|
IN DRIVERS KICK PANEL @ DOOR HARNESS
|
|
|
POWER UNLOCK
|
PINK/LIGHT GREEN (+) TYPE A
|
IN DRIVERS KICK PANEL @ DOOR HARNESS
|
|
|
LOCK MOTOR WIRE
|
PINK/BLACK (+)
|
IN DRIVERS DOOR HARNESS
|
|
|
DOOR TRIGGER
|
DARK BLUE (-) and BLACK/ORANGE (-) Use both, See NOTE #4
|
@ LCM, See NOTE #2
|
14301_CROWN-VICTORIA_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
|
|
DOMELIGHT SUPERVISION
|
BLACK/LIGHT BLUE (+)
|
@ LCM, BLACK 16-Pin plug, Pin 11, See NOTE #2
|
|
|
TRUNK RELEASE
|
PURPLE/YELLOW (5-Wire) See NOTE #5, (Requires Part #775 Relay)
|
IN DRIVERS KICK PANEL, in harness to rear of vehicle
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DARK BLUE (-)
|
@ LCM, GRAY 22-Pin plug, Pin 4, See NOTE #2
|
|
|
TACH
|
ANY wire NOT RED or WHITE/RED (AC)
|
@ any FUEL-INJECTOR or IGNITION COIL
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
LIGHT GREEN/RED (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
DARK GREEN/PURPLE (-)
|
@ DRIVERS KICK PANEL or LCM, 12-PIN PLUG, PIN 9
|
|
|
ANTI-THEFT
|

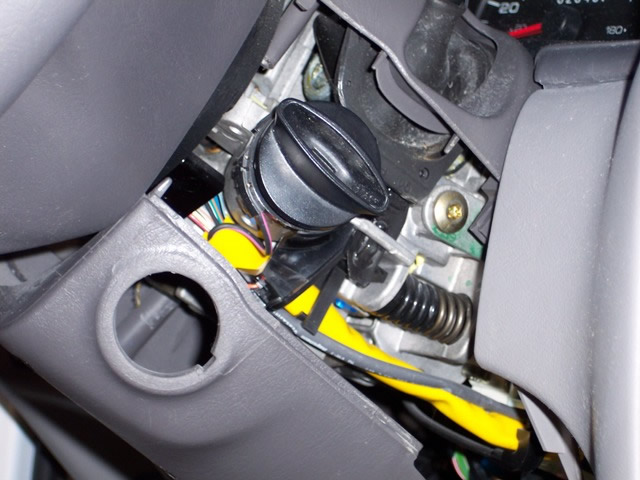

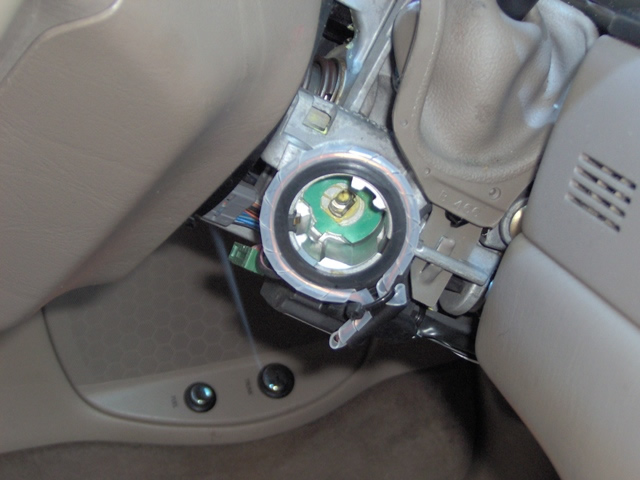

FORD'S TRANSPONDER ANTI-THEFT SYSTEM, See NOTE #1
|

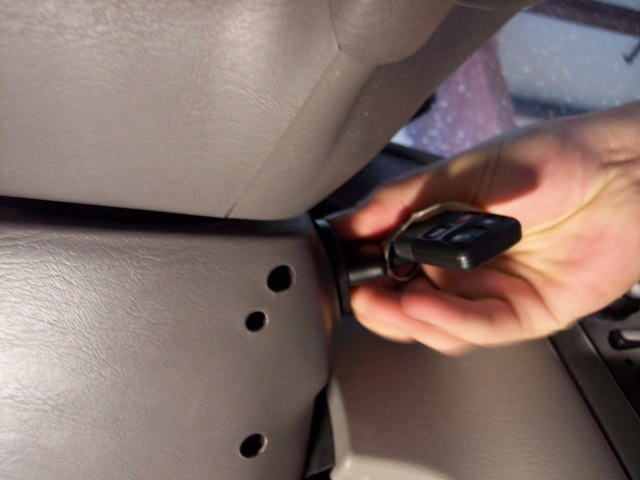

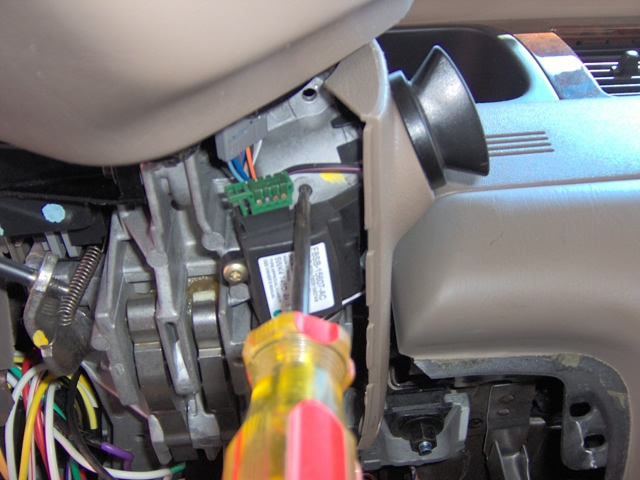

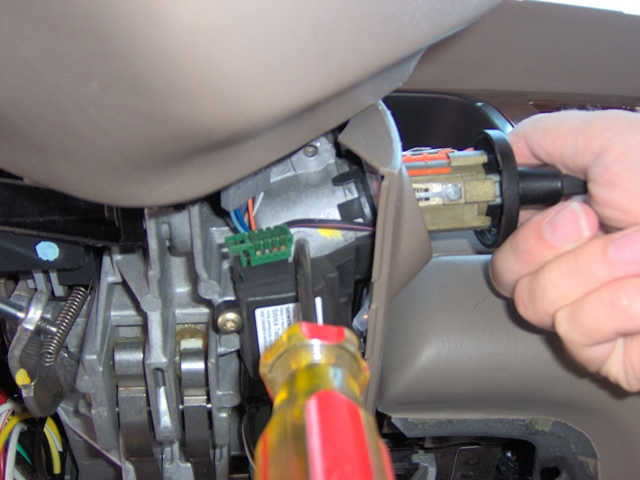

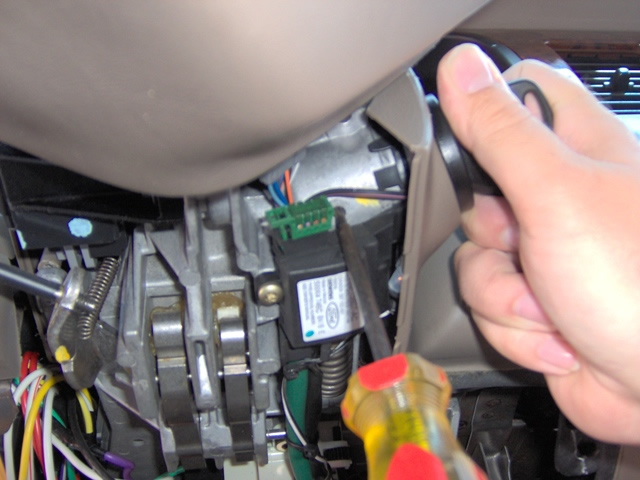

@ IGNITION SWITCH TUMBLER
|
|
|
NOTES
|
NOTE #1: This vehicle uses a Special Anti-theft key, to remote start you will need a Bypass
module 791,(use this module IF you have a extra ignition key to place inside the 791
to operate, if you do not have an extra key to use or wish not to have a key placed
inside this bypass module, we OFFER a KEYLESS INTERFACE BYPASS MODULE that
does not require a key to be placed inside the bypass modlue, this is Part # PKALL or
PKFM, either one will work, to order, go to the INTERFACE BYPASS MODULE PAGE on
this website.
NOTE #2: The LCM (Lighting Control Module) is located to the RIGHT of the STEERING COLUMN
NOTE #3: the DRIVERS DOOR is a DARK BLUE (-) in the GRAY 22-Pin plug, pin 11, the
ORANGE/BLACK (-) covers all other doors and is in a GRAY 16-Pin plug, pin 11.
When connecting to an Alarm System use BOTH DOOR TRIGGER wires and DIODE
ISOLATE, to connect, See DIAGRAM
NOTE #4: the TRUNK RELEASE System on this vehicle uses a 5-Wire circuit and will require
an extra relay part #775, to connect, See DIAGRAM.
|
