PONTIAC TRANSPORT
MODEL YEAR(S
TRANSPORT 1999-2000
KEY T-HARNESS IMMOBILIZER
GMKEY-2 N/A GM's PK3 TRANSPONDER ANTI-THEFT System, Requires 791 Module and Extra Ignition Key
PART COLOR LOCATION DIAGRAM

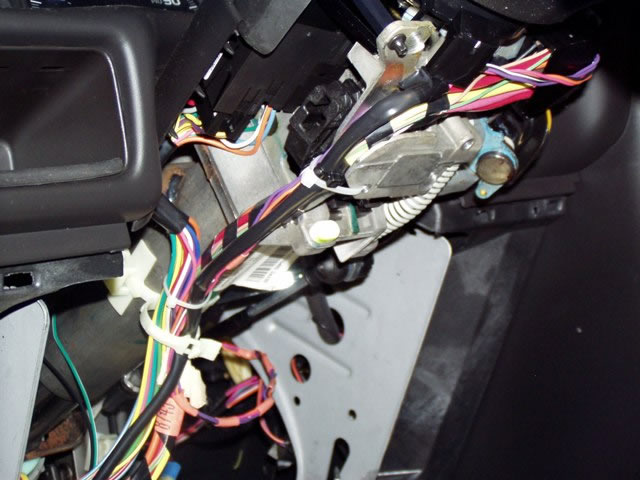

12 VOLT CONSTANT RED (+) and RED/WHITE (+) IGNITION SWITCH HARNESS
STARTER YELLOW (+) IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 PINK (+) IGNITION SWITCH HARNESS
IGNITION 2 WHITE (+) IGNITION SWITCH HARNESS
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 ORANGE (+) IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 N/A
KEYSENSE N/A
PARKING LIGHTS ( - ) BROWN/WHITE (-) @ BCM, See NOTE *1
PARKING LIGHTS ( + ) BROWN (+) @ HEADLIGHT SWITCH or in DRIVERS KICK PANEL
POWER LOCK LIGHT BLUE (TYPE C) See NOTE *2 IN EITHER KICK PANEL
POWER UNLOCK WHITE (TYPE C) See NOTE *2 IN EITHER KICK PANEL
LOCK MOTOR WIRE GRAY (+) IN DRIVERS DOOR HARNESS
DOOR TRIGGER GRAY/BLACK (-) @ BCM, See NOTE *1
DOMELIGHT SUPERVISION USE DOOR TRIGGER
TRUNK RELEASE N/A
SLIDING POWER DOOR See NOTE *3 IN PASSENGERS KICK PANEL
HORN BLACK (-) @ BCM, See NOTE *1
TACH PURPLE/WHITE @ IGNITION COIL
WAIT TO START LIGHT N/A
BRAKE WHITE (+) @ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM DISARMS WITH UNLOCK

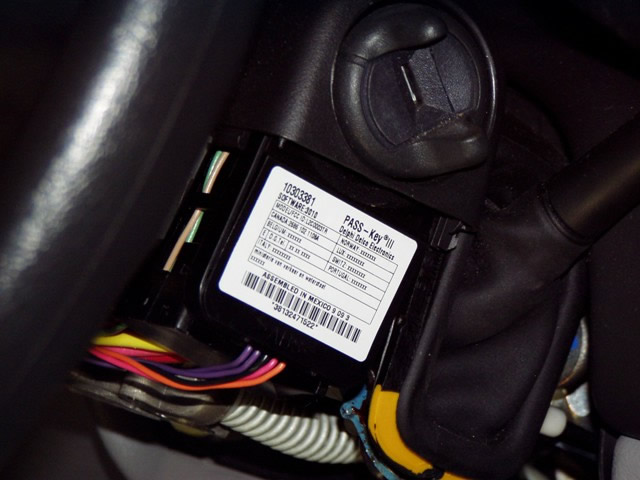

ANTI-THEFT GM's PASSKEY 3 (PK3 on Steel Shaft of Ignition Key) TRANSPONDER SYSTEM TRANSPONDER @ IGNITION SWITCH TUMBLER
NOTES
NOTE *1 the BCM (Body Control Module) is located to the RIGHT of the GLOVEBOX.





NOTE *2 if vehicle is equipped with a FACTORY KEYLESS ENTRY, use the RED/BLACK (-) for LOCK and the ORANGE/BLACK (-) for UNLOCK both wires will be found at the BCM, wires will only meter with the key in the Door key cylinder. You must use the 3.5 or Long door lock pulse length output.





NOTE *3 a (-) Negative pulse on this LIGHT BLUE (-) wire will slide the door open, and another (-) Negative pulse on the same wire will close the sliding door.
