PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
LIGHT GREEN/PURPLE (+)
|

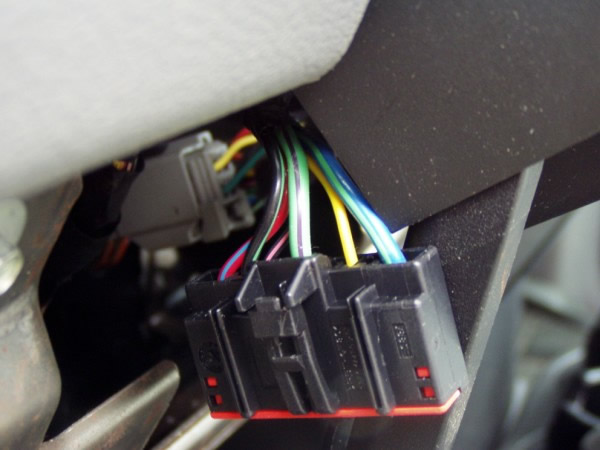

@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
RED/LIGHT BLUE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
DARK BLUE/LIGHT GREEN (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
BLACK/LIGHT GREEN (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|

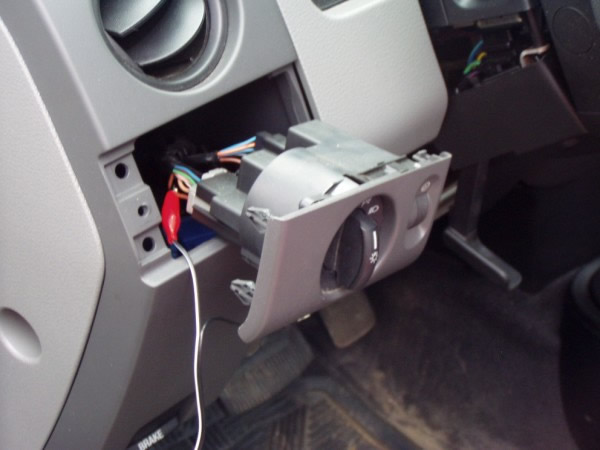

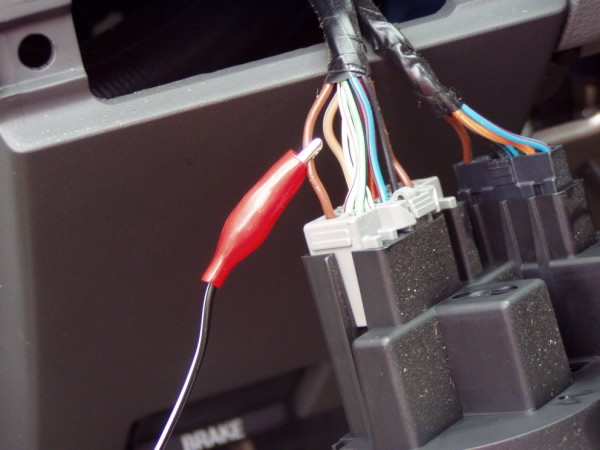

PARKING LIGHTS ( + )
|
BROWN (+)
|
@ HEADLIGHT SWITCH or BCM, BLUE Plug, Pin 6, See NOTE *1
|
|
|
POWER LOCK
|
PINK/YELLOW (TYPE B)
|
IN DRIVERS DOOR BOOT or @ BCM, GREEN Plug, Pin 9, See NOTE *1
|
|
|
POWER UNLOCK
|
PINK/LIGHT GREEN (TYPE B)
|
IN DRIVERS DOOR BOOT or @ BCM, GREEN Plug, Pin 1, See NOTE *1
|
|
|
LOCK MOTOR WIRE
|
PINK/BLACK (5-WIRE TYPE)
|
IN DRIVERS KICK PANEL
|
|
|
DOOR TRIGGER
|
BLACK/YELLOW (-) and BLACK/PINK (-) Use both, See NOTE #3
|
IN DRIVERS KICK PANEL, GRAY Plug, Pins 22 and 23
|
12352_F-SERIES-LIGHT-DUTY_FORD DOOR PIN ISOLATION.pdf
|
|
DOMELIGHT SUPERVISION
|
BLACK/LIGHT BLUE (+)
|
IN DRIVERS KICK PANEL, GRAY Plug, Pin 6
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DARK BLUE (-)
|

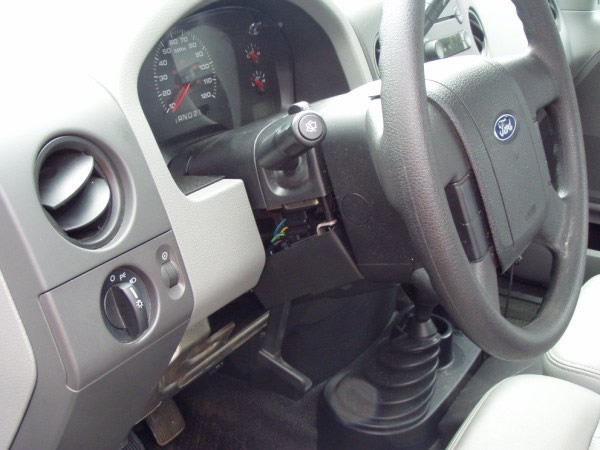

@ STEERING COLUMN HARNESS or BCM, BLUE Plug, Pin 12, See NOTE *1
|
|
|
TACH
|
Any wire that is NOT RED or RED/LIGHT GREEN (AC)
|
@ IGNITON COIL or FUEL INJECTORS
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|

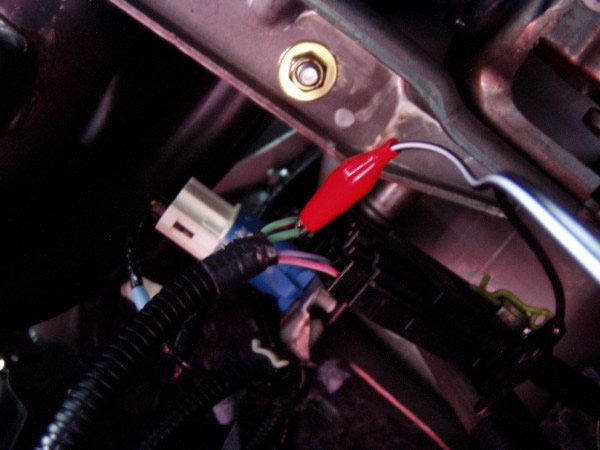

BRAKE
|
LIGHT GREEN (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
N/A
|
|
|
|
ANTI-THEFT
|
FORDS TRANSPONDER ANTI-THEFT SYSTEM, See NOTE #1
|
@ IGNITION SWITCH TUMBLER
|
|
|
NOTES
|
NOTE #1: This vehicle is equipped with a Special Anti-theft key, to remote start you will need a
Bypass module 791, use this module IF you have a extra ignition key to place inside
the 791 to remote start, if you do not have an extra key to use or wish not to have a
key placed inside this bypass module, we OFFER a KEYLESS INTERFACE BYPASS
MODULE that does not require a key to be placed inside the bypass module, this is
Part # PKALL, to order, go to the INTERFACE BYPASS
MODULE PAGE on this website.
NOTE #2: The BCM (Body Control Module) is located on the DRIVERS SIDE REAR CAB WALL.
NOTE #3: Use the above wires on vehicles without Factory Keyless Entry, with Factory Keyless,
the wires are at the BCM, DRIVERS DOOR BLACK/YELLOW (-) Pin 4, PASSENGER
DOOR, BLACK/PINK (-) Pin 5, the DRIVERS SIDE REAR DOOR is a BLACK/LIGHT BLUE
(-) Pin 12 and the PASSENGER REAR DOOR is a BLACK/WHITE (-) Pin 13. When
connecting to an ALARM SYSTEM, use all 4 DOOR TRIGGER wires and DIODE
ISOLATE. to connect, See DIAGRAM
|
