CHRYSLER TOWN & COUNTRY
MODEL YEAR(S
TOWN & COUNTRY 1996-2000
KEY T-HARNESS IMMOBILIZER
CHRKEY-1 (1996-2000) N/A CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1
PART COLOR LOCATION DIAGRAM
12 VOLT CONSTANT RED (+) @ IGNITION SWITCH HARNESS
STARTER YELLOW (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 DARK BLUE (+) @ IGNITION SWITCH HARNESS
IGNITION 2 N/A
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 BLACK/ORANGE (+) @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 BLACK/WHITE (+) @ IGNITION SWITCH HARNESS
KEYSENSE N/A
PARKING LIGHTS ( - ) GREEN/WHITE (-) or GREEN/RED (-), See NOTE #2 @ HEADLIGHT SWITCH, See DIAGRAM
PARKING LIGHTS ( + ) N/A

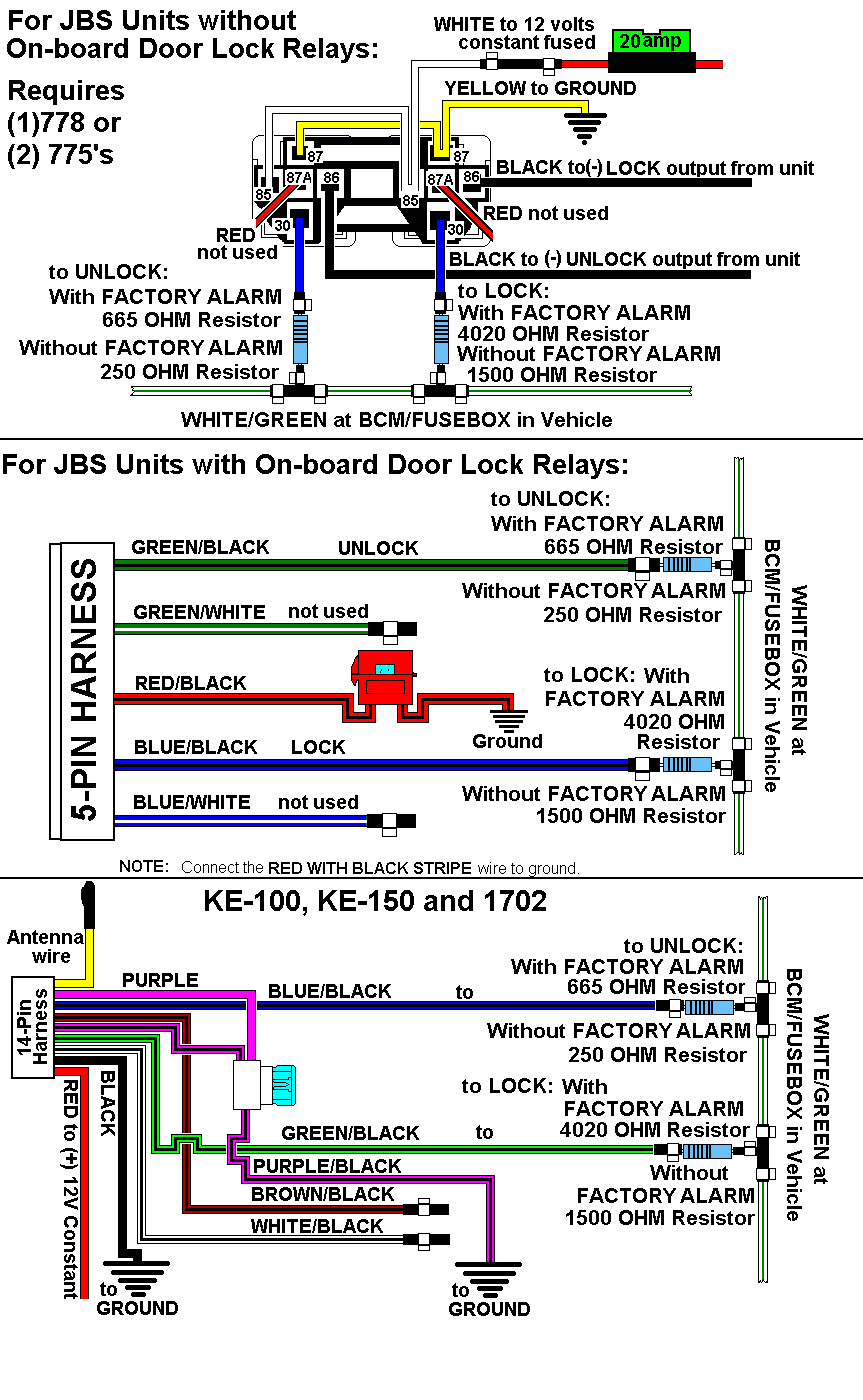

POWER LOCK WHITE/GREEN (1-Wire Door Lock System) See NOTE #3 @ LEFT PLUG, BOTTOM of BCM/FUSE BOX, See DIAGRAM 1_0_D_e217669e-e.bmp
POWER UNLOCK Same wire, See DIAGRAM See DIAGRAM
LOCK MOTOR WIRE BROWN/WHITE (5-WIRE TYPE) IN DRIVERS DOOR HARNESS
DOOR TRIGGER BROWN/LIGHT GREEN (-) @ DOME LIGHT ON/OFF SWITCH
DOMELIGHT SUPERVISION BROWN/WHITE (-), (Requires #775 Relay) @ DOME LIGHT ON/OFF SWITCH
TRUNK RELEASE N/A
SLIDING POWER DOOR N/A
HORN BLACK/RED (-) or GRAY/ORANGE (-) @ STEERING COLUMN HARNESS
TACH GRAY or GRAY/RED (AC) @ IGNITION COIL PACK
WAIT TO START LIGHT N/A
BRAKE WHITE/TAN (+) @ SWITCH ABOVE BRAKE PEDAL

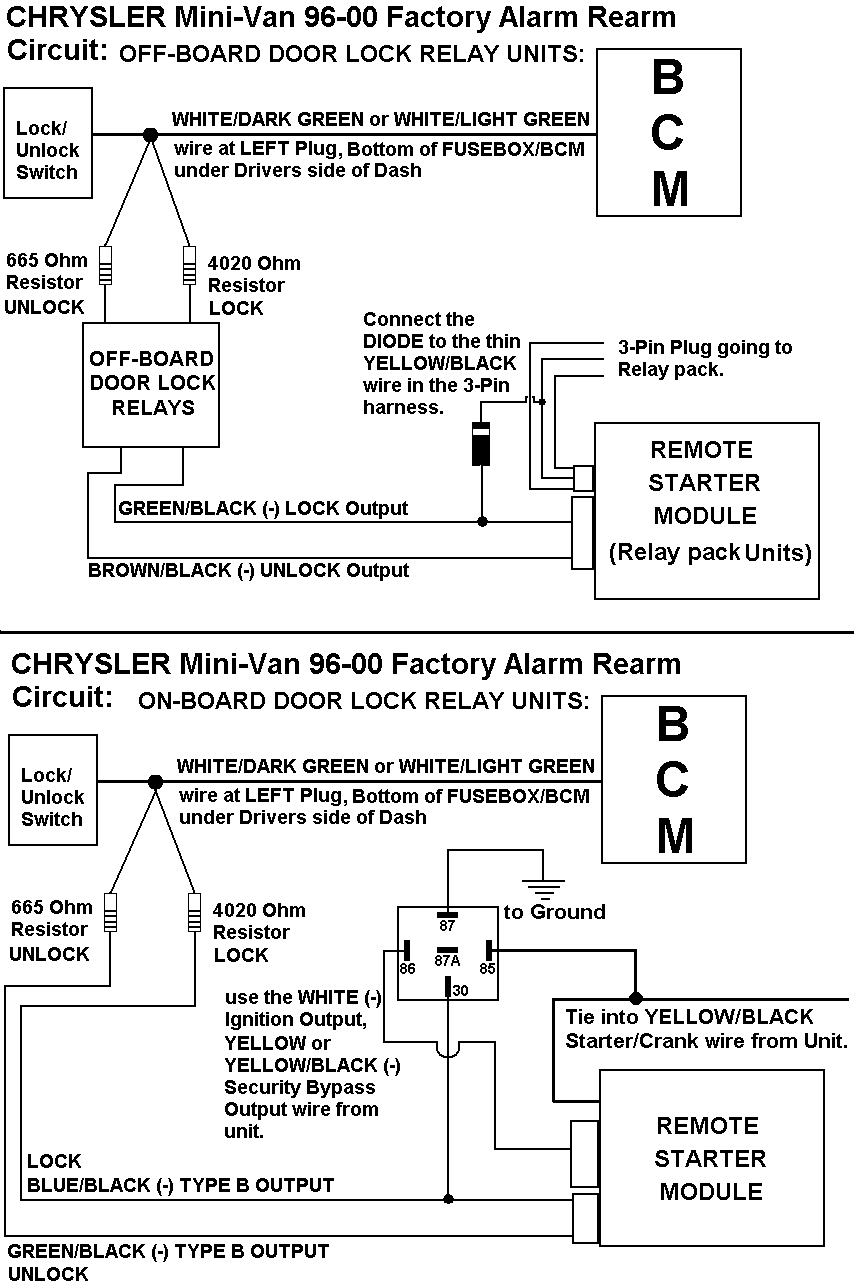

FACTORY ALARM DISARM TO DISARM/ARM, See NOTE #4 Uses DOOR LCCK and UNLOCK wires 1_0_D_9bc395da-b.bmp
ANTI-THEFT CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1 @ IGNITION SWITCH TUMBLER
NOTES
NOTE #1: This vehicle may be equipped with CHRYSLER'S ANTI-THEFT TRANSPONDER System

(GRAY IGNITION KEY), if so to remote start will require the 791 BYPASS MODULE and

an extra Ignition key, to order go to the SECURITY BYPASS MODULE PAGE on this

website.







NOTE #2: The PARKING LIGHTS on this vehicle are a (-)Negative type and will require an

extra Relay part #775, See DIAGRAM. You can find a (+)Positive Parking Light wire

at the Marker Lights out under the hood and make the connection there without

adding the extra relay.





NOTE #3: This vehicle uses a 1-Wire Door Locking System and will require extra parts. To

LOCK requires a (-)Negative thru a 1500, Arm requires a (-)Negative thru a 4020

Ohm Resistor and to UNLOCK requires a (-)Negative thru a 250 Ohm Resistor and

Disarm requires a (-)Negative thru a 665 Ohm Resistor. Some units will also require

2 extra relays Part #775 to connect, See DIAGRAM.





NOTE #4: If vehicle is equipped with a FACTORY SECURITY System, you will need to UNLOCK

THE VEHICLE, before Remote Starting to keep the Factory Security from sounding

See DIAGRAM
