HONDA CRV

MODEL	YEAR(S
CRV	2002-2003

KEY	T-HARNESS	IMMOBILIZER
N/A	HON-4	HONDA'S TRANSPONDER ANTI-THEFT SYSTEM, See NOTE #1

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	WHITE (+)	@ IGNITION SWITCH HARNESS
STARTER	BLACK/WHITE (+)	@ IGNITION SWITCH HARNESS
STARTER 2	N/A
IGNITION 1	BLACK/YELLOW (+)	@ IGNITION SWITCH HARNESS
IGNITION 2	N/A
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	BLACK/RED (+)	@ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2	WHITE/RED (+)	@ IGNITION SWITCH HARNESS
KEYSENSE	N/A

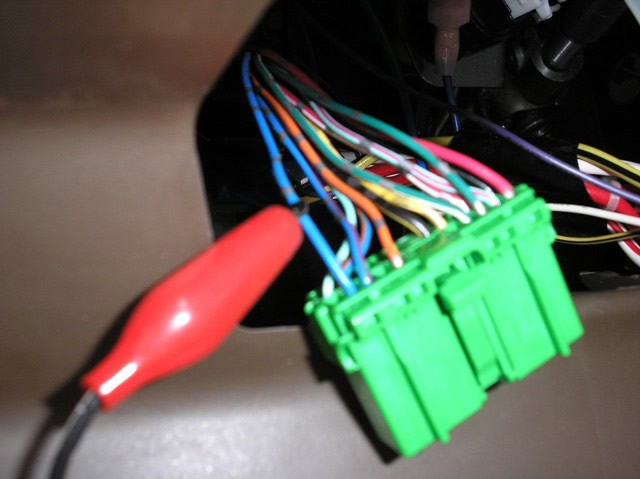

PARKING LIGHTS ( - )	BLUE (-)	@ GREEN FACTORY ALARM Plug, See NOTE *2
PARKING LIGHTS ( + )	RED/BLACK (+)	IN DRIVERS KICK PANEL

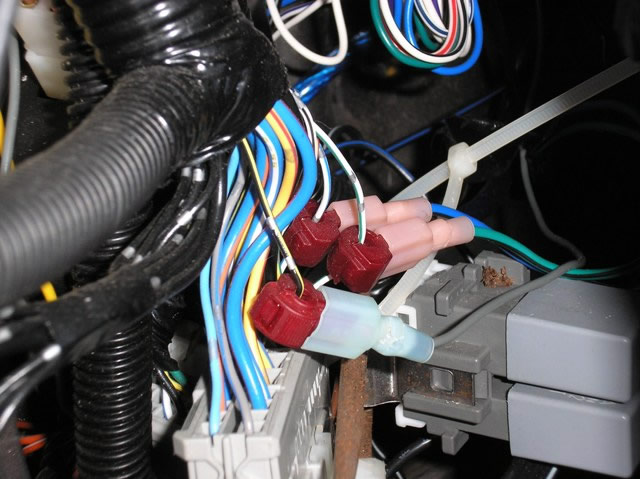

POWER LOCK	WHITE/BLUE (TYPE B)	IN GRAY PLUG, ABOVE DRIVERS KICK PANEL
POWER UNLOCK	WHITE/GREEN (TYPE B)	IN GRAY, PLUG ABOVE DRIVERS KICK PANEL
LOCK MOTOR WIRE	N/A
DOOR TRIGGER	GREEN (-) and LIGHT GREEN/RED (-) Use both	@ GREEN FACTORY ALARM PLUG, See NOTE #3	17044_CRV_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf

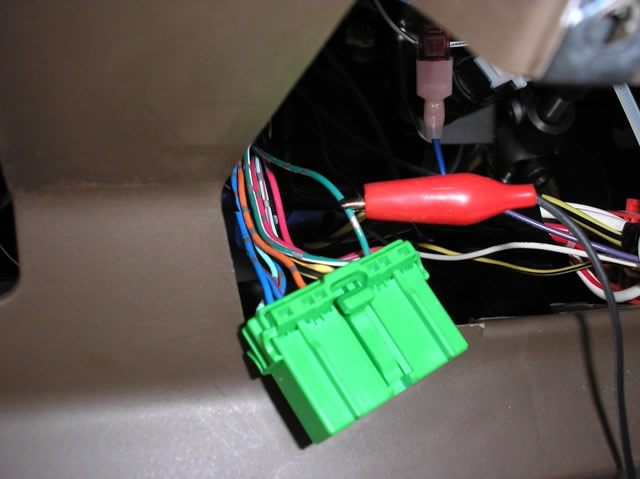

DOMELIGHT SUPERVISION	GREEN (-), (Requires Part #775 Relay)	@ GREEN FACTORY ALARM PLUG, See NOTE #3
TRUNK RELEASE	BLACK/YELLOW (-), (Requires Part #775 Relay)	GRAY PLUG ABOVE DRIVERS KICK PANEL
SLIDING POWER DOOR	N/A
HORN	ORANGE (-)	@ GREEN FACTORY ALARM PLUG, See NOTE #3
TACH	BLUE (AC)	@ TEST CONNECTOR NEAR BATTERY
WAIT TO START LIGHT	N/A
BRAKE	WHITE/BLACK (+)	@ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM	N/A
ANTI-THEFT	HONDA'S TRANSPONDER ANTI-THEFT SYSTEM, See NOTE #1	@ IGNITION SWITCH TUMBLER

NOTES

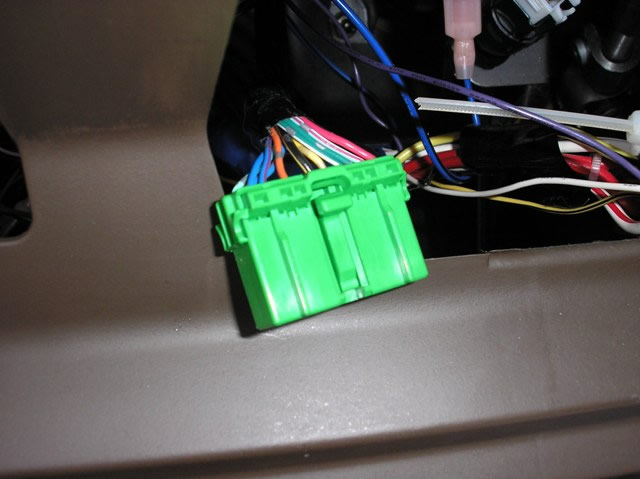

NOTE #1: HONDA'S TRANSPONDER SYSTEM, Requires Bypass Module: (For Remote Starting Only) Part #791 Bypass, (Requires Extra Key) for Operation. (For Remote Starting Only) Part # PK-ALL Bypass. (No Extra Key Required for Operation) 2-KEYS Required to Program Module. (For Remote Starting/Door Locks) Part # DB-ALL (No Extra Key Required for Operation) 1-KEY Required for Programming. To order please go to the SECURITY BYPASS MODULE Page or INTERFACE BYPASS MODULE Page on this website. NOTE #2: THE DRIVERS DOOR TRIGGER IS GREEN (-),AND LIGHT GREEN/RED (-) CATCHES ALL OTHER DOORS. WHEN CONNECTING TO AN ALARM SYSTEM, USE BOTH WIRES AND DIODE ISOLATE, THESE WIRES ARE LOCATED IN THE GREEN FACTORY ALARM PLUG TO THE LEFT OF THE STEERING COLUMN, TO CONNECT, See DIAGRAM NOTE #3: THE FACTORY ALARM PLUG IS LOCATED TO THE LEFT OF THE STEERING COLUMN IN A GREEN PLUG.

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

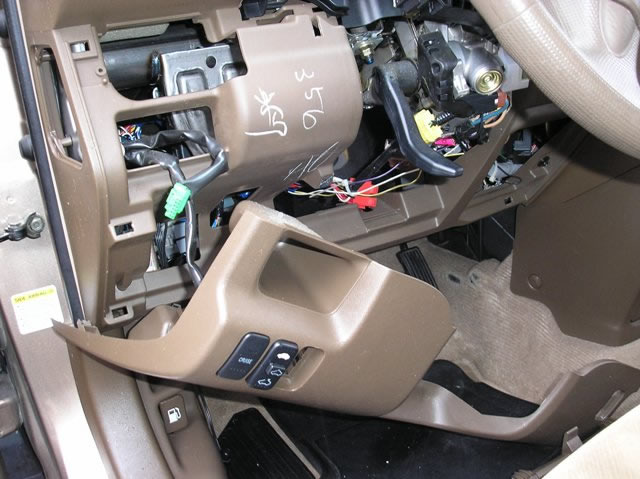

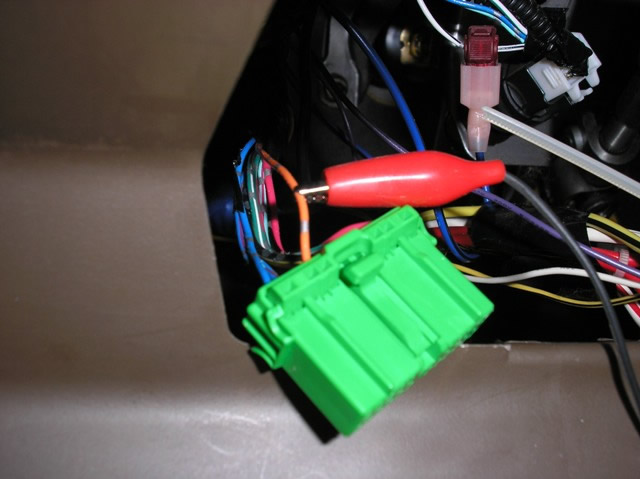

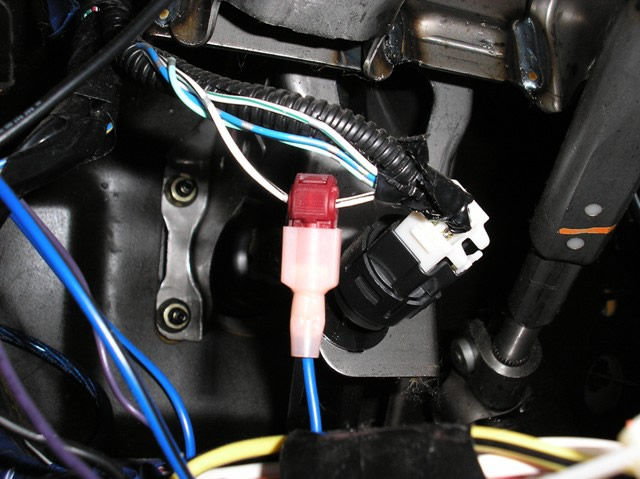

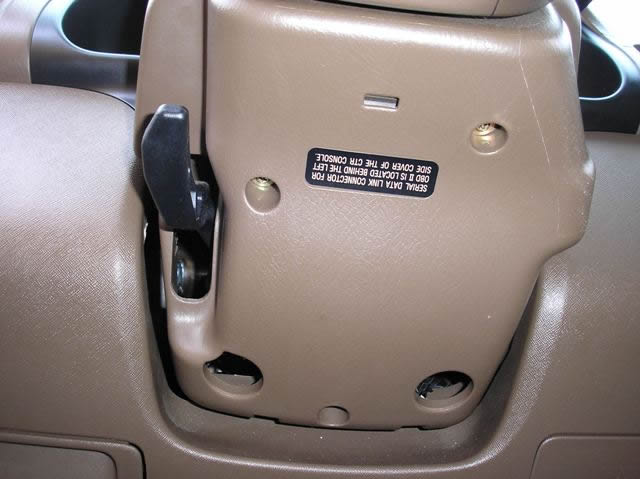

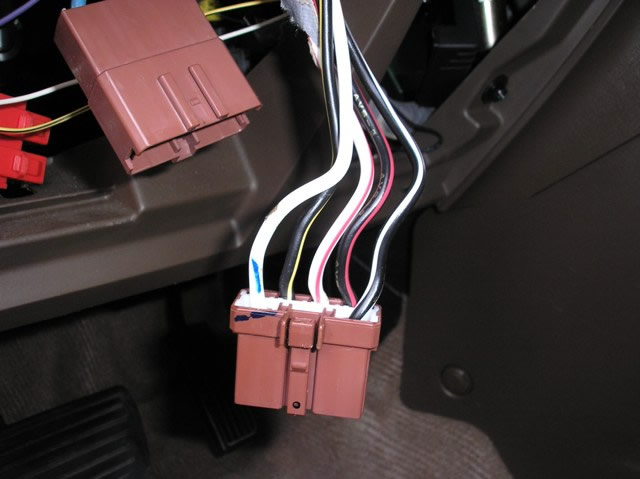

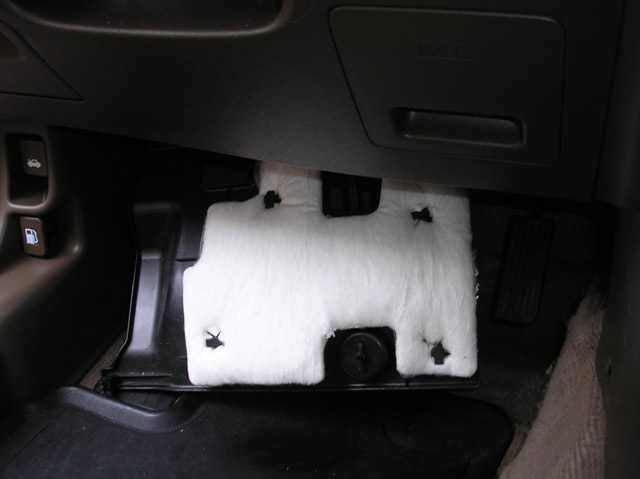

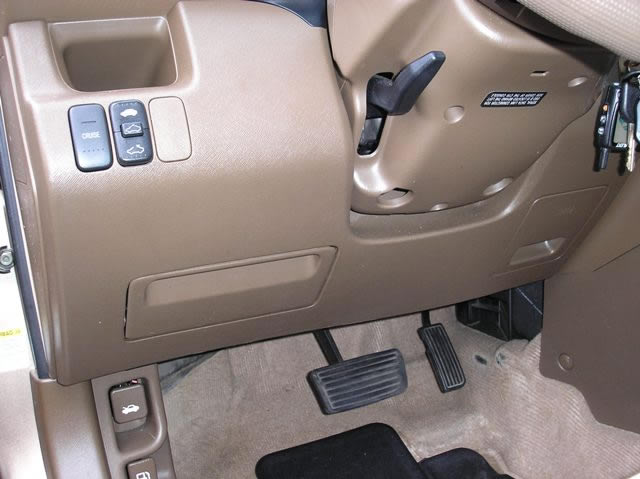

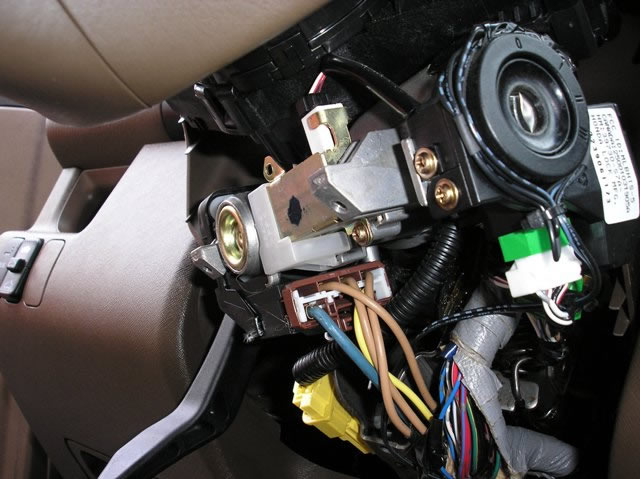

Show Large Image To gain access to the underdash wiring you must first remove this BLACK unders panel, it is dropped down in this picture. Show Large Image Next remove this under dash panel by taking out the (2) Philips head screws hold this panel, (1) is in the fuse access door on the right and the other is in the coin holder door on the left. With these (2) screws removed the panel is snapped into place an Show Large Image With this under dash panel loosened, unplug the (2) harnesses going to each switch on the front of this panel, after the switch plugs are removed (1 is already unplugged in this picture), the panel can be placed aside. Show Large Image With the under dash panel removed, to gain access to the IGNITION SWITCH Harness and the TRANSPONDER System you will need to removed the LOWER Steering Column Cover by removing the (3) Philips Head screws. With them removed the LOWER cover can be removed Show Large Image This shows the LOCATION and the CONNECTION of the (+) WHITE/BLACK BRAKE wire at the BRAKE SWITCH under the dash.. Show Large Image The (-) ORANGE HORN wire is marked with the RED Clip in this picture and is located in the GREEN FACTORY ALARM Plug under the drivers dash of this vehicle. Show Large Image With the LOWER Column cover removed, you can see the IGNITION SWITCH Harness Plug and the Factory Transponder System around the Ignition Switch Tumbler on this Vehicle, NOTE ** the 791's TRANSPONDER LOOP ANTENNA is wraped around the IGNITION SWITCH TUMBLE Show Large Image This is a picture of the IGNITION SWITCH HARNESS Plug removed from the IGNITION SWITCH PLUG on the Steering Column for the IDENTIFICATION of the IGNITION wires in this picture. Show Large Image This shows the LOCATION and the CONNECTIONS to the LOCK (WHITE/BLUE) and the UNLOCK (WHITE/GREEN) wires at the LARGE GRAY Plug in the Drivers Kick panel/Under dash area of the vehicle this picture was taken throught the dash, looking down on this GRAY Plu Show Large Image As noted before the (-) TRUNK or HATCH RELEASE wire (BLACK/YELLOW) is seen in this picture located in the LARGE GRAY Plug in the Drivers Kick Panel/Under dash area of the vehicle. Show Large Image This is a picture of the GREEN FACTORY ALARM Plug located next to the Steering Column of the vehicle. This plug just hangs under the dash of the vehicle as seen in this picture. Show Large Image The (-) GREEN DOME LIGHT SUPERVISION wire is marked with the RED Clip in this picture and is located in the GREEN FACTORY ALARM Plug under the drivers dash of this vehicle. Show Large Image The (-) NEGATIVE BLUE PARKING LIGHT wire is marked with the RED Clip in this picture and is located in the GREEN FACTORY ALARM Plug under the drivers dash of this vehicle.
