PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
WHITE & BLUE/YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
BLACK/WHITE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
BLACK (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
BLACK/YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
PINK (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
RED to BLUE (-)
|
@ IGNITION SWITCH HARNESS
|
|
|
PARKING LIGHTS ( - )
|
GREEN/RED (-)
|
@ HEADLIGHT SWITCH
|
|
|
PARKING LIGHTS ( + )
|
GREEN (+)
|
@ DRIVERS KICK PANEL
|
|
|
POWER LOCK
|
SEE DIAGRAM COLUMN--->
|
SEE DIAGRAM COLUMN--->
|
|
|
POWER UNLOCK
|

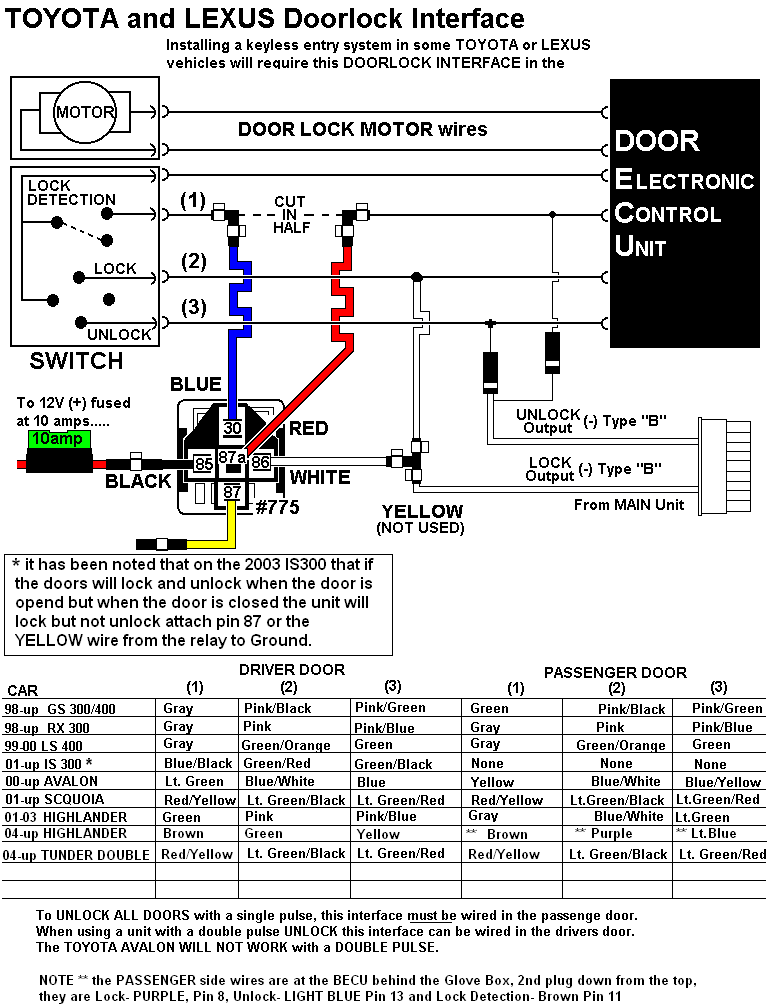

TOYOTA/LEXUS DOOR LOCK INTERFACE
|
|
|
|
LOCK MOTOR WIRE
|
BLACK/WHITE (5-WIRE)
|
@ BECU, 17-PIN PLUG, PIN 1
|
|
|
DOOR TRIGGER
|
GREEN/YELLOW (-)
|
@ IGNITION CYLINDER
|
|
|
DOMELIGHT SUPERVISION
|
N/A
|
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
WHITE/RED (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
NOT REQUIRED FOR REMOTE STARTING
|
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
GREEN/WHITE (+)
|
@ BRAKE SWITCH ABOVE PEDAL
|
|
|
FACTORY ALARM DISARM
|
USE "KEYSENSE" TO DISARM
|
|
|
|
ANTI-THEFT
|
TOYOTA'S TRANSPONDER ANTI-THEFT SYSTEM
|
@ IGNITION BARREL
|
|
