CHRYSLER PACIFICA

MODEL	YEAR(S
PACIFICA	2004-2007

KEY	T-HARNESS	IMMOBILIZER
CHRYKEY-4	N/A	CHRYSLER'S ANTI-THEFT TRANSPONDER System, SEE NOTE #1

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	Connect to BATTERY ONLY
STARTER	YELLOW (+)	@ IGNITION SWITCH HARNESS
STARTER 2	PURPLE/BROWN (-), See NOTE #1	@ IGNITION SWITCH HARNESS	14301_PACIFICA_CHRYSLER PACIFICA STARTER 2 DIAGRAM.pdf
IGNITION 1	PINK/GRAY (+)	@ IGNITION SWITCH HARNESS
IGNITION 2	N/A
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	N/A
ACCESSORY/HEATER BLOWER 2	N/A
KEYSENSE	N/A

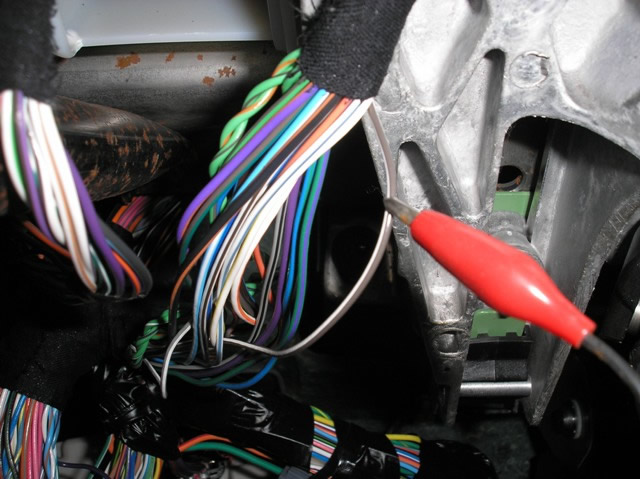

PARKING LIGHTS ( - )	BROWN/WHITE (-), See NOTE #2	@ HEADLIGHT SWITCH, See DIAGRAM	14301_PACIFICA_CHRYSLER PARKING LIGHT DIAGRAM.pdf
PARKING LIGHTS ( + )	N/A

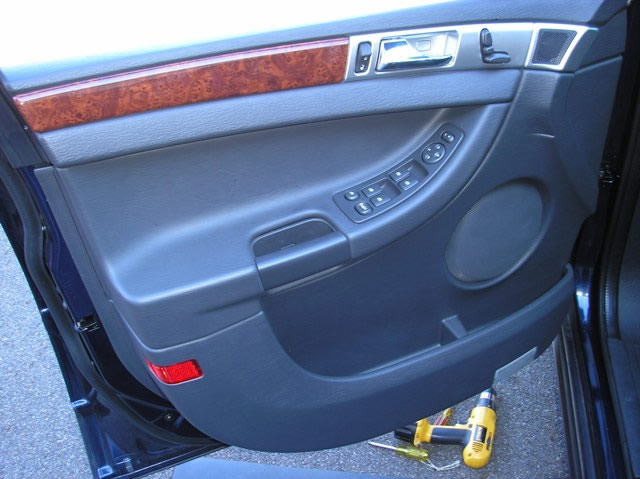

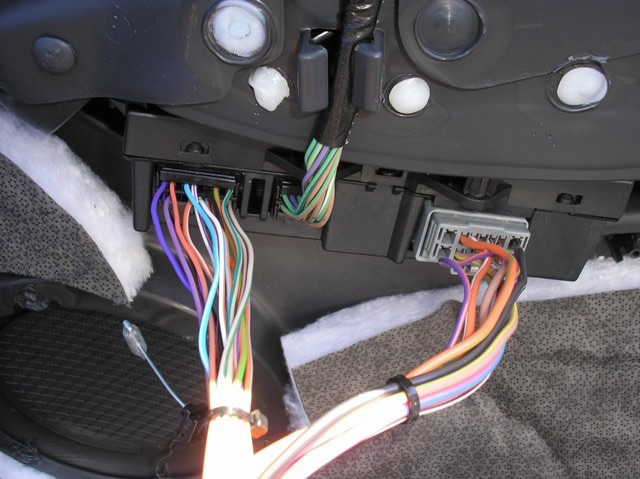

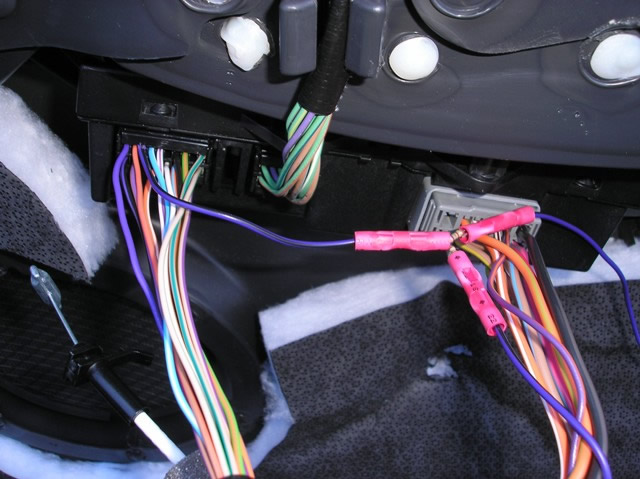

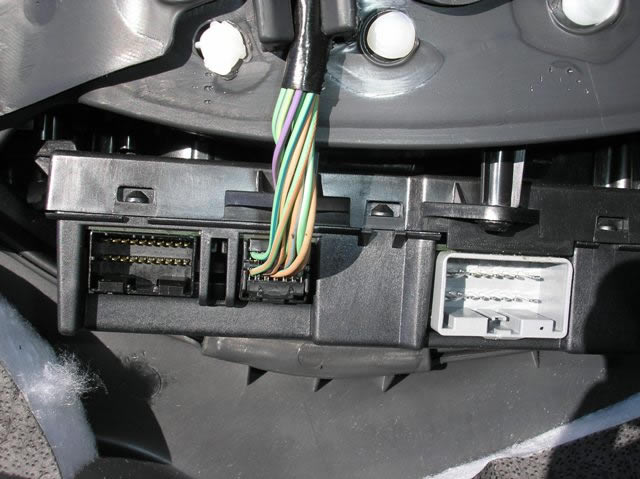

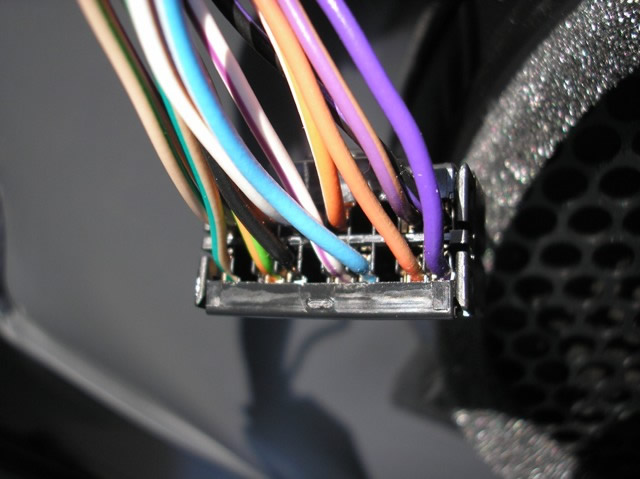

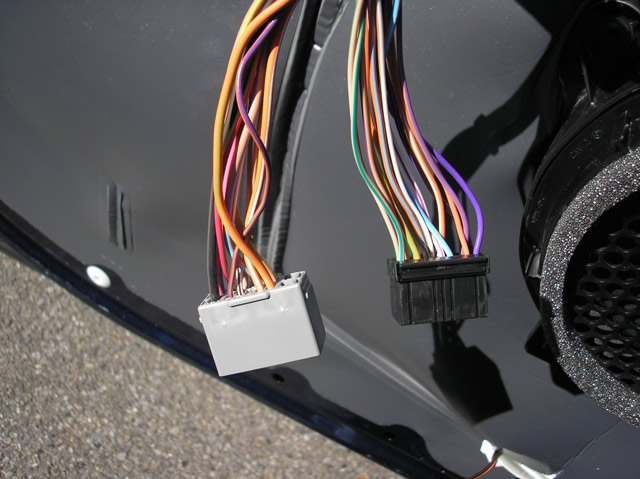

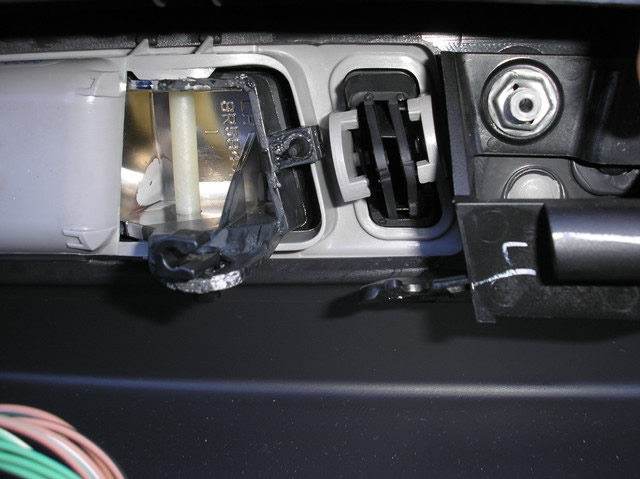

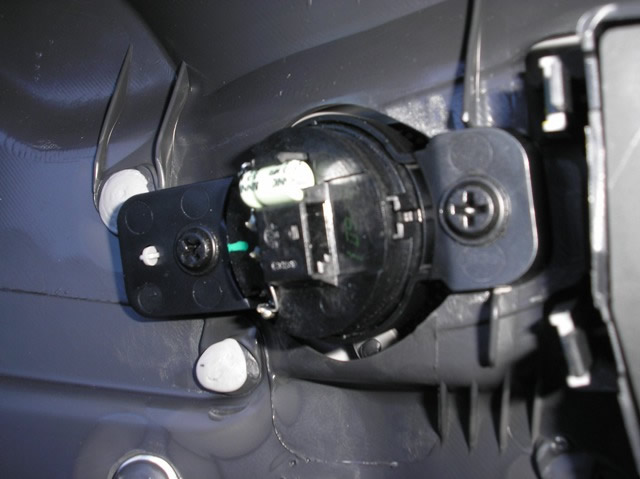

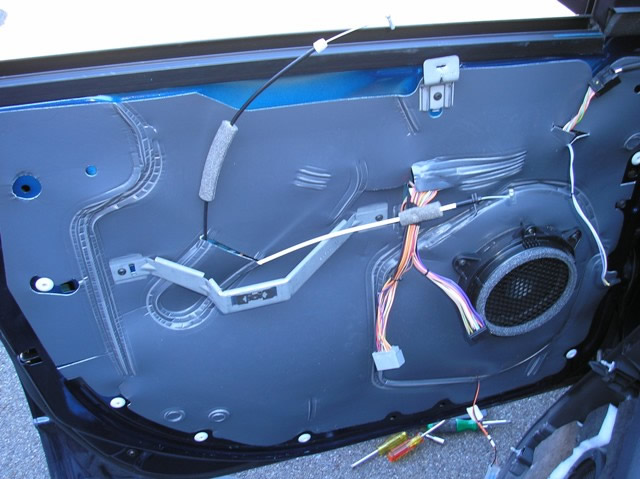

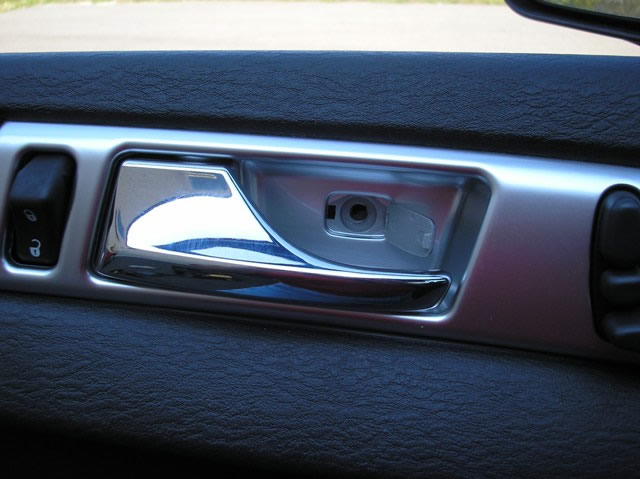

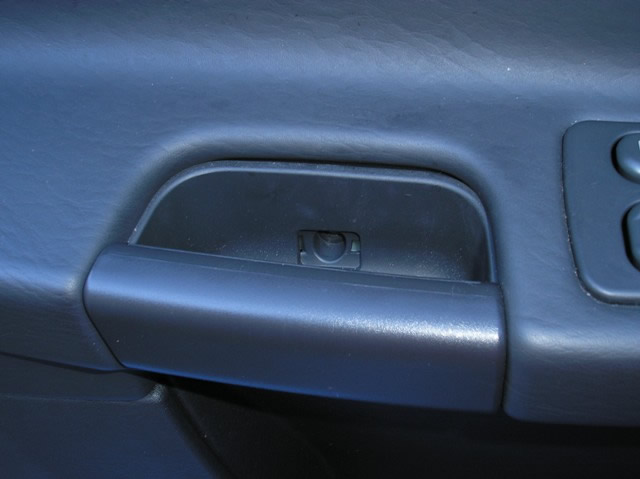

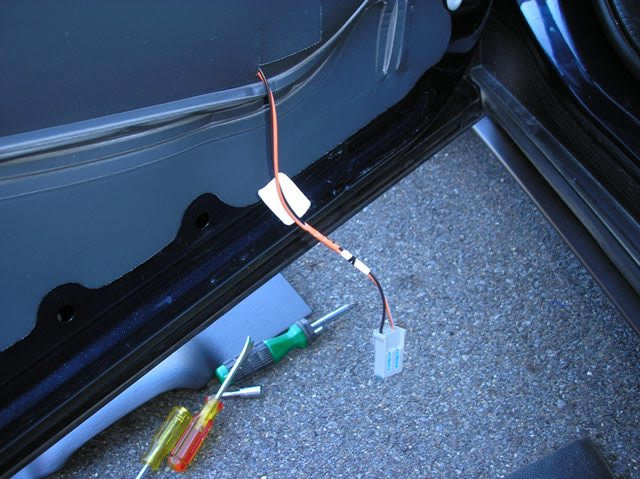

POWER LOCK	PURPLE/LIGHT BLUE (1-Wire Door Lock System), See NOTE #3	@ DRIVERS DOOR SWITCH ASSEMBLY, on the DRIVERS DOOR PANEL, See DIAGRAM	14893_PACIFICA_CHRYSLER PACIFICA 1 WIRE JBS UNITS.pdf
POWER UNLOCK	Same wire, See DIAGRAM	See DAIGRAM	32591_PACIFICA_CHRYSLER PACIFICA 1 WIRE ALERT SHELBY UNITS.pdf
LOCK MOTOR WIRE	TAN/WHITE (5-wire type)	@ DRIVERS DOOR SWITCH ASSEMBLY, on the DRIVERS DOOR PANEL
DOOR TRIGGER	See NOTE #4	@ DRIVERS DOOR SWITCH ASSEMBLY, on the DRIVERS DOOR PANEL, See NOTE #4	4099_PACIFICA_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION	TURNS ON with UNLOCK

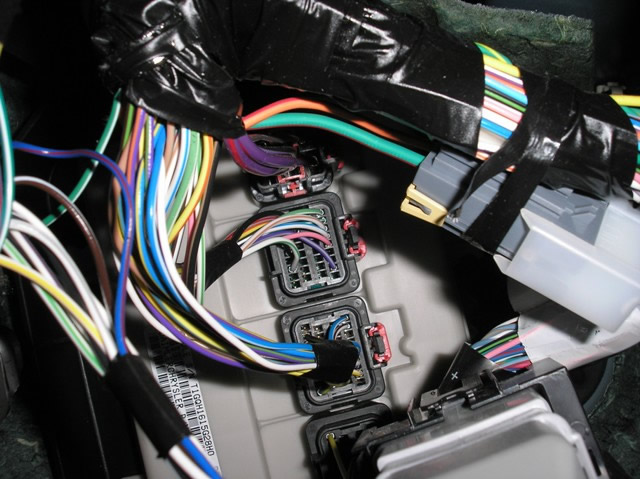

TRUNK RELEASE	PURPLE/TAN (-), See NOTE #6	@ BCM, Plug C3, Pin 7, See NOTE #5
SLIDING POWER DOOR	N/A

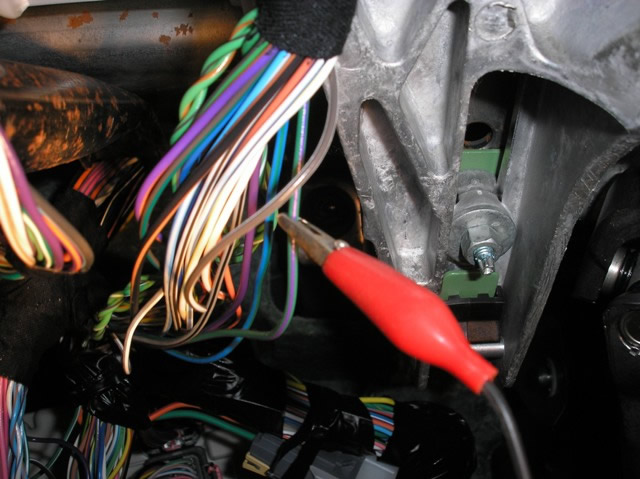

HORN	DARK GREEN/PURPLE (-)	@ STEERING COLUMN HARNESS
TACH	ANY wire that is NOT BROWN/WHITE (AC)	@ Any COIL or FUEL INJECTOR
WAIT TO START LIGHT	N/A

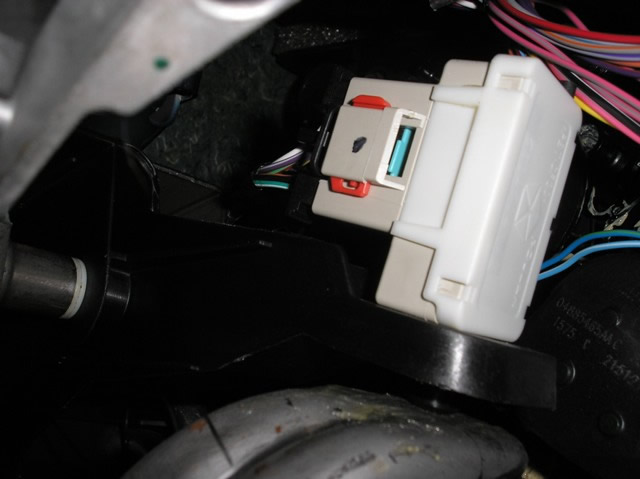

BRAKE	WHITE/DARK GREEN (+)	@ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM	DISARMS WITH UNLOCK

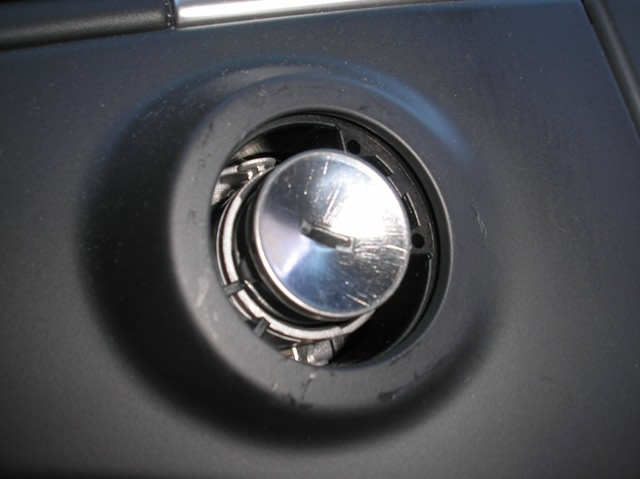

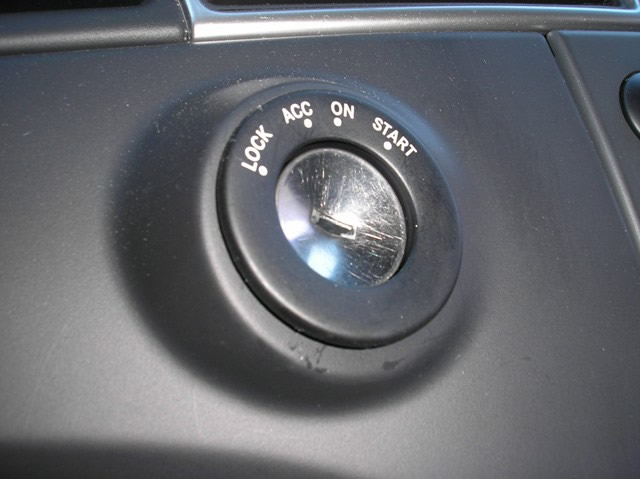

ANTI-THEFT	CHRYSLER'S ANTI-THEFT TRANSPONDER System, SEE NOTE #1	@ IGNITION SWITCH TUMBLER

NOTES

NOTE #1: This vehicle requires a Special Circuit Connection to power up the Hearter/Blower Accessory circuit, and Starter/Cranking circuit, this will require an extra Relay Part #775 and 180 Ohm resistor. to connect, See DIAGRAM. There is a INTERFACE BYPASS MODULE available that will NOT Require Resistors and Relays for the STARTER and DOOR LOCKS it is PART # DB-ALL or XK09 it will do all you need with nothing extra, to order go to the INTERFACE BYPASS MODULE Page on this website. NOTE #2: This vehicle requires a Special Circuit Connection to power up the PARKING LIGHTS, it will require an extra Relay part #775 and a (-)Negative thru a 920 Ohm Resistor, to connect. See DIAGRAM. To see the wire and location, See the PICTURE Below NOTE #3: This vehicle uses a Special 1-Wire Door Lock Circuit that requires extra parts. To LOCK requires a (-)Negative thru a 1800 Ohm Resistor and to UNLOCK requires a (-)Negative thru a 750 Ohm Resistor, some units will also require 2 extra relays part #775 See DIAGRAM. To see the wire and location, you can do the DOOR LOCKS on this vehicle with NOTHING EXTRA NEEDED Part #XK09, to order go to the INTERFACE BYPASS MODULE Page on this website. On base model vehicles, the PURPLE/LIGHT BLUE (DOOR LOCK/UNLOCK wire) is not in the BLACK 20-PIN Plug at the DOOR SWITCH ASSEMBLY on the Drivers Door, you will need to ADD this wire to the Pin location in the BLACK Plug at this Door Switch Assembly in a BLACK 20-Pin Plug. The location is PIN 13, in the 20-PIN BLACK Plug. The open pin 13 is between Pin 12, an ORANGE/TAN wire and Pin 14, a LIGHT BLUE/WHITE wire in this BLACK Plug. For a Picture see it Below. NOTE #4: This vehicle uses 4 door trigger wires, the DRIVERS DOOR is a PURPLE (-) in the DRIVERS DOOR at the DRIVERS DOOR SWITCH ASSEMBLY attached to the Drivers Door Panel, the PASSENGER DOOR is a PURPLE/WHITE (-) in the passenger door at the PASSENGER DOOR SWITCH ASSEMBLY, the DRIVERS REAR DOOR is a PURPLE/GRAY (-) at the BCM, Plug C2, Pin 8 and the PASSENGER REAR DOOR is a PURPLE/YELLOW (-) at the BCM, Plug, C3, Pin 5. When connecting to an ALARM SYSTEM use all 4 wires and DIODE ISOLATE, See DIAGRAM, for the location of the wires see the Pictures below. NOTE #5: The BCM (Body Control Module) is located on the DRIVERS SIDE FIREWALL under the DASH. See PICTURE Below NOTE #6: If this wire is for the POWER LIFTGATE to operate, send a (-) Negative thru a 4700 Ohm Resistor to operate.

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

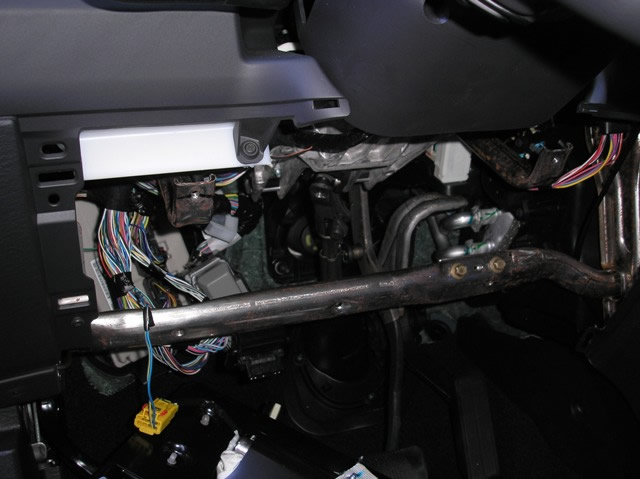

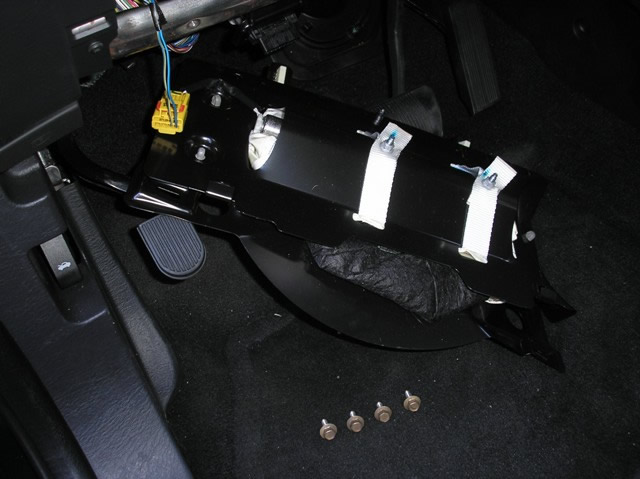

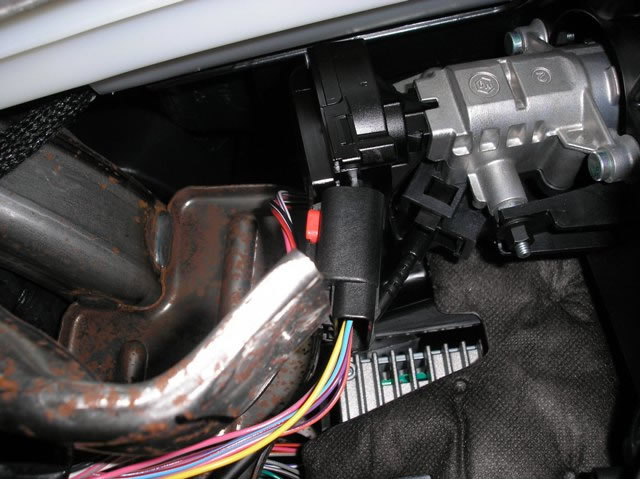

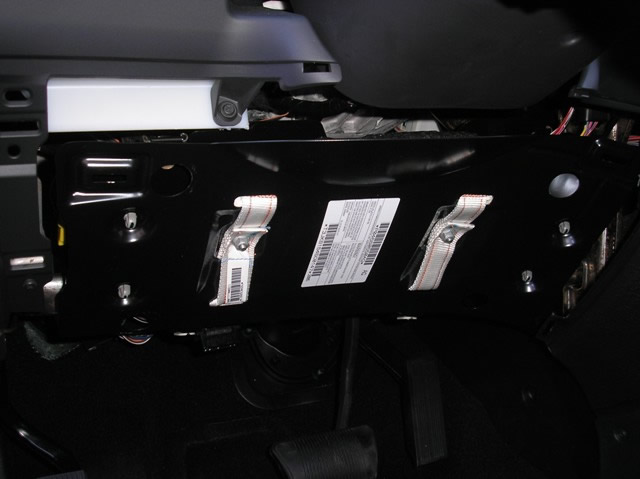

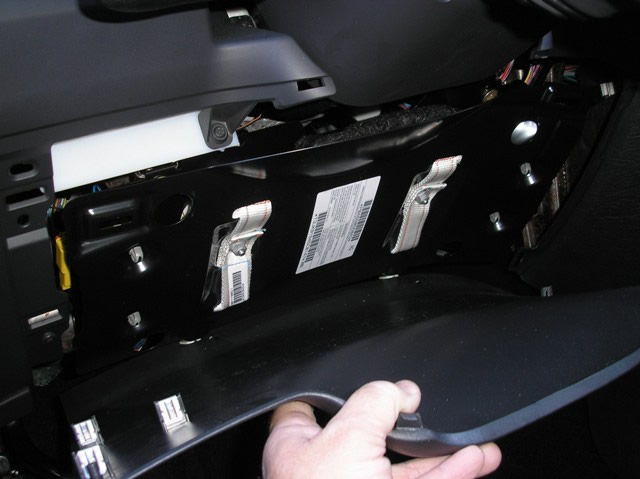

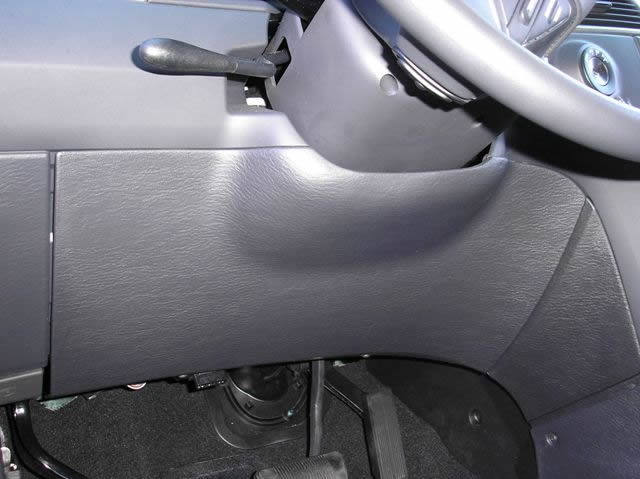

Show Large Image With the (2) screws removed, unsnap the Under Dash panel and lower, to expose the Knee Bolster Air Bag in this vehicle. Show Large Image This Under Dash Panel must be removed to gain access to the Under Dash wiring of this vehicle. To do so, remove the (2) Philip Head Screws at the bottom of the panel, it will then snap off. Show Large Image To Lower the Knee Bolster Air Bag, DO NOT Unplug the YELLOW Plug to the Left of this Air Bag, leave it plugged in and just remove the (4) 10mm Bolts that hold this assembly in place. Show Large Image With the (4) 10mm Bolts removed, pick up on the Air Bag Assembly and lift it up and off of its holder, again, leaving the Air Bag Harness attached to the Air Bag and set this assembly on the floor of the vehicle, DO NOT REMOVE OR DISCONNECT THE AIR BAB PL Show Large Image This picture shows the Knee Bolster Air Bag removed and lowered to the floor of the vehicle, to expose the Under Dash wiring of Steering Column and the Ignition Switch on the Dash of the vehicle. Show Large Image This picture shows the IGNITION SWITCH and IGNITION HARNESS as it is plugged into the BACK of the Ignition Switch under the Dash of this vehicles, note the wires in this BLACK Ignition Switch Harness Plug are of smaller gauge wires. Show Large Image This picture shows the (3) Ignition Switch wires that are needed for this vehicle, the PINK/GRAY, Ignition #1, YELLOW, Starter #1 and PURPLE/BROWN, Starter/Accessory #2 marked with the RED Clip at the back of the Ignition Switch. Show Large Image To Install the 791's Antenna Loop around the Ignition Switch Tumbler on this vehicle, you will need to remove this Plastic Ring from around the Ignition Switch on the dash. Show Large Image To remove this Bezel around the Ignition Switch on the dash is very easy, use a protected or plastic covered screw driver (wrapping the blade of the screw driver with electrical tape will do) and slide it under the Bezel ring and pry up using an easy moti Show Large Image The (-) Negative PARKING LIGHT wire BROWN/WHITE, marked with the RED Clip in this picture, is in the only harness that exits the bottom Left Hand side of the Steering Column, some of this Harness is wrapped with BLACK Cloth Friction tape as seen in this p Show Large Image " Show Large Image " Show Large Image The BCM (Body Control Module) is located Under the Drivers side of the dash, close to the Drivers kick panel, mounted on the FireWall. It is a WHITE Module with 5 to 6 BLACK Plugs from top to bottom. Show Large Image To do KEYLESS Entry on this vehicle will require the removal of the Drivers Door Panel on this vehicle. To do this, you will need to remove (2) Philips head screws that hold this panel in place (1) behind the Door Release handle and (1) behind the Pull ha Show Large Image The Philips head screw is behind a little plastic cover, behind the handle, that snaps off, to reveal the screw for removal. Show Large Image " Show Large Image After removing the Door Panel from the Door, to completely remove the Panel you will need to release the to cables that attach to the Door Handle and the Lock/Unlock lever. Show Large Image This WHITE Plug, is connected to the DOOR LIGHT at the bottom of the door panel, unplug this light before removing the panel. Show Large Image This Tweeter on the Door Panel will have a small BLACK Plug with 2 wires, that will need to be release when removing the Door Panel for the Door Locks. Show Large Image These (2) Plugs the BLACK (this is the 20-Pin plug that the doors Locks are in) and the GRAY Plugs are connected to the Door Switch Assembly located on the Door Panel on this vehicle, to remove the Door Panel, remove both plugs. Show Large Image this shows the Door Panel removed from the Drivers door. Show Large Image This is a Picture of the DRIVERS DOOR SWITCH ASSEMBLY MODULE on the Drivers Door Panel. This is the Switch assembly that controls the Door Lock/Unlock wire on this vehicle. In this picture the GRAY Plug and the 20-Pin BLACK Plug that contains the PURPLE/L Show Large Image This is a picture of the (2) Plug that connect to the DOOR SWITCH ASSEMBLY MODULE on the Drivers Door Panel, the BLACK Plug in this picture is the harness plug that contains the PURPLE/LIGHT BLUE Door Lock/Unlock wire. Show Large Image This is the BLACK 20-Pin Plug for the Door Locks that plugs into the DRIVERS DOOR SWITCH ASSEMBLY on this vehicle, ON BASE MODEL VEHICLES, such as the vehicle that this plug is for, WILL NOT have a PURPLE/LIGHT BLUE wire in this plug for Door Locks. When Show Large Image This picture shows what is needed when adding Keyless Entry to a Base Model vehicle. In this Picture, you can see a wire has been added to the BLACK 20-Pin Door Switch Assembly Plug on the back of the Door Panel. All that is required to do this is to plac
