PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
BLACK/YELLOW (+)
|
@ IGNITION SWITCH HARNESS, WHITE 6-PIN PLUG, PIN 6
|
|
|
STARTER
|
BLACK/BLUE (+)
|
@ IGNITION SWITCH HARNESS, WHITE 6-PIN PLUG, PIN 1
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
BLUE (+)
|
@ IGNITION SWITCH HARNESS, WHITE 6-PIN PLUG, PIN 2
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
BLACK/WHITE (+)
|
@ IGNITION SWITCH HARNESS, WHITE 6-PIN PLUG, PIN 4
|
|
|
ACCESSORY/HEATER BLOWER 2
|
BLACK/RED (+)
|
@ IGNITION SWITCH HARNESS, WHITE 6-PIN PLUG, PIN 5
|
|
|
KEYSENSE
|
WHITE/BLUE (will test (+) with key in ignition)
|
@ BCM, 16-PIN PLUG, (4) PIN P
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
LIGHT GREEN/BLACK (+)
|
@ BCM, 16-PIN PLUG, (1) PIN P
|
|
|
POWER LOCK
|
LIGHT GREEN (-) SEE NOTE #2
|
@ BCM, 24-PIN PLUG, (7) PIN M
|

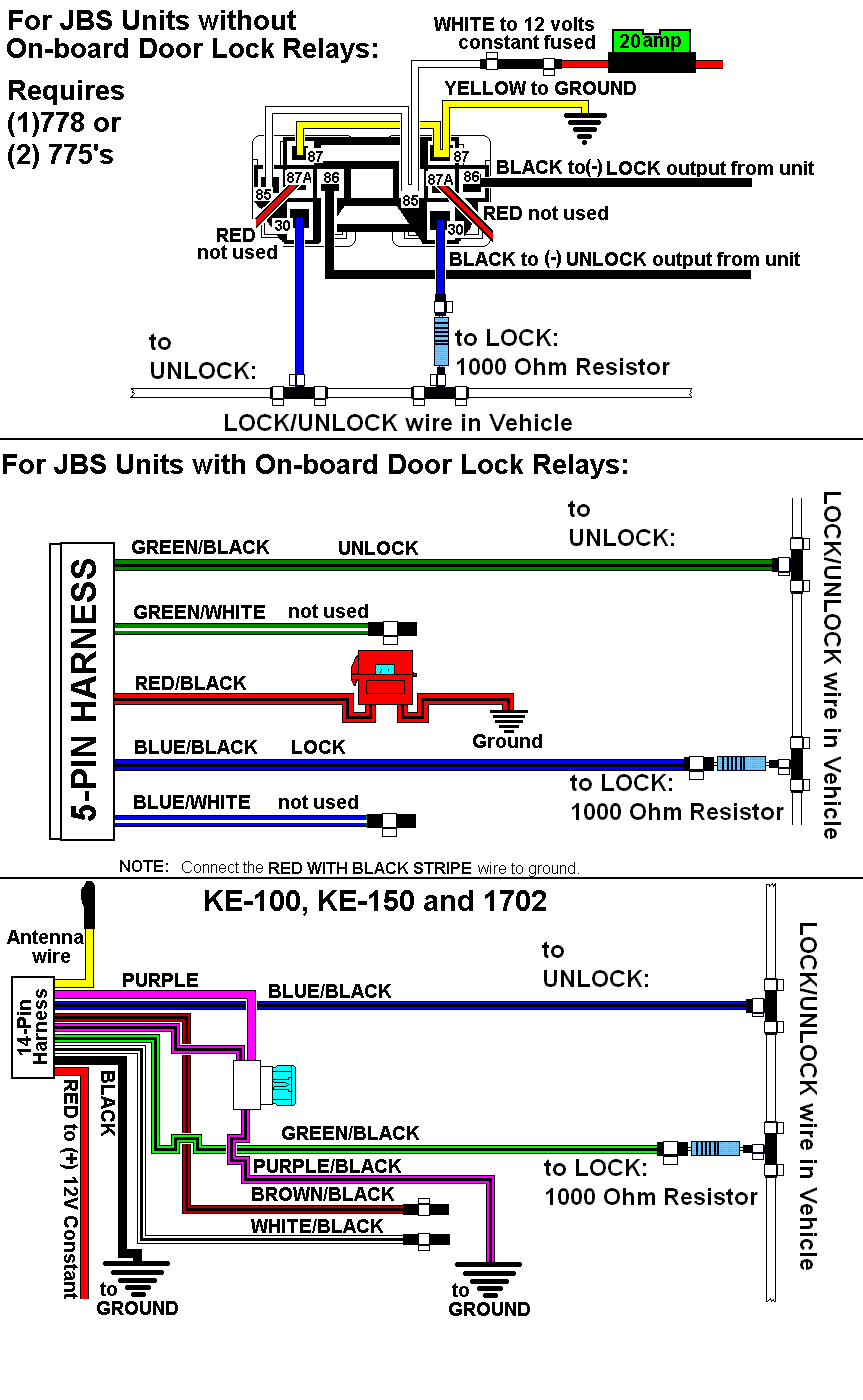

14301_MAZDA-6_MAZDA 1 WIRE JBS UNITS.GIF
|
|
POWER UNLOCK
|
SAME AS LOCK WIRE
|
@ BCM, 24-PIN PLUG, (7) PIN M
|

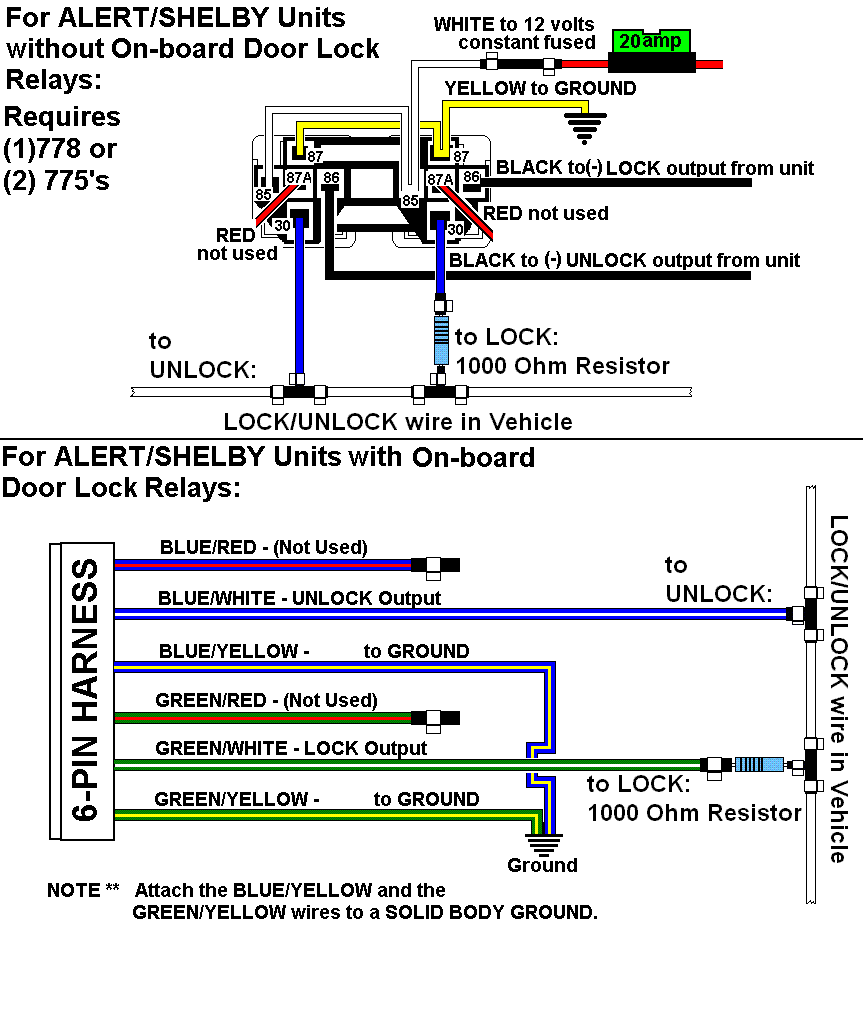

14301_MAZDA-6_MAZDA 1 WIRE ALERT UNITS.GIF
|
|
LOCK MOTOR WIRE
|
RED/BLUE (5-WIRE)
|
@ BCM, 8-PIN PLUG, (6) PIN 8
|
|
|
DOOR TRIGGER
|
GREEN/ORANGE (-)
|
@ BCM, 16-PIN PLUG, (7) PIN O
|
|
|
DOMELIGHT SUPERVISION
|
USE DOOR TRIGGER
|
|
|
|
TRUNK RELEASE
|
YELLOW (-)
|
@ BCM, 6-PIN PLUG, (5) PIN F
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
VIOLET/WHITE (-)
|
@ HORN SWITCH or BCM, 16-PIN PLUG, (4) PIN F
|
|
|
TACH
|
N/A
|
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
GREEN/YELLOW (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
USE "KEYSENSE" TO DISARM
|
|
|
|
ANTI-THEFT
|
TRANSPONDER ANTI-THEFT, See NOTE #1
|
TRANSPONDER @ IGNITION SWITCH TUMBLER
|
|
