FORD FOCUS
MODEL YEAR(S
FOCUS 2000-2003
KEY T-HARNESS IMMOBILIZER
FDKEY-3 N/A FORD'S ANTI-THEFT TRANSPONDER SYSTEM, SEE NOTE #1
PART COLOR LOCATION DIAGRAM

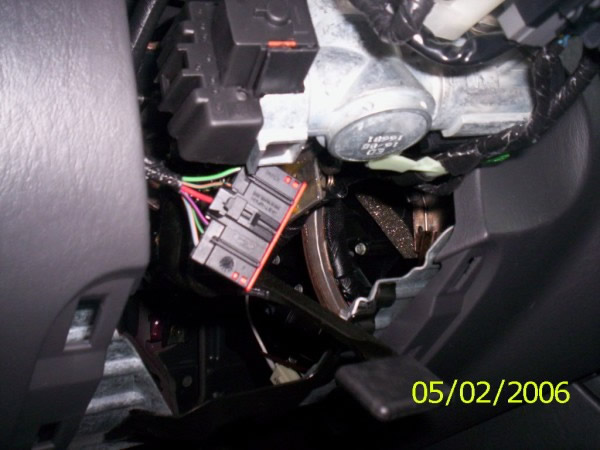

12 VOLT CONSTANT RED (+) @ IGNITION SWITCH HARNESS
STARTER GRAY/BLACK (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 GREEN/YELLOW (+) @ IGNITION SWITCH HARNESS
IGNITION 2 N/A
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 YELLOW (+) @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 N/A
KEYSENSE N/A
PARKING LIGHTS ( - ) N/A
PARKING LIGHTS ( + ) ORANGE/YELLOW (+) @ HEADLIGHT SWITCH
POWER LOCK BLACK/RED (TYPE B) IN DRIVERS KICK PANEL
POWER UNLOCK BLACK/YELLOW (TYPE B) IN DRIVERS KICK PANEL
LOCK MOTOR WIRE YELLOW/BLACK (5-WIRE TYPE) IN DRIVERS KICK PANEL
DOOR TRIGGER BLACK/YELLOW (-) and BLACK/BLUE (-) use Both, See NOTE #2 LOW IN DRIVERS KICK PANEL, See NOTE #2 14301_FOCUS_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION USE DOOR TRIGGER, (Requires Part #775 Relay)
TRUNK RELEASE BLACK/YELLOW (-), (Requires Part #775 Relay) @ TRUNK RELEASE SWITCH or KEYLESS ENTRY MODULE, See NOTE #4
SLIDING POWER DOOR N/A
HORN BLACK/BLUE (-) @ STEERING COLUMN HARNESS
TACH BLACK/GREEN (AC) @ IGNITON COIL
WAIT TO START LIGHT N/A
BRAKE LIGHT GREEN/RED (+) @ SWITCH ABOVE BRAKE PEDAL, See NOTE #3
FACTORY ALARM DISARM N/A
ANTI-THEFT FORD'S ANTI-THEFT TRANSPONDER SYSTEM, SEE NOTE #1 @ IGNITION SWITCH TUMBLER
NOTES
NOTE #1: This vehicle MAY BE equipped with a Special Anti-theft key, to remote start you will

need a Bypass module 791,(use this module IF you have a extra ignition key to

place inside the 791 to remote start, if you do not have an extra key to use or wish

not to have a key placed inside this bypass module, we OFFER a KEYLESS INTERFACE

BYPASS MODULE that does not require a key to be placed inside the bypass module,

this is Part # PKALL or PKFM, either one will work, to order, go to the INTERFACE

BYPASS MODULE PAGE on this website.







NOTE #2: This vehicle has (2) door trigger wires, when connecting to an ALARM SYSTEM,

use both wires and DIODE ISOLATE, to connect, See DIAGRAM





NOTE #3: The IGNITION SWITCH MUST be turned on before the Brake wire will test properly.





NOTE #4: The FACTORY KEYLESS ENTRY Module (if so equipped) is located behind and to

the right of the GLOVE BOX.
