DODGE STRATUS SEDAN
MODEL YEAR(S
STRATUS SEDAN 2001-2006
KEY T-HARNESS IMMOBILIZER
CHRKEY1 N/A CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1
PART COLOR LOCATION DIAGRAM

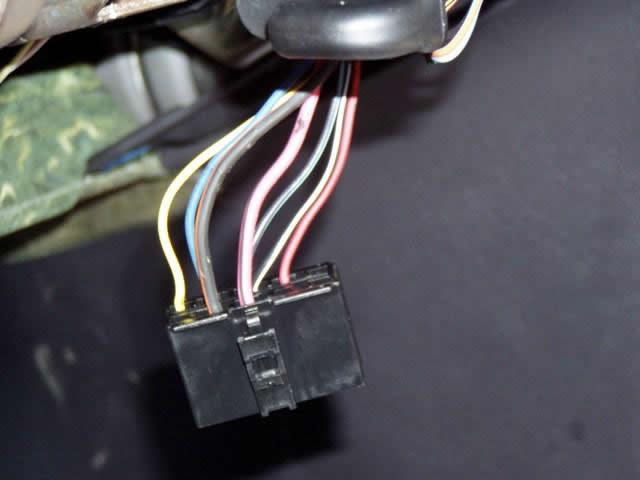

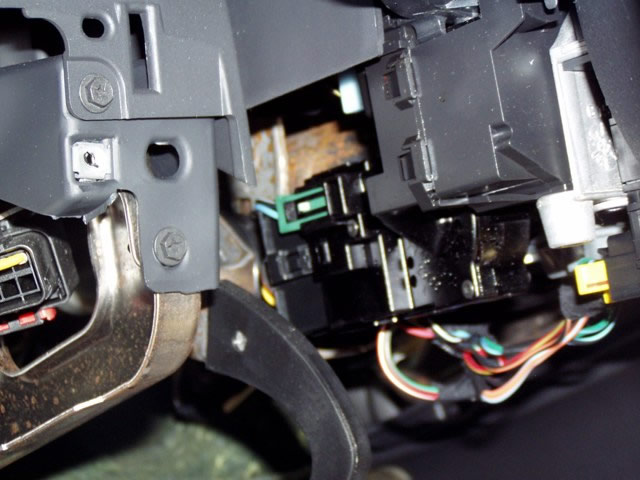

12 VOLT CONSTANT PINK/BLACK (+) @ IGNITION SWITCH HARNESS
STARTER YELLOW (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 BLUE (+) @ IGNITION SWITCH HARNESS
IGNITION 2 GREEN/RED (+) (20 Gauge wire, 1 of 2, use the one that tests as Ignition) @ IGNITION SWITCH HARNESS
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 BLACK/ORANGE (+) @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 BLACK/WHITE (+) or BLACK/BLUE (+) (Normally not used) @ IGNITION SWITCH HARNESS
KEYSENSE N/A
PARKING LIGHTS ( - ) N/A
PARKING LIGHTS ( + ) BLACK/YELLOW (+) IN DRIVERS KICK PANEL
POWER LOCK WHITE/DARK GREEN (1-Wire Door Lock System), See NOTE #2 @ BCM, Connector C4 Pin 15, See NOTE #4 23254_STRATUS-SEDAN_CHRYSLER COUPE and SEDAN 1 WIRE JBS UNITS.pdf
POWER UNLOCK Same wire, See DIAGRAM See DIAGRAM 24464_STRATUS-SEDAN_CHRYSLER COUPE and SEDAN 1 WIRE ALERT SHELBY UNITS.pdf
LOCK MOTOR WIRE ORANGE/BLACK (+) @ BCM, C4, Pin 9, See NOTE #4
DOOR TRIGGER See NOTE #3 @ BCM, See NOTE #4 24464_STRATUS-SEDAN_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION YELLOW (-), (Requires Part #775 Relay) @ FRONT of FUSEBOX, 6-Pin Plug
TRUNK RELEASE BLACK/WHITE (-) @ TRUNK RELEASE SWITCH or BCM, CONNECTOR 2, PIN3 24464_STRATUS-SEDAN_CHRYSLER 5-WIRE TRUNK POP DIAGRAM.pdf
SLIDING POWER DOOR N/A
HORN BLACK/RED (-) @ STEERING COLUMN HARNESS
TACH ANY wire NOT GREEN/LIGHT GREEN (AC) @ COIL PACK
WAIT TO START LIGHT N/A
BRAKE WHITE/TAN (+) @ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM LIGHT GREEN/ORANGE (+) See NOTE #5 @ BCM, Connector C4, Pin 4, See NOTE #4 9930_STRATUS-SEDAN_CHRYSLER POSITIVE DISARM DIAGRAM.pdf

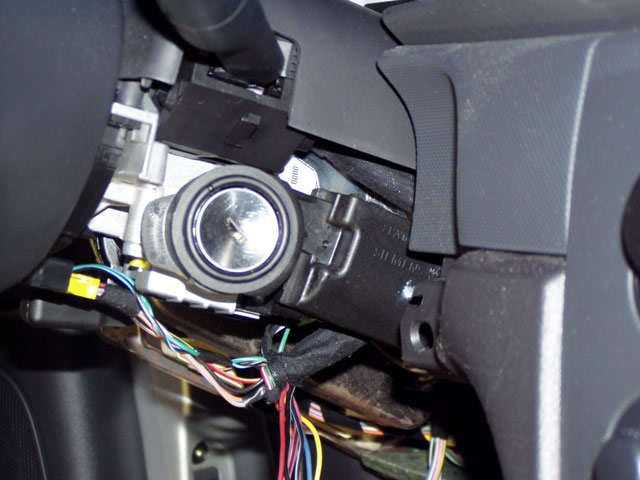

ANTI-THEFT CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1 @ IGNITION SWITCH TUMBLER
NOTES
NOTE #1: This vehicle may be equipped with CHRYSLER'S ANTI-THEFT TRANSPONDER System

(GRAY IGNITION KEY), if so to remote start will require the 791 BYPASS MODULE and

an extra Ignition key, to order go to the SECURITY BYPASS MODULE PAGE on this

website.





NOTE #2: this vehicle uses a 1-Wire Door Locking System, the LOCK requires a (+)Positive

thru a 620 Ohm Resistor and the UNLOCK requires a (+)Positive thru a 2700 Ohm

Resistor, some units will also require 2 extra relays Part #775, to connect,

See DIAGRAM





NOTE #3; the DRIVERS DOOR is a TAN (-) Pin 5 the PASSENGER DOOR is a TAN/RED (-) Pin 6

the DRIVERS REAR DOOR is a TAN/ORANGE (-) Pin 7 and the PASSENGER REAR DOOR

is a TAN/YELLOW (-) Pin 8 when connecting to an ALARM SYSTEM use all 4 DOOR

TRIGGER wires and DIODE ISOLATE. to connect, See DAIGRAM







NOTE #4; the BCM (Body Control Module) is attached to FUSE/RELAY BOX located under

the drivers side of the dash







NOTE #5: the FACTORY DISARM wire requires a (+)Positive thru a 750 ohm Resistor and

an extra relay part #775, to connect, See DIAGRAM
