TOYOTA CAMRY

MODEL	YEAR(S
CAMRY	2002-2004

KEY	T-HARNESS	IMMOBILIZER
TOYKEY-1 (2002), TOYKEY-2 (2003-2004)	TOY-5	TOYOTA'S TRANSPONDER ANTI-THEFT SYSTEM, See NOTE #1

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	WHITE/RED (+) (12 Gauge)	@ IGNITION SWITCH HARNESS PLUG
STARTER	BLACK/WHITE (+), See NOTE #5	@ IGNITION SWITCH HARNESS PLUG
STARTER 2	BLACK/YELLOW (+) (20 Gauge), See NOTE #5	@ IGNITION SWITCH HARNESS PLUG

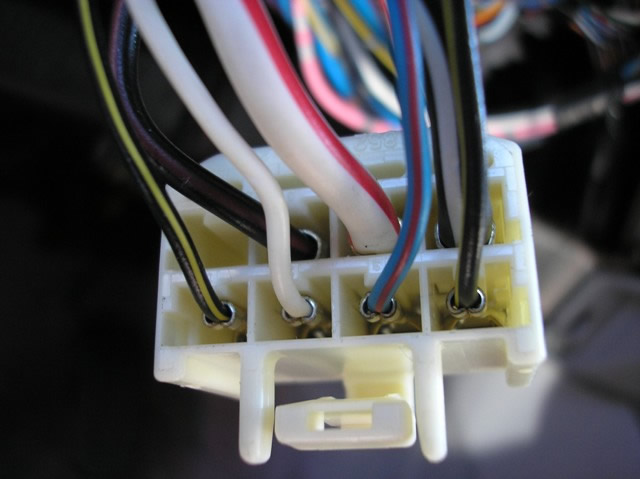

IGNITION 1	BLACK/RED (+) (14 Gauge)	@ IGNITION SWITCH HARNESS PLUG
IGNITION 2	BLACK/YELLOW (+) (20 Gauge)	@ IGNITION SWITCH HARNESS PLUG
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	BLUE/RED (+) (18 Gauge)	IGNITION SWITCH HARNESS PLUG
ACCESSORY/HEATER BLOWER 2	N/A

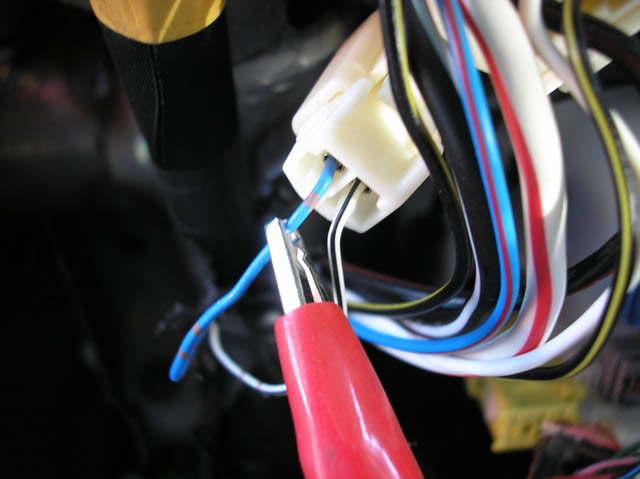

KEYSENSE	BLUE (-) (20 Gauge)	@ BOTTOM of IGNITION SWITCH, in WHITE 2-Pin Plug

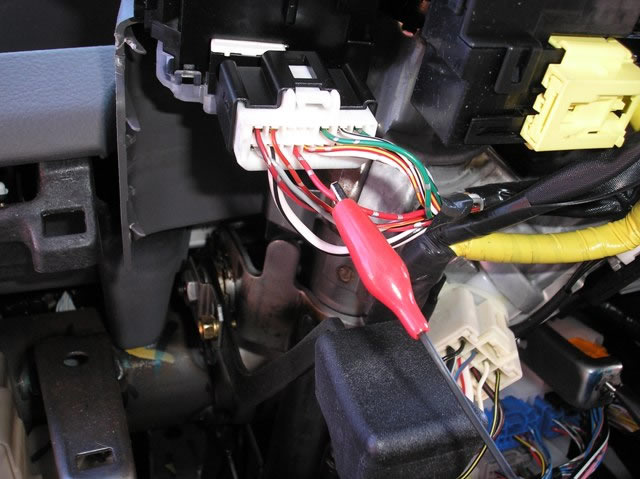

PARKING LIGHTS ( - )	RED (-)	@ HEAD LIGHT SWITCH, on Column, WHITE Plug

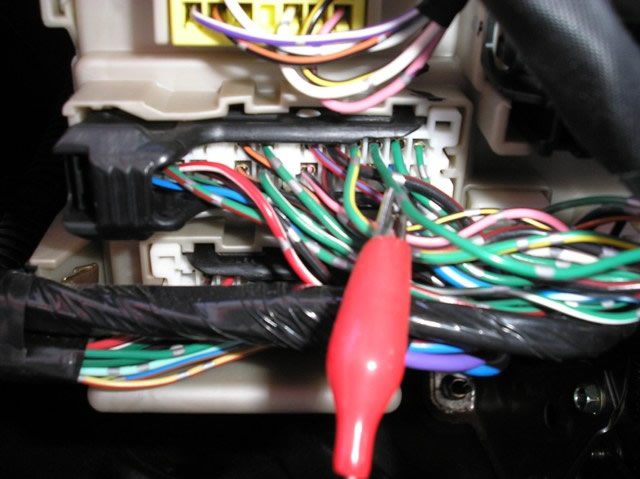

PARKING LIGHTS ( + )	GREEN (+)	@ BOTTOM WHITE PLUG in FUSEBOX

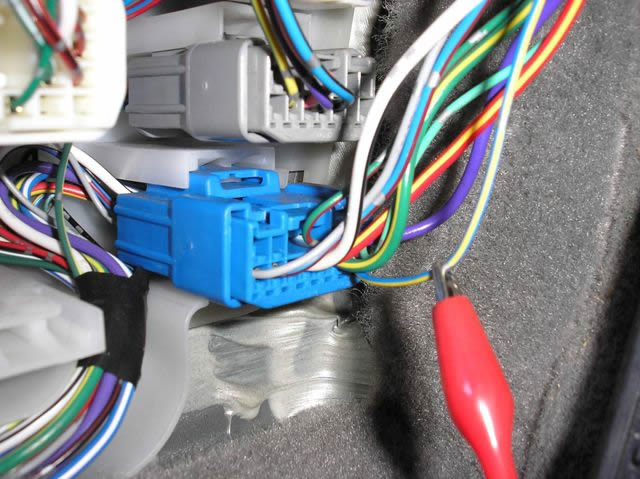

POWER LOCK	BLUE/YELLOW (TYPE B), See NOTE #2	IN DRIVERS KICK PANEL, HARNESS from DOOR, BLUE Plug

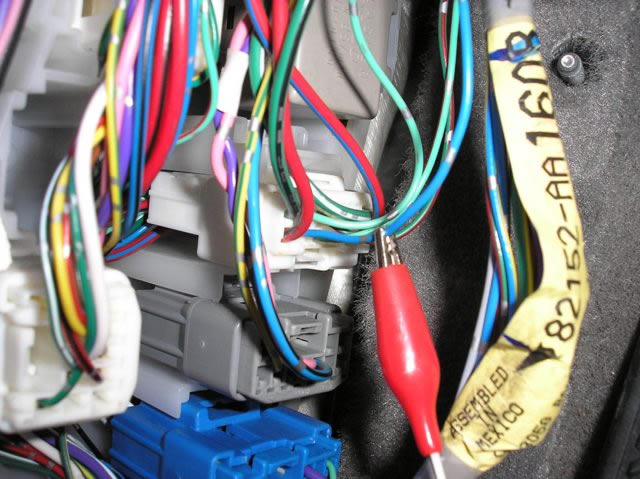

POWER UNLOCK	BLUE (TYPE B), See NOTE #2, (Requires Double Pulse)	IN DRIVERS KICK PANEL, HARNESS from DOOR, WHITE Plug
LOCK MOTOR WIRE	BLUE/RED (5-WIRE TYPE)	IN DRIVERS DOOR HARNESS
DOOR TRIGGER	See NOTE #3	See DIAGRAM	14301_CAMRY_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION	TURNS ON with UNLOCK
TRUNK RELEASE	WHITE/BLUE (5-Wire), See NOTE #6, (Requires Part #775 Relay)	IN DRIVERS KICK PANEL	14301_CAMRY_5-WIRE TRUNK RELEASE DIAGRAM.pdf
SLIDING POWER DOOR	N/A

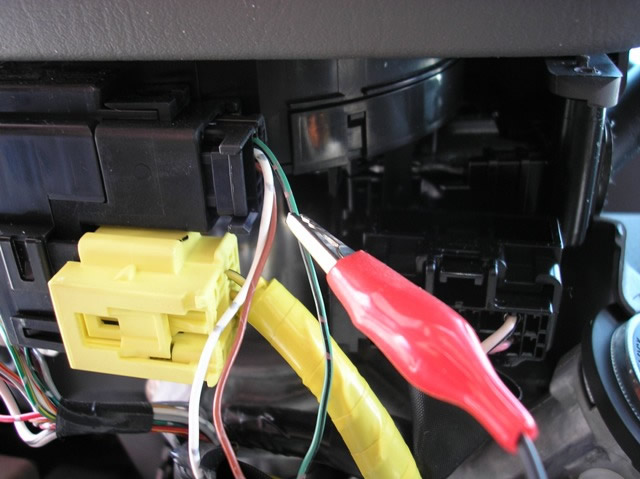

HORN	GREEN/BLACK (-)	@ STEERING COLUMN HARNESS
TACH	BLACK/ORANGE (AC)	See NOTE #4
WAIT TO START LIGHT	N/A

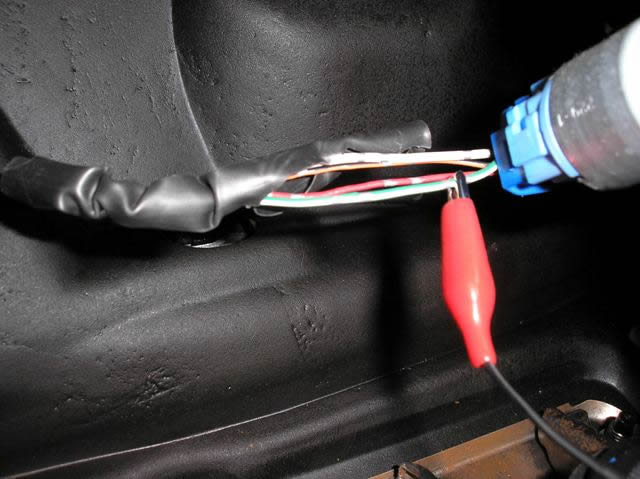

BRAKE	GREEN/WHITE (+)	@ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM	DISARMS with KEYSENSE wire	@ IGNITION SWITCH HARNESS

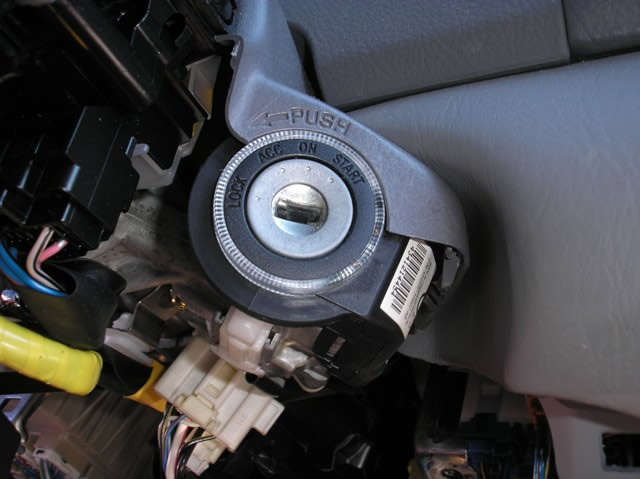

ANTI-THEFT	TOYOTA'S TRANSPONDER ANTI-THEFT SYSTEM, See NOTE #1	@ IGNITION SWITCH TUMBLER

NOTES

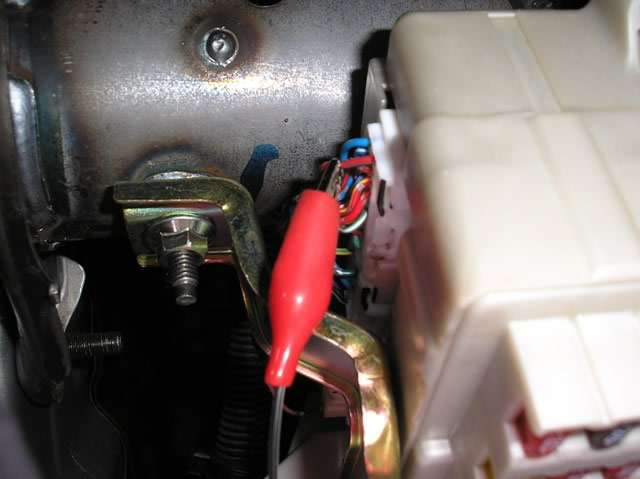

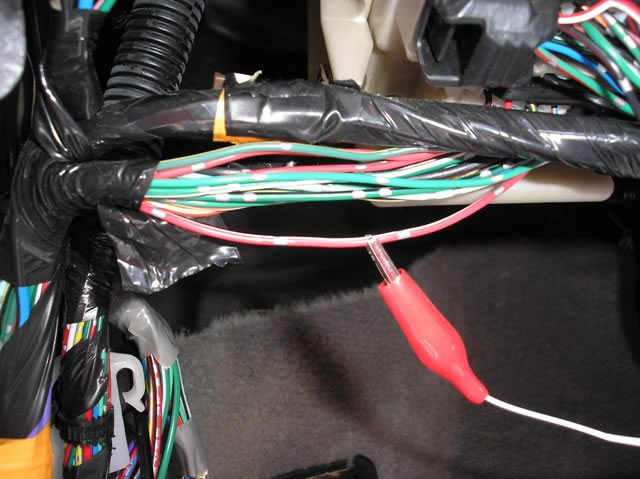

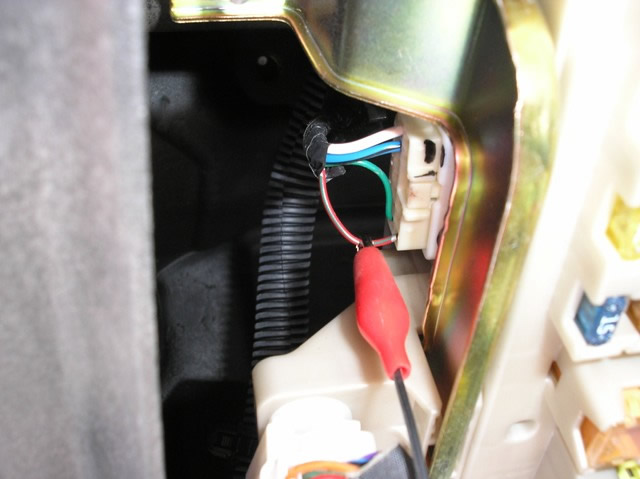

NOTE #1: TOYOTA'S TRANSPONDER SYSTEM, Requires Bypass Module: (For Remote Starting Only) Part #791 Bypass, Requires Extra Key for Operation, (For Remote Starting Only) Part # PK-ALL Bypass. (No Extra Key Required for Operation) 2-KEYS Required to Program Module. To order please go to the SECURITY BYPASS MODULE Page or INTERFACE BYPASS MODULE Page on this website. NOTE #2; THE LOCK AND UNLOCK WIRES WILL ONLY TEST WHILE TURNING THE KEY IN THE DRIVERS DOOR KEY CYLINDER. NOTE #3: DRIVER DOOR TRIGGER IS RED/GREEN(-) AT LOWER LEFT OF THE FUSEBOX. PASSENGER DOOR TRIGGER IS RED/GREEN(-) AT UPPER LEFT OF THE FUSEBOX. REAR DOOR TRIGGER IS RED/WHITE(-) AT THE BOTTOM OF THE FUSEBOX. WHEN CONNECTING TO AN ALALRM SYSTEM, USE ALL 3 DOOR TRIGGER WIRES AND DIODE ISOLATE, TO CONNECT, SEE DIAGRAM. NOTE #4: ON THE 2.4L ENGINE, THE TACH WIRE IS AT THE DATA LINK CONNECTOR UNDER THE DRIVER SIDE DASH . ON THE 3.0L ENGINE, THE TACH WIRE IS AT THE ECM (Engine Control Module) BEHIND THE GLOVEBOX, IA A 31-PIN PLUG, PIN 5. NOTE #5; this vehicle uses 2 STARTER/CRANK wires, when connecting to a Remote Starter you must connect BOTH STARTER/CRANK wires to the STARTER/CRANK wire from the Remote Starter. NOTE #6; this vehicle uses a 5-Wire TRUNK/HATCH Release System that will require an extra relay part #775, to connect, See DIAGRAM

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

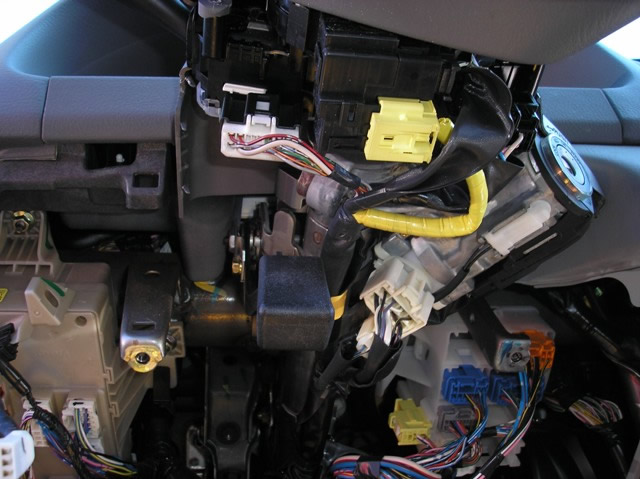

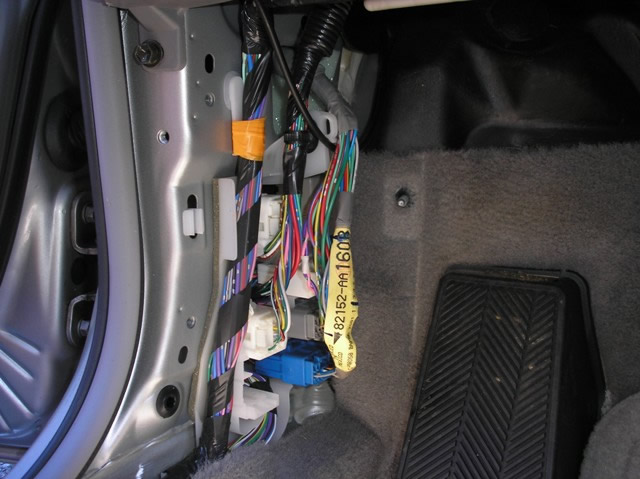

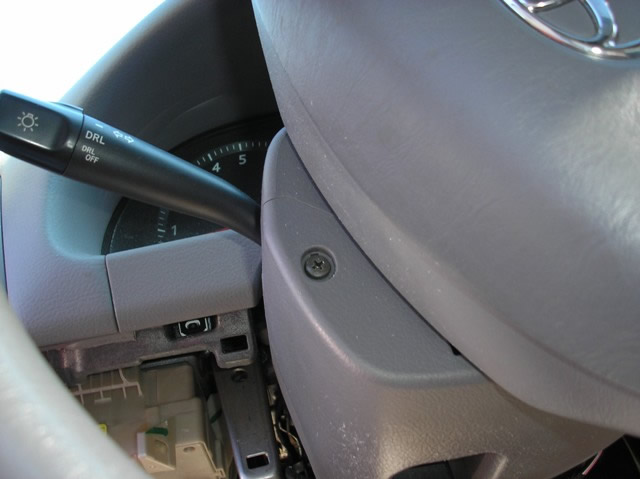

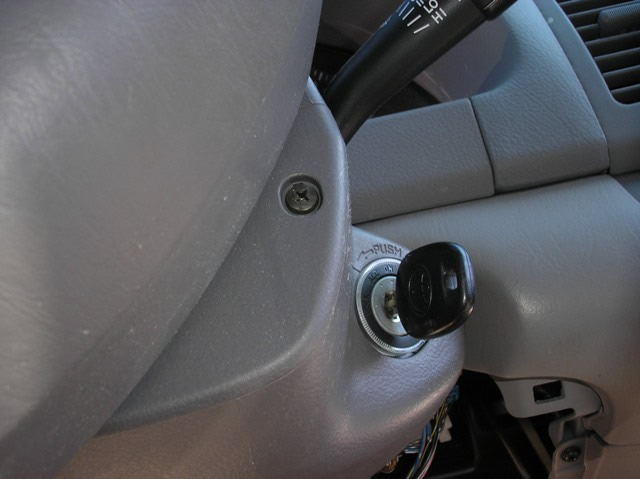

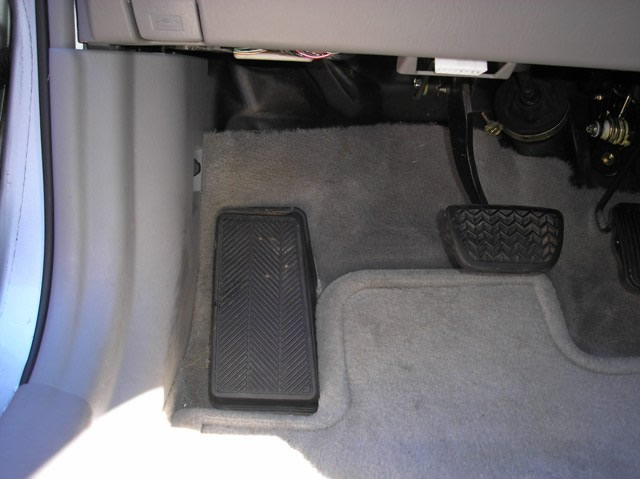

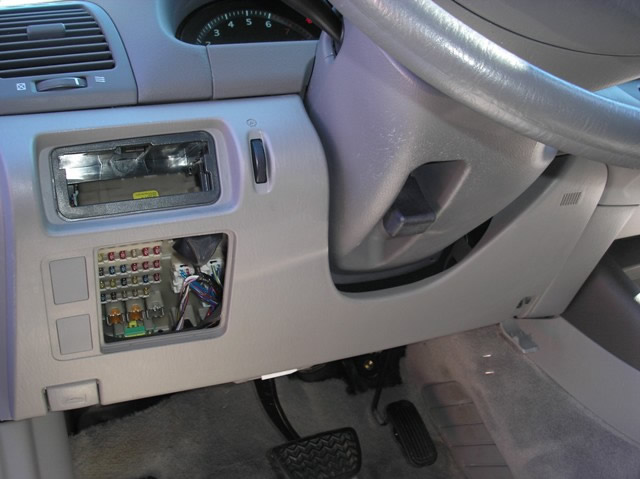

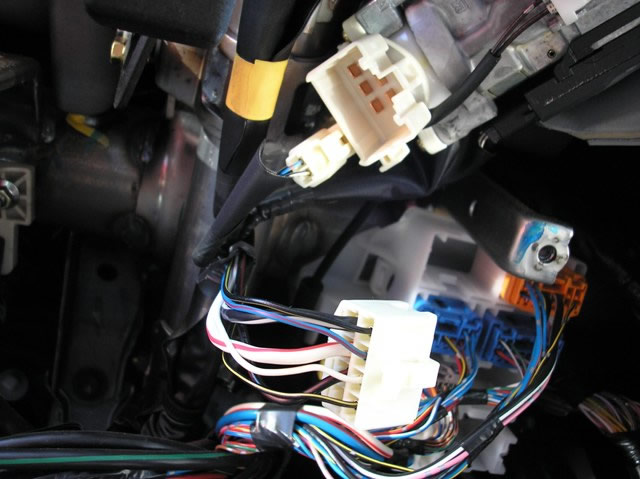

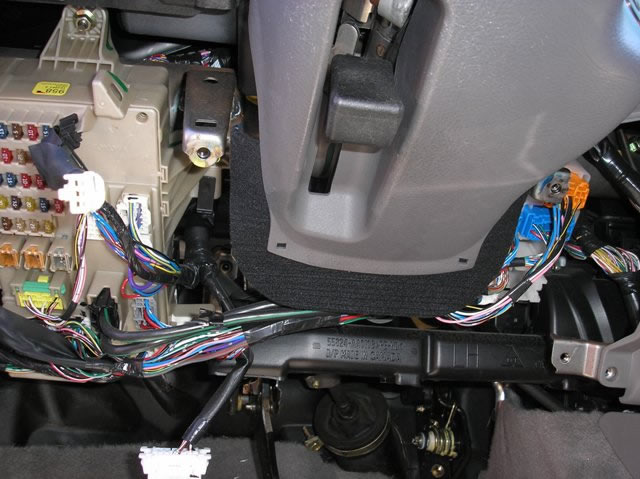

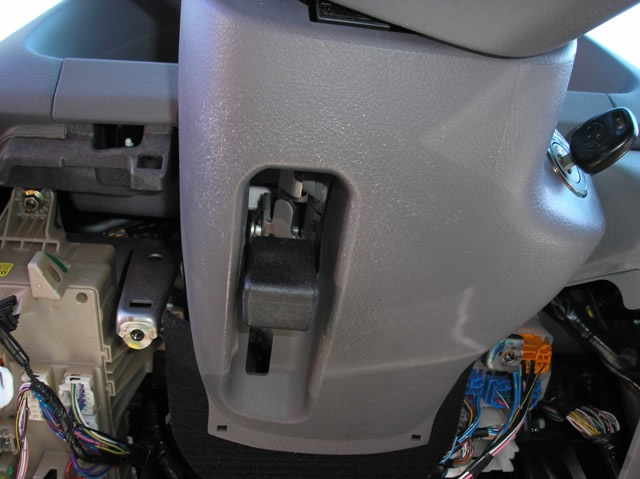

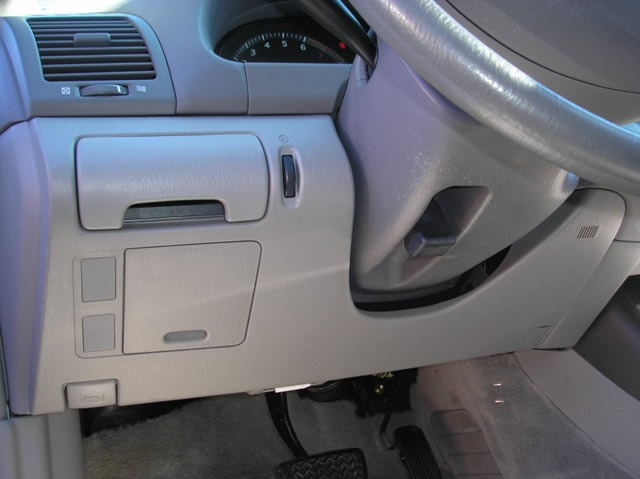

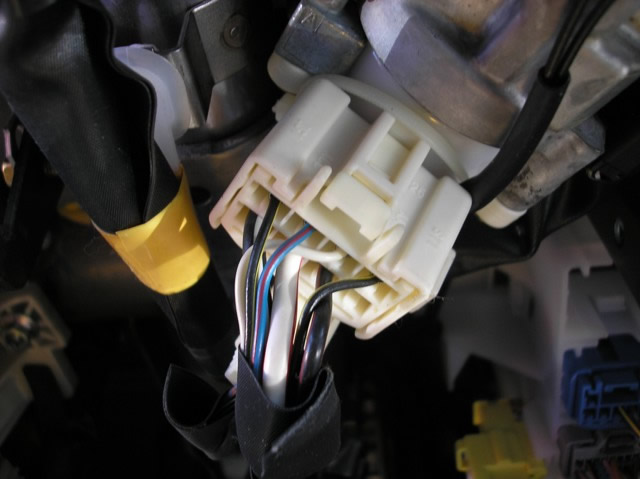

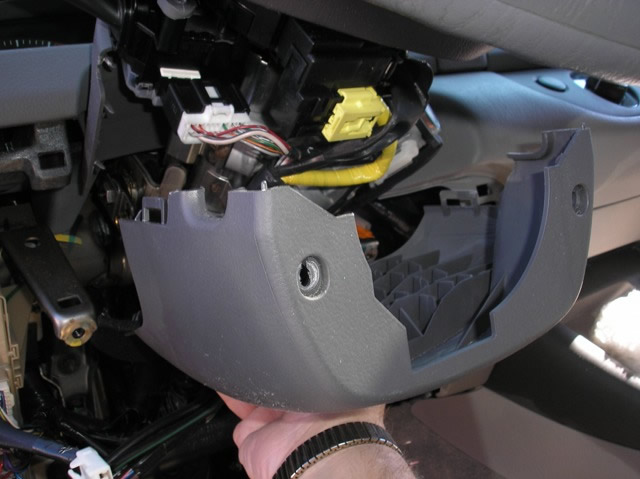

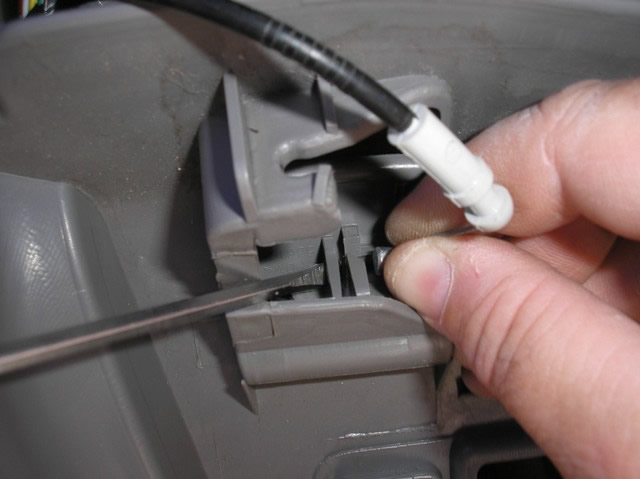

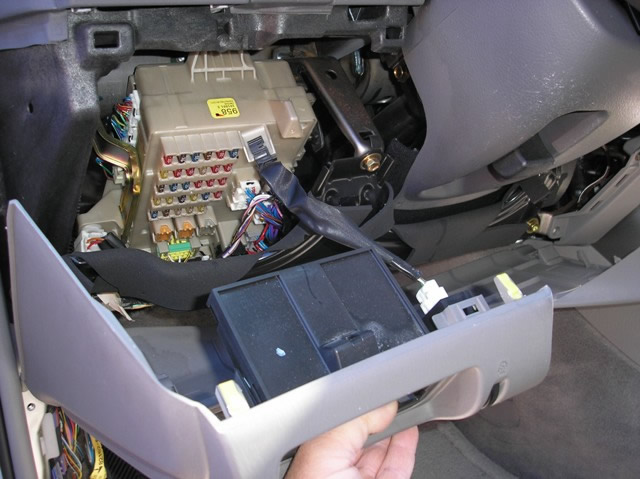

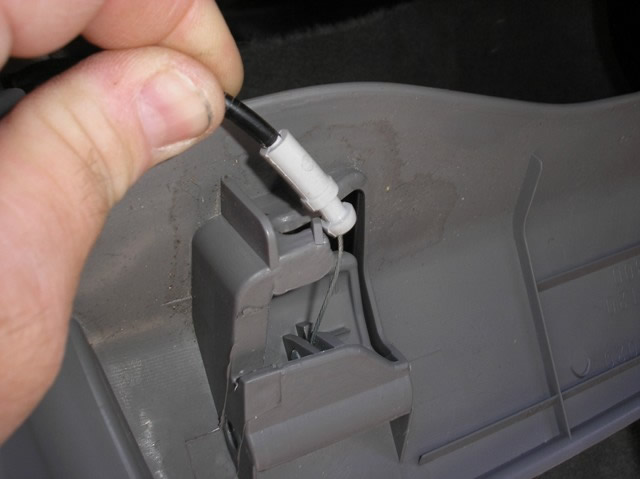

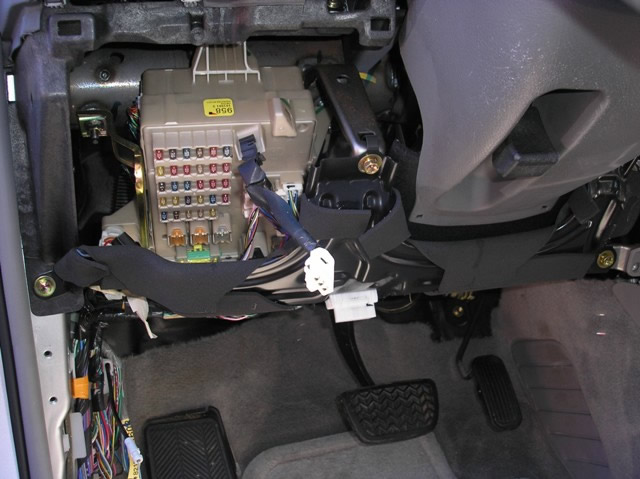

Show Large Image This picture shows the Ignition Harness unplugged from the Switch, this is only done when installing the TOY-5 T-Harness in this vehicle. Show Large Image With the cable out of its holder, press on the cable holder barrel in the handle with a screw driver and the cable will pop out of the handle. Show Large Image With the Under Dash panel removed, you will next need to remove this BLACK Metal Knee Bolster, it is held into place by (5) 10mm Bolts. Show Large Image With the Metal Knee Bolster removed you can now get to all under dash wiring. Show Large Image This Under Dash panel must be removed to expose the Under Dash wiring of this Vehicle. Show Large Image To remove the Hood Release Cable, pull this cable out of its holder. Show Large Image To remove this panel, remove the (1) Philip's Head screw behind the snap in plug on the lower right corner of this panel and (1) Philip's head screw behind the coin tray in the upper left of this panel. There is also a 10mm Bolt behind the Drivers Kick pa Show Large Image With this panel lowered, unplug the WHITE Plug in the back of the Dimmer switch and you will also need to remove the Hood Release Cable before you can complete the removal of this panel. Show Large Image To get to the IGNITION SWITCH HARNESS plug and Anti-theft Transponder System, you will need to remove the Lower Steering Column Cover. Show Large Image To remove the Column cover first, remove this Philip's Head screw on the Left side of the column, rotate the wheel to expose this screw. Show Large Image Next remove this Philip's head screw on the Right side of the column. Show Large Image With both screws removed from this column cover, seperate the Upper and Lower covers (covers are a Clamshell type), and pull the Lower cover off. Show Large Image With the Lower column cover removed, you can now gain access to the wires of the Steering column. Show Large Image The IGNITION SWITCH HARNESS Plug (WHITE), is plugged into the Ignition Switch at the BACK and BOTTOM. Show Large Image This picture of the Ignition Switch Harness plug shows the Ignition wires in this plug for IDENTIFICATION. Show Large Image This vehicle has an Anti-Theft Transponder System built into the Ignition Switch, it is seen as the BLACK Ring around the Ignition Switch Tumbler, and will require the 791 Transponder Bypass Module and a extra Programmed Ignition Key for Remote Starting t Show Large Image The (-) GREEN/BLACK HORN wire, marked with the RED Clip is located just below the Steering wheel in the column in a BLACK Plug next to the Air Bag plug. Show Large Image The (-) RED PARKING LIGHT wire, marked with the RED Clip, is located at the Bottom of the headlight Switch on the column in a large WHITE plug. Show Large Image The (+) GREEN/WHITE BRAKE wire, marked with the RED Clip, is located in the BLUE Plug at the Brake Switch attached to the top of the Brake Pedal under the dash. Show Large Image The (+) GREEN PARKING LIGHT wire, marked with the RED Clip, is located in the large WHITE Plug at the Bottom of the Fuse Box. Show Large Image The (-) BLUE KEY SENSE wire, marked with the RED Clip, is located in a 2-Pin WHITE Plug just behind the WHITE Ignition Switch Harness Plug on the column. Show Large Image To access the Power Door Lock wires, you will need to remove this Plastic Kick Panel cover. Show Large Image With the Plastic Kick Panel cover removed you can now get access to the Door Lock wires in the kick Panel. Show Large Image The TYPE "B" BLUE/YELLOW LOCK wire, marked with the RED Clip, is located in the BLUE Plug that is attached to the kick panel in this vehicle. Show Large Image The TYPE "B" BLUE UNLOCK wire, marked with the RED Clip, is located in the WHITE Plug that is attached to the kick panel in this vehicle. Show Large Image When installing an alarm system, you must use this (-) RED/GREEN Drivers Door Trigger wire, marked with the RED Clip, located in the WHITE Plug, low on the Left side of the Fuse Box. Show Large Image When installing an alarm system, you must use this (-) RED/GREEN Passenger Door Trigger wire, marked with the RED Clip, located in the WHITE Plug, High on the Left side of the Fuse Box. Show Large Image When installing an alarm system, you must use this (-) RED/WHITE Rear Door Trigger wire, this wire catches both rear doors, marked with the RED Clip, located in this harness that plugs into the bottom of the fuse box.
