PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|

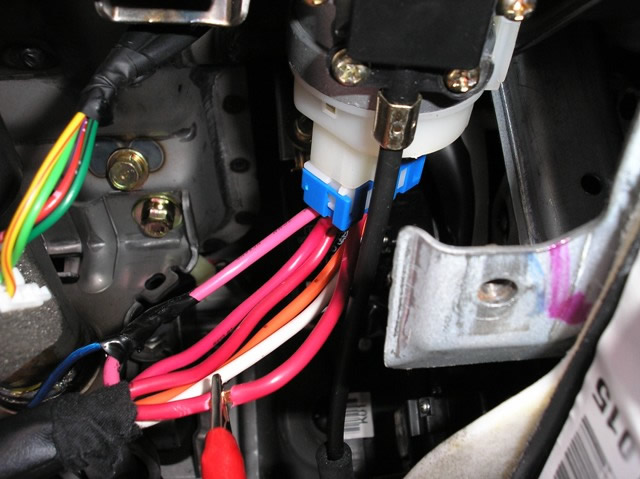

12 VOLT CONSTANT
|
RED (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
WHITE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
RED (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
PINK (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
ORANGE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
KEYSENSE
|
BLUE/ORANGE (-)
|
@ IGNITION SWITCH HARNESS
|
|
|

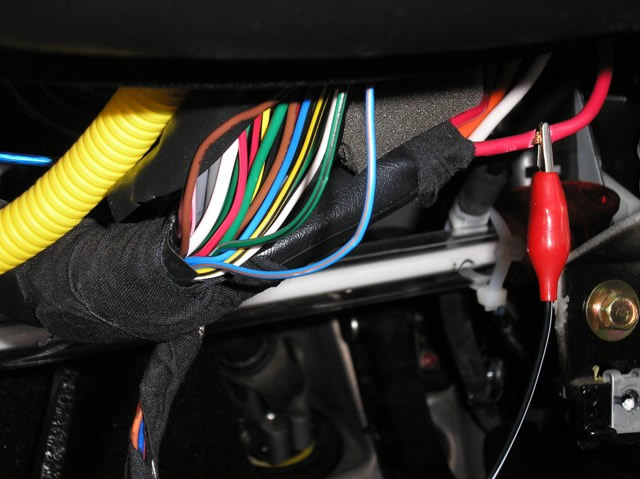

PARKING LIGHTS ( - )
|
BLUE/ORANGE (-)
|

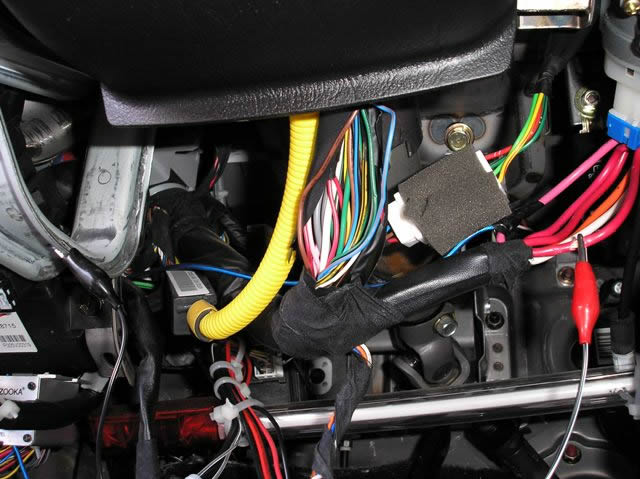

@ STEERING COLUMN HARNESS
|
|
|

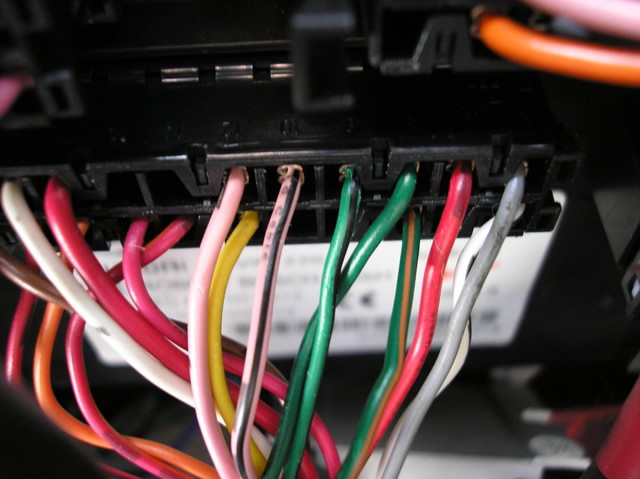

PARKING LIGHTS ( + )
|
PINK/BLACK (+) and GREEN/ORANGE (+) Use both, See NOTE #1
|

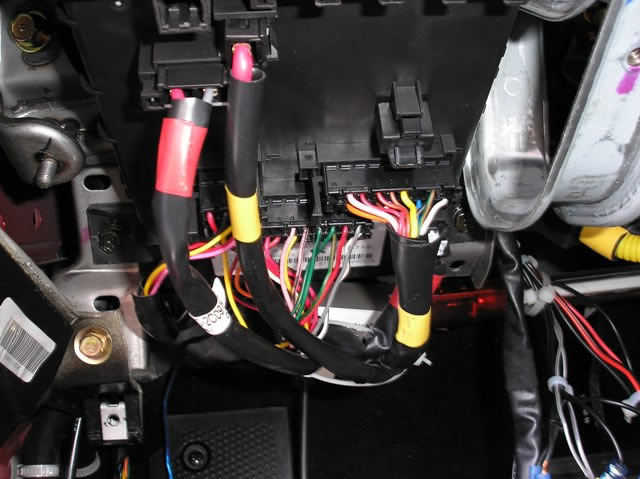

@ BOTTOM of FUSE BOX, 18-PIN BLACK Plug
|
26500_TIBURON_DUAL PARKING LIGHT DIAGRAM.pdf
|
|

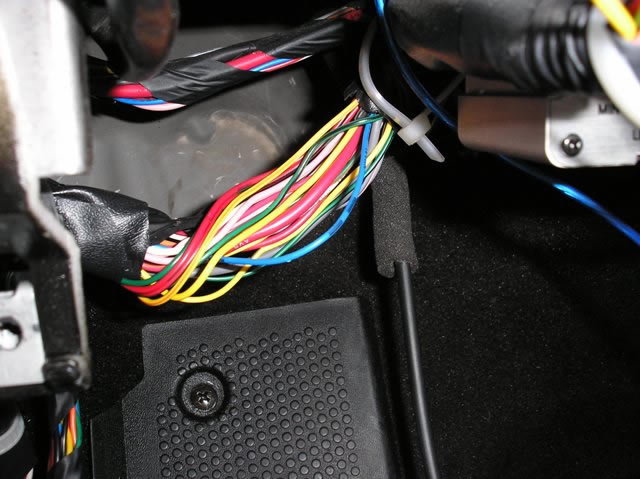

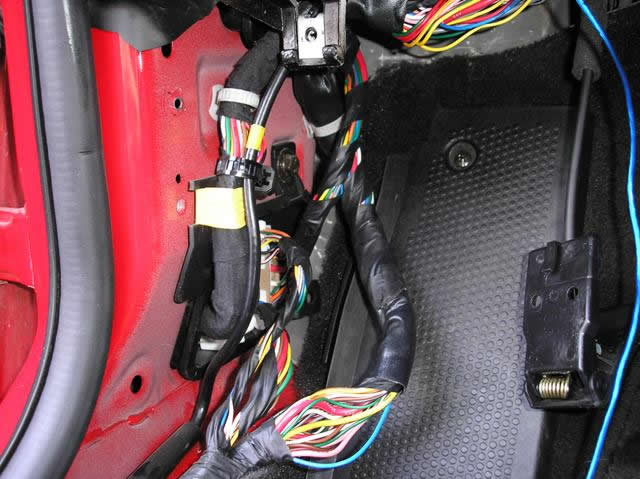

POWER LOCK
|
BLUE (TYPE F) See NOTE #2
|
IN HARNESS from DRIVERS DOOR, high up in DRIVERS KICK PANEL, under DRIVERS SIDE of DASH, See DIAGRAM
|
29358_TIBURON_TYPE F DOOR LOCK DIAGRAM.pdf
|
|
POWER UNLOCK
|
Same wire, See DIAGRAM
|
See DIAGRAMS
|
|
|
LOCK MOTOR WIRE
|
N/A
|
|
|
|

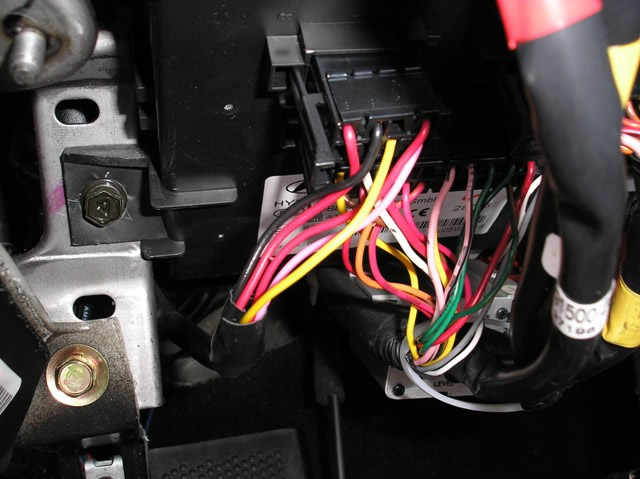

DOOR TRIGGER
|
YELLOW (-)
|
IN 8-PIN BLACK Plug, BOTTOM of FUSE BOX
|
|
|
DOMELIGHT SUPERVISION
|
USE DOOR TRIGGER, Requires Part #775 Relay
|
|
|
|

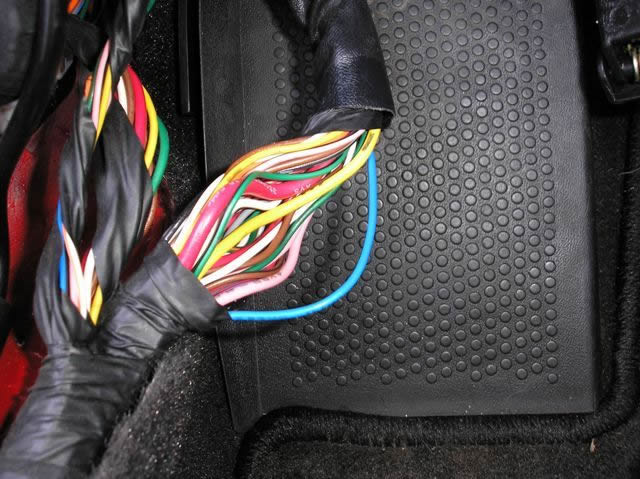

TRUNK RELEASE
|
BLUE (+), Requires Part #775 Relay
|
Low in DRIVERS KICK PANEL, Harness to REAR of VEHICLE
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|

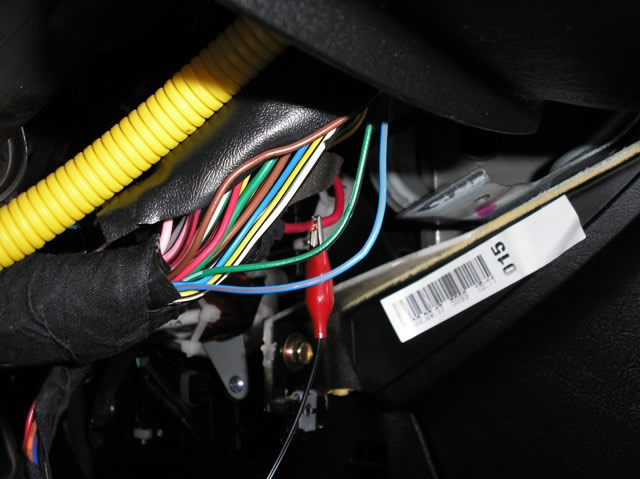

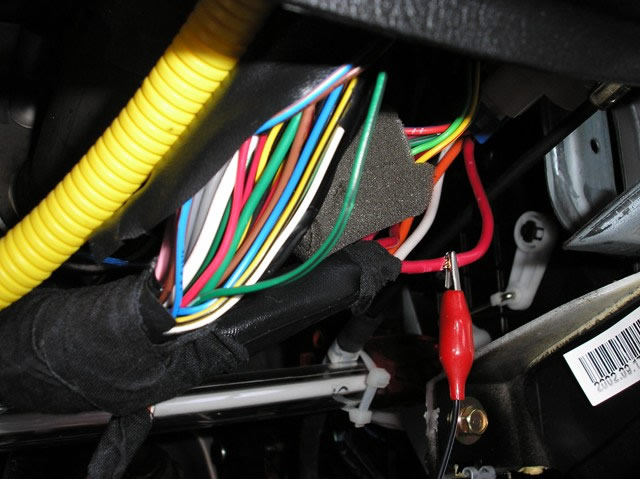

HORN
|
GREEN/BLACK (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
WHITE (AC)
|
@ 23-PIN PLUG, in PASSENGER KICK PANEL
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|

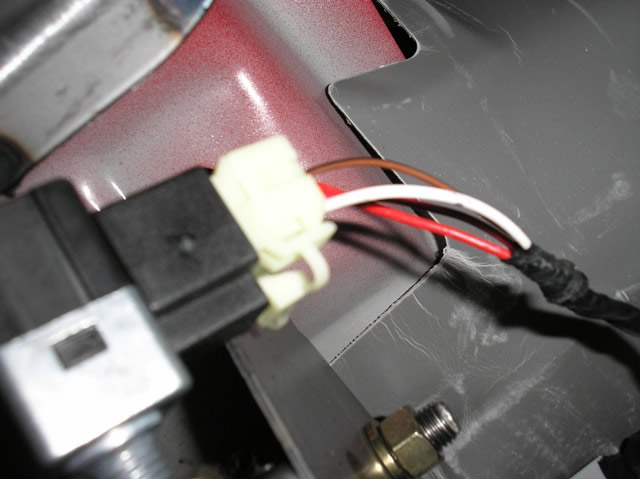

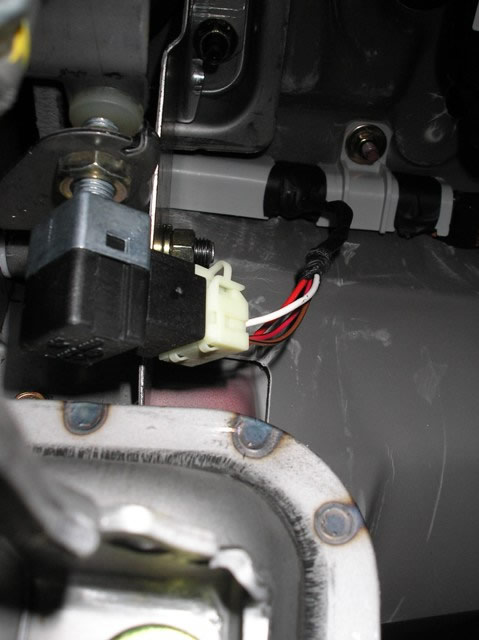

BRAKE
|
WHITE (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
N/A
|
|
|
|
ANTI-THEFT
|
HYUNDAI'S TRANSPONDER SYSTEM, See NOTE #3
|
|
|
