TOYOTA TUNDRA STANDARD/ACCESS CAB

MODEL	YEAR(S
TUNDRA STANDARD/ACCESS CAB	2004-2006

KEY	T-HARNESS	IMMOBILIZER
N/A	N/A	N/A

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	WHITE (+) and WHITE/RED (+)	@ IGNITION SWITCH HARNESS
STARTER	GREEN/BLACK (M/T) (+), BLACK/WHITE (A/T) (+), See NOTE #4	@ IGNITION SWITCH HARNESS
STARTER 2	N/A
IGNITION 1	BLACK/RED (+)	@ IGNITION SWITCH HARNESS
IGNITION 2	BLACK/YELLOW (+)	@ IGNITION SWITCH HARNESS
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	BLUE/RED (+)	@ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2	N/A
KEYSENSE	PINK/BLACK (-)	@ IGNITION SWITCH HARNESS
PARKING LIGHTS ( - )	N/A
PARKING LIGHTS ( + )	GREEN (+), See NOTE #1	IN DRIVERS KICK PANEL, BLACK HARNESS to REAR of VEHICLE, wrapped with YELLOW tape
POWER LOCK	GREEN/BLACK (TYPE B)	IN DRIVERS KICK PANEL, in WHITE Plug from door harness.
POWER UNLOCK	RED/YELLOW (TYPE B)	IN DRIVERS KICK PANEL, in WHITE Plug from door harness.
LOCK MOTOR WIRE	BLUE/WHITE (5-WIRE TYPE)	IN DRIVERS KICK PANEL, HARNESS to REAR of VEHICLE
DOOR TRIGGER	WHITE/BLUE (-), See NOTE #6	IN DRIVERS KICK PANEL, in GRAY Plug from door harness.
DOMELIGHT SUPERVISION	USE DOOR TRIGGER, (Requires Part #775 Relay)
TRUNK RELEASE	N/A
SLIDING POWER DOOR	N/A
HORN	GREEN/RED (-)	@ STEERING COLUMN HARNESS or PLUG below FUSEBOX
TACH	BLUE/WHITE (AC)	@ ECM, Second Plug from Right, Pin 1, See NOTE #3
WAIT TO START LIGHT	N/A
BRAKE	GREEN/WHITE (+)	@ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM	DISARMS with KEYSENSE wire, See NOTE #5	@ IGNITION SWITCH HARNESS
ANTI-THEFT	N/A

NOTES

NOTE #1: the PARKING LIGHT wire is in the LARGE harness heading to the rear of the vehicle in the DRIVERS KICK PANEL. You will find a heavy gauge GREEN wire and a thin GREEN wire, use only the THIN GREEN wire. NOTE #2: on the V-6 the IGNITOR is located on the PASSENGER SIDE FENDER. on the V-8 the ECM is located behind the GLOVE BOX. NOTE #3; the ECM (Engine Control Module) is located BEHIND the GLOVEBOX NOTE #4; the M/T is for Manual Transmisson and the A/T is for Automatic Transmission NOTE #5: THE KEYSENSE WIRE WILL DISARM THE VEHICLE WITHOUT UNLOCKING THE DOORS BY APPLYING A (-)NEGATIVE TO THIS WIRE DURING REMOTE STARTING. NOTE #6: this is a HIGH Current DOMELIGHT SUPERVISION wire that will require an extra Relay Part #775 to connect, See DIAGRAM.

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

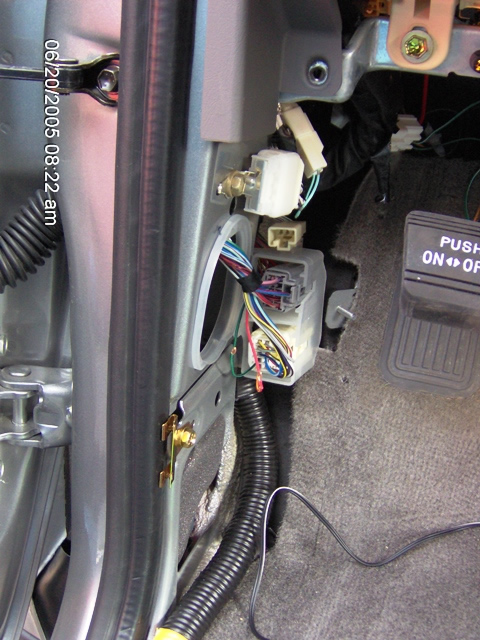

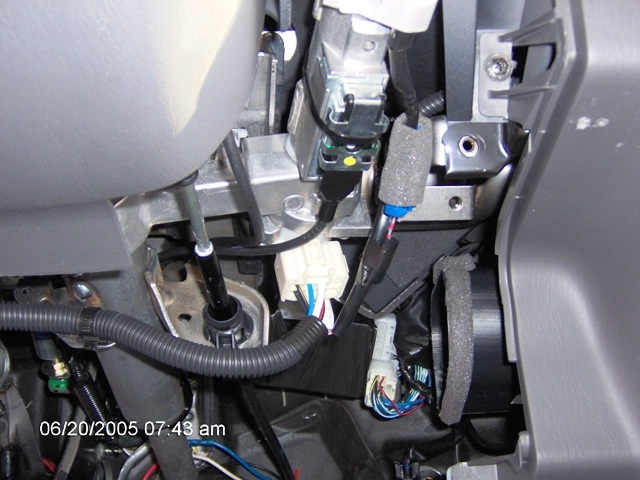

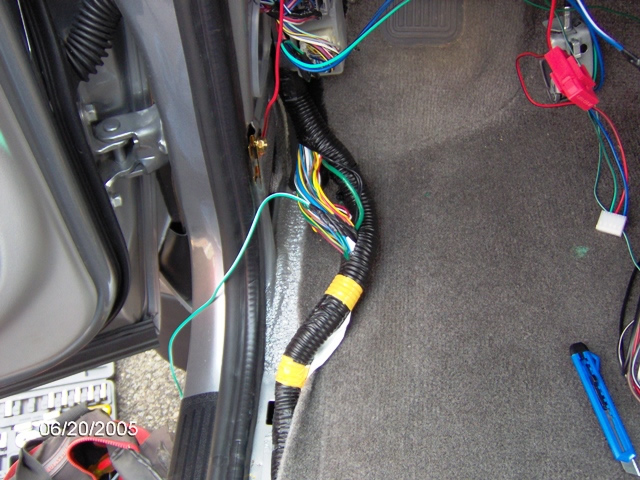

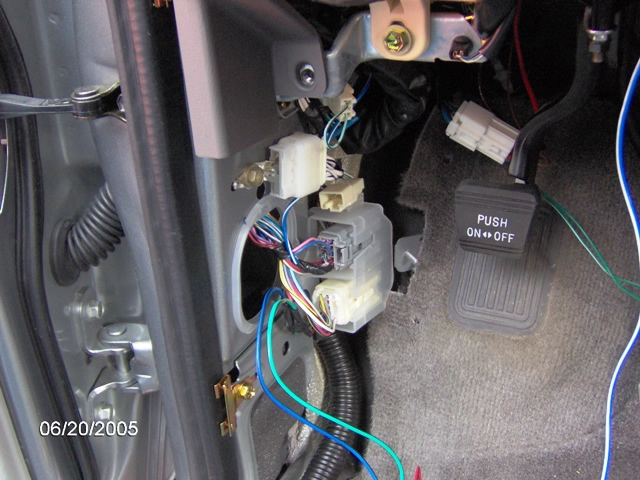

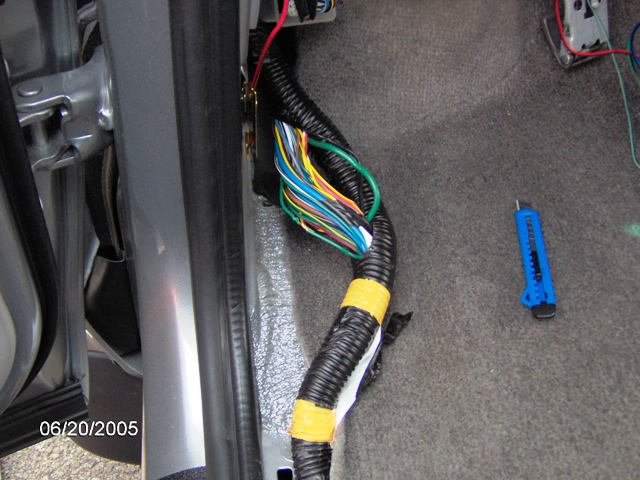

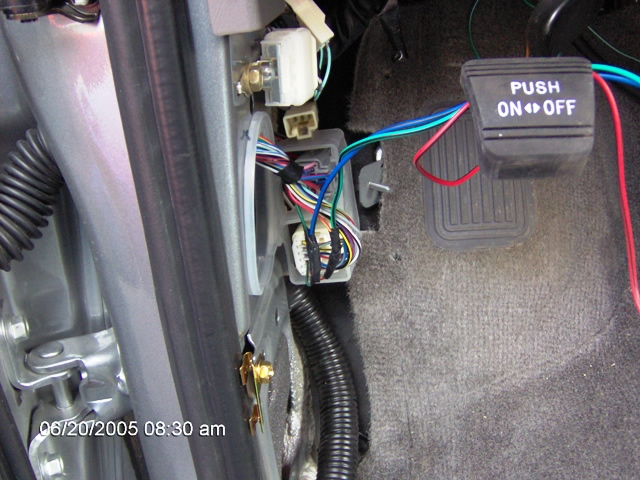

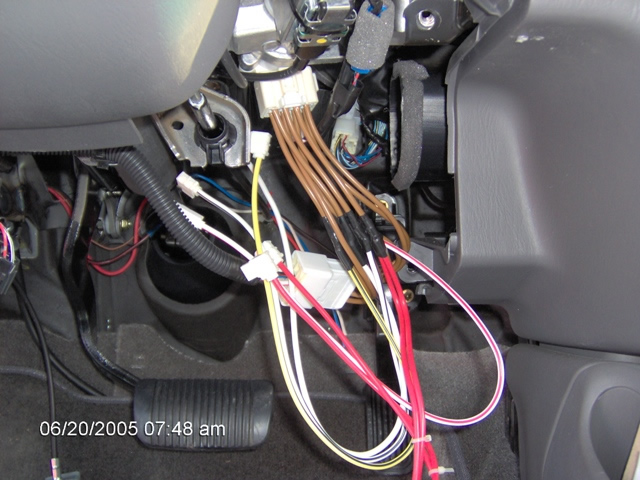

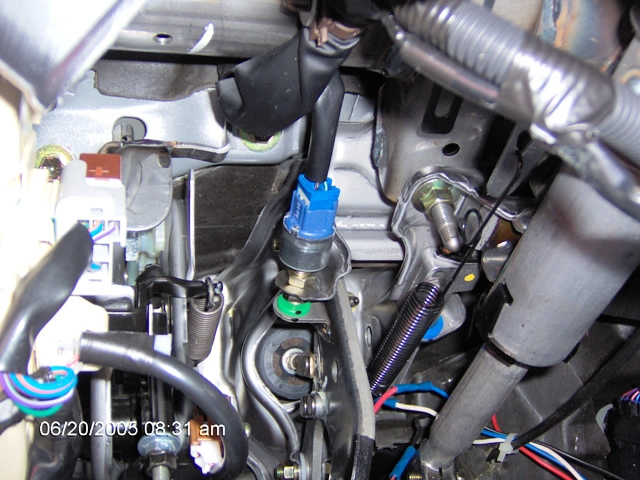

Show Large Image This picture shows the IGNITION SWITCH HARNESS Plug (WHITE) and the Plug in on the IGNITION SWITCH, with the lower dash panel removed. Show Large Image This picture shows the (TOY-1) T-HARNESS plugged into the IGNITION SWITCH HARNESS and PLUG next to the Steering Column, under the dash. Show Large Image This picture shows the (+) POSITIVE PARKING LIGHT wire (GREEN, small gauge wire) in the DRIVERS KICK PANEL, LOWER harness heading to the rear of the vehicle. NOTE *** there is a HAVY GAUGE GREEN wire in this harness, do not use!!. Show Large Image This picture shows the connection to the (+) PARKING LIGHT wire GREEN, in the DRIVERS KICK PANEL, lower harness to rear of vehicle. Show Large Image This picture shows the Plug and Harness in the DRIVERS KICK Panel where the LOCK and UNLOCK wires are located. Show Large Image This picture shows the LOCK and UNLOCK wires in the DRIVERS KICK PANEL, and shows the connections to these wires. Show Large Image This picture shows the location and the connection to the (-) DOMELIGHT SUPERVISION/DOOR TRIGGER wire WHITE/BLUE in the DRIVERS KICK PANEL. Show Large Image This picture shows the location of the BRAKE SWITCH above the Brake Pedal under the dash. The (+) GREEN/WHITE Brake wire is in the BLUE Plug attached to this switch.
