MAZDA PROTEGE

MODEL	YEAR(S
PROTEGE	1999-2002

KEY	T-HARNESS	IMMOBILIZER
N/A	N/A	N/A

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	BLACK/WHITE (+) and BLACK (+)	@ IGNITION SWITCH HARNESS
STARTER	BLACK/BLUE (+)	@ IGNITION SWITCH HARNESS
STARTER 2	N/A
IGNITION 1	BLUE (+)	@ IGNITION SWITCH HARNESS
IGNITION 2	BLACK/RED (+)	@ IGNITION SWITCH HARNESS
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	BLACK/WHITE (+)	@ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2	N/A
KEYSENSE	N/A

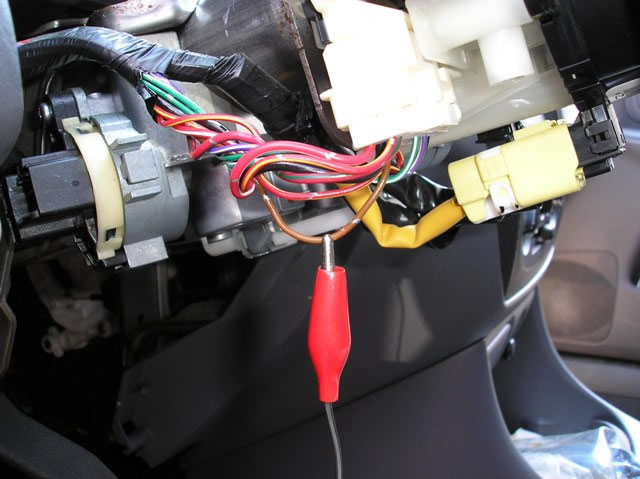

PARKING LIGHTS ( - )	BROWN (-)	@ HEADLIGHT SWITCH

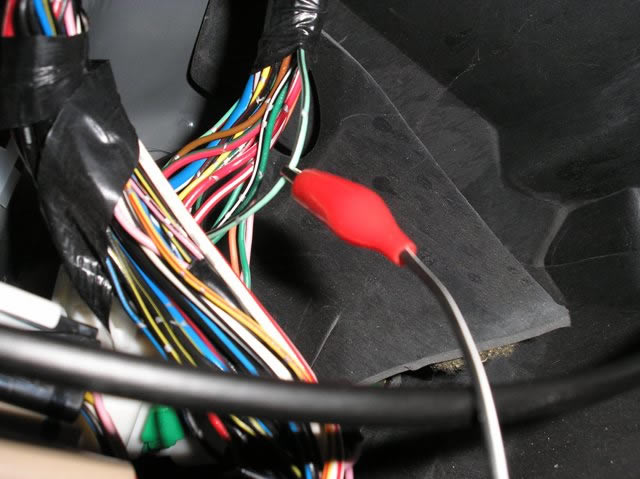

PARKING LIGHTS ( + )	LIGHT GREEN/BLACK (+)	IN DRIVERS KICK PANEL

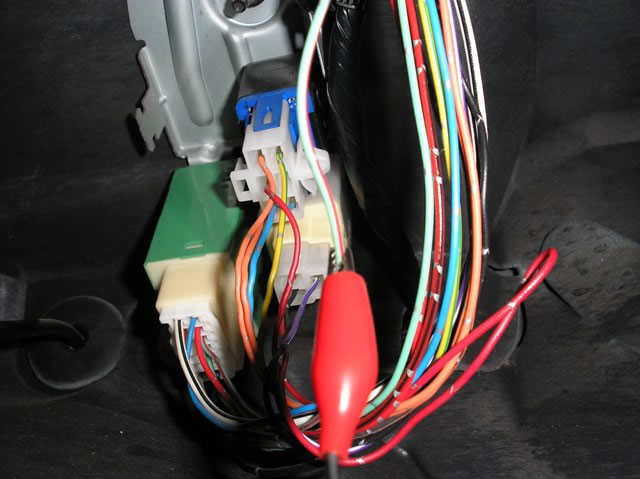

POWER LOCK	LIGHT GREEN/RED (1-Wire Door Lock System) See NOTE #1	HIGH IN DRIVERS KICK PANEL, on BRACKET next to the FIREWALL	22213_PROTEGE_PROTEGE 1 WIRE JBS UNITS.pdf
POWER UNLOCK	Same wire, See DIAGRAM	See DAIGRAMS	22213_PROTEGE_PROTEGE 1 WIRE ALERT SHELBY UNITS.pdf
LOCK MOTOR WIRE	RED (+)	@ DOOR LOCK RELAYS, See NOTE #3
DOOR TRIGGER	BLACK/BLUE (-)	IN DRIVERS KICK PANEL
DOMELIGHT SUPERVISION	USE DOOR TRIGGER, Requires Part #775 Relay
TRUNK RELEASE	N/A
SLIDING POWER DOOR	N/A
HORN	BLACK/RED (-)	@ SMALL WHITE PLUG, IN THE STEERING COLUMN
TACH	PURPLE/WHITE	@ DIAGNOSTIC CONNECTOR, See NOTE #2
WAIT TO START LIGHT	N/A
BRAKE	GREEN/YELLOW (+)	@ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM	N/A
ANTI-THEFT	N/A

NOTES

NOTE #1: THIS IS A 1-WIRE DOOR LOCKING SYSTEM, TO LOCK REQUIRES A (-)NEGATIVE THRU A 1500 OHM RESISTOR. TO UNLOCK REQUIRES A STRIGHT (-) NEGATIVE TO THE SAME WIRE. SOME UNITS WILL REQUIRE 2 EXTRA RELAYS PART #775, TO CONNECT, See DIAGRAMS NOTE #2: THE DIAGNOSTIC CONNECTOR IS IN DRIVERS SIDE REAR CORNER OF THE ENGINE COMPARTMENT. CAN ALSO FIND TACH IN PIN 48 OF THE ECM (ELECTRONIC CONTROL MODULE). NOTE #3: THE DOOR LOCK RELAYS ARE LOCATED, TO THE DRIVERS SIDE OF THE BRAKE PEDAL.

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

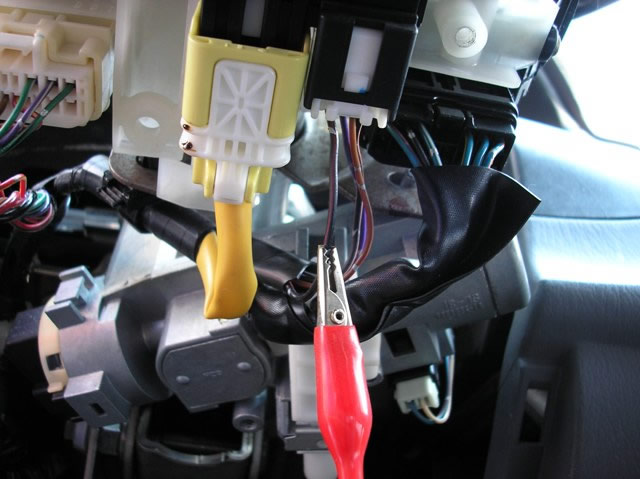

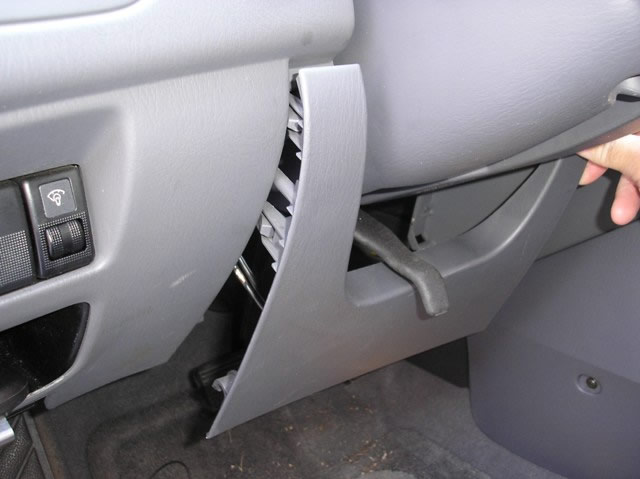

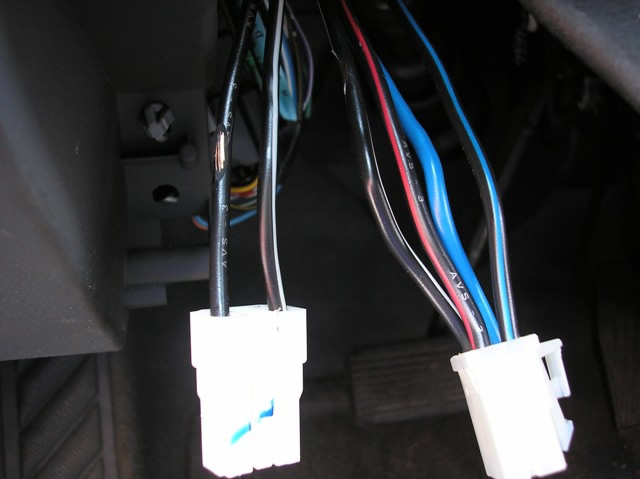

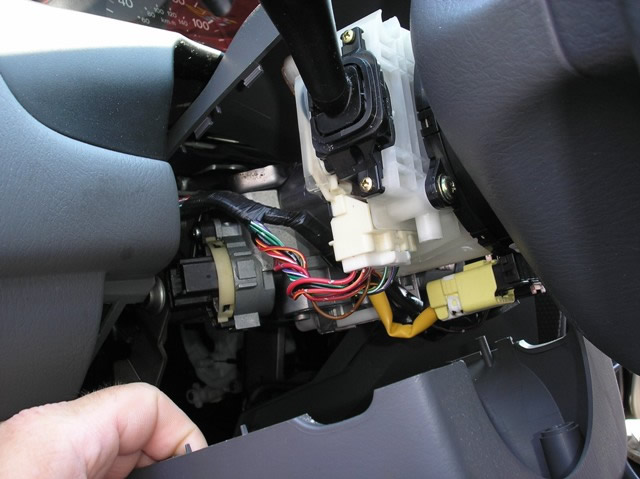

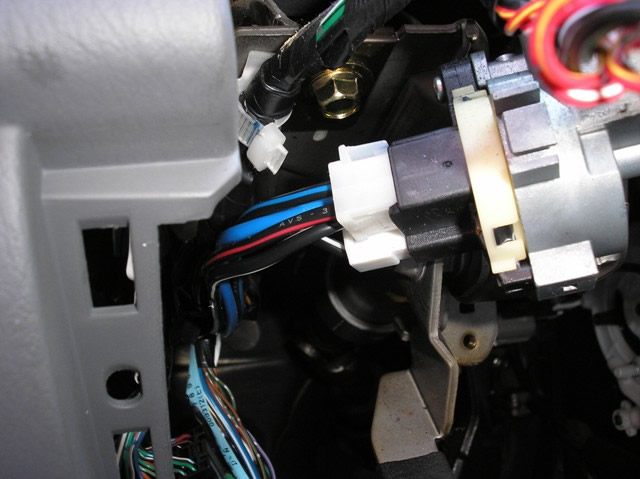

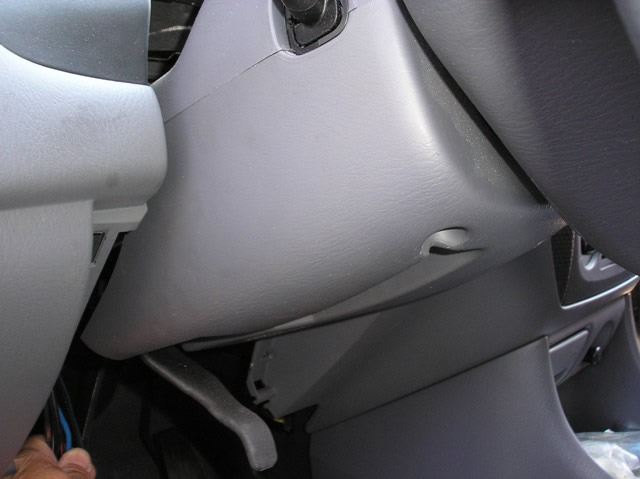

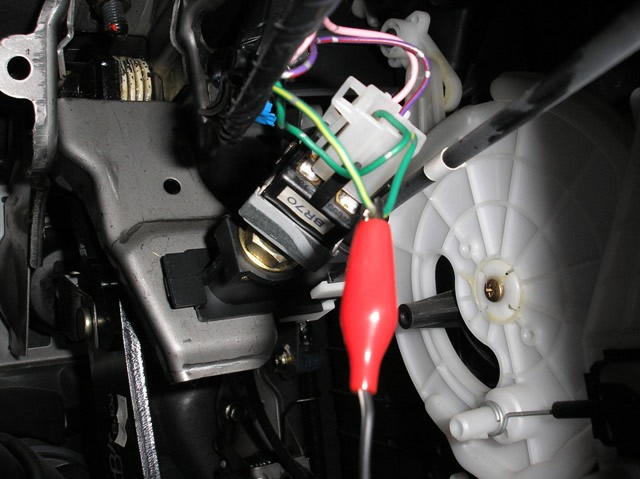

Show Large Image This is the first under dash panel that must be removed, it just un-snaps and pulls off. Show Large Image After removing the under dash panel,. remove the screws from the bottom of the LOWER STEERING COLUMN COVER and this will also just snap away from the UPPER cover. Show Large Image This shows the STEERING COLUMN COVER removed, you must do this to get to the HORN wire and the Negative PARKING LIGHT wire. Show Large Image This picture shows the location of the IGNITION SWITCH HARNESS and Harness Plugs, and where they plug into the IGNITION SWITCH on the Steering Column of this vehicle. Show Large Image This picture shows the (2) IGNITION SWITCH HARNESS Plugs, after they have been unplugged from the IGNITION SWITCH on this vehicle. This was done for WIRE IDENTIFICATION purposes only. Show Large Image This picture shows the (+) GREEN/YELLOW BRAKE wire marked with the RED Clip, at the Brake Switch above the Brake Pedal on this vehicle. Show Large Image This shows the (-) BLACK/RED HORN wire that is marked with the RED Clip in this picture at the Small WHITE Plug next to the AIR BAG Plug in the Steering Column of this vehicle. Show Large Image This is a picture of the (-) BROWN PARKING LIGHT wire marked with the RED Clip, at the HEADLIGHT Switch on the Steering Column of this vehicle. Show Large Image This picture shows the (+) LIGHT GREEN/BLACK wire, marked with the RED Clip, this wire is in a harness high-up in the Drivers Kick Panel in a WHITE Plug. Show Large Image This picture shows the LIGHT GREEN/RED, DOOR LOCK/UNLOCK wire, marked with the RED Clip in a harness going to a WHITE Plug, high-up in the Drivers Kick panel/underdash area of this vehicle, if you look at this picture, you can see that the wire and the pl
