PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
PINK/BLACK (+)
|

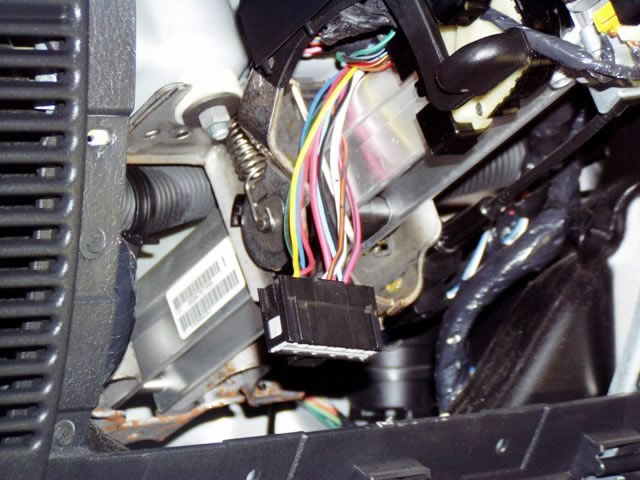

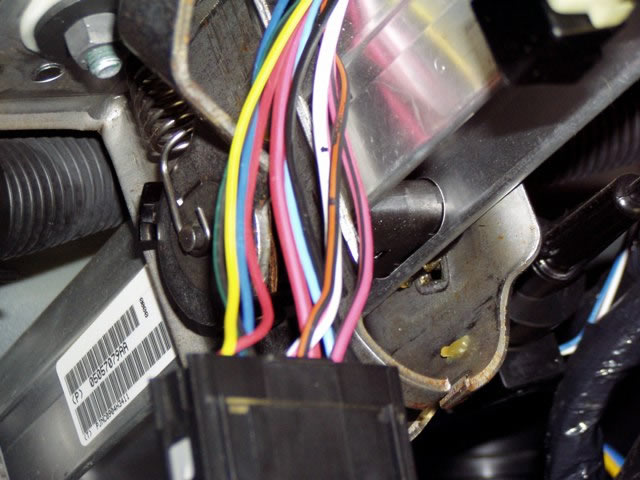

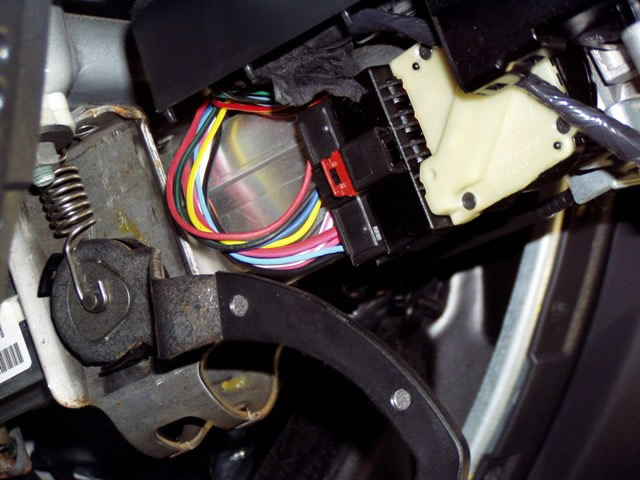

IGNITION SWITCH HARNESS
|
|
|
STARTER
|
YELLOW (+)
|
IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
DARK BLUE (+)
|
IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
BLACK/ORANGE (+)
|
IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
BLACK/YELLOW (+)
|
@ HEADLIGHT SWITCH
|
|
|
POWER LOCK
|
ADD ACTUATORS
|
TO BOTH DOORS, See DIAGRAM
|
14301_Wrangler_ACTUATOR DIAGRAM JBS UNITS.pdf
|
|
POWER UNLOCK
|
ADD ACTUATORS
|
TO BOTH DOORS, See DIAGRAM
|
14301_Wrangler_ACTUATOR DIAGRAM ALERT SHELBY UNITS.pdf
|
|
LOCK MOTOR WIRE
|
N/A
|
|
|
|
DOOR TRIGGER
|
TAN (-) and TAN/YELLOW(-) use both, See NOTE *1
|
IN DRIVERS KICK PANEL, GRAY 40 Pin Plug
|
14301_Wrangler_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
|
|
DOMELIGHT SUPERVISION
|
YELLOW (-), Requires Part #775 Relay
|
@ UNDER DASH LIGHT
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
RED/YELLOW (-)
|
@ STEERING COLUMN HARNESS
|
|
|
TACH
|
any wire NOT DARK GREEN/LIGHT GREEN or DARK GREEN/ORANGE
|
@ IGNITION COIL
|
|
|
WAIT TO START LIGHT
|
|
|
|
|
BRAKE
|
WHITE/TAN (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
N/A
|
|
|
|
ANTI-THEFT
|
CHRYSLER'S SENTRY KEY (GRAY KEY ONLY) A TRANSPONDER SYSTEM
|
TRANSPONDER @ IGNITION SWITCH TUMBLER
|
|
