PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+) and RED/BLACK (+)
|
IGNITION SWITCH HARNESS
|
|
|
STARTER
|
YELLOW (+)
|
IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
PINK (+)
|
IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
DARK GREEN (+)
|
IGNITION SWITCH HARNESS
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
ORANGE (+)
|
IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
WHITE (-)
|
@ BCM, GRAY plug, Pin B1, See NOTE *1
|
|
|
PARKING LIGHTS ( + )
|
BROWN (+)
|
@ BCM, LIGHT GRAY plug, pin B8, See NOTE *1
|
|
|
POWER LOCK
|
WHITE (1-Wire Door Lock System) See NOTE *2
|
@ BCM, LIGHT GRAY Plug, Pin A2, See NOTE *1
|
17044_ALERO_ALERO 1 WIRE JBS UNITS.pdf
|
|
POWER UNLOCK
|
Same wire, See DIAGRAM
|
See DAIGRAMS
|
6729_ALERO_ALERO 1 WIRE ALERT SHELBY UNITS.pdf
|
|
LOCK MOTOR WIRE
|
GRAY (+)
|
IN DRIVERS KICK PANEL
|
|
|
DOOR TRIGGER
|
See NOTE *3
|
|
17044_ALERO_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
|
|
DOMELIGHT SUPERVISION
|
GREEN/BLACK (-)
|
@ BCM, GRAY Plug, Pin B7, See NOTE *1
|
|
|
TRUNK RELEASE
|
BLACK (-)
|
@ BCM, LIGHT GRAY Plug, Pin A7, See NOTE *1
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
BLACK (-)
|
@ BCM, GRAY Plug, Pin A4, See NOTE *1
|
|
|
TACH
|
WHITE or PURPLE/WHITE
|
@ PCM, See NOTE *4
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
LIGHT BLUE (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
N/A
|
|
|
|
ANTI-THEFT
|
YELLOW (+) and BLACK (-) and WHITE (Not Used)
|
GM's PASSLOCK 2 System, wires are at the top of the Ignition Switch Tumbler
|
|
|
EXTRA INFORMATION
|
Show Large Image

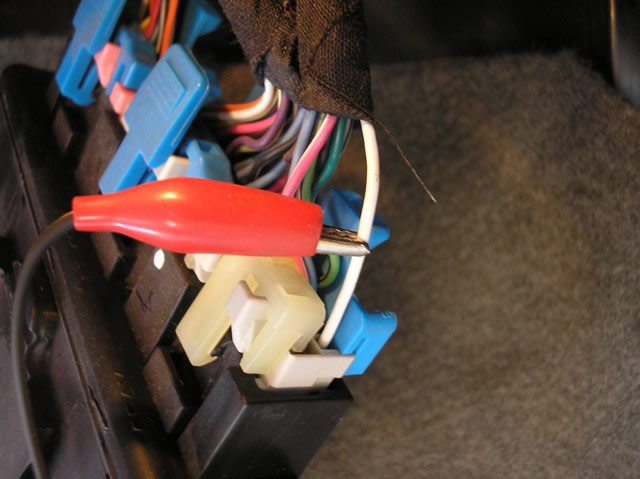

The (-) WHITE PARKING LIGHT wire, marked with the RED Clip in this picture is located in the Smaller of the (2) GRAY plugs on the BCM.
Show Large Image

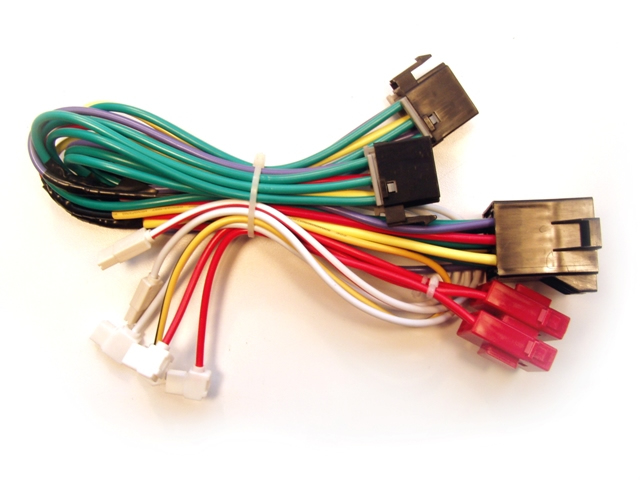

This is a picture of the GM-6 T-HARNESS, if you purchased a T-Harness for this vehicle, use this picture to make sure you recieved the correct harness.
Show Large Image

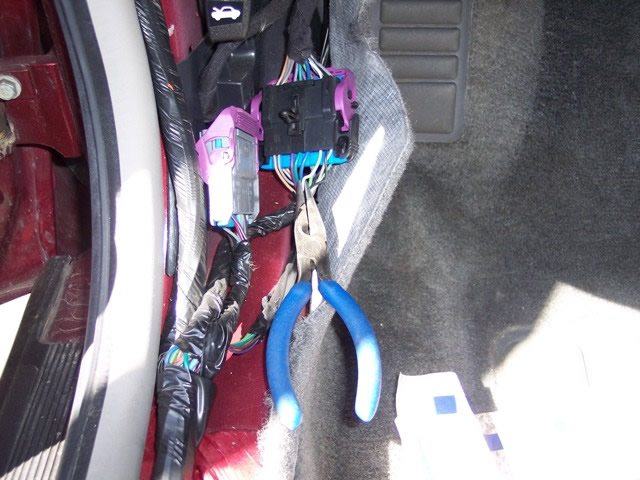

This picture shows the WHITE,1-Wire Door LOCK/UNLOCK wire located in the BLACK Multi-Pin Plug, located in the Drivers Kick Panel.
Show Large Image
By sliding the BCM out of it holder will let you gain access to the plugs on the unit a little better.
Show Large Image

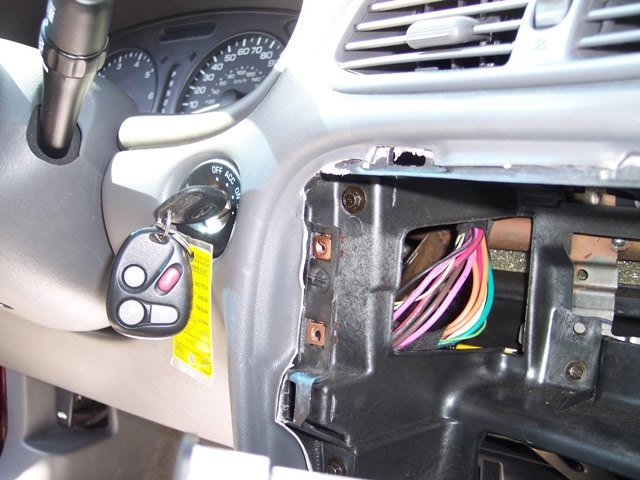

This picture shows the IGNITION SWITCH HARNESS wires in a cavity to the LEFT of the Radio with Radio removed, do not unplug the Radio, just let it hang outside of its mounting location. When NOT using a T-HARNESS, it is easier to catch these wire in this
Show Large Image
This picture shows the PASSLOCK 2 wires, the YELLOW, BLACK and WHITE wires (WHITE wire is not used) seperated from the rest of the IGNITION SWITCH wires, in the IGNITION SWITCH Harness. The YELLOW and the BLACK wires are used when connecting the 791 Bypas
Show Large Image

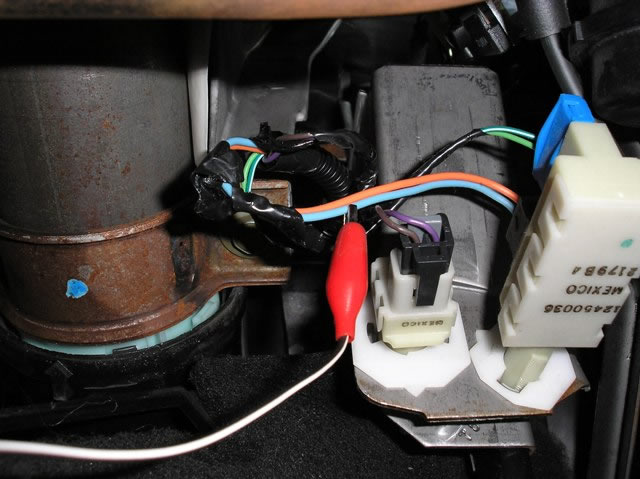

After removing the Brake Switch cover, you will be able to see the Brake Switch mounted to the Bracket above the Brake Pedal. The BRAKE SWITCH has (2) Plugs on it a BLUE and a GRAY, the (+) LIGHT BLUE BRAKE wire, marked with the RED Clip in this picture i
Show Large Image

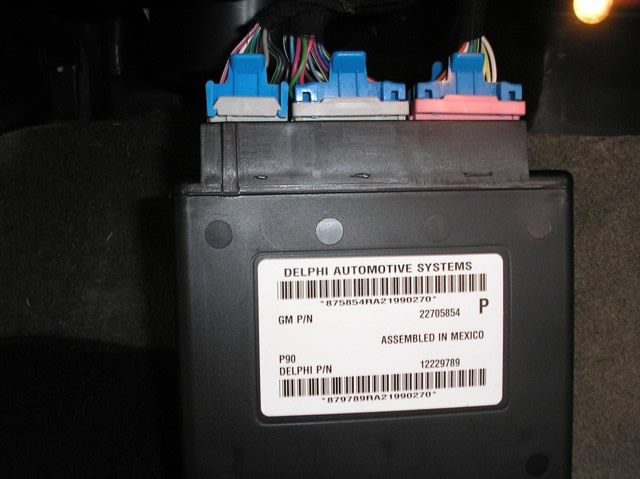

The BCM on this vehicle is held into place on this vehicle, under the Passenger dash, next to the Under Dash Light. It is just slid into place on a bracket. Slide it toward the Light will remove it from its holder.
Show Large Image

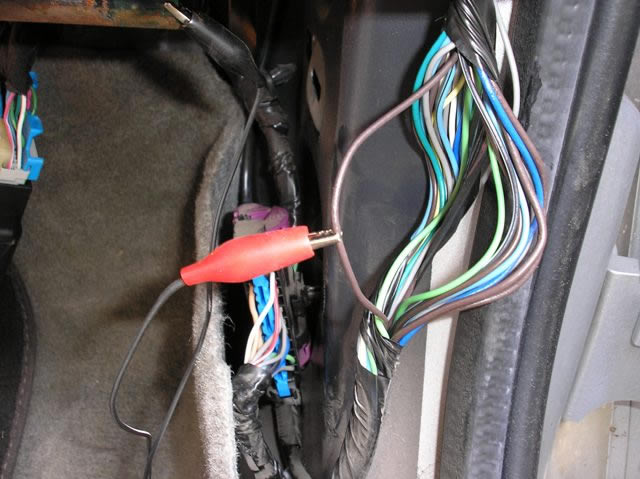

This picture shows the (+) BROWN PARKING LIGHT wire, marked with the RED Clip, in the Passenger Kick Panel at a harness heading to the Rear of the Vehicle.
Show Large Image

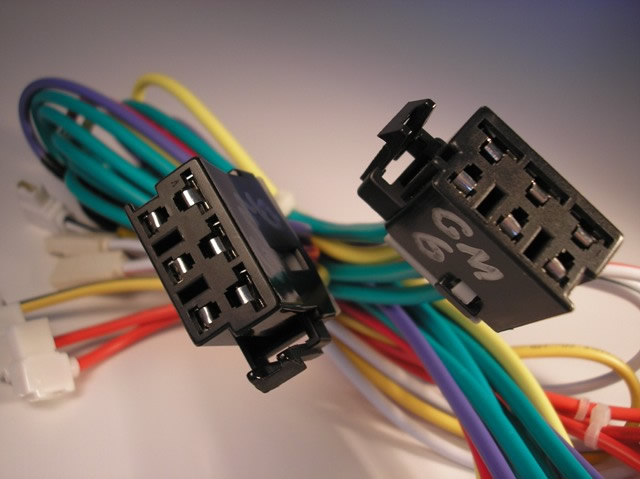

This is a picture of the GM-6 T-HARNESS Male End of this T-Harness, if you purchased a T-Harness for this vehicle, use this picture to make sure you recieved the correct harness. The Male End of this T-Harness plugs into the Back the Ignition Switch of th
Show Large Image

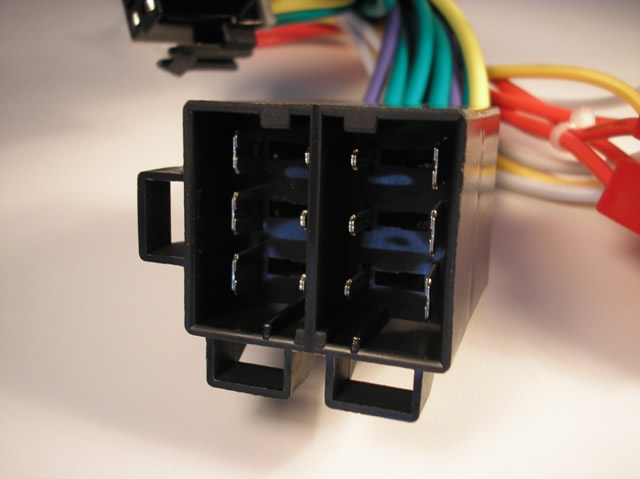

This is a picture of the GM-6 T-HARNESS Female End of this T-Harness, if you purchased a T-Harness for this vehicle, use this picture to make sure you recieved the correct harness. The Female End of this T-Harness plugs into the Ignition Switch Harness Pl
|
