PONTIAC SUNFIRE

MODEL	YEAR(S
SUNFIRE	2000-2003

KEY	T-HARNESS	IMMOBILIZER
N/A	GM-7	GM's PASSLOCK 2 ANTI-THEFT System, Requires 791 Bypass Module

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	RED (+)	IGNITON SWITCH HARNESS
STARTER	YELLOW (+)	IGNITION SWITCH HARNESS
STARTER 2	N/A
IGNITION 1	PINK (+)	IGNITION SWITCH HARNESS
IGNITION 2	N/A
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	ORANGE (+)	IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2	N/A
KEYSENSE	N/A
PARKING LIGHTS ( - )	N/A

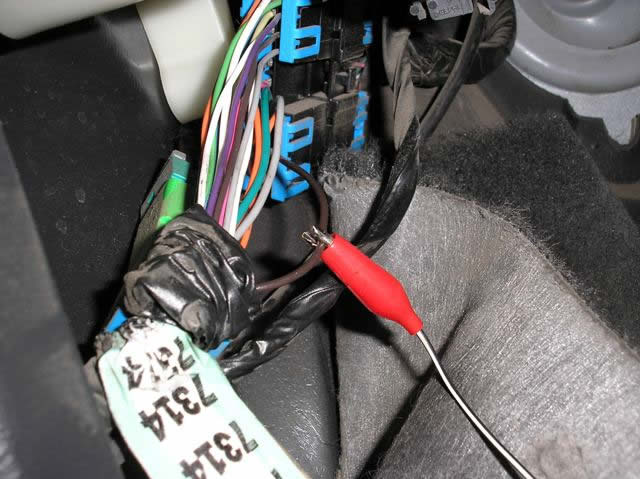

PARKING LIGHTS ( + )	BROWN (+)	IN DRIVERS KICK PANEL
POWER LOCK	LIGHT BLUE (TYPE C) See NOTE *1	IN EITHER KICK PANEL
POWER UNLOCK	WHITE (TYPE C) See NOTE *1	IN EITHER KICK PANEL
LOCK MOTOR WIRE	GRAY (+)	IN DRIVERS DOOR HARNESS
DOOR TRIGGER	See NOTE *2	IN DRIVERS KICK PANEL and PASSENGER KICK PANEL	14301_SUNFIRE_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION	GREEN/BLACK (-), Requires Part # 775 Relay	IN DRIVERS KICK PANEL

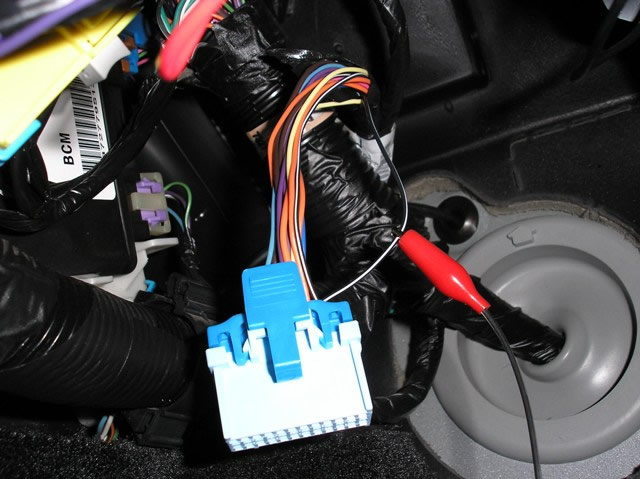

TRUNK RELEASE	BLACK/WHITE (+)	@ BCM, See NOTE *3
SLIDING POWER DOOR	N/A
HORN	BLACK (-)	@ STEERING COLUMN HARNESS
TACH	PURPLE/WHITE	IN MAIN ENGINE HARNESS
WAIT TO START LIGHT	N/A

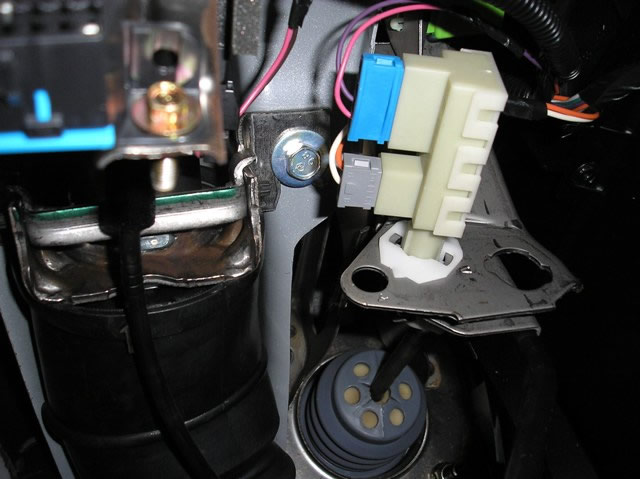

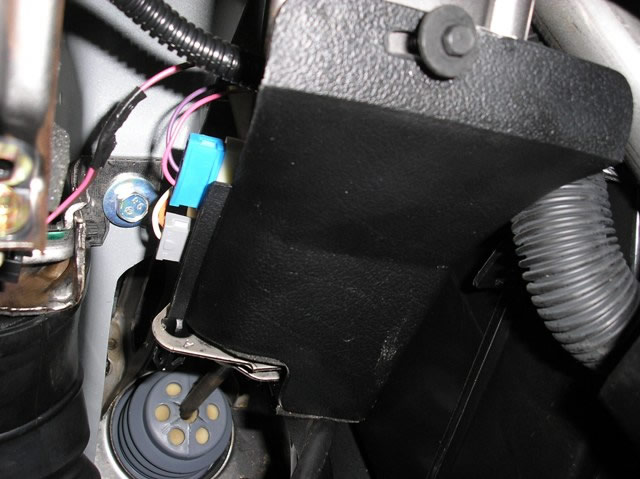

BRAKE	WHITE (+)	@ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM	N/A
ANTI-THEFT	YELLOW (+) and BLACK (-) and WHITE (Not Used)	GM's PASSLOCK 2 System, wires are under the Steering Column cover, at the Bottom of the Ignition Switch Tumbler in a BLACK or DARK GRAY Plug

NOTES

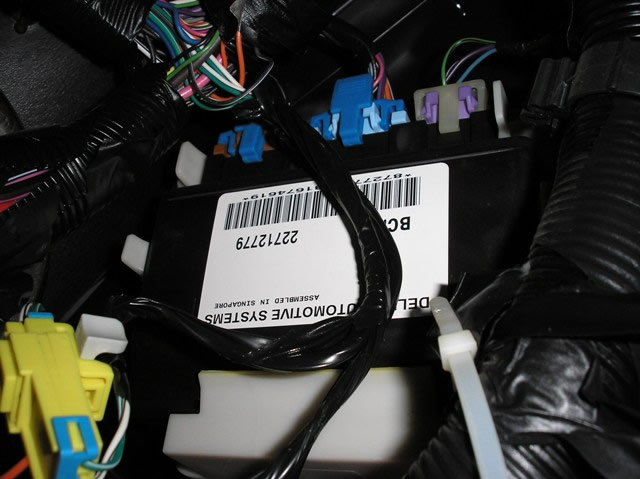

NOTE *1 if vehicle is WITHOUT Factory Keyless entry it is a TYPE C Door Locking system and MUST be tested from the PASSENGER SWITCH, if vehicle has Factory keyless Entry it is a TYPE A Door Locking System. NOTE *2 this vehicle has a GREEN/BLACK (-) for the DRIVERS DOOR in the drivers kick panel and a LIGHT BLUE (-) for the PASSENGER DOOR(S) in the passenger kick panel. When connecting to an Alarm system, use both wires and DIODE ISOLATE. See DIAGRAM NOTE *3 the BCM is located to the LEFT of the STEERING COLUMN, above the DRIVERS KICK PANEL

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

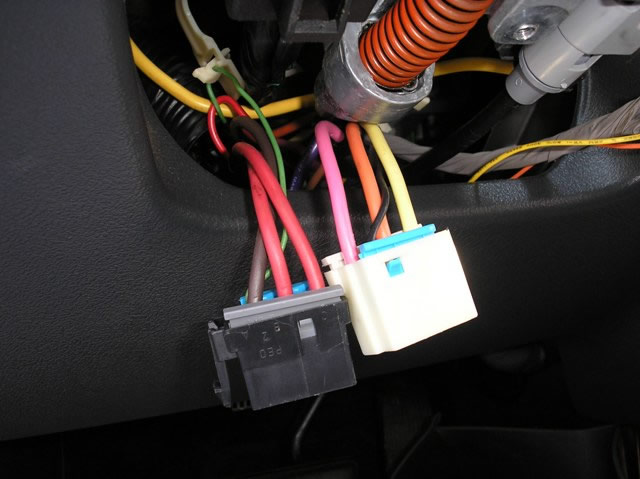

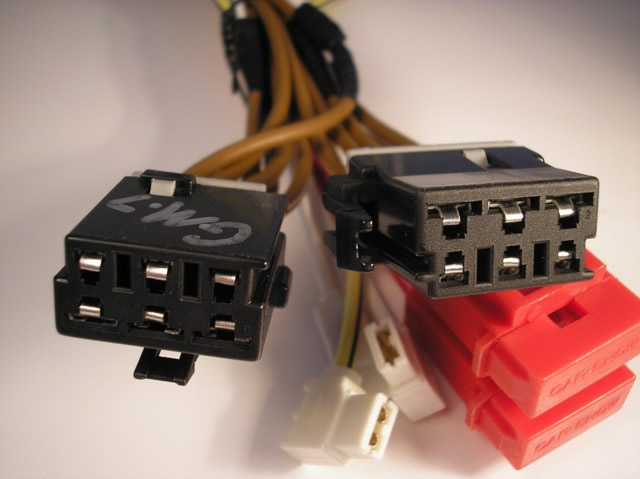

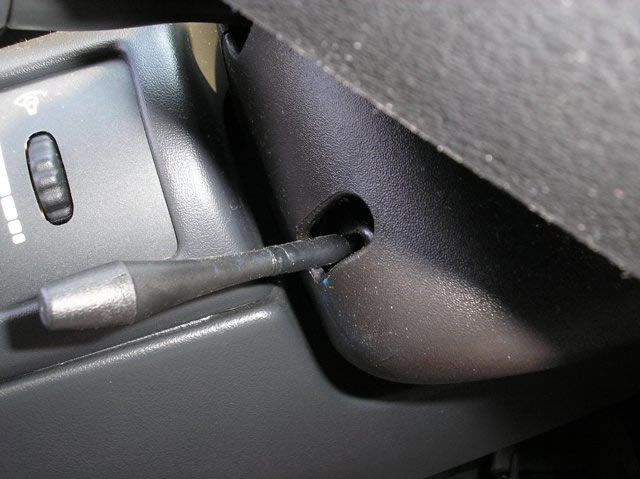

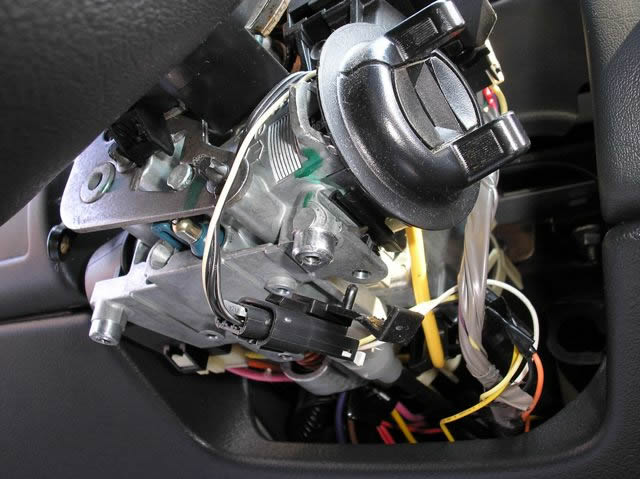

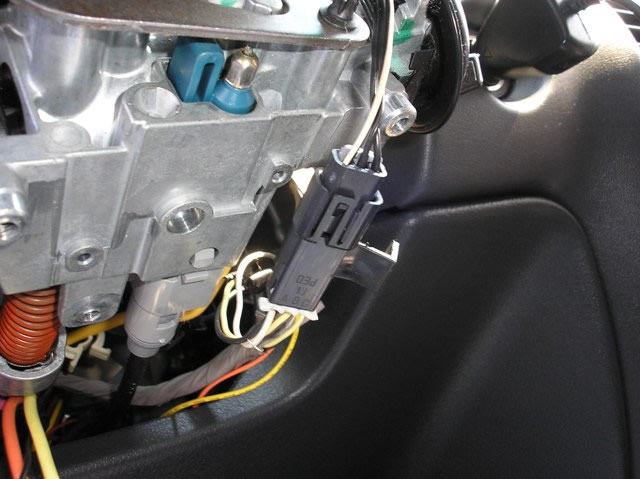

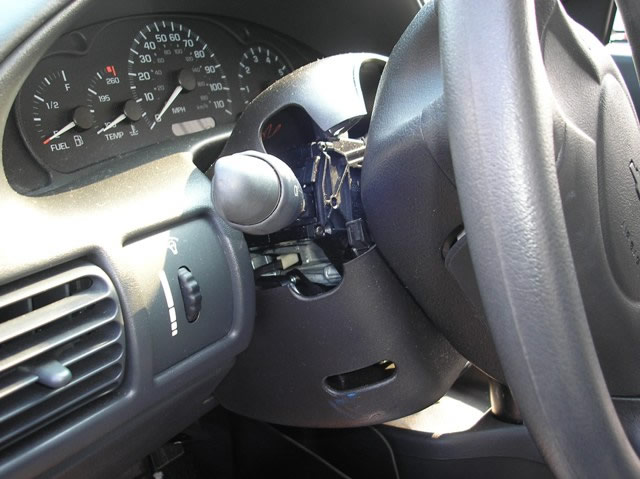

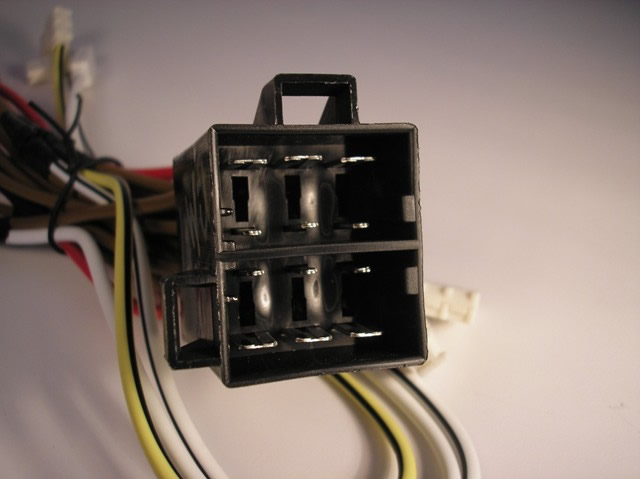

Show Large Image This shows the PASSLOCK 2 wires (YELLOW, BLACK and WHITE) in the DARK GRAY or BLACK Plug at the bottom of the Steering Column. Show Large Image To open up the STEERING COLUMN Covers on this vehicle to get to the IGNITION SWITCH HARNESS wiring, you must first remove this TILT WHEEL LEVER, it is removed by unscrewing it from the column. If you look at this Lever on the steel shaft it has a flat sec Show Large Image With the Tilt Wheel Lever removed, you can remove the Screws from the LOWER Steering Column Cover and then seperate the UPPER and LOWER Covers to remove. Show Large Image This shows the IGNITION SWITCH Plug on the LEFT side of the Steering Column. At this Plug you will see a WHITE PLUG in the Bottom and a BLACK PLUG on the LEFT hand side of the plug. Pressing in on the release tabs on each plug, will release the IGNITION H Show Large Image This shows both of the IGNITION SWITCH HARNESS PLUGS, the WHITE PLUG and the BLACK PLUG, these plugs contain all of the needed IGNITION wires. If you are installing a T-HARNESS these will be the plugs the T-HARNESS Part #GM-7 plugs into. Show Large Image This is another view of the PASSLOCK 2 wires, the YELLOW (+) or 1 to 6 Volts DC on a Volt/Ohm Meter, BLACK (-) and WHITE (WHITE wire is NOT USED!!. These wires are shown as they exit the IGNITION SWITCH TUMBER, go to a Plug and then change colors before t Show Large Image To gain access to the BRAKE SWITCH and BRAKE wire, you will need to remove this BLACK cover held in place by (1) 7mm bolt seen in this picture that covers the Brake Switch. Show Large Image With the BRAKE SWITCH Cover removed, you can now see the BRAKE SWITCH and the BRAKE SWITCH Plugs, the (+) WHITE BRAKE wire is in the GRAY Plug in this picture. Show Large Image The BCM is located high-up in the Drivers Kick Panel and under Dash area. This Picture shows the BCM and it plugs. Show Large Image This shows the (+) BLACK/WHITE TRUNK RELEASE wire in the BLUE BCM Plug removed from the BCM for IDENTIFICATION in this picture. Show Large Image The (+) BROWN PARKING LIGHT wire marked with the RED Clip is located in the Drivers Kick Panel, in a large harness, BLACK Plug, as seen in this picture. Show Large Image This is a picture of the GM-7 T-HARNESS, if you purchased a T-Harness for this vehicle, use this picture to make sure you recieved the correct harness. Show Large Image This is a picture of the GM-7 T-HARNESS Male End of this T-Harness, if you purchased a T-Harness for this vehicle, use this picture to make sure you recieved the correct harness. The Male End of this T-Harness plugs into the Back of the Ignition Switch of Show Large Image This is a picture of the GM-7 T-HARNESS Female End of this T-Harness, if you purchased a T-Harness for this vehicle, use this picture to make sure you recieved the correct harness. The Female End of this T-Harness plugs into the Ignition Haress that you u
