PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+) x2
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
PINK (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
DARK GREEN (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
ORANGE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
BROWN (+)
|
@ BCM, LIGHT GRAY Plug, Pin B8, See NOTE #1
|
|
|
POWER LOCK
|
WHITE (1-Wire System) See NOTE #2
|
@ BCM, LIGHT GRAY Plug, Pin A2, See NOTE #1
|
14052_GRAND-AM_GRAND AM 1 WIRE JBS UNITS.pdf
|
|
POWER UNLOCK
|
Same wire, See DIAGRAM
|
See DAIGRAMS
|
14052_GRAND-AM_GRAND AM 1 WIRE ALERT SHELBY UNITS.pdf
|
|
LOCK MOTOR WIRE
|
GRAY (+)
|
IN DRIVERS DOOR HARNESS
|
|
|
DOOR TRIGGER
|
See NOTE #3
|
|
14301_GRAND-AM_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
|
|
DOMELIGHT SUPERVISION
|
WHITE (-)
|
@ BCM, PINK Plug, Pin A 11, See NOTE #1
|
|
|
TRUNK RELEASE
|
BLACK (-)
|
@ BCM, LIGHT GRAY Plug, Pin A7, See NOTE *1
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
BLACK (-)
|
@ BCM, See NOTE #5
|
|
|
TACH
|
PURPLE/WHITE or WHITE (AC)
|
See NOTE #4
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
WHITE (+)
|
@ SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
N/A
|
|
|
|
ANTI-THEFT
|
YELLOW (+) and BLACK (-) and WHITE (Not Used)
|
GM's PASSLOCK 2 System, wires are at the top of the Ignition Switch Tumbler
|
|
|
NOTES
|
NOTE #1: the BCM (Body Control Module) is located between the BLOWER MOTOR and the PASSENGER KICK PANEL, under the GLOVE BOX, it has 3 Plugs, 2 GRAY and 1 PINK.
NOTE #2: this vehicle uses a 1-Wire DOOR LOCKING SYSTEM, that requires a (-)Negative thru a 1500 Ohm Resistor to UNLOCK and a straight (-)Negative to LOCK, some units will also require (2) extra relays Part #775, to connect, See DIAGRAM.
NOTE #3: the LIGHT GREEN/BLACK (-) is for the DRIVERS DOOR this wire is located at the BCM, GREY Plug Pin B7. The PASSENGER DOOR (and Rear doors if 4-door) wire is a LIGHT BLUE (-) is located at the BCM, LIGHT GREY Plug, Pin B10 when connecting to an ALARM SYSTEM, use both DOOR TRIGGER wires and DIODE ISOLATE, to connect, See DIAGRAM.
NOTE #4: the TACH wire is a WHITE wire at the PCM (Powertrian Control Module) on the 2.2L engine, in a BLACK Plug, Pin 19. On the 3.4L engine, it is a PURPLE/WHITE at the BLUE Plug, Pin 8, at the PCM.
NOTE #5: the BLACK (-) Horn Honk wire is in the Smaller of the 2 GRAY plugs at the BCM.
|
|
EXTRA INFORMATION
|
Show Large Image

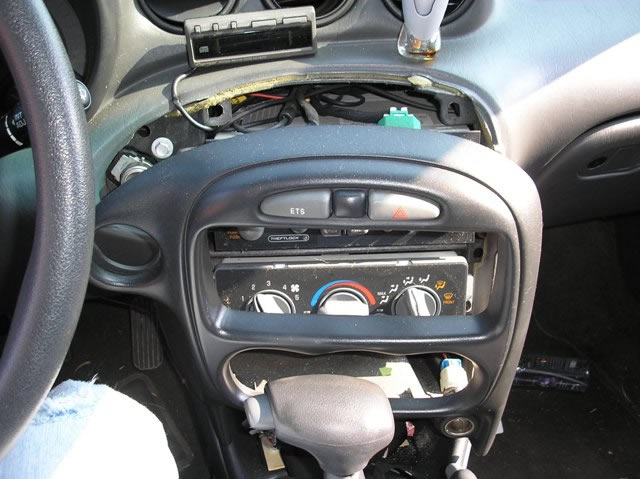

This shows the Radio Bezel loosened from the dash, this bezel is just held in place by snaps on the back of the bezel and removes quite easy.
Show Large Image

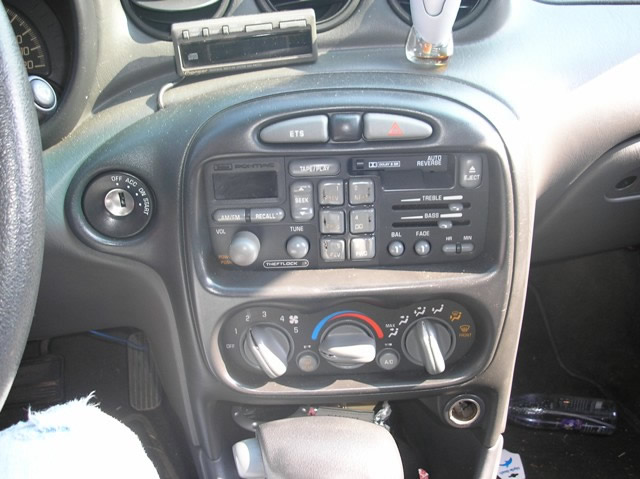

This shows the RADIO BEZEL around the IGNITION SWITCH that will need to be removed to get to the Ignition Switch Harness on this vehicle, this Radio bezel is held on with clips and will just pull off.
Show Large Image

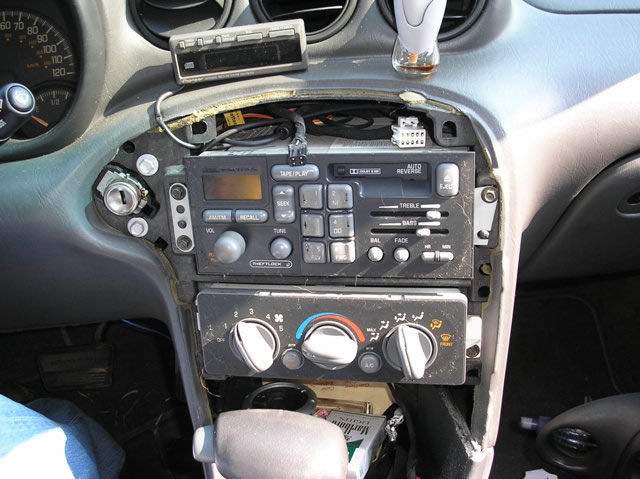

With the bezel removed, you can now remove the Radio that is held in place with (3) 7mm screws on the front of the Radio, DO NOT UNPLUG the Radio, just move it aside.
Show Large Image

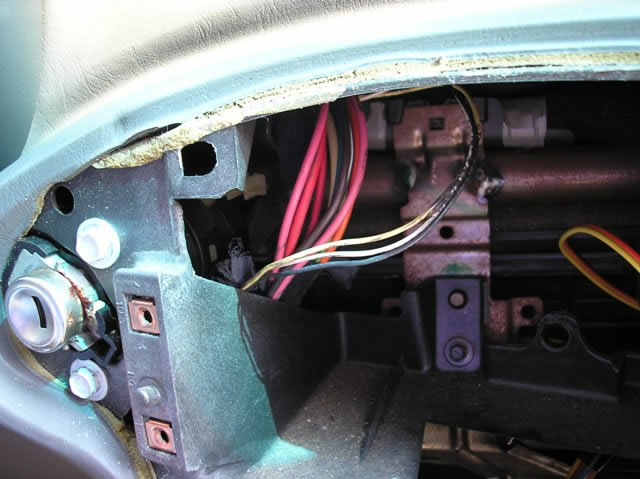

This shows the IGNITION SWITCH HARNESS wires at the back of the IGNITION SWITCH with the BLACK FRICTION Tape removed to expose the wire for IDENTIFICATION in this picture. If you cannot get to the IGNITION SWITCH wires, you can loosen the (2) 10mm Bolts h
Show Large Image

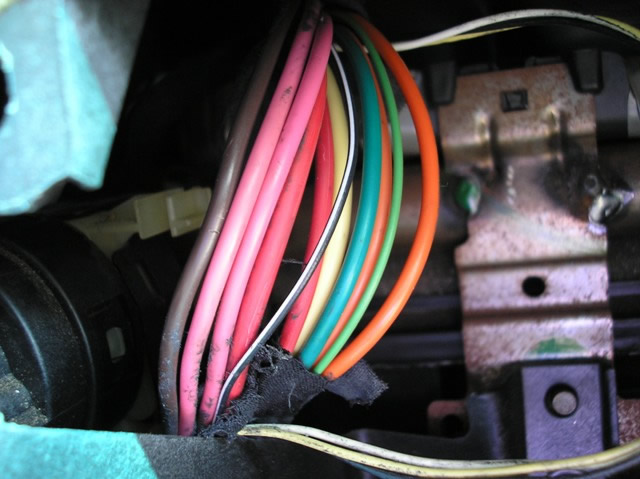

This is a close-up view of the IGNITION SWITCH wires in the harness behind the Ignition Switch of this vehicle.
Show Large Image

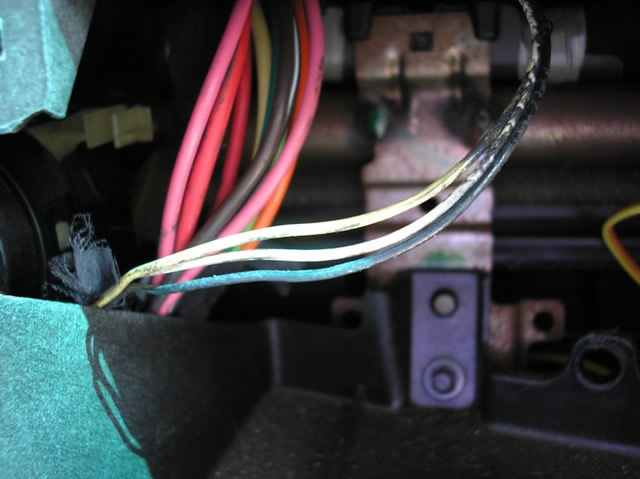

This picture shows the PASSLOCK 2 Anti-Theft wires: the YELLOW (+) or the wire that shows 1 to 6 Volts DC with a Volt/Ohm Meter, BLACK (-) and WHITE wire, (WHITE wire is NOT USED!!) again these wires are wrapped by themselves in BLACK FRICTION tape in a h
Show Large Image

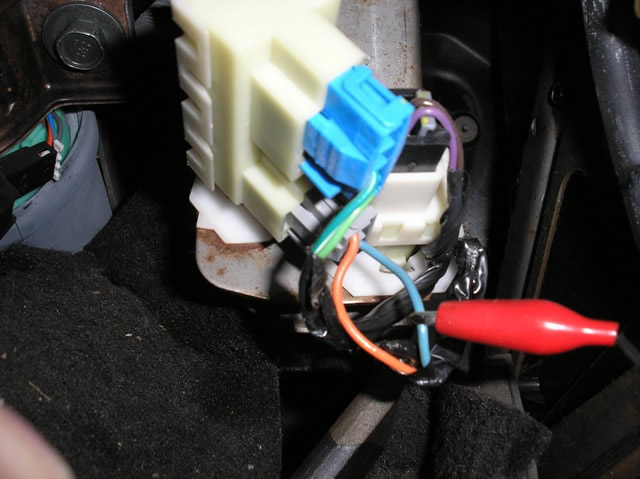

This picture shows the (+) LIGHT BLUE BRAKE SWITCH wire, marked with the RED Clip, located at the Brake Switch above the Brake Pedal under the dash.
Show Large Image

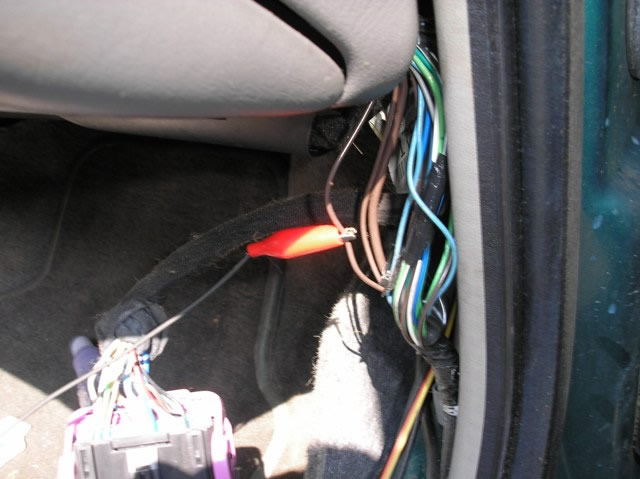

This picture shows the (+) BROWN PARKING LIGHT wire, marked with the RED Clip, that is located in a harness in the PASSENGER KICK PANEL.
Show Large Image

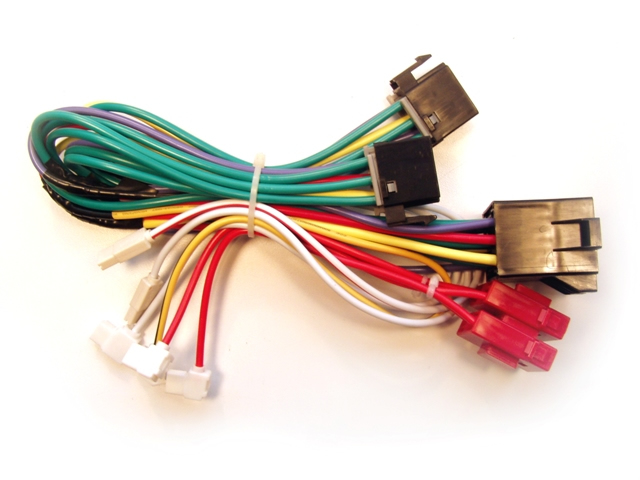

This is a picture of the GM-6 T-HARNESS, if you purchased a T-Harness for this vehicle, use this picture to make sure you recieved the correct harness.
Show Large Image
This is a picture of the GM-6 T-HARNESS Male End of this T-Harness, if you purchased a T-Harness for this vehicle, use this picture to make sure you recieved the correct harness. The Male End of this T-Harness plugs into the Back the Ignition Switch of th
Show Large Image
This is a picture of the GM-6 T-HARNESS Female End of this T-Harness, if you purchased a T-Harness for this vehicle, use this picture to make sure you recieved the correct harness. The Female End of this T-Harness plugs into the Ignition Switch Harness Pl
|
